Explore Winmate OSDB-5K, an industrial display featuring 5 Keys OSD box with a circuit board, With color black for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate OSDB-5K, an industrial display featuring 5 Keys OSD box with a circuit board, With color black for industrial visualization and control rooms.

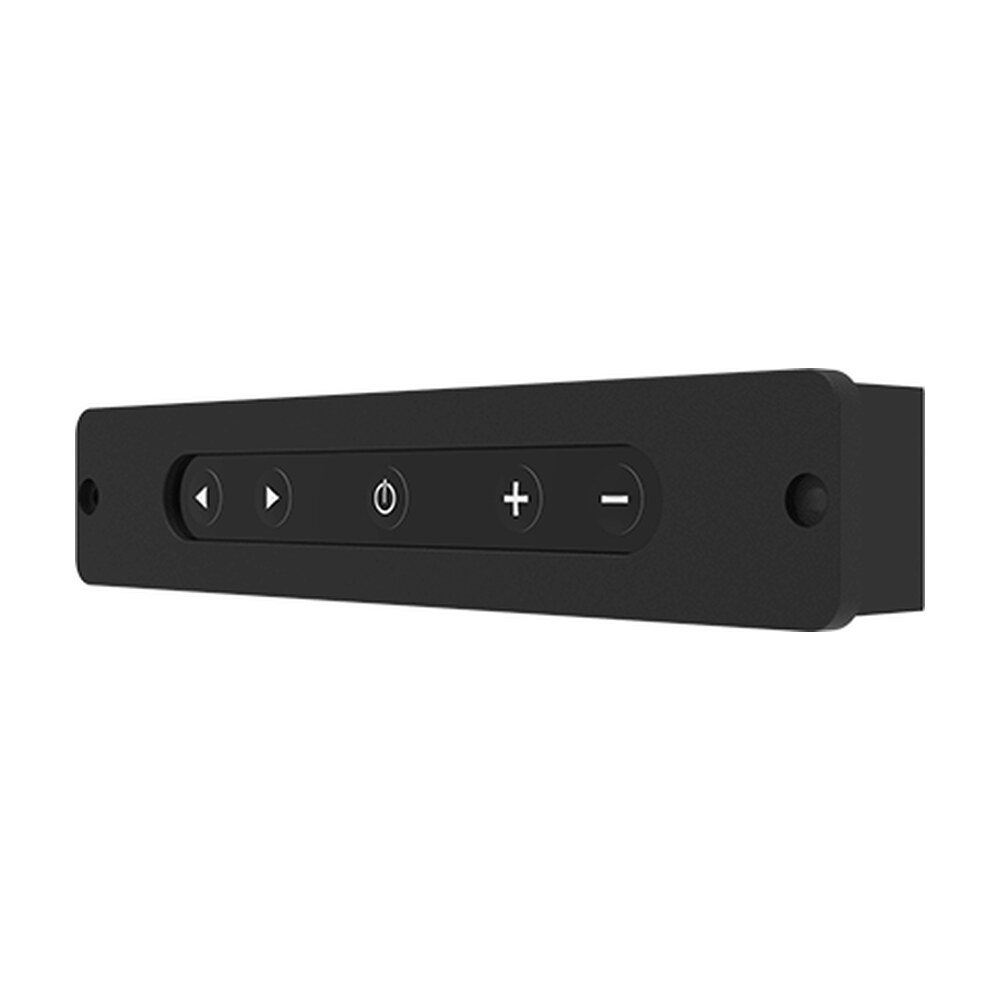

Transform the way industrial displays are managed with the Winmate OSD Box. Moving from integrated On-Screen Display (OSD) controls to an external box design, it provides a more practical and ergonomic solution for adjusting display settings remotely. This innovation enhances usability, particularly in environments where direct access to displays is limited.
Winmate OSD Box utilizes a reliable DSUB interface, enabling easy and secure connections between the display and the controller. This plug-and-play design ensures hassle-free setup, reducing installation time while maintaining a stable and efficient communication link.
Engineered for industrial versatility, the OSD Box features panel mounting capabilities, making it easy to integrate into existing systems or custom enclosures. This ensures compatibility with various industrial setups, providing a streamlined solution for diverse applications.
| IO Ports | |
|---|---|

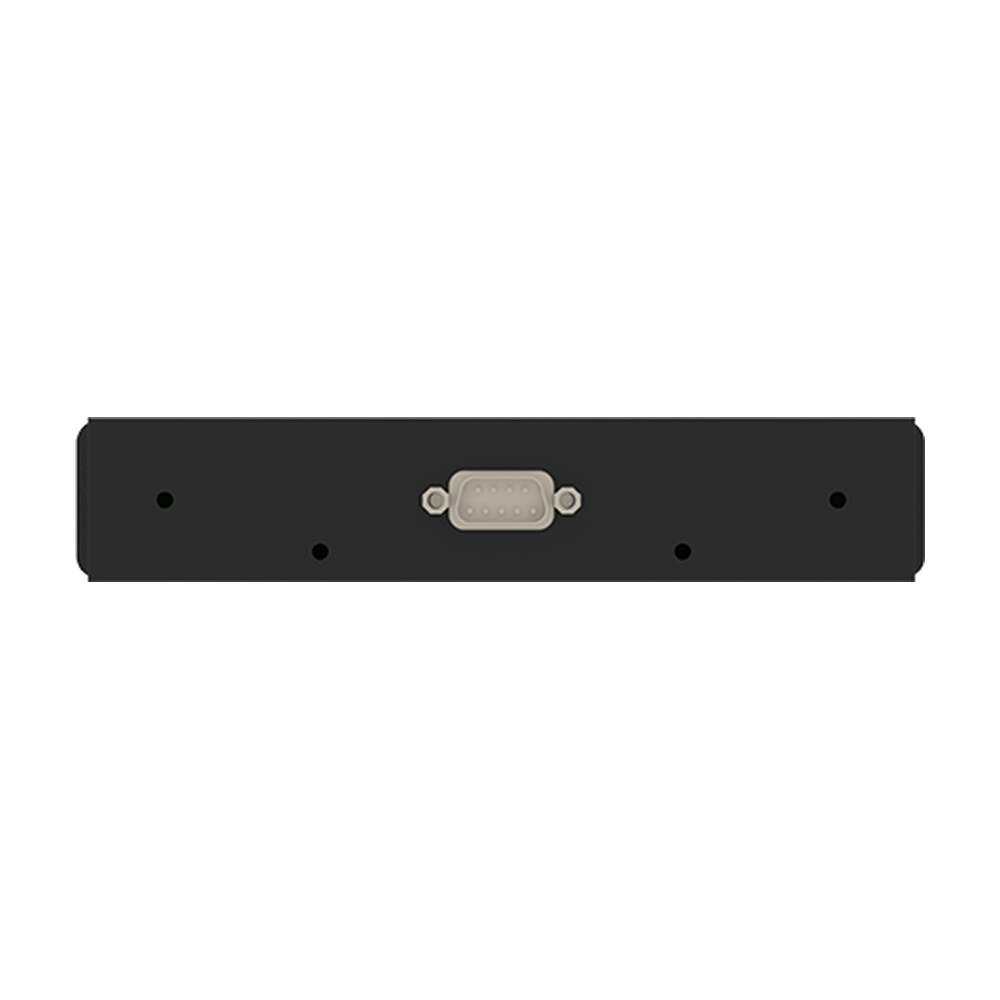

| OSD board control | 1 x D-sub connector(9pin) |
| Mechanical | |
| Dimension | 180 x 34 x 35 mm |
| Mounting | Panel mount |
| Enclosure | SECC 5.0T |
| Control | |

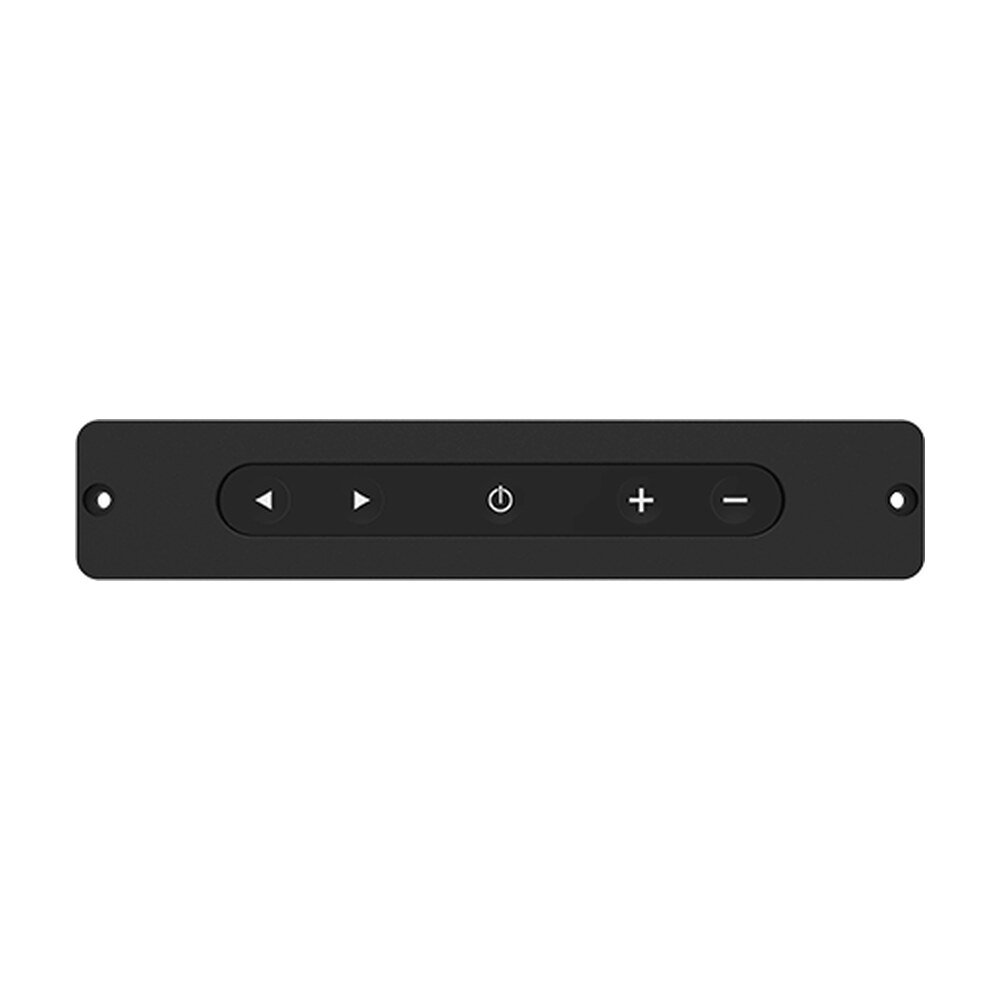

| Button | 5 Keys: - , + , Power , right, left |
| Accessory | |
| Accessory | 1 x OSD cable (1.8M) |
| Optional Accessory | 1 x OSD cable (5M) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | OSDB-5K |
| Series | OSD Box Series |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | OSDB-5K |
|---|---|
| Category | Industrial Display, OSD Box, Winmate |
| OSD board control | 1 x D-sub connector(9pin) |
| Dimension | 180 x 34 x 35 mm |
| Mounting | Panel mount |
| Enclosure | SECC 5.0T |
| Button | 5 Keys: - , + , Power , right, left |
| Accessory | 1 x OSD cable (1.8M) |
| Optional Accessory | 1 x OSD cable (5M) |
| Brand | Winmate |
| Manufacturer part number | OSDB-5K |
| Series | OSD Box Series |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
