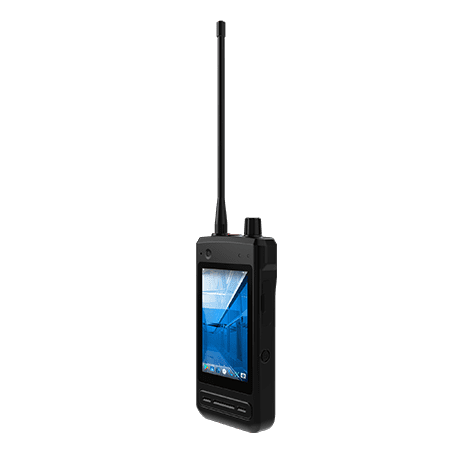

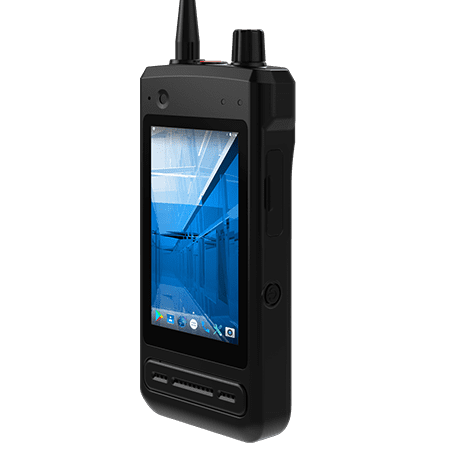

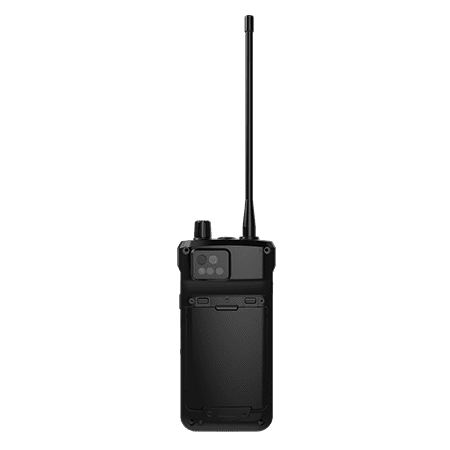

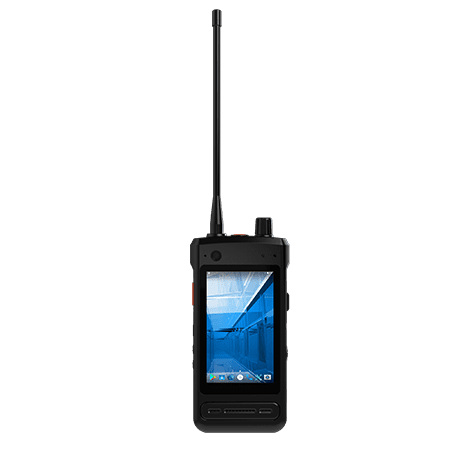

Explore Winmate P400M9-DMRBH, an industrial computer solution featuring 4-inch display with 800x480 resolution for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate P400M9-DMRBH, an industrial computer solution featuring 4-inch display with 800x480 resolution for industrial automation and embedded systems.
Built around the Android platform, Winmate PoC Solutions gives the best of a modern mobile phone, including an intuitive and familiar interface. Access to all your favorite utilities and the ability to make mobile calls also browse the web. The P400M9-DMRBH also incorporates all the essential features you would expect from a PoC radio, including dedicated PTT and emergency buttons, a talkgroup rocker switch, and long battery life.
This 4 inch color LCD shows with great clarity the main information of your radio status, such as battery indication, signal quality, time, groups, and so on. The 800 x 480 panel comes with direct optical bonding to enhance the user experience of reading the screen with ease and comfort.
P400M9-DMRBH fits a wide variety of networks. The user is no longer limited to a specific mobile operator, delivering more flexibility and convenience for use in any harsh environment. A higher data transfer rate and reduced latency thus enable the user to communicate with unprecedented speed and efficiency.
The P400M9-DMRBH is IP65 and MIL-STD-810G certified. It is waterproof, dustproof, and drop-proof. With powerful battery gives P400M9-DMRBH a long-lasting standby time.
| Display | |
|---|---|
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Radio Transceiver | |
| Channel Spacing | DMR: 12.5kHz, Analog: 12.5/25kHz |
| TX Power | 4W/0.5W |
| RX Sensitivity | ≤-121dBm |
| Digital Vocoder Type | AMBE |
| Frequency Range | VHF：136~174MHz or UHF：400~480 MHz |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 370g |
| IO Ports | |
| USB Port | 1 x USB Type C OTG, (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 1 x Speaker, |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Power | |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter, Battery |
| Optional Accessory | USB Type-C Cable, Micro SD Card, Charging Dock 2 bay, Charging Dock 6 bay |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | P400M9-DMRBH |
| Series | P400 Handheld Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | P400M9-DMRBH |
|---|---|
| Category | Enterprise Mobility, Handheld Computers, Winmate |
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Channel Spacing | DMR: 12.5kHz, Analog: 12.5/25kHz |
| TX Power | 4W/0.5W |
| RX Sensitivity | ≤-121dBm |
| Digital Vocoder Type | AMBE |
| Frequency Range | VHF: 136~174MHz or UHF: 400~480 MHz |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 370g |
| USB Port | 1 x USB Type C OTG, (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 1 x Speaker, |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | Universal Adapter, Battery |
| Optional Accessory | USB Type-C Cable, Micro SD Card, Charging Dock 2 bay, Charging Dock 6 bay |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | P400M9-DMRBH |
| Series | P400 Handheld Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
