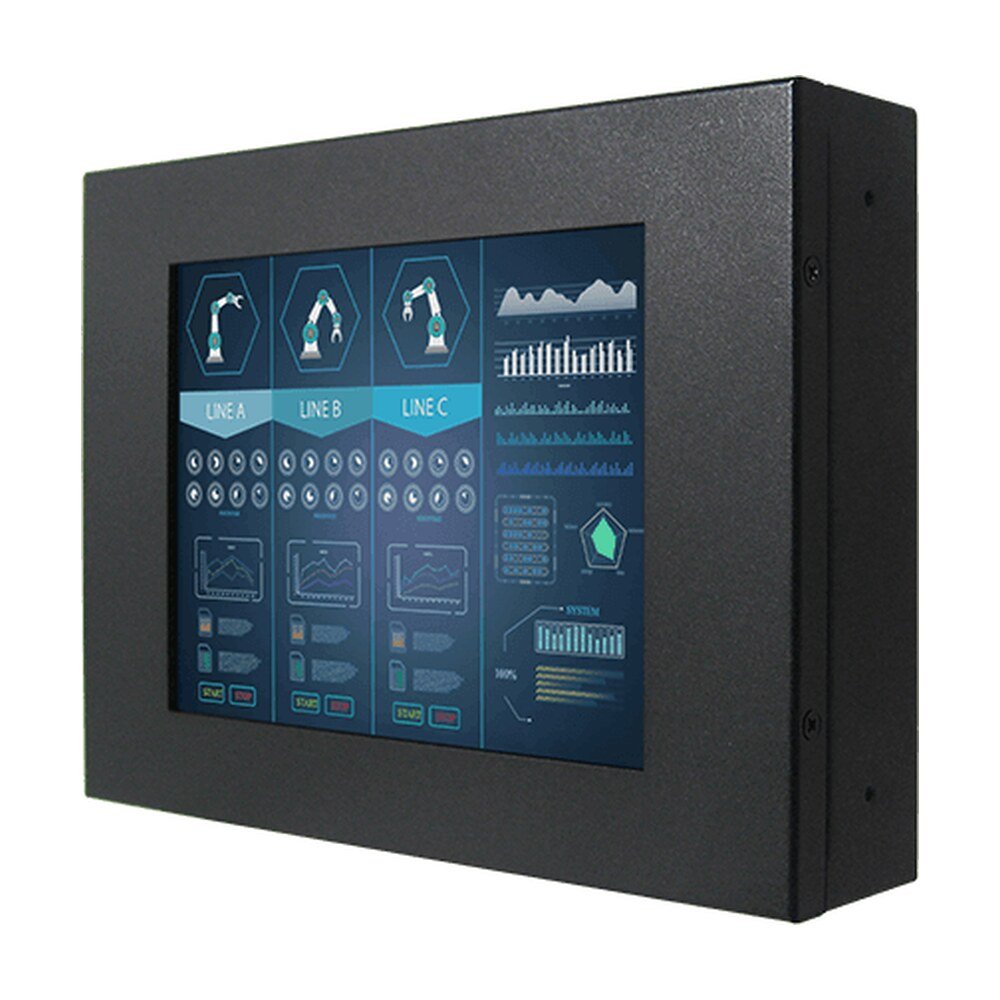

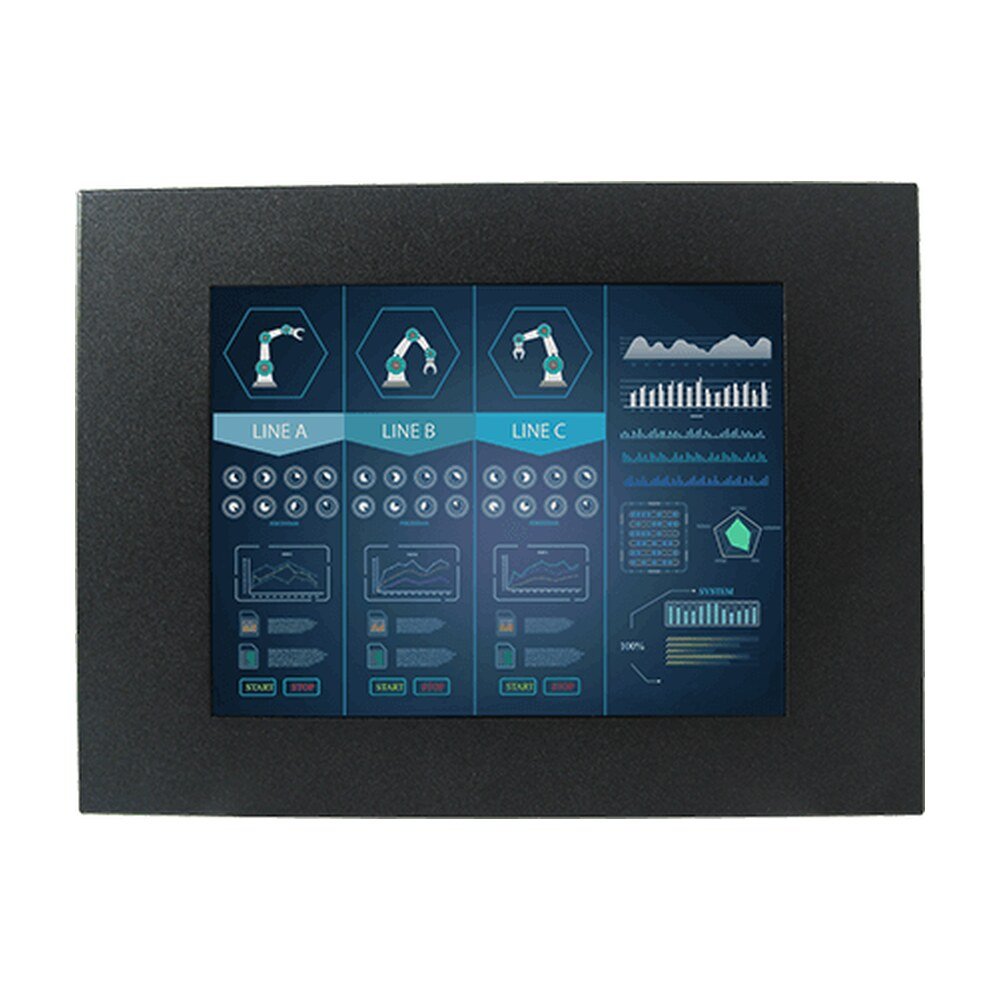

Explore Winmate R06L200-CHA1OD, a chassis display featuring 6.5-inch display for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R06L200-CHA1OD, a chassis display featuring 6.5-inch display for industrial visualization and control rooms.
Winmate industrial outdoor display series support universal wall and flat surface mounting options. Enable easy installation and use in various industries according to your specific requirements.
Winmate outdoor display product family boosts sunlight-readable and high brightness solutions to enhance users’ readability even under direct sunlight in outdoor environments and support 24/7 visual operation.
With the optional heater, Winmate outdoor displays support a wide range of temperatures. Also, the optional UV Film for added solar radiation protection on the panel makes the touchscreen suitable for various industrial and commercial applications.
| Display | |
|---|---|
| Size | 6.5 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 600:1 |
| View Angles | 80,80,70,70 |
| Display Color | 16.2M Colors |
| Active Area | 132.48x99.36 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 200 x 149 x 45 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R06L200-CHA1OD |
| Series | Chassis Display (Resistive Touch) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R06L200-CHA1OD |
|---|---|
| Category | Industrial Display, Outdoor Display, Winmate |
| Size | 6.5 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 600:1 |
| View Angles | 80,80,70,70 |
| Display Color | 16.2M Colors |
| Active Area | 132.48x99.36 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 200 x 149 x 45 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R06L200-CHA1OD |
| Series | Chassis Display (Resistive Touch) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
