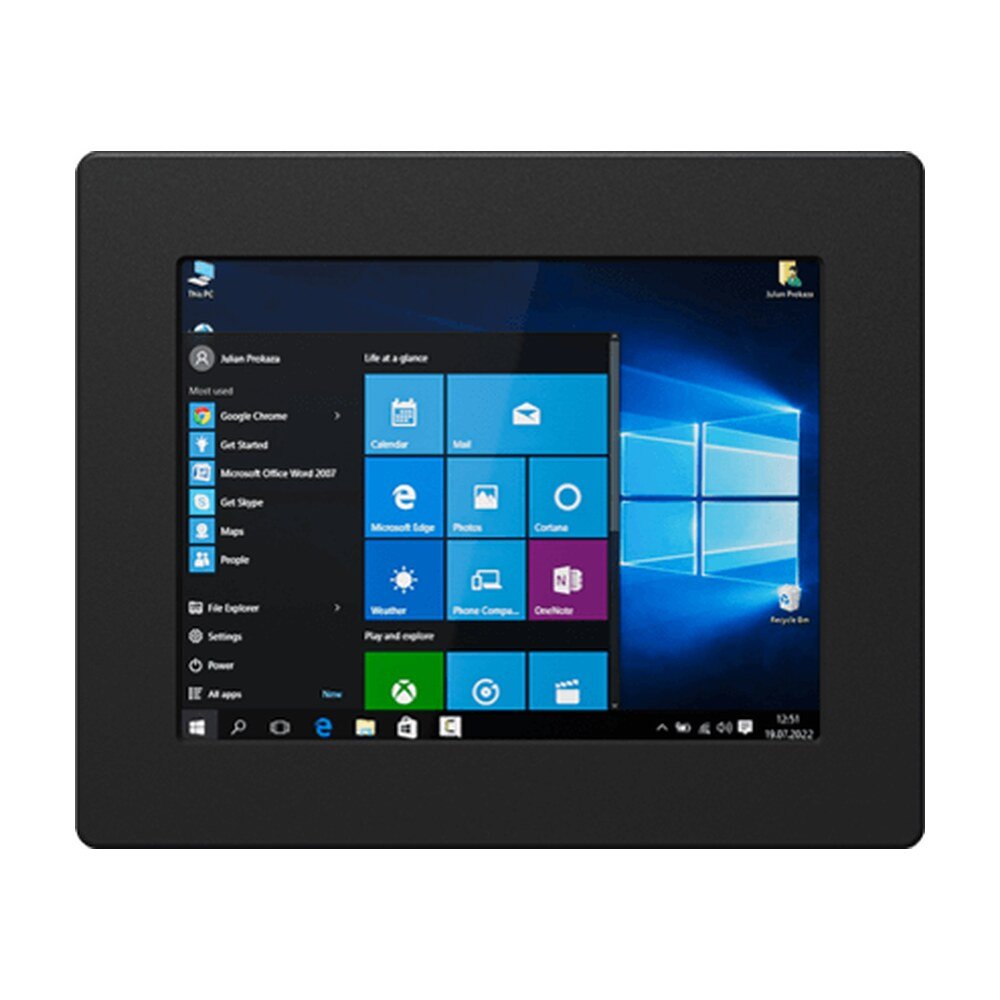

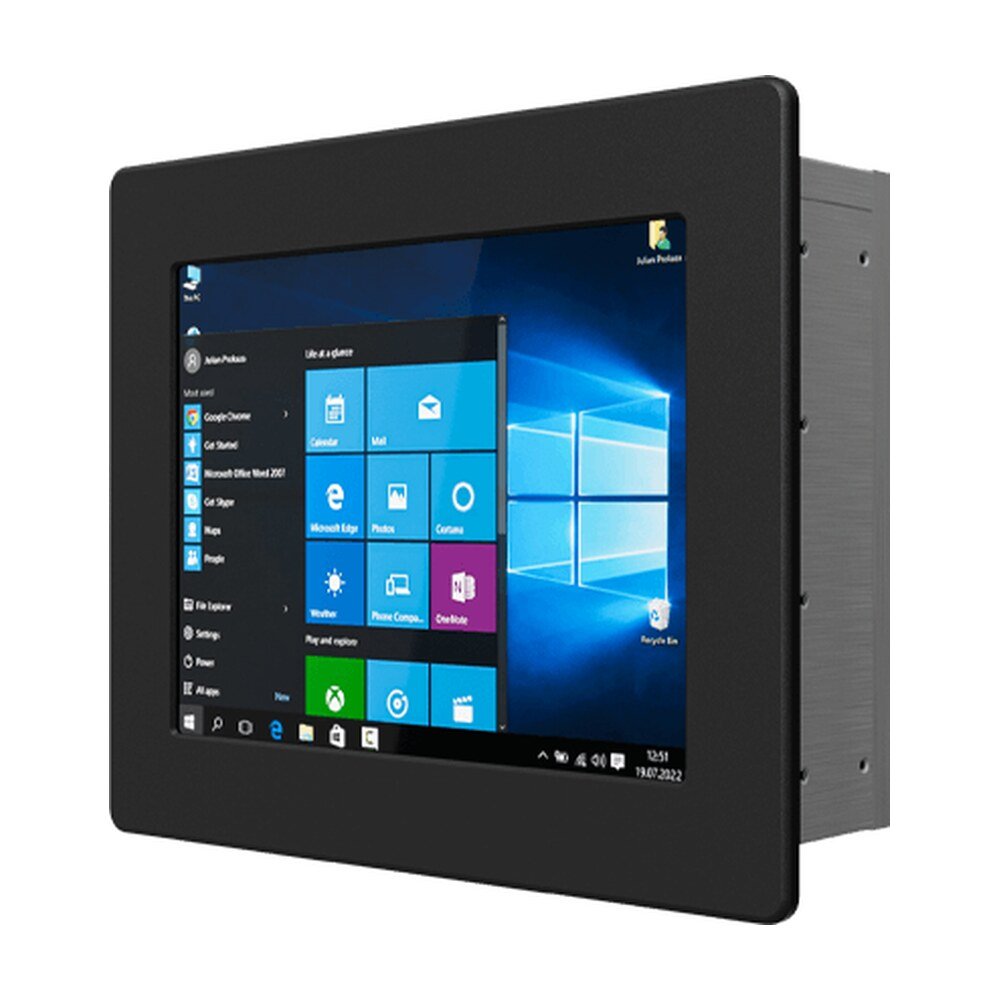

Explore Winmate R10IAD3S-IPT2, an industrial panel PC featuring Intel® Core™ i5-1235U, 10.4-inch display with 1024x768 resolution…
Winmate's Front IP65 Series Panel PC, designed for wet and dusty applications, is crafted to withstand challenging environments. With robust water and dust resistance, it maintains a sleek and space-saving design, making it perfect for deployment in wet environments like factory automation, outdoor kiosks, swimming pool and more.
To enhance operator convenience in industrial settings, Winmate's Front IP65 Panel PC provides adaptable surface options. These include cover glass and a resistive touch screen to accommodate various specifications.
The Front IP65 Series Panel PC facilitates seamless integration with all embedded boards and systems through its VGA and HDMI signal interfaces. These user-friendly interfaces are compatible with a wide range of industrial and commercial applications.

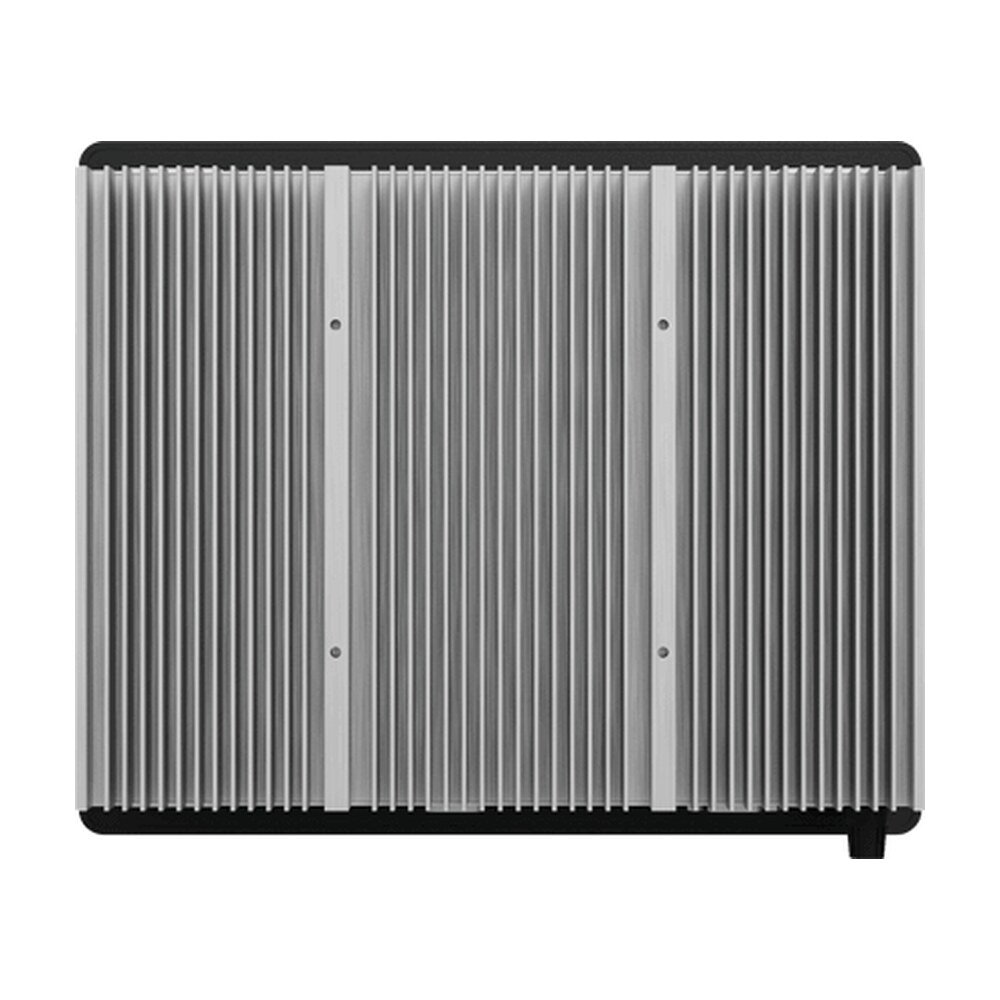

The Front IP65 Series Panel PC features a distinctive rubber (O-ring) on the rear of the front bezel, effectively sealing it to the customer's fixture. This prevents the ingress of water and dust into the enclosure. Additionally, the Front IP65 Panel PC offers easy installation within a cabinet or rack, catering to a wide array of applications.
When integrated into an enclosure, the Front IP65 Panel PC proves ideal for wet and dusty industrial settings. Properly installed, the Front IP65 Panel PC withstands outdoor challenges, including water, humidity, cold, heat, sunlight, and many more. This durability makes it a fitting choice for outdoor kiosks in parking lots, gas stations, swimming pools, and various other locations.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 210.4x157.8 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB(Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 284 x 234 x 56 mm |
| Cut out | 262 x 203 mm |
| Weight | 2.4 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10IAD3S-IPT2 |
| Series | Front IP65 Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
