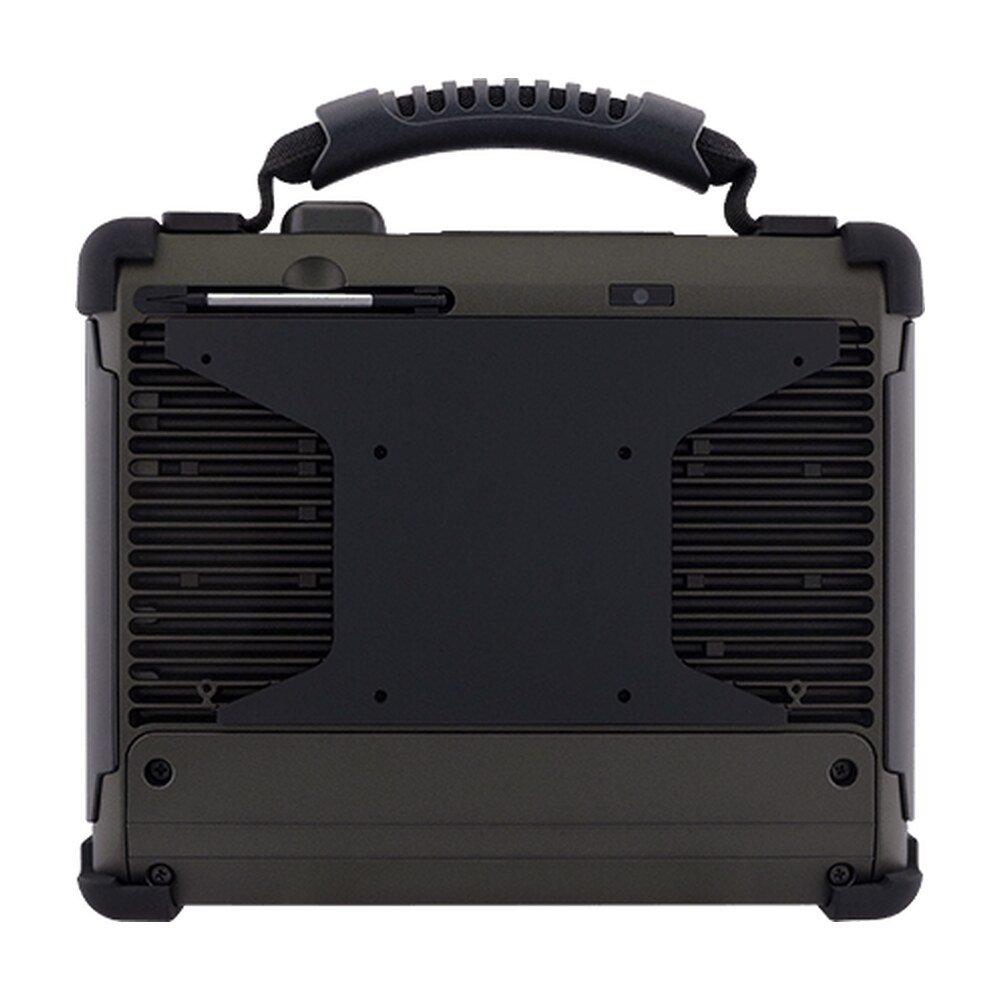

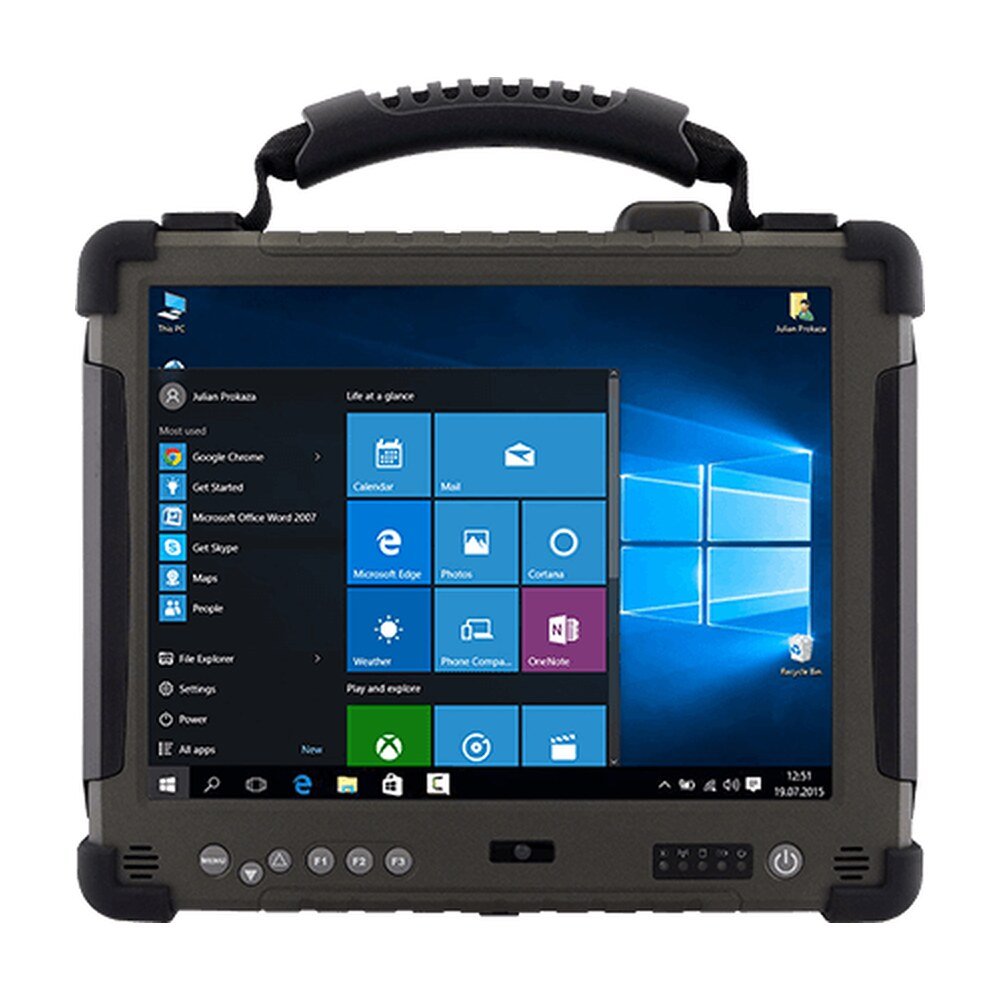

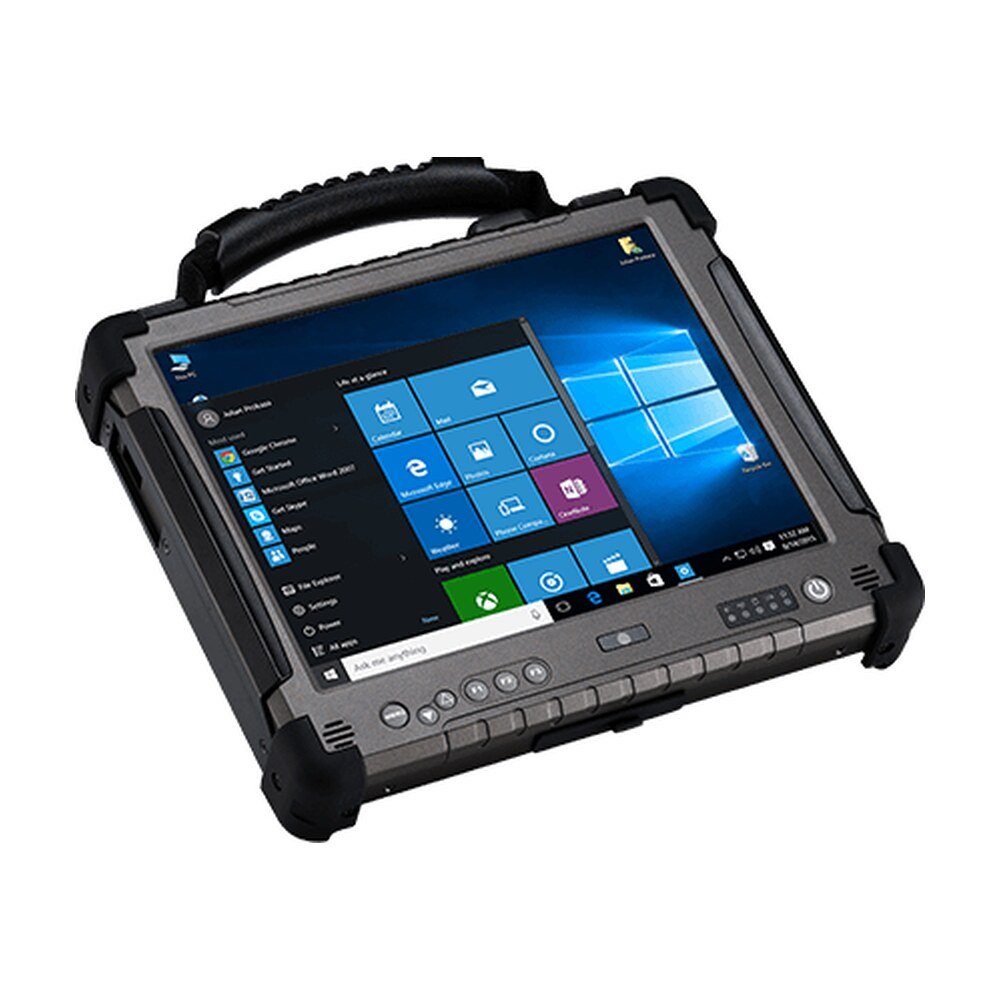

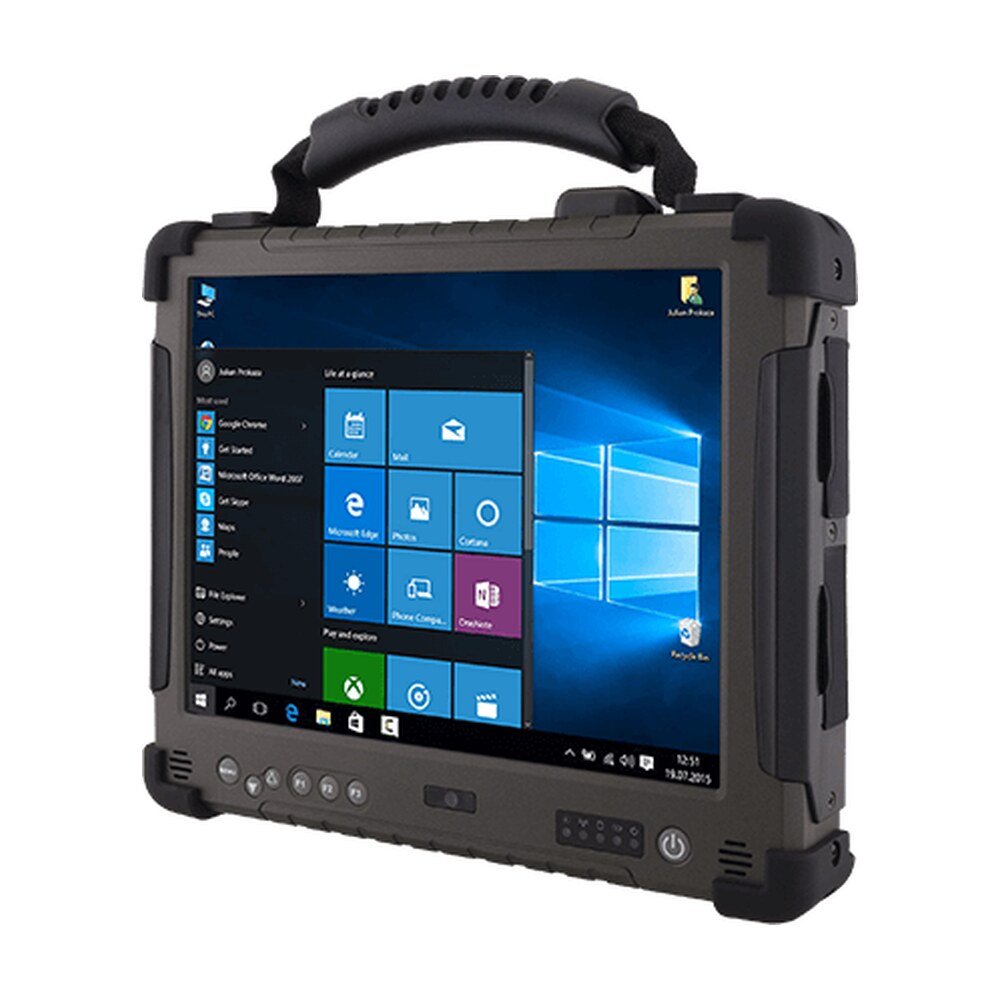

Explore Winmate R10IP8M-RTT2GP, a rugged tablet PC featuring Intel® Pentium® N4200, 10.4-inch display with 1024x768 resolution…
Powered by Intel's processor, the Ultra Rugged Tablet Series offers high performance and low power consumption for some of the most demanding professional-grade applications.
With its sunlight-readable screen the Ultra Rugged Tablet Series offers a premium viewing experience both indoors and outdoors. It also offers convenient user controls with four wire anti-scratch resistive touchscreen.
The Ultra Rugged Tablet Series is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G and MIL-STD-461G test withstand the rigors of outdoor environments - water, dust, weather changes, and strong vibration.
Real-time data access to the right information is crucial for industrial, commercial, and field operations. With wireless connectivity onboard, the Ultra Rugged Tablet Series offers GPS, WLAN, BT, and optional WWAN connectivity to enable robust communications anytime and anywhere.
Despite the ruggedness, the Ultra Rugged Tablet Series is surprisingly handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand, so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), M.2 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Wi-Fi Support |
| BT | BT Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS (Default), GLONASS, Galileo,, BeiDou) (Optional) |
| Mechanical | |
| Dimension | 266 x 224 x 50.4 mm |
| Weight | 2.4 kg |
| Mounting | VESA Mount |
| Enclosure | Magnesium Alloy & ABS+PC |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) (Battery mode), -20°C to 60°C (4°F to 158°F) (AC mode)" |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP54 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x Giga LAN RJ45 Connector |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out), 2 x Speaker |
| SD Card Slot | 1 x Micro SD card Slot |
| SIM Card Slot | 1 x Micro SIM card Slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for HDD, 1 x LED Indicator for Battery status, 1 x LED Indicator for Wifi |
| Accessory | |
| Accessory | 100~240V AC to 19V DC 65W Adapter, Power Cord, 11.1V / 5200mAh Battery, Quick Start Guide, Stylus |
| Optional Accessory | Adjustable Kickstand (Optional), Multi-functional Desktop Docking station (Optional), Vehicle Mounting Charger Kit (Optional), Car Power Charger (Optional), Hand Strap (Optional), Shoulder Strap (Optional), Soft Shell Case (Optional), Carry Bag (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 2D Barcode Reader (Optional) |
| Camera | |
| Front Camera | 2MP Camera (Optional) |
| Rear Camera | 5MP Autofocus Camera (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10IP8M-RTT2GP |
| Series | Ultra Rugged Tablet Series |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10IP8M-RTT2GP |
|---|---|
| Category | Enterprise Mobility, Ultra Rugged Tablets, Winmate |
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), M.2 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Wi-Fi Support |
| BT | BT Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS (Default), GLONASS, Galileo,, BeiDou) (Optional) |
| Dimension | 266 x 224 x 50.4 mm |
| Weight | 2.4 kg |
| Mounting | VESA Mount |
| Enclosure | Magnesium Alloy & ABS+PC |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) (Battery mode), -20°C to 60°C (4°F to 158°F) (AC mode)" |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP54 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x Giga LAN RJ45 Connector |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out), 2 x Speaker |
| SD Card Slot | 1 x Micro SD card Slot |
| SIM Card Slot | 1 x Micro SIM card Slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for HDD, 1 x LED Indicator for Battery status, 1 x LED Indicator for Wifi |
| Accessory | 100~240V AC to 19V DC 65W Adapter, Power Cord, 11.1V / 5200mAh Battery, Quick Start Guide, Stylus |
| Barcode Scanner | 2D Barcode Reader (Optional) |
| Front Camera | 2MP Camera (Optional) |
| Rear Camera | 5MP Autofocus Camera (Optional) |
| Brand | Winmate |
| Manufacturer part number | R10IP8M-RTT2GP |
| Series | Ultra Rugged Tablet Series |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
