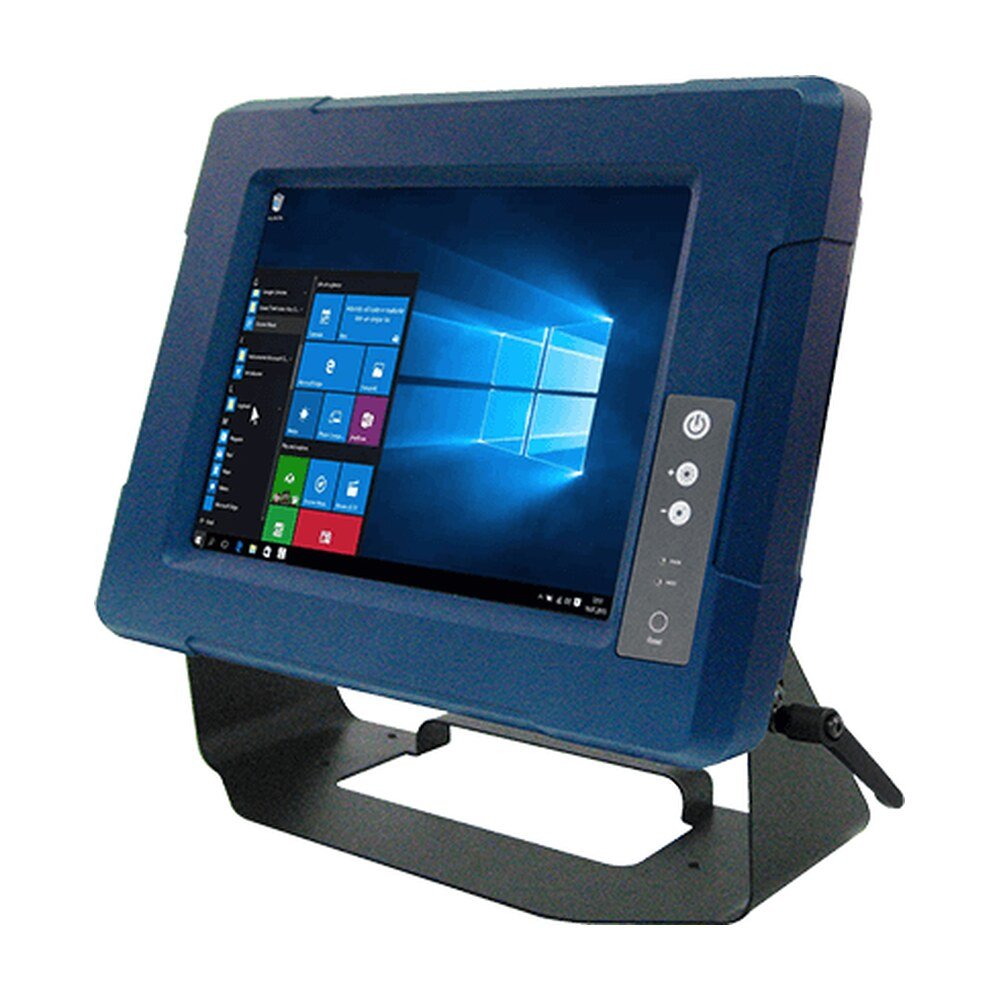

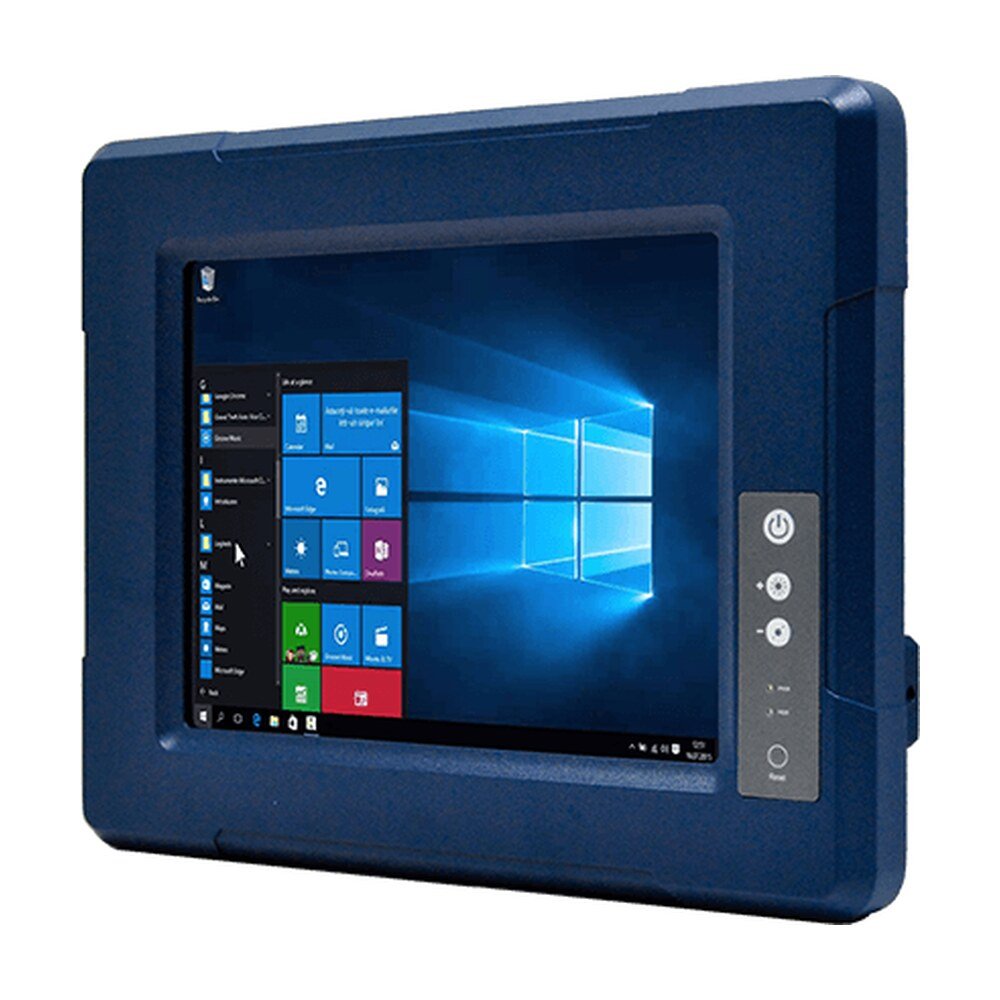

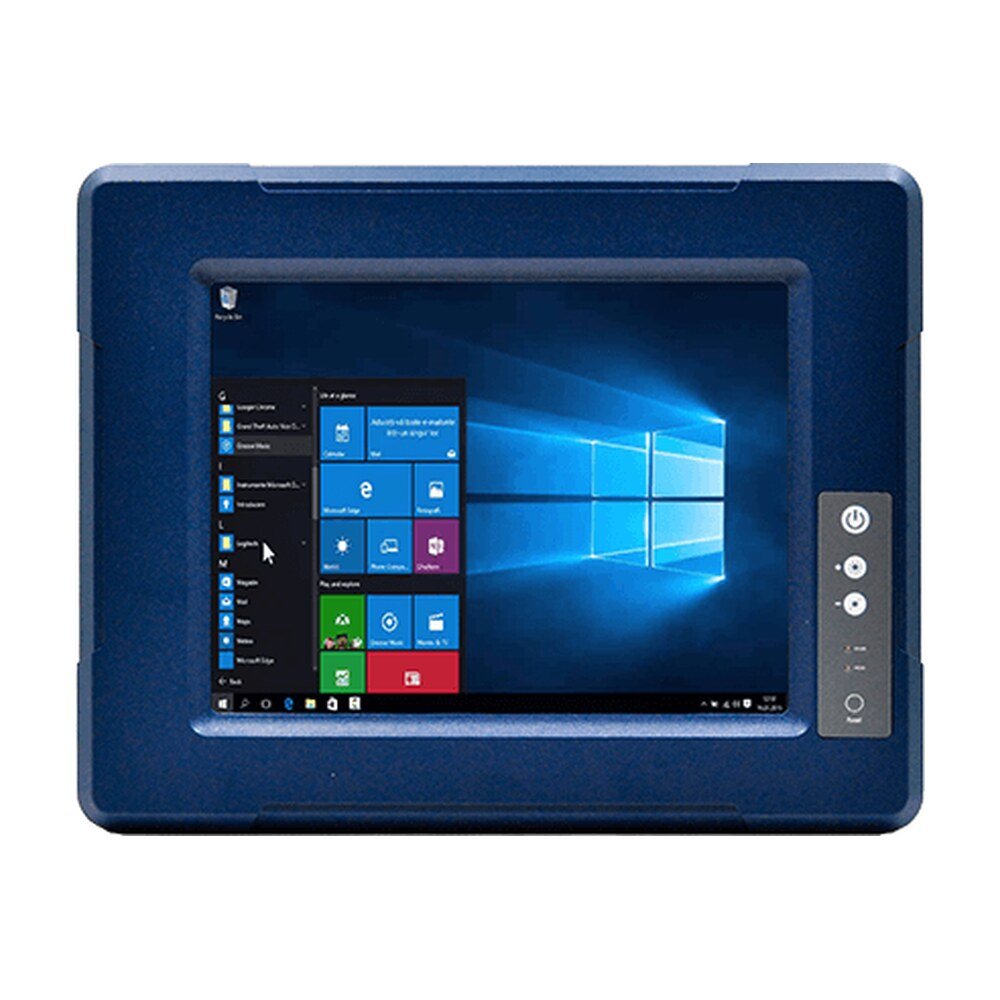

Explore Winmate R10IT3S-VMT2(HB), a vehicle-mounted computer featuring Intel® Core™ i5-1135G7, 10.4-inch display, IP65, MIL-STD-810F for warehouse logistics…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R10IT3S-VMT2(HB), a vehicle-mounted computer featuring Intel® Core™ i5-1135G7, 10.4-inch display, IP65, MIL-STD-810F for warehouse logistics…
Winmate front IP65 panel PC is protected against outer dust and water splash and is ideal for harsh environments.
G-WIN series adopts a fanless design with passive cooling fins. Reduce noise, and power consumption, boost reliability, and extend the life cycle.
Winmate offers rugged and reliable industrial computing solutions. To meet various industrial applications, Winmate G-WIN VM Series Panel PCs offer various IO interfaces.
Winmate's G-WIN series panel PCs are designed to pass US Defence standards environment tests. The overall construction of the G-WIN panel is inherently rugged with the aluminum die-cast housing and anti-corrosion to hold up even in exposed settings.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Display | |
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 210.4x157.8 mm |
| Mechanical | |
| Dimension | 315 x 250 x 67 mm |
| Weight | 2.9 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Brightness Up button, 1 x Brightness Down button |
| Accessory | |
| Accessory | Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10IT3S-VMT2(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10IT3S-VMT2(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 210.4x157.8 mm |
| Dimension | 315 x 250 x 67 mm |
| Weight | 2.9 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Brightness Up button, 1 x Brightness Down button |
| Accessory | Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Brand | Winmate |
| Manufacturer part number | R10IT3S-VMT2(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
