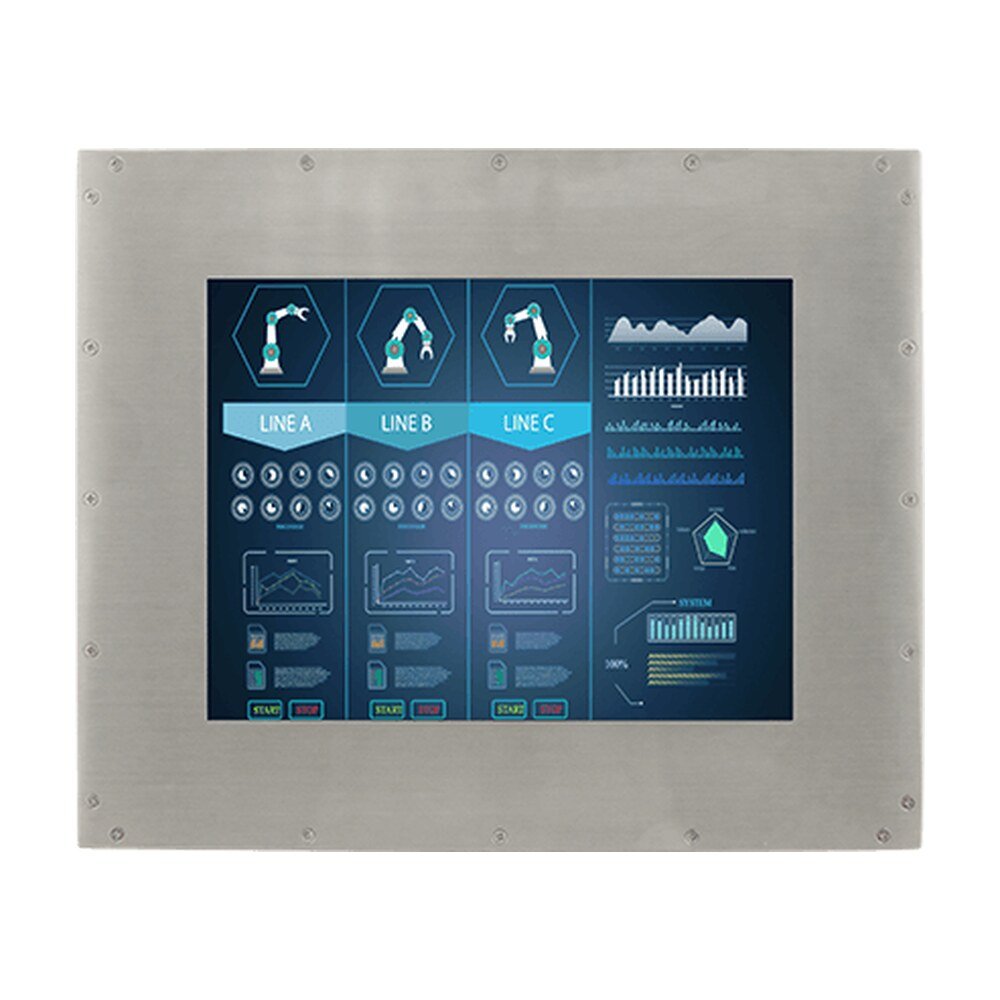

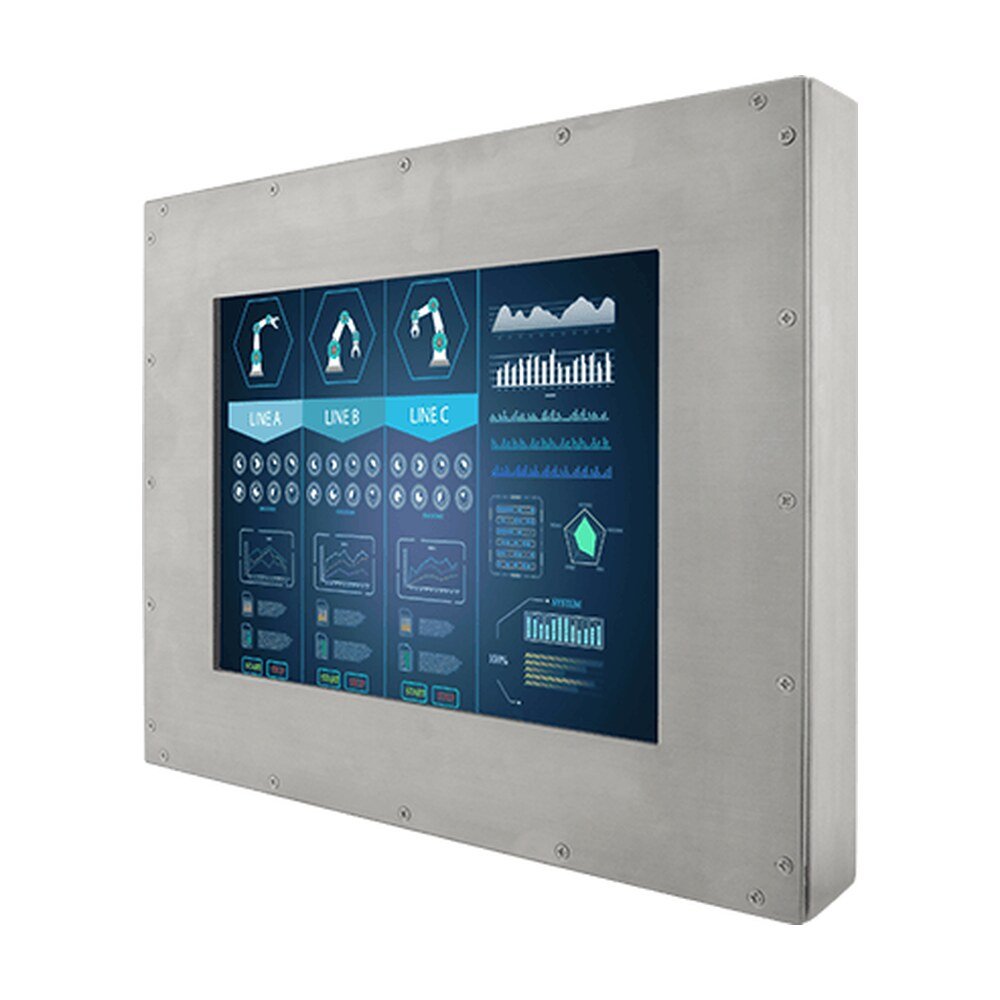

Explore Winmate R10L100-67T2ST, a chassis display featuring 10.4-inch display with 1024x768 resolution, IP67 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R10L100-67T2ST, a chassis display featuring 10.4-inch display with 1024x768 resolution, IP67 for industrial visualization and control rooms.
The display fully complies with IP67 water and dust resistance to survive splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
The display is highly resistant to cold temperatures, wet fingers, and dusty conditions. Plus, the protective glass serves to protect the display against sharp foreign objects, meaning the screen is still operable even with scratches on the surface.
IP67 protection means these displays can be installed in the harshest industrial environments.
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen Bonding With Panel (Default), Protection Glass Without touch function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Mechanical | |
| Dimension | 311 x 257 x 47.4 mm |
| Mounting | VESA Mount , Yoke Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP67 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x M12 waterproof connector for touch screen control (Optional) |
| Serial Port | 1 x M12 waterproof connector for touch screen control (Optional) |
| Video | 1x M12 type connector for VGA input (Default), 1x waterproof DVI input (Optional), 1x waterproof connector for HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter with waterproof connector, Power Cord, External VGA cable with waterproof connector, External USB or RS232 cable with waterproof connector for touchscreen control, Waterproof caps, Manual, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), External HDMI cable with waterproof connector (Optional), External DVI cable with waterproof connector (Optional) |
| Power | |
| Power Rating | 12V DC (M12 type) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10L100-67T2ST |
| Series | IP67 Resistive Chassis Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10L100-67T2ST |
|---|---|
| Category | Industrial Display, Stainless Series, Winmate |
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen Bonding With Panel (Default), Protection Glass Without touch function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Dimension | 311 x 257 x 47.4 mm |
| Mounting | VESA Mount , Yoke Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP67 |
| Certification | CE, FCC |
| USB Port | 1x M12 waterproof connector for touch screen control (Optional) |
| Serial Port | 1 x M12 waterproof connector for touch screen control (Optional) |
| Video | 1x M12 type connector for VGA input (Default), 1x waterproof DVI input (Optional), 1x waterproof connector for HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Optional Accessory | Yoke mount stand (Optional), External HDMI cable with waterproof connector (Optional), External DVI cable with waterproof connector (Optional) |
| Power Rating | 12V DC (M12 type) |
| Brand | Winmate |
| Manufacturer part number | R10L100-67T2ST |
| Series | IP67 Resistive Chassis Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
