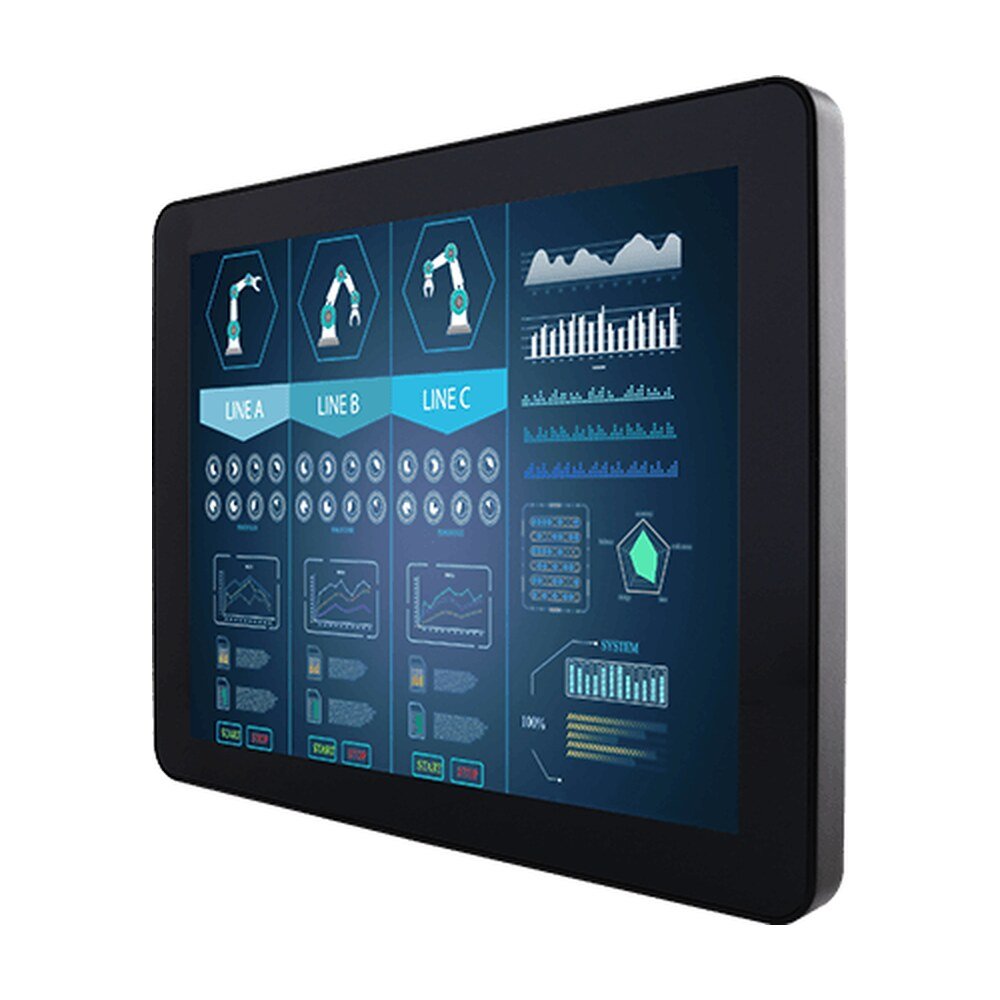

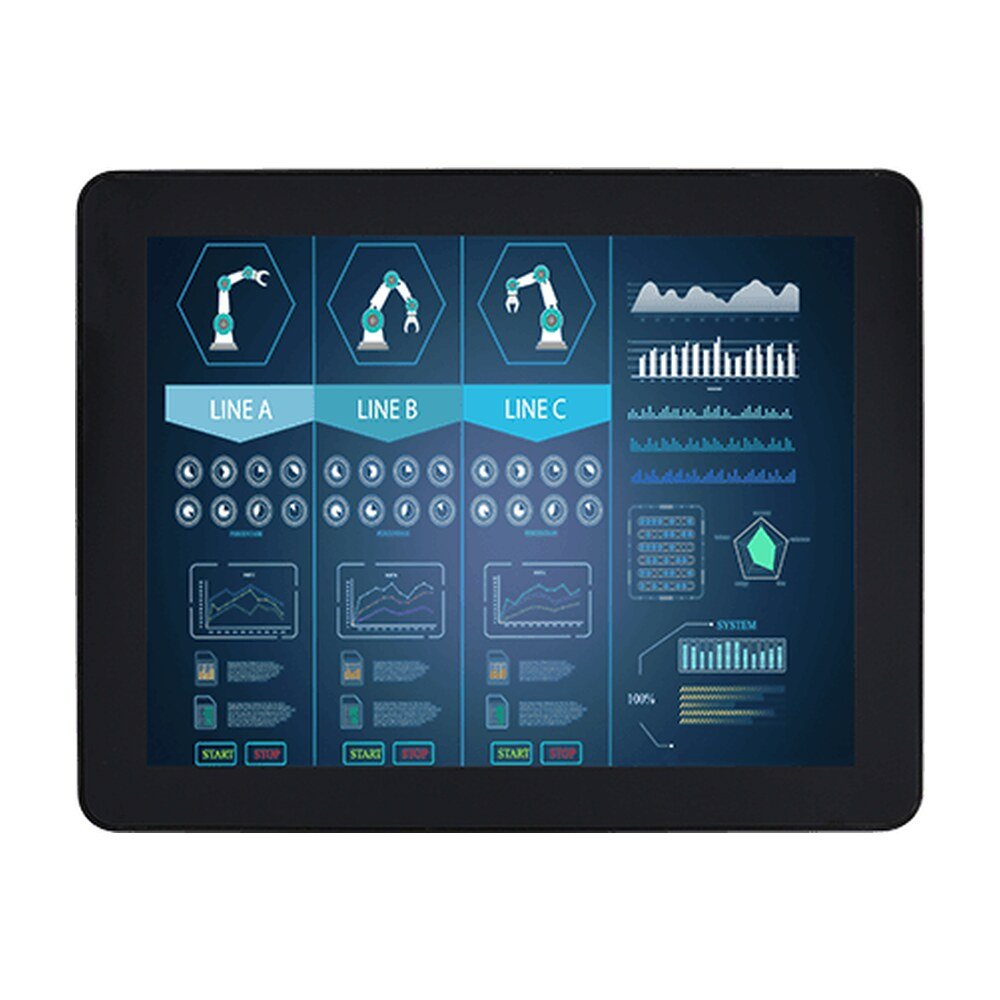

Explore Winmate R10L100-GST2, an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65, MIL-STD-810F for industrial visualization and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R10L100-GST2, an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65, MIL-STD-810F for industrial visualization and…
Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.
The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.
The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.
Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection.
The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
| Mechanical | |
| Dimension | 252.41 x 197.8 x 43 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter(For 7'' Display only), M12 Power Cable(Not Supplied with 7'' Display), VGA Cable, USB for Touch Cable, I/O Protective Cap x 3 |
| Power | |
| Power Rating | 9-36V DC (M12 type) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10L100-GST2 |
| Series | G-WIN GS Series Display (with M12 Waterproof Connectors) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10L100-GST2 |
|---|---|
| Category | G-WIN Series / IP67, Industrial Display, Winmate |
| Size | 10.4 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
| Dimension | 252.41 x 197.8 x 43 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Power Rating | 9-36V DC (M12 type) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R10L100-GST2 |
| Series | G-WIN GS Series Display (with M12 Waterproof Connectors) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
