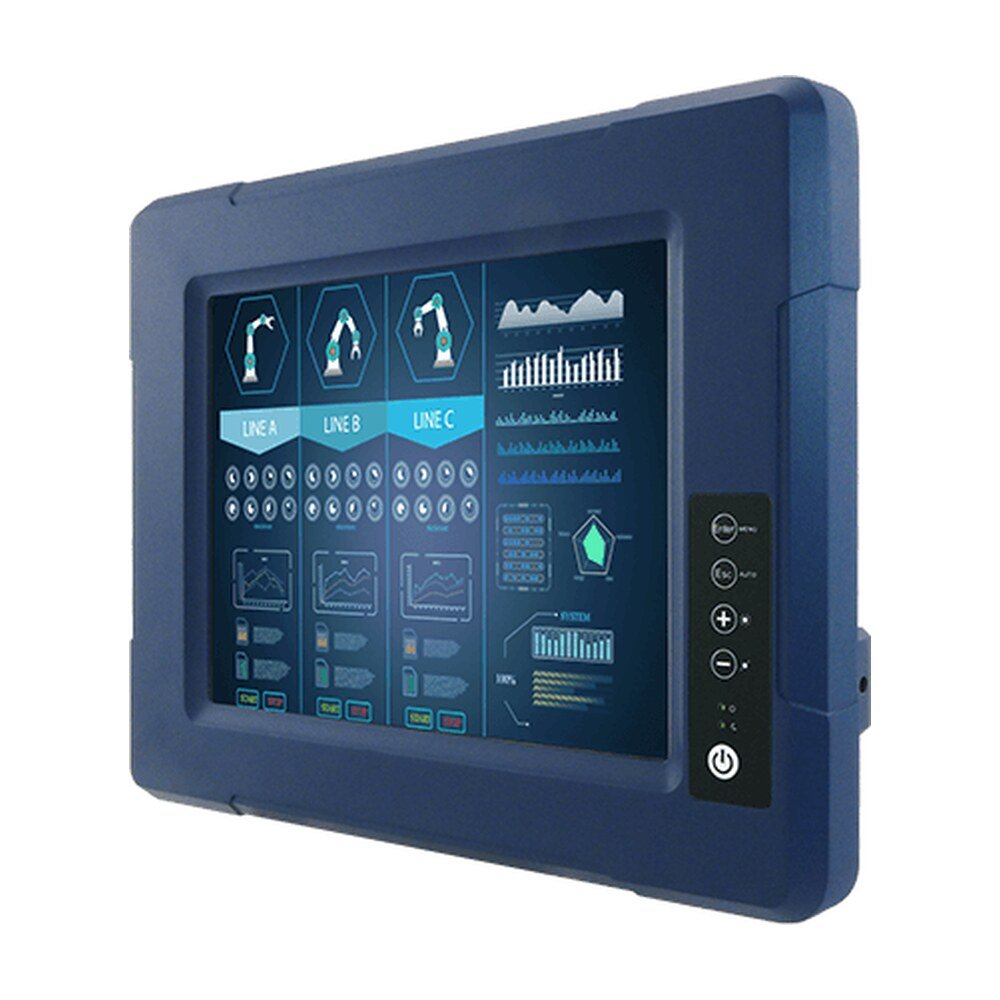

Explore Winmate R10L100-VMT2(HB), an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65 for industrial visualization and control…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R10L100-VMT2(HB), an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65 for industrial visualization and control…
Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.
The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.
The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.
Since panel display and computers were not designed to be carried around, they rely on DC power via conventional external AC adapters. Winmate offers 9 to 36 Volt input power range options to fulfill a wide range of applications.
The G-Win VM series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Mechanical | |
| Dimension | 315 x 250 x 67 mm |
| Weight | 2.9 kg |
| Mounting | VESA Mount , Yoke Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x 10~60V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x Menu button |
| Accessory | |
| Accessory | Open Wire Cable with terminal block connector, External VGA cable, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 50W Adapter with power cord (Optional), External USB/COM cable for touchscreen control (Optional), External HDMI cable (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10L100-VMT2(HB) |
| Series | G-WIN VM Series Display (Vehicle Mount) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10L100-VMT2(HB) |
|---|---|
| Category | G-WIN Series / IP67, Industrial Display, Winmate |
| Size | 10.4 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Dimension | 315 x 250 x 67 mm |
| Weight | 2.9 kg |
| Mounting | VESA Mount , Yoke Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x 10~60V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x Menu button |
| Accessory | Open Wire Cable with terminal block connector, External VGA cable, VESA screws |
| Brand | Winmate |
| Manufacturer part number | R10L100-VMT2(HB) |
| Series | G-WIN VM Series Display (Vehicle Mount) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
