Discover the R12IAN3S-CHM2WT 12.1" wide-temp chassis panel PC. Powered by Intel Twin Lake N150, featuring dual 2.5GbE and VESA mount for industrial HMI.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Discover the R12IAN3S-CHM2WT 12.1" wide-temp chassis panel PC. Powered by Intel Twin Lake N150, featuring dual 2.5GbE and VESA mount for industrial HMI.

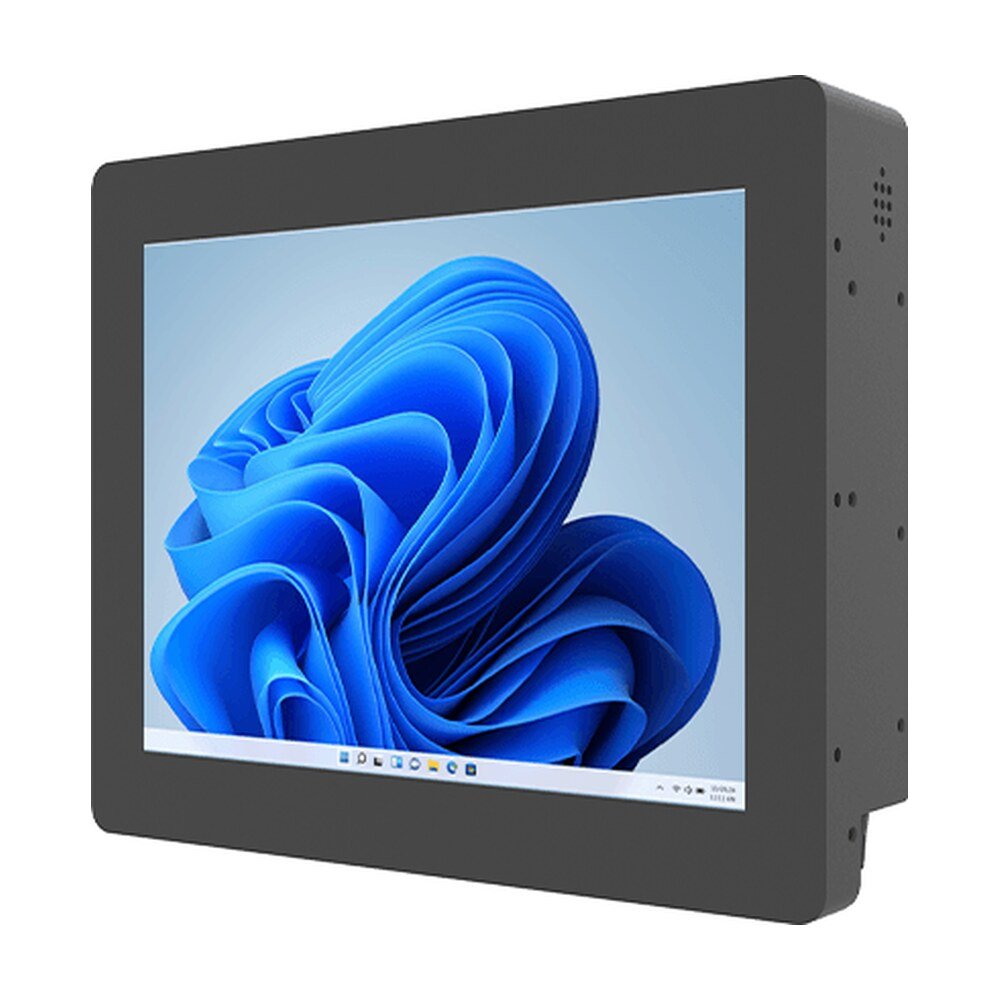

The R12IAN3S-CHM2WT features a 12.1” XGA display with a highly durable resistive touch screen, specifically engineered for challenging industrial floors. Its rugged chassis is not only scratch- and wear-resistant but also easily embeds into space-constrained machinery and control cabinets, providing the most reliable HMI solution for factory automation.
Powered by the latest Intel® Alder Lake-N N150 processor and supporting up to 16GB of memory, it brings next-generation computing upgrades to industrial applications. While significantly boosting data processing, edge computing, and machine control capabilities, it maintains excellent low-power consumption, ensuring ultimate stability for continuous, long-term operation.
Experience unprecedented connectivity and expansion flexibility! Built-in dual 2.5 Gigabit high-speed Ethernet easily handles the high-bandwidth data transmission and redundancy demands of the IIoT. The system is also equipped with USB Type-C (supporting DP-Alt), multiple USB 3.2 interfaces, and 4 COM ports, allowing you to flexibly connect various sensors, PLCs, and peripheral devices.
Designed for extreme environments, it features excellent wide-temperature operation capabilities, running stably even in factories with severe temperature fluctuations or semi-outdoor settings. Combined with standard VESA mount readiness, engineers can overcome spatial limitations and quickly deploy the unit using wall mounts or arm stands, significantly reducing setup and maintenance costs.
| Display | |
|---|---|
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| System Specification | |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB（Only available when NVME SSD is not present） (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| Mechanical | |
| Dimension | 303 x 217 x 60 mm |
| Weight | 3.5 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 65°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12IAN3S-CHM2WT |
| Series | Chassis Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12IAN3S-CHM2WT |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (Resistive Touch), Winmate |
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| Dimension | 303 x 217 x 60 mm |
| Weight | 3.5 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 65°C |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | R12IAN3S-CHM2WT |
| Series | Chassis Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
