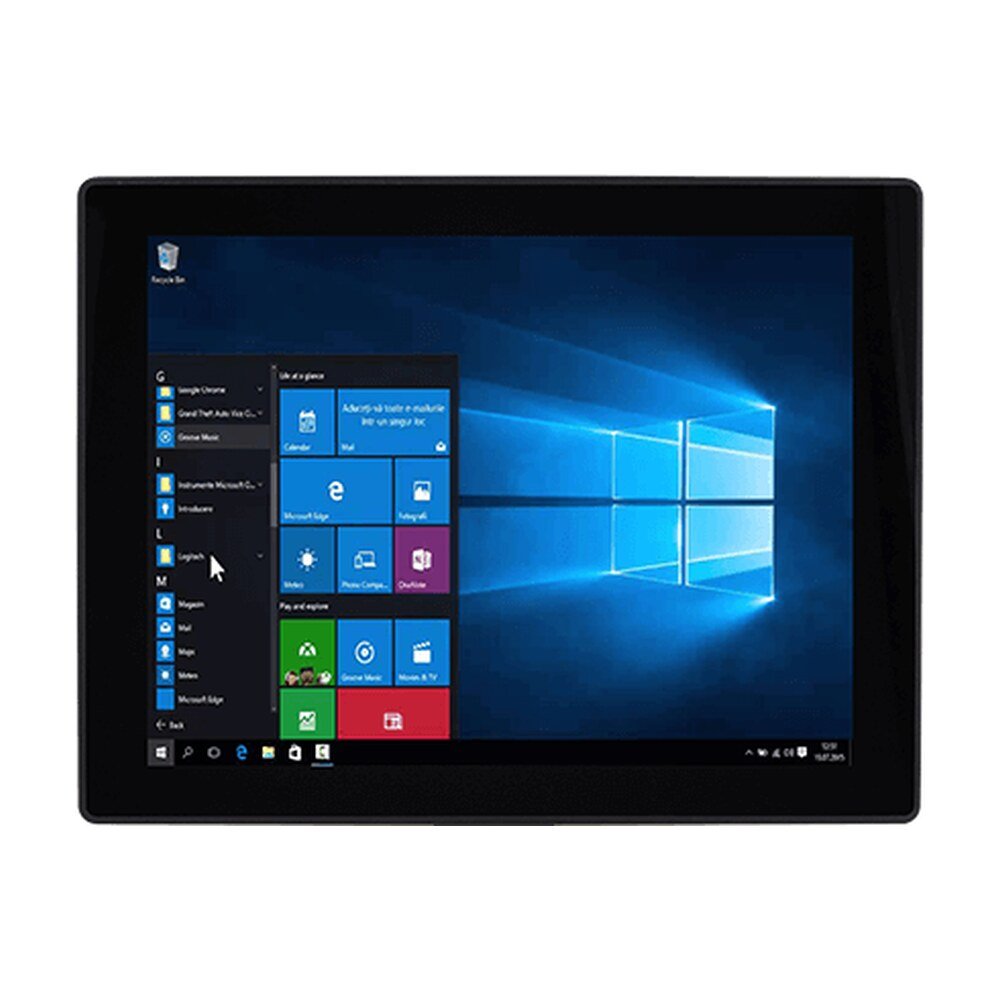

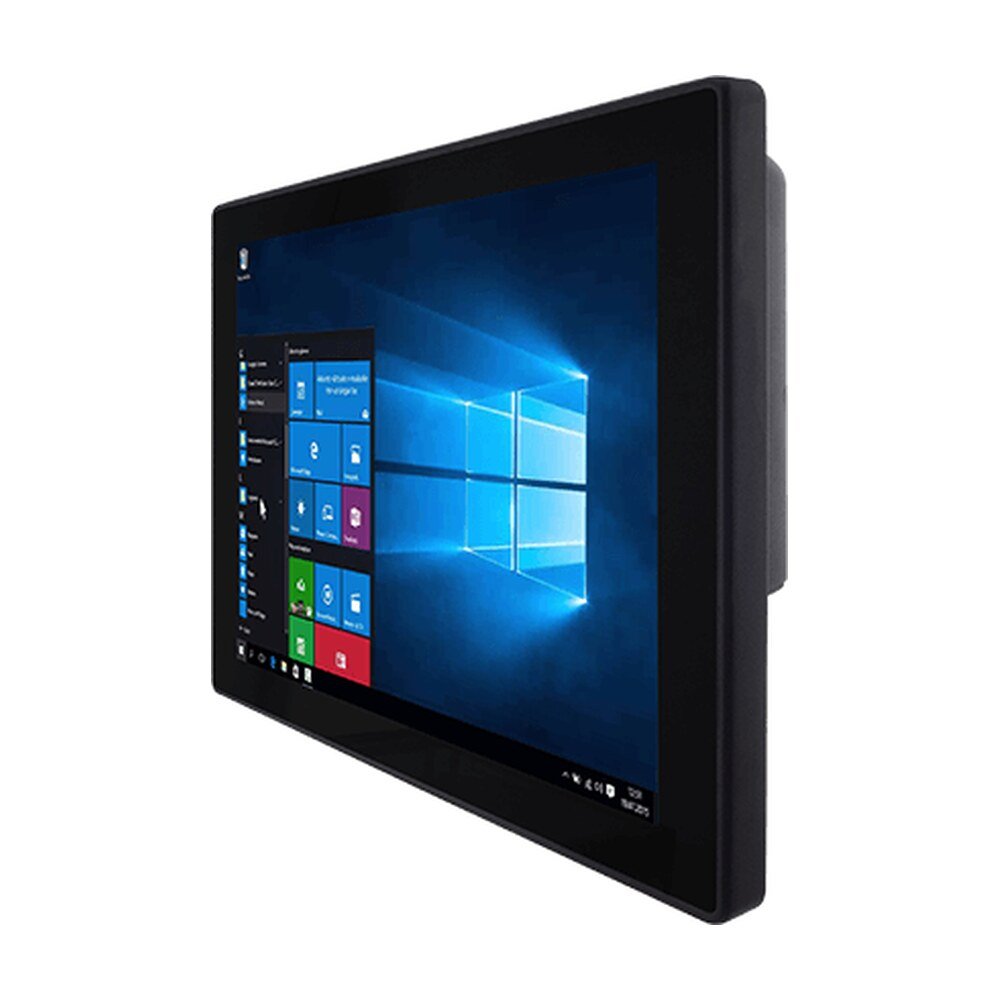

Explore Winmate R12IE3S-GSM2(HB), an industrial panel PC featuring Intel® Celeron® N6211, 12.1-inch display with 1024x768 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R12IE3S-GSM2(HB), an industrial panel PC featuring Intel® Celeron® N6211, 12.1-inch display with 1024x768 resolution…
The GS Series Panel PC equipped with a glass cover lens, the device is highly resistant to scratches. The P-Cap Touch functionality supports up to four touch points, providing smoother interaction and simplifying device operation, which enhances the user experience considerably.
The Winmate GS Series features a fanless cooling design, using heat sinks and vapor chambers to regulate temperatures efficiently and quietly without noisy fans. This energy-saving approach makes them perfect for panel PCs and industrial applications, balancing high performance with silent operation.
The G-Win GS Series panel PC features M12 waterproof connectors, offering durable electrical connections ideal for industrial settings. Its IP65 rating ensures protection from dust and low-pressure water jets, guaranteeing reliability in tough environments. These characteristics make it an excellent choice for industries requiring robust and resilient equipment.
Crafted to fulfill diverse industrial requirements, the Winmate G-WIN GS Series Panel PC features a wide array of I/O interfaces, such as 1 x LAN, 1 x RS232, and 1 x USB 2.0. These interfaces enable smooth connectivity and interaction with a broad spectrum of external devices and peripherals, enhancing the versatility of the Panel PCs across various applications.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional) |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| System Specification | |
| Processor | Intel® Celeron® Processor N6211 1.5M Cache, up to 3.00 GHz |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional) |
| Ethernet controller | 1 x Intel® Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 24.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| IO Ports | |
| USB Port | 1 x USB 2.0 (M12 type) |
| Serial Port | 1 x RS232/422/485 (Default RS232)(M12 type) |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Mechanical | |
| Dimension | 296.2 x 226.7 x 45.5 mm |
| Mounting | VESA mount (Default), Front IP65 Panel mount (Optional) |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 9-36V DC (M12 type) |
| Accessory | |
| Accessory | Quick Start Guide (Hardcopy), M12 Power Cable, M12 Serial Interface Cable, M12 USB/ LAN Cable, I/O Protective Cap x 3 |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12IE3S-GSM2(HB) |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12IE3S-GSM2(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional) |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| Processor | Intel® Celeron® Processor N6211 1.5M Cache, up to 3.00 GHz |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional) |
| Ethernet controller | 1 x Intel® Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 24.04 (Optional) |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| USB Port | 1 x USB 2.0 (M12 type) |
| Serial Port | 1 x RS232/422/485 (Default RS232)(M12 type) |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Dimension | 296.2 x 226.7 x 45.5 mm |
| Mounting | VESA mount (Default), Front IP65 Panel mount (Optional) |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power Rating | 9-36V DC (M12 type) |
| Accessory | Quick Start Guide (Hardcopy), M12 Power Cable, M12 Serial Interface Cable, M12 USB/ LAN Cable, I/O Protective Cap x 3 |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R12IE3S-GSM2(HB) |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
