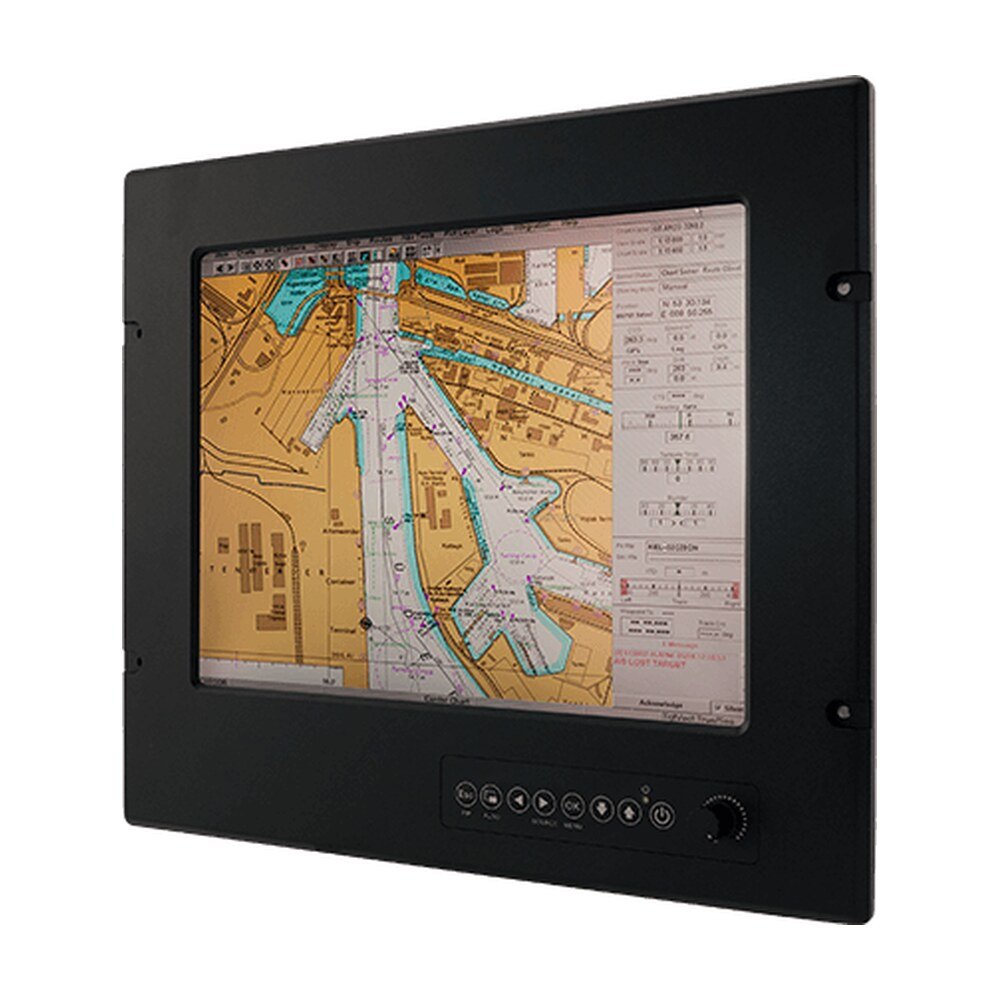

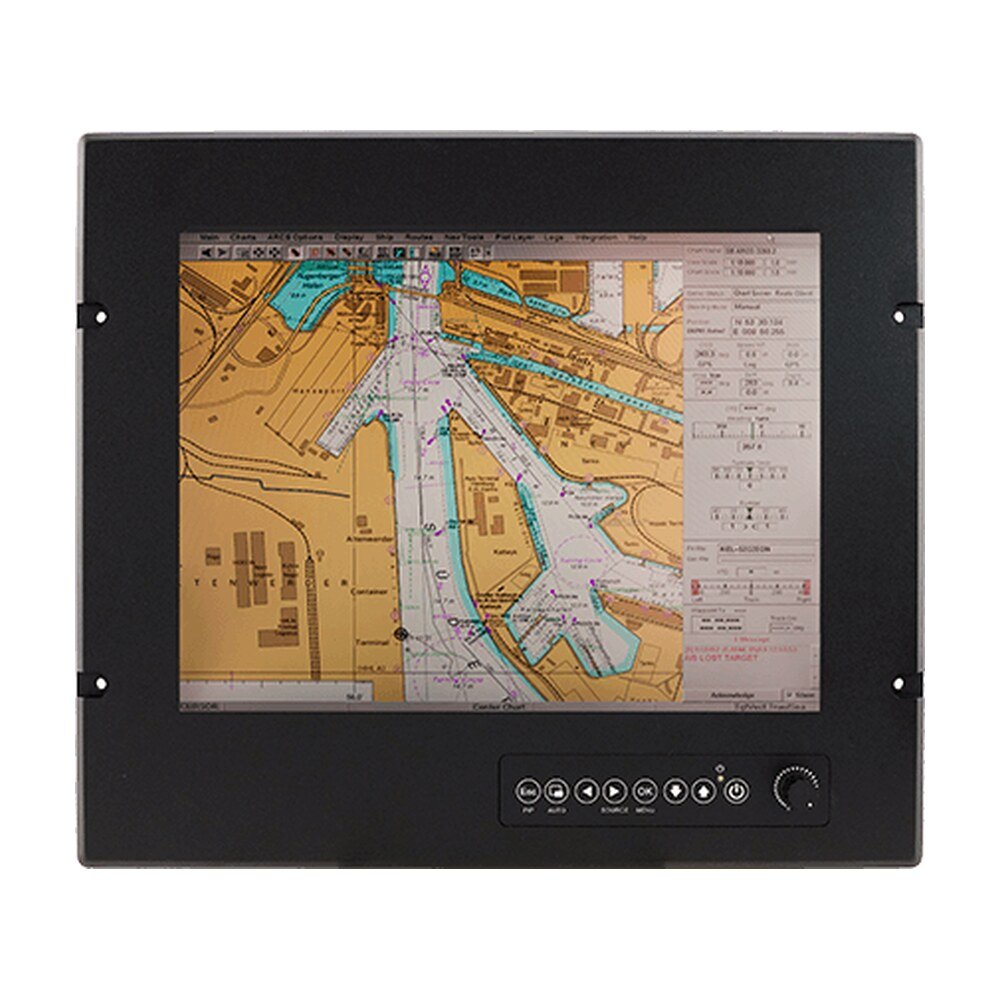

Explore Winmate R12L600-MRM2, a marine display featuring 12.1-inch display with 1024x768 resolution, IP66, IP54 for marine bridge systems and shipboard…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R12L600-MRM2, a marine display featuring 12.1-inch display with 1024x768 resolution, IP66, IP54 for marine bridge systems and shipboard…
To face the challenges of sailing in different conditions, Winmate Marine Displays suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. Simultaneously, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.
All the controls are located on the front panel OSD for fast access anytime. The dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications. Winmate Marine Display with built-in Picture-in-Picture function allows you to view the contents of multiple input signal sources at the same time and to easily switch between them
The rugged mechanical design of the Winmate Marine Displays provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee the stability and longevity required for mission-critical deployment. Deploy Winmate Marine Display for your safe operations at sea in all weather conditions.
Marine Display feature-rich I/O connectivity consists of one VGA, one DVI-D, one Composite, one S-Video, two COM ports. Easy to integrate into existing marine equipment.
| Display | |
|---|---|
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Default), AR Glass (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.2M Colors |
| Active Area | 245.76x184.32 mm |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| Serial Port | 1 x RS232 for Remote Control, 1 x RS232/USB for Touch Screen |
| Video | 1 x VGA, 1 x DVI-D, 1 x Composite, 1 x S-Video |
| Mechanical | |
| Dimension | 337 x 293.2 x 70.8 mm |
| Cut out | 307 x 253mm |
| Weight | 4kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 35W (Typical) |
| Accessory | |
| Accessory | 1 x User Manual., 1 x DVI Cable., 1 x VGA Cable., 1 x RS232 Serial Cable., 1 x S-Video Cable., 1 x Composite Cable., , |
| Control | |
| Button | 8 key:, Esc/PIP, Auto adjustment , Left, Right/Source, OK/Menu, Up, Down, Power, 1 x The Dimming Knob, |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12L600-MRM2 |
| Series | Marine Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12L600-MRM2 |
|---|---|
| Category | Marine Display, Marine Grade, Winmate |
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Default), AR Glass (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.2M Colors |
| Active Area | 245.76x184.32 mm |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC |
| Serial Port | 1 x RS232 for Remote Control, 1 x RS232/USB for Touch Screen |
| Video | 1 x VGA, 1 x DVI-D, 1 x Composite, 1 x S-Video |
| Dimension | 337 x 293.2 x 70.8 mm |
| Cut out | 307 x 253mm |
| Weight | 4kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 35W (Typical) |
| Accessory | 1 x User Manual., 1 x DVI Cable., 1 x VGA Cable., 1 x RS232 Serial Cable., 1 x S-Video Cable., 1 x Composite Cable., , |
| Button | 8 key:, Esc/PIP, Auto adjustment , Left, Right/Source, OK/Menu, Up, Down, Power, 1 x The Dimming Knob, |
| Brand | Winmate |
| Manufacturer part number | R12L600-MRM2 |
| Series | Marine Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
