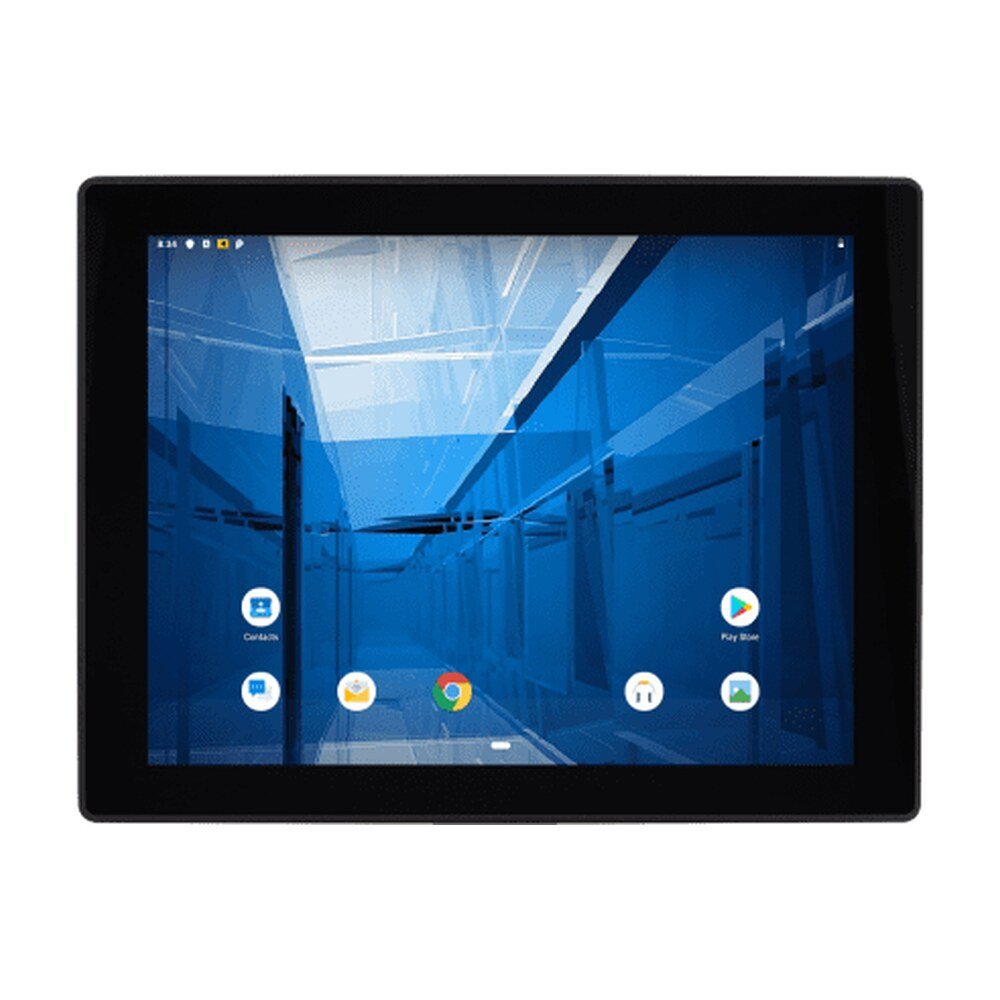

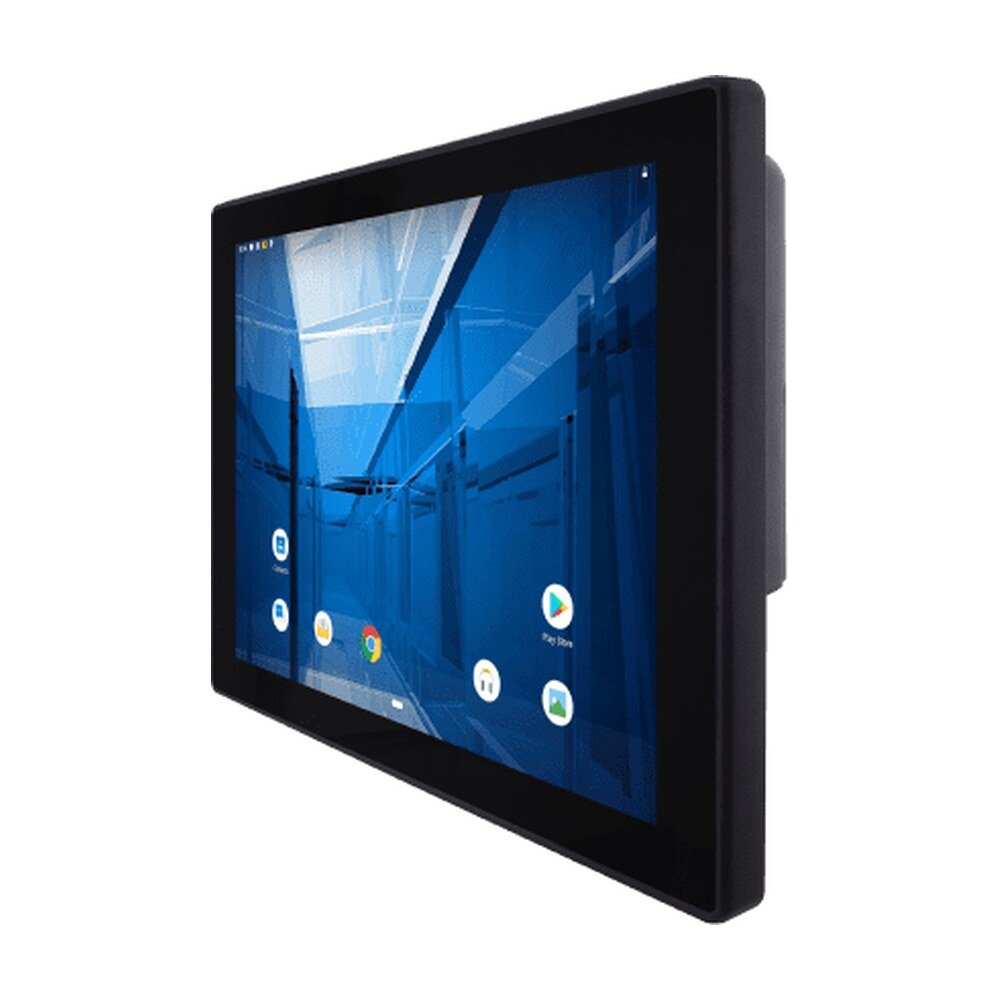

Explore Winmate R12MG3S-GSM2(HB), an industrial panel PC featuring 12.1-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R12MG3S-GSM2(HB), an industrial panel PC featuring 12.1-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
The GS series panel PC with PCAP displays seamlessly reacts to touch input, accommodating single-touch, dual-touch, and multi-touch functionalities with ease. In contrast to resistive screens, they operate without the need for pressure, thereby improving accuracy and user comfort. These displays find extensive utilization across various sectors such as consumer electronics, medical equipment, and industrial control systems, significantly enriching user interaction across a diverse range of applications.
The GS series Panel PC integrating eMMC storage with DDR4 memory offers optimized performance, reliability, data integrity, space efficiency, energy efficiency, and cost-effectiveness, making it a compelling choice for a wide range of industrial applications requiring robust and efficient computing solutions.
By adopting fanless cooling systems featuring heat sinks and vapor chambers, the Winmate GS Series ensures quiet and energy-efficient operation, eliminating the usual noise associated with fans. Specifically crafted for panel PCs and industrial settings, they offer smooth performance without compromising on silence. Additionally, these advanced cooling methods contribute significantly to energy conservation, enhancing their overall value.
The G-WIN GS series HMI panel PC features a front IP65 rating, providing robustness in challenging environments against water and dust. This shield defends it from water splashes, dust, and other contaminants, preserving operational reliability. With this certification, operators can confidently employ the HMI in demanding industrial conditions, without fears of damage from moisture or dust. This attribute enhances dependability and durability, facilitating effective support for critical industrial operations.
Tailored to address diverse industrial requirements, the Winmate G-WIN GS Series Panel PC offers an array of I/O interfaces, such as 1 x LAN, 1 x RS232, 1 x USB, 1 x USB Type-C, 1 x Micro SD. These interfaces enable effortless connectivity and interaction with a wide array of external devices and peripherals, enhancing the versatility of the Panel PCs for various applications.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional) |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -15°C to 55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 X USB 2.0 (M12 type), 1 X USB Type-C |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Mechanical | |
| Dimension | 296.2 x 226.7 x 45.5 mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 12V DC (M12 type) |
| Accessory | |
| Accessory | Quick Start Guide (Hardcopy), M12 Power Cable, M12 Serial Interface Cable, M12 USB/ LAN Cable, I/O Protective Cap x 3 |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12MG3S-GSM2(HB) |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12MG3S-GSM2(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional) |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -15°C to 55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1 X USB 2.0 (M12 type), 1 X USB Type-C |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Dimension | 296.2 x 226.7 x 45.5 mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 12V DC (M12 type) |
| Accessory | Quick Start Guide (Hardcopy), M12 Power Cable, M12 Serial Interface Cable, M12 USB/ LAN Cable, I/O Protective Cap x 3 |
| Brand | Winmate |
| Manufacturer part number | R12MG3S-GSM2(HB) |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
