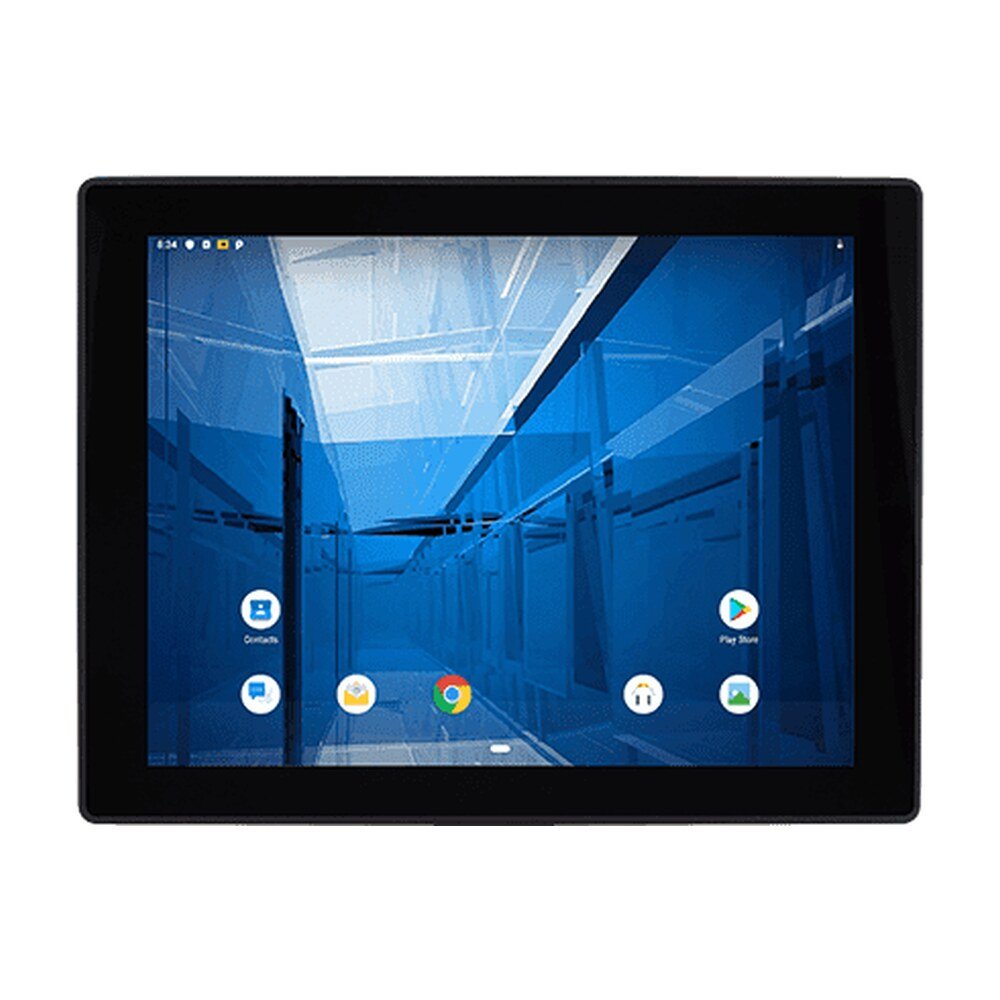

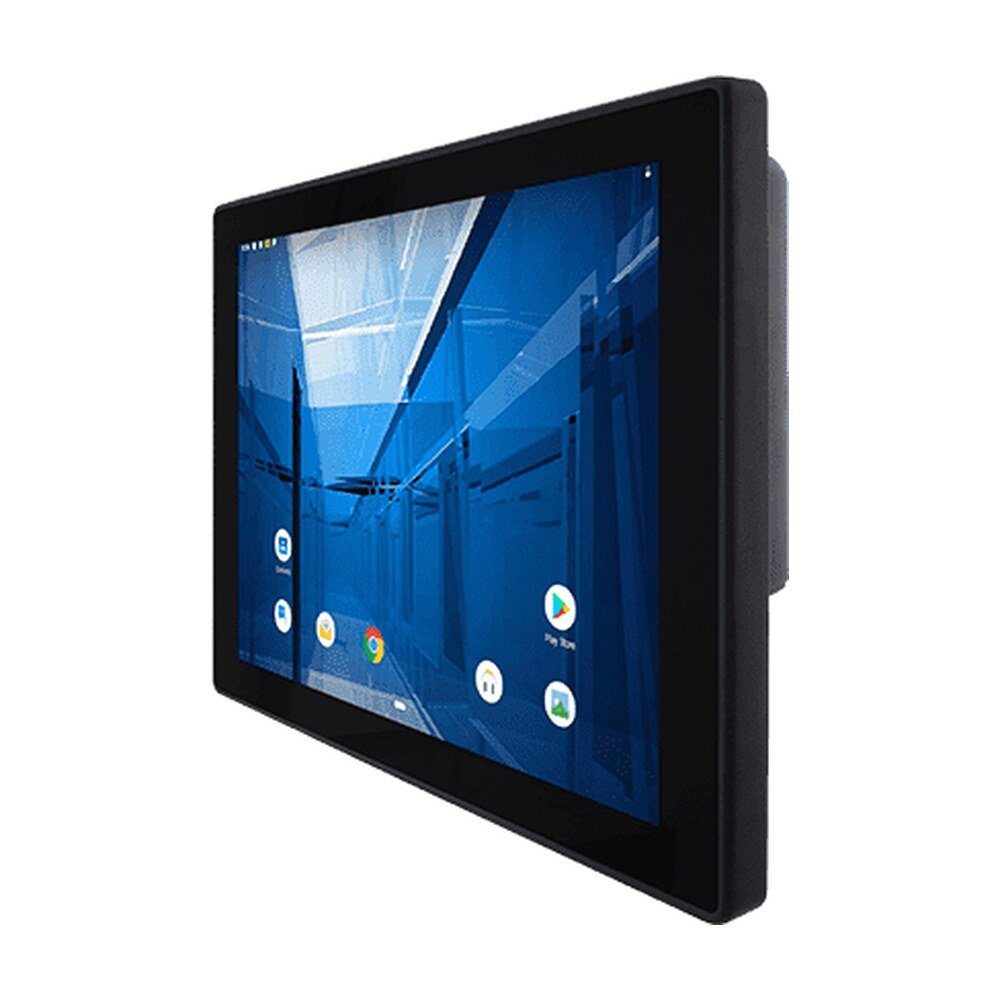

Explore Winmate R12MG3S-PCM2-POE, an HMI panel PC featuring 12.1-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R12MG3S-PCM2-POE, an HMI panel PC featuring 12.1-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
In Winmate’s S-series HMI, PCAP touchscreens serve as the bridge between human interaction and technology. With finger gestures, users seamlessly engage in a 4-point multi-touch experience. These screens offer exceptional responsiveness, vivid clarity, and lasting durability, making them invaluable across various industrial sectors.
Utilizing fanless cooling systems, the Winmate S Series HMI utilizes heat sinks and vapor chambers instead of noisy fans to effectively regulate temperatures while conserving energy. Suited for panel PCs and industrial applications, these systems deliver a balance between performance and quiet operation.
The Winamte S Series HMI panel PC fearlessly tackles water hurdles with its robust design. It's built to endure water splashes without faltering, ensuring continuous operation. Whether encountering rainstorms or accidental spills, this tablet stands strong, maintaining functionality.
Power over Ethernet (PoE) seamlessly integrates power and data transmission through a sole ethernet cable. It streamlines installations for devices such as wireless access points and network cameras, facilitating remote positioning in demanding environments, cutting expenses, and seamlessly integrating with other PoE-compatible devices. This adaptability renders PoE an effective and pragmatic option for industrial uses.
| Display | |
|---|---|
| Size | 12.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Mechanical | |
| Dimension | 296 x 227 x 46 mm |
| Cut out | 282x207mm |
| Weight | 3.4 kg |

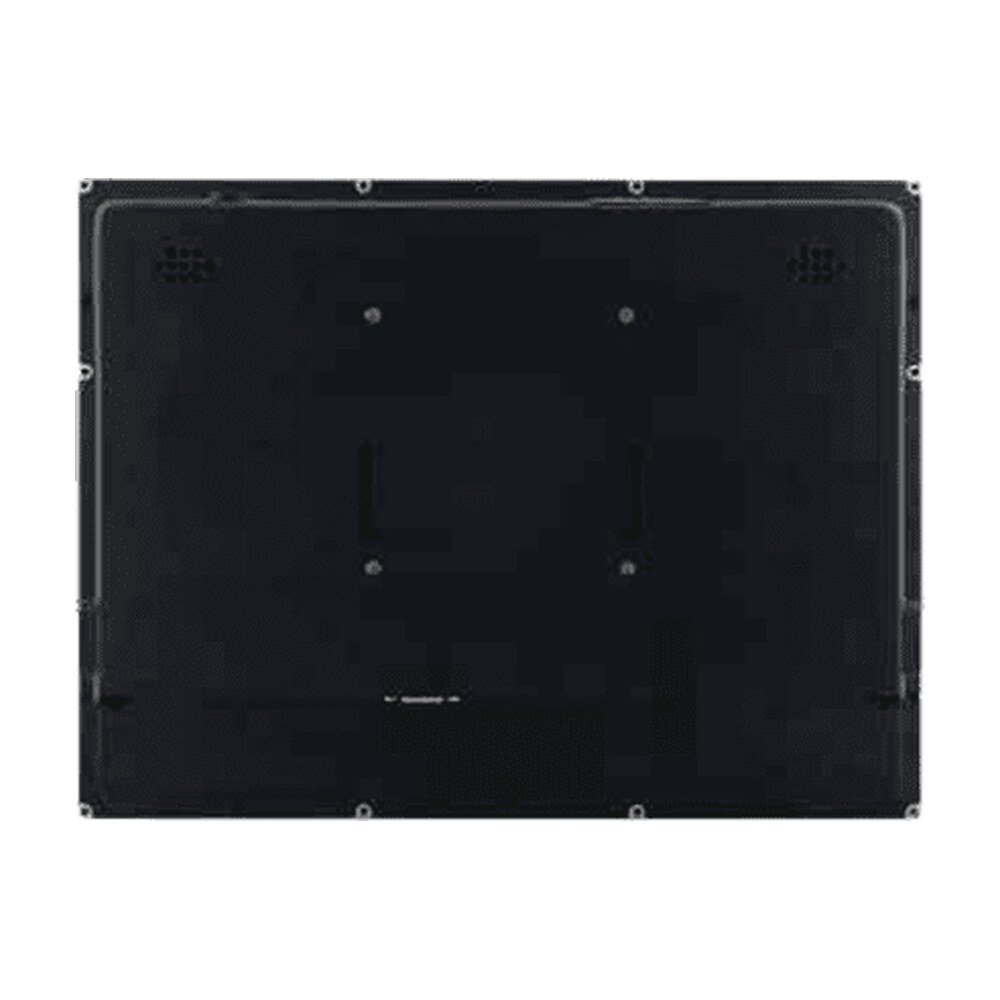

| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional), 9~36V (Optional) |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12MG3S-PCM2-POE |
| Series | S Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12MG3S-PCM2-POE |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 12.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Dimension | 296 x 227 x 46 mm |
| Cut out | 282x207mm |
| Weight | 3.4 kg |
| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional), 9~36V (Optional) |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | R12MG3S-PCM2-POE |
| Series | S Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
