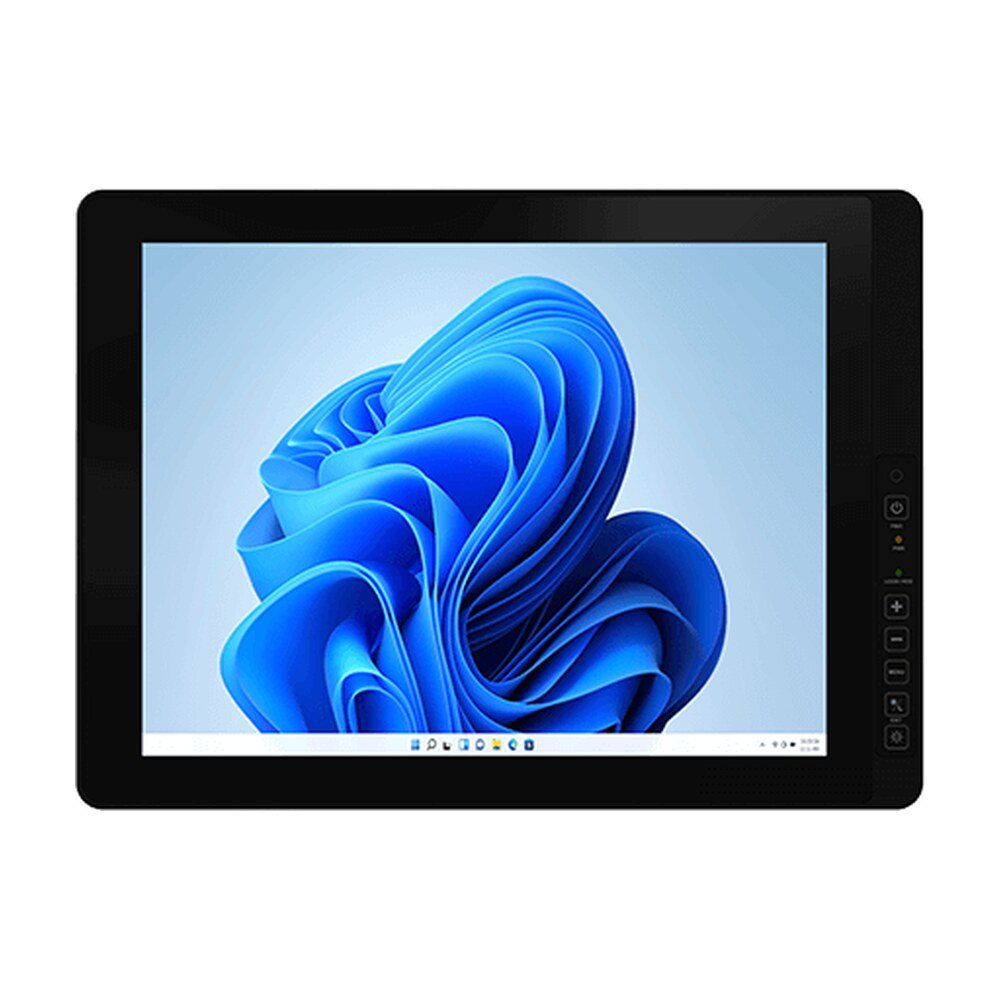

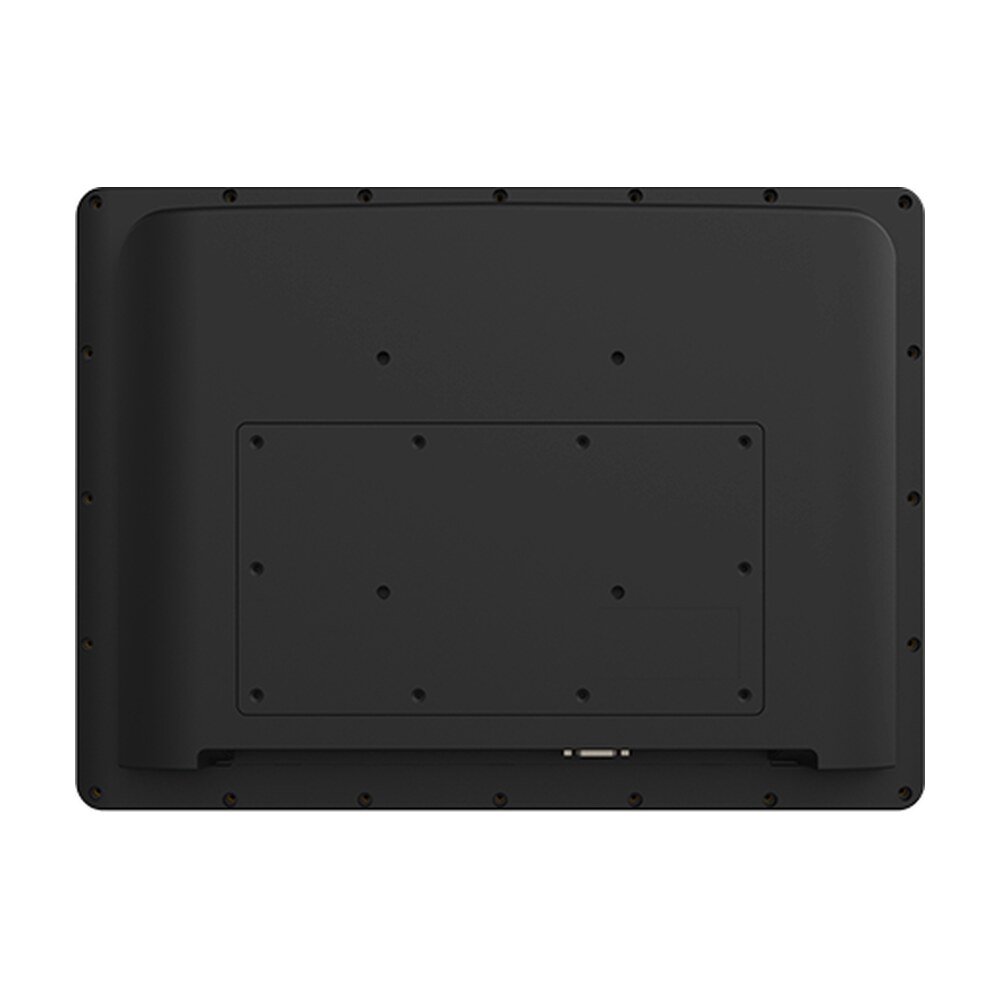

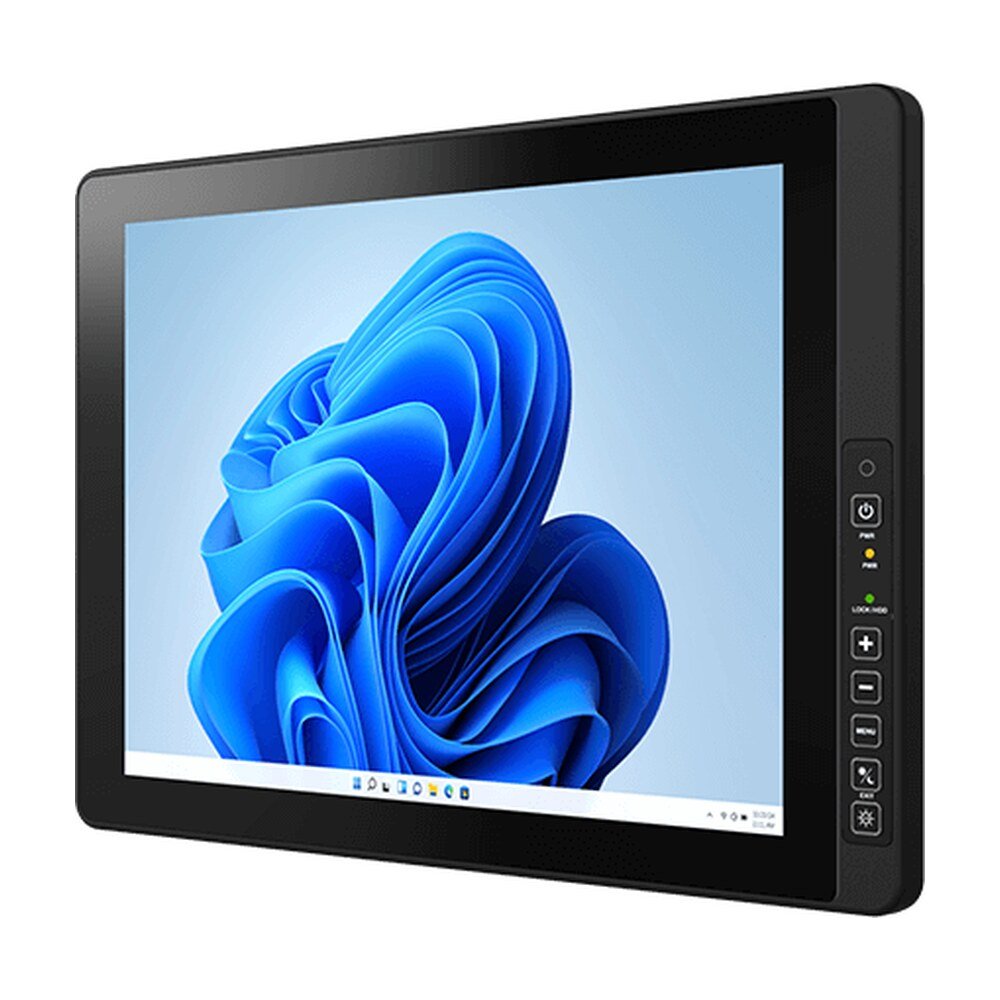

Explore Winmate R15IAN3S-VMC3-P(HB), a vehicle-mounted computer featuring Intel® Processor N150, 15-inch display, IP65, MIL-STD-810F for warehouse logistics…
The R15IAN3S-VMC3-P(HB) G-WIN VM Series Panel PC features the Intel® Processor N100 with up to 3.40 GHz and 6M cache, This quad-core processor ensures smooth operation for complex inventory management software and multitasking applications, delivering faster data processing capabilities compared to previous generations, optimized for stable industrial computing.
Built to thrive in tough conditions, the G-WIN VM Series comes with a front panel rated to IP65 for dust and water resistance. This rugged sealing safeguards internal components, ensuring uninterrupted performance even in wet or dusty sites such as warehouses or factories.
Designed for optimal readability in varying lighting conditions, the 15-inch display features optical bonding technology as a standard. Whether equipped with the standard 300 nits screen or the optional 1000 nits high-brightness version, the display remains sharp and clear, augmented by a built-in ambient light sensor that auto-adjusts brightness
The R15IAN3S-VMC3-P(HB) is tailored for vehicle integration, featuring a wide range 9 to 36V DC power input with isolation to protect against voltage spikes. It supports an optional Ignition On/Off delay function, preventing data loss during vehicle startup and shutdown. With a wide operating temperature range of -10°C to 55°C, it is ready to perform in cold storage or hot manufacturing floors alike.
| System Specification | |
|---|---|
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Lock / Unlock front key function button, 1 x Auto Dimming / Manually button, 1 x Day / Night Mode button, 1 x Brightness Up button, 1 x Brightness Down button, 1 x LED indicator brightness adjustment button, 1 x Light sensor |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IAN3S-VMC3-P(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IAN3S-VMC3-P(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Brand | Winmate |
| Manufacturer part number | R15IAN3S-VMC3-P(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
