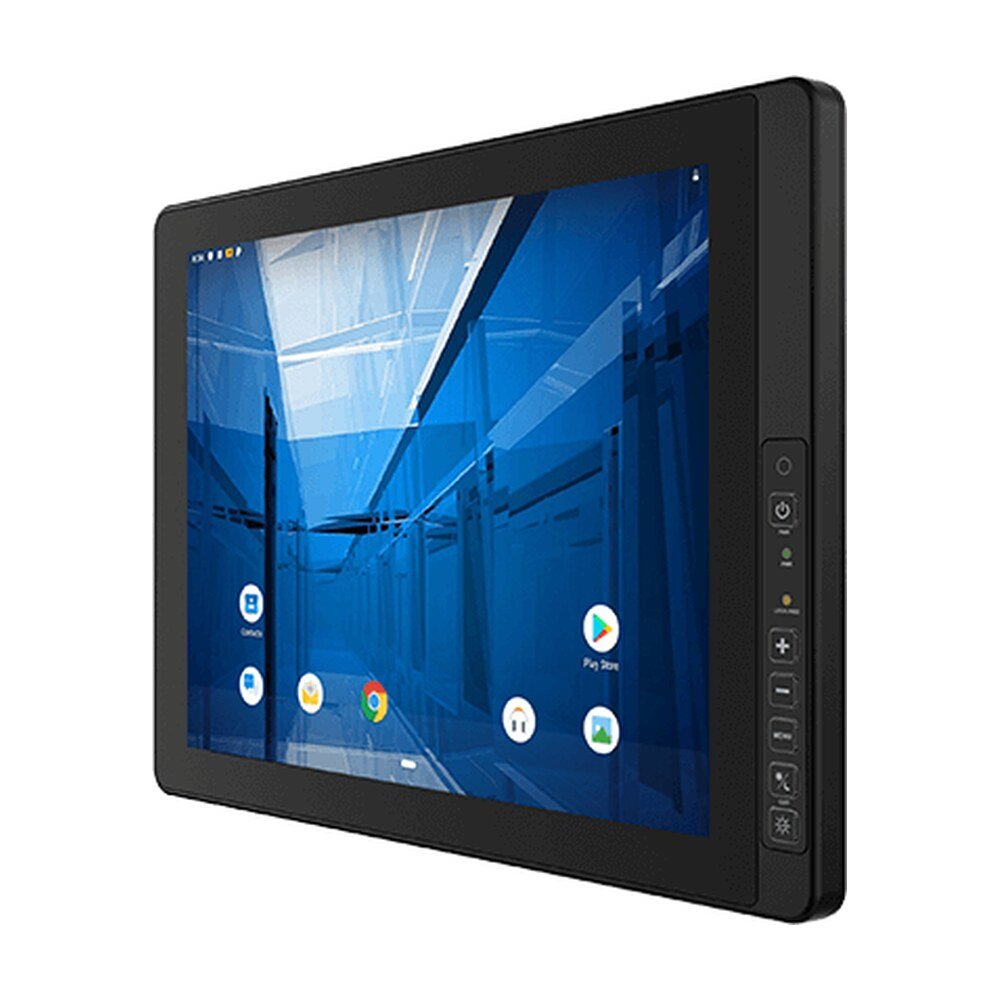

Explore Winmate R15IM3S-67C3-P(HB), an industrial panel PC featuring 15-inch display with 1024x768 resolution, IP67 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15IM3S-67C3-P(HB), an industrial panel PC featuring 15-inch display with 1024x768 resolution, IP67 for machine control and factory automation.
Winmate G-Win IP67 Series Panel PCs stand out by seamlessly integrating flat 5 wire resistive touch technology with optical bonding to reduce reflective glare, resulting in a cutting-edge touchscreen solution that not only ensures ruggedness and precision but also offers superior visual clarity. This innovative fusion caters perfectly to diverse environments such as outdoor kiosks, industrial control panels, and medical instruments, where reliability, durability, and top-notch display visibility are paramount.
Winmate G-Win IP67 Series has anti-corrosion aluminum die-casting back cover, designed specifically for the rigorous demands of the industrial sector. Crafted from high-quality aluminum, this back cover provides exceptional durability and resistance against corrosion, ensuring longevity even in harsh environments. Its robust construction guarantees reliable protection for sensitive components housed within, making it an ideal choice for industrial applications where reliability and longevity are paramount.
The G-Win IP67 Series panel PC is designed to function within a broad temperature range from -10˚C to 55˚C, making it suitable for use in outdoor or hazardous environments, regardless of extreme hot or cold conditions.
The industrial display offers versatile mounting options suitable for both wall and desk installations, facilitating straightforward setup and adaptability across diverse industries to meet specific needs.
The G-WIN GC series HMI panel PC is equipped with an IP67 front rating, ensuring durability against water and dust in challenging environments. This protective feature shields it from water splashes, dust, and other contaminants, preserving operational integrity. Operators can confidently deploy it in demanding industrial conditions, without worrying about moisture or dust-related damage, thus enhancing reliability and longevity for critical operations.
| System Specification | |
|---|---|
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Display | |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -40°C to 55°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Control | |
| Button | 1 x "Power" key to power on the device., 1 x "+" key to increase screen brightness., 1 x "-" key to decrease screen brightness., 1 x "Menu" key can Automatically or manually adjusts brightness of the display screen, 1 x Day / Night Mode button, 1 x LED indicator brightness adjustment button, 1 x Ambient Light sensor |
| Accessory | |
| Accessory | External open wire Power cable with waterproof connector, External USB cable with waterproof connector, External COM cable with waterproof connector, External LAN cable with waterproof connector, Waterproof caps, RJ45 female-female converter, VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IM3S-67C3-P(HB) |
| Series | G-WIN IP67 Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IM3S-67C3-P(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -40°C to 55°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | CE, FCC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Brand | Winmate |
| Manufacturer part number | R15IM3S-67C3-P(HB) |
| Series | G-WIN IP67 Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
