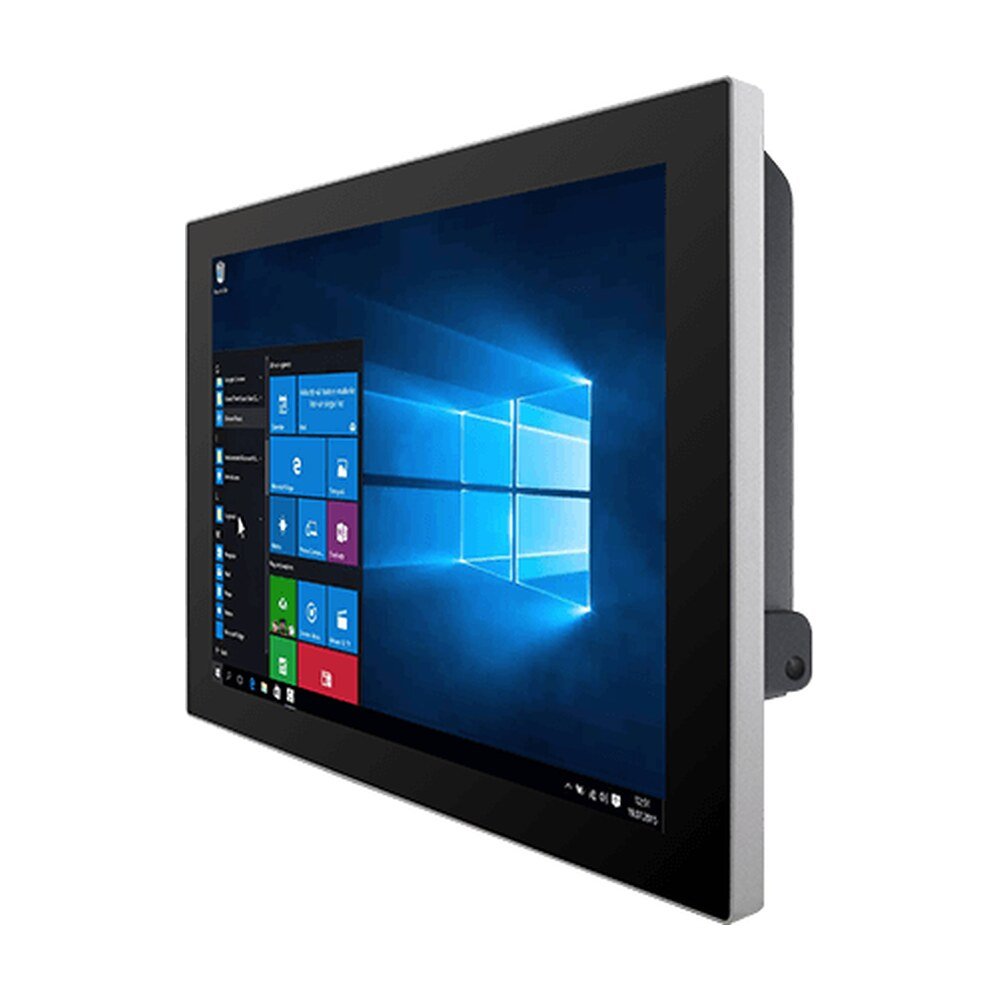

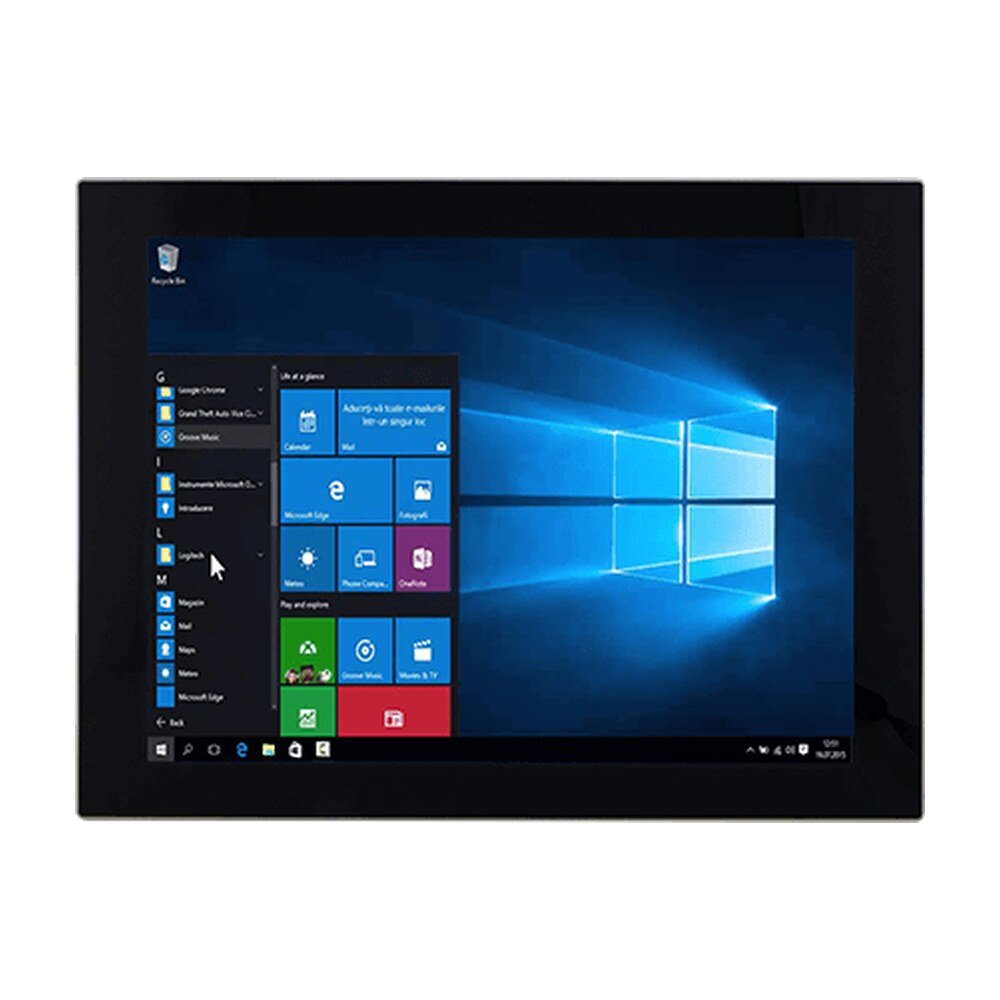

Explore Winmate R15IT3S-GCC3(HB), an HMI panel PC featuring Intel® Core™ i5-1135G7, 15-inch display with 1024x768 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15IT3S-GCC3(HB), an HMI panel PC featuring Intel® Core™ i5-1135G7, 15-inch display with 1024x768 resolution…
Winmate's Flat aluminum P-Cap panel PCs and display go beyond that of the standard industrial panel computers with an elegant, edge-to-edge design. Easy to maintain and clean, to prevent water or liquid droplets penetrates every opening in the device.
Winmate multipurpose and waterproof with Front IP65 panel pc is protected against outer dust and water splash, and ideal for use in harsh environments.
G-WIN line offered fanless, low power platform design, sunlight readable panels, WLAN integration, anti-shock and vibration, and anti-corrosion coating with aluminum alloy housings. With the new generation of G-WIN, Winmate extends the line once again by offering a panel product with Intel's next-generation Bay Trail and Broadwell processor paired with genuine Intel graphics resulting in high performance with low power consumption.
Since panel computers are not mobile systems to be carried around, they have no internal battery (other than a possible backup battery or uninterruptible power supply). Instead, the devices use DC power via conventional external AC adapters. Winmate's standard configurations use 12 Volt DC with lockable power connectors. For applications that require a wide/variable input power range, Winmate offers a 9 to 36 Volt (for Intel Bay Trail-based panels) and 9 to 24 Volt (for ARM Freescale-based models) wide-range power option.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default), Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB(for NVMe) (Optional), 2TB(for NVMe) (Optional), 4TB(for NVMe) (Optional), 1 x SATA III , up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1 x RS232 (Optional) |
| LAN | 2 x RJ45 |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| Mechanical | |
| Dimension | 363.4 x 277.86 x 44.5 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter , Power Cable |
| Power | |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IT3S-GCC3(HB) |
| Series | Standalone Panel PC (HMI) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IT3S-GCC3(HB) |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (P-CAP Touch), Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default), Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1 x RS232 (Optional) |
| LAN | 2 x RJ45 |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| Dimension | 363.4 x 277.86 x 44.5 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter , Power Cable |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R15IT3S-GCC3(HB) |
| Series | Standalone Panel PC (HMI) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
