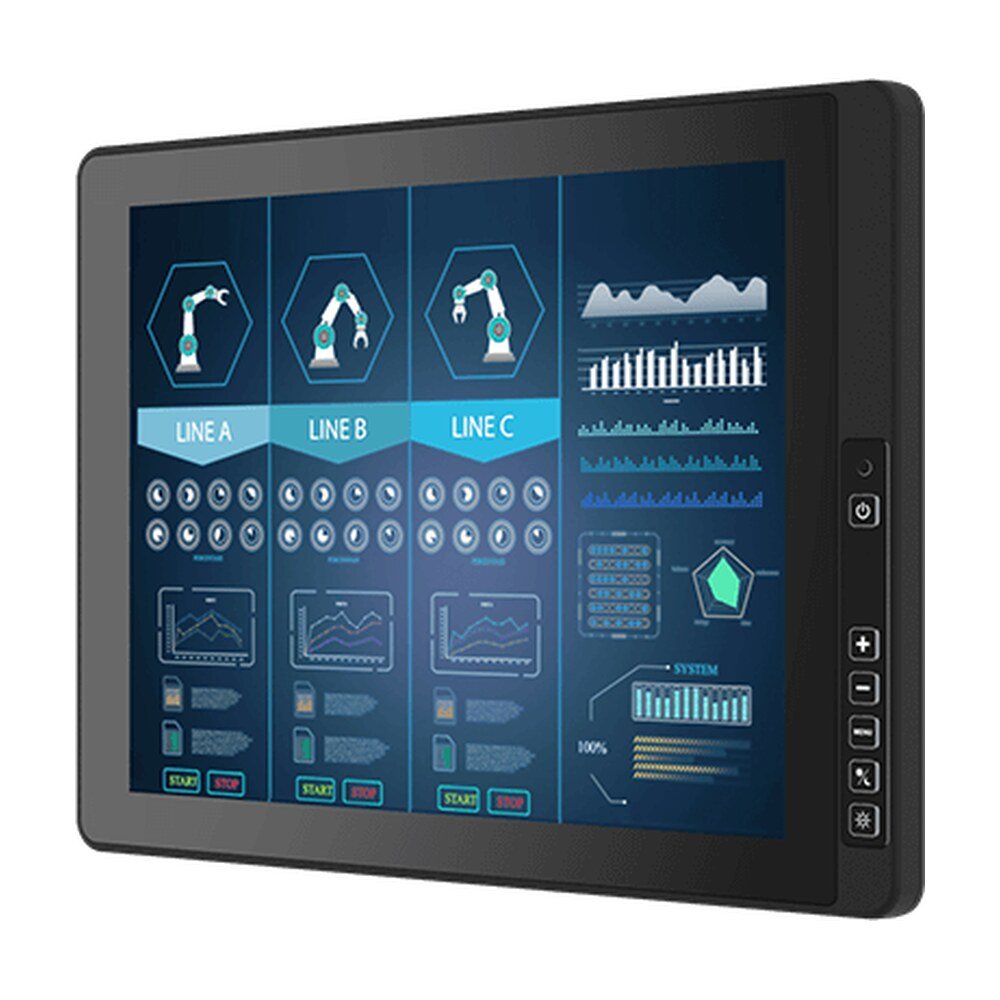

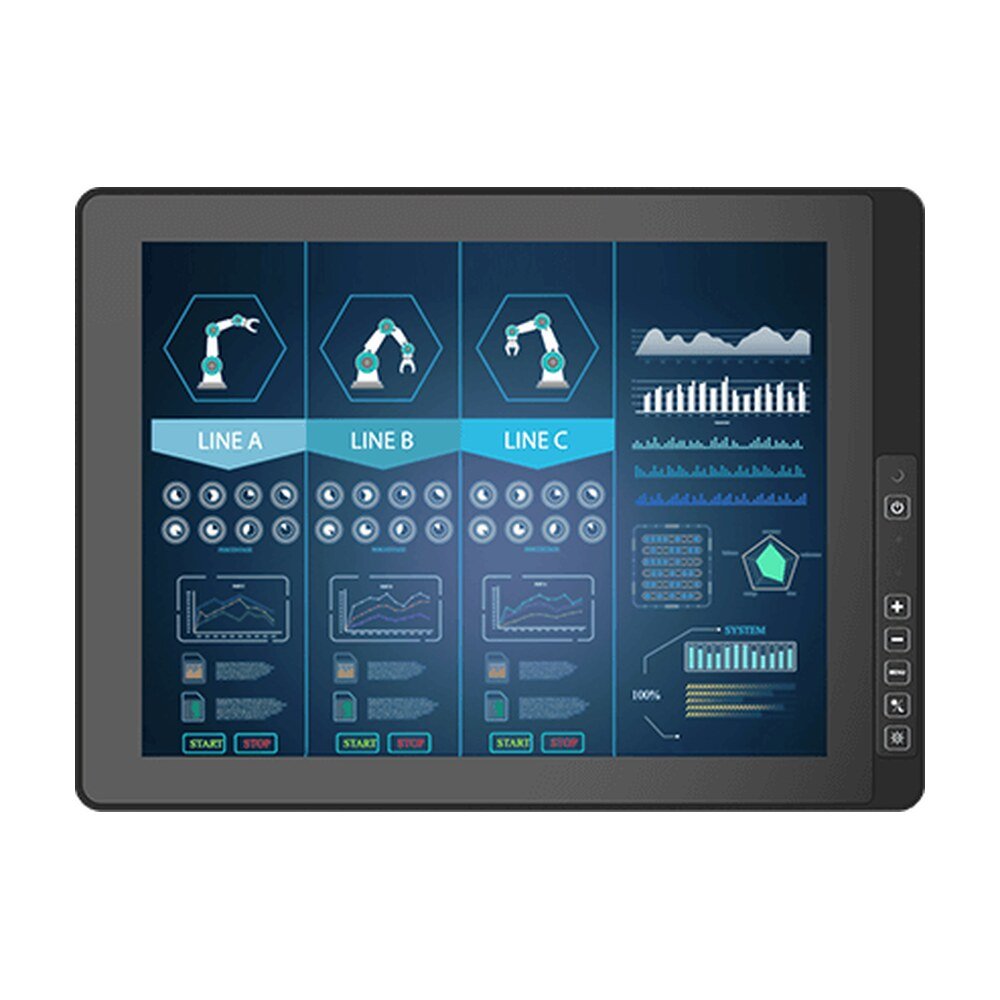

Explore Winmate R15L100-67C3POD, a chassis display featuring 15-inch display with 1024x768 resolution, IP67 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15L100-67C3POD, a chassis display featuring 15-inch display with 1024x768 resolution, IP67 for industrial visualization and control rooms.
The PCAP Touch Chassis Display Series ensures stable operation in demanding environments with a standard temperature range of -10 to 60°C. With an optional heater solution, it extends down to -25°C for reliable use in cold-climate and outdoor deployments. This capability safeguards continuous productivity where temperature resilience is essential.
Winmate PCAP Touch Chassis Display Series offers protection against water and dust, making it both dustproof and waterproof, ideal for demanding environments.

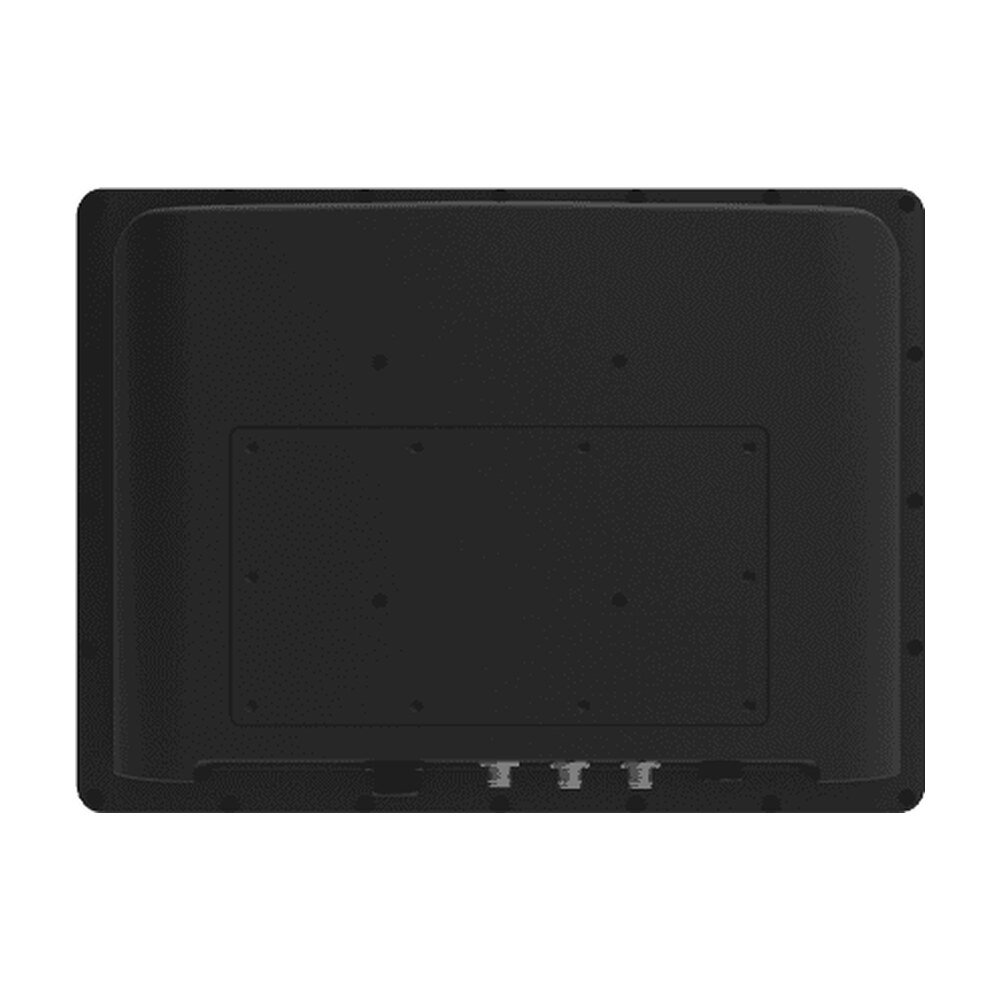

Designed to withstand harsh conditions, the PCAP Touch Chassis Display Series comes with a fully sealed IP67-rated enclosure. Its dustproof and waterproof design ensures reliable performance in industrial and outdoor environments. With VESA mount compatibility, installation is flexible and convenient.
The PCAP Touch Chassis Display supports a wide 9-36V DC input, making it adaptable to various industrial power systems. This feature ensures stable operation across different voltage conditions, enhancing reliability in rugged settings. It is ideal for automation, transportation, and heavy-duty machinery.
Built with a rugged construction, the Winmate PCAP Touch Chassis Display Series features an aluminum die-cast housing and anti-corrosion measures, ensuring durability and resilience even in exposed settings.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel (Default), Ture Flat Protection Glass Bonding With Panel (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -25°C to 60°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x M12 waterproof connector for 9~36V DC |
| Serial Port | 1x M12 type connector for Touchscreen via USB signal |
| Video | 1x M12 type connector for VGA input, 1x Waterproof connector for HDMI input |
| SD Card Slot | 1 x M12 type connector for Touchscreen via RS232 signal (Optional), 1 x M12 type connector for RS232 Remote Control (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for lock/unlock status |
| Control | |
| Button | 1 x "Power" key to power on the device., 1 x "+" key to increase screen brightness., 1 x "-" key to decrease screen brightness., 1 x "Menu" key can Automatically or manually adjusts brightness of the display screen, 1 x Day / Night Mode button, 1 x LED indicator brightness adjustment button, 1 x Ambient Light sensor |
| Accessory | |
| Accessory | 1 x External open wire Power cable with waterproof connector, 1 x External USB cable with waterproof connector for Touch, 1 x External VGA cable with waterproof connector, 1 x External HDMI cable with waterproof connector, 3 x Waterproof caps, VESA screws |
| Optional Accessory | 100~240V AC to DC Adapter with power cord (Optional), External COM cable with waterproof connector (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15L100-67C3POD |
| Series | Chassis Display (PCAP Touch) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15L100-67C3POD |
|---|---|
| Category | Industrial Display, Outdoor Display, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel (Default), Ture Flat Protection Glass Bonding With Panel (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Dimension | 379.4 x 278.4 x 58 mm |
| Weight | 3.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -25°C to 60°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | CE, FCC |
| USB Port | 1 x M12 waterproof connector for 9~36V DC |
| Serial Port | 1x M12 type connector for Touchscreen via USB signal |
| Video | 1x M12 type connector for VGA input, 1x Waterproof connector for HDMI input |
| SD Card Slot | 1 x M12 type connector for Touchscreen via RS232 signal (Optional), 1 x M12 type connector for RS232 Remote Control (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for lock/unlock status |
| Optional Accessory | 100~240V AC to DC Adapter with power cord (Optional), External COM cable with waterproof connector (Optional) |
| Brand | Winmate |
| Manufacturer part number | R15L100-67C3POD |
| Series | Chassis Display (PCAP Touch) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
