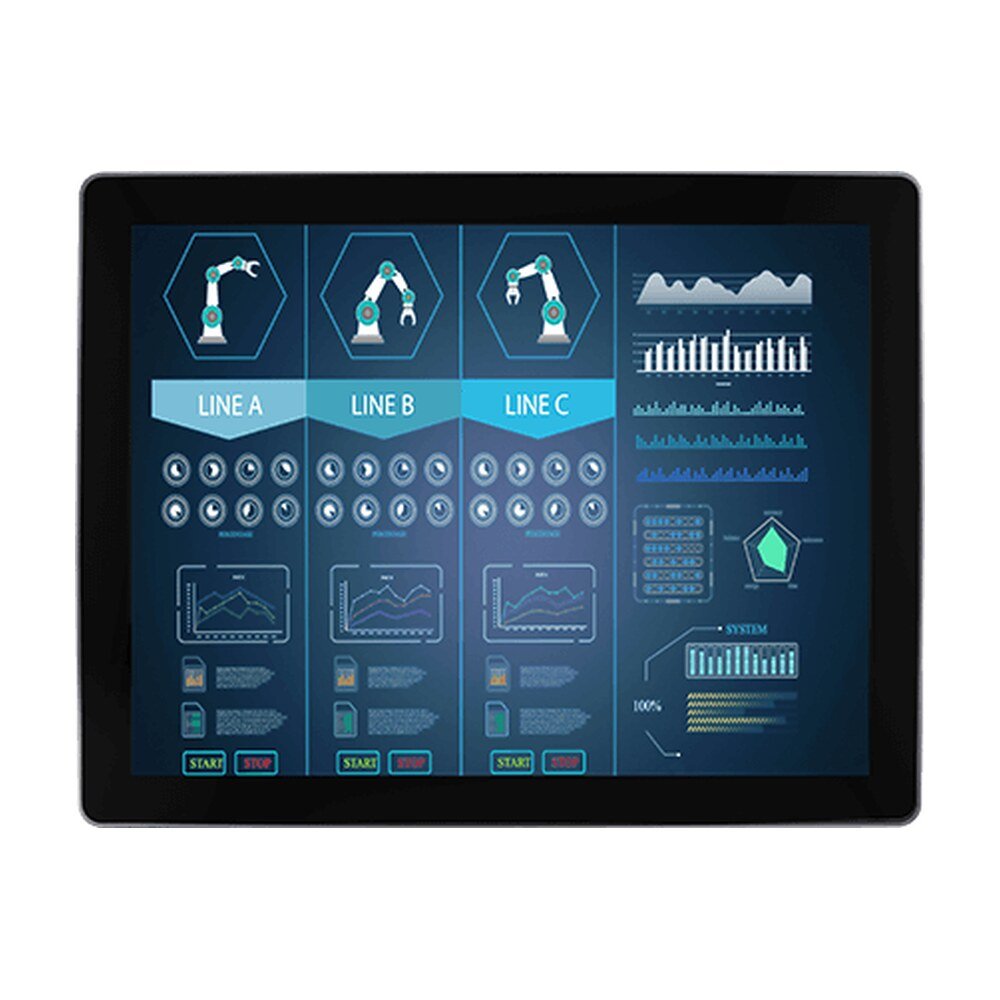

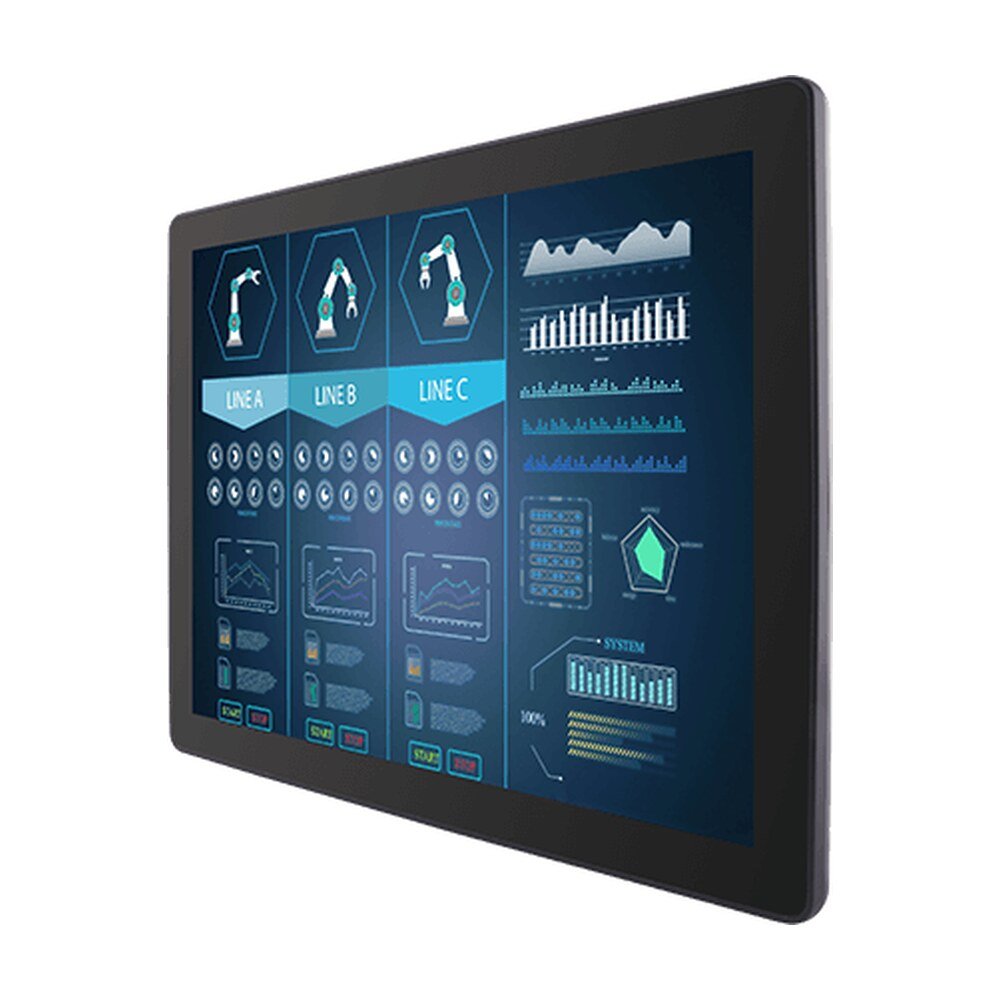

Explore Winmate R15L100-PTC3-POE, a chassis display featuring 15-inch display with 1024x768 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15L100-PTC3-POE, a chassis display featuring 15-inch display with 1024x768 resolution, IP65 for industrial visualization and control rooms.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
Winmate's testing facilities ensure that every product complies with stringent industry standards. At Winmate, durability testing is regularly conducted throughout the manufacturing process to ensure that each product is operable in the specific conditions they were designed for.
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
| Display | |
|---|---|
| Size | 15 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional), Anti-glare Coating (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,70,80 |
| Display Color | 16.2M Colors |
| Active Area | 304.128x228.096 mm |
| Environment | |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| LAN | 1 x PoE for Power Input |
| Video | 1 x VGA (Default), 1 x HDMI (Optional) |
| Audio | 2 x Speaker , (Optional) |
| Mechanical | |
| Dimension | 352.5 x 276.7 x 45 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x USB Cable for Touch, 1 x VGA Cable, 1 x HDMI Cable |
| Power | |
| POE | Power Device (PD) follows, IEEE 802.3at (25 W), IEEE 802.3af (15 W) |
| Control | |
| Button | 7 Keys: Enter, Exit, Right, Left, Up, Down, Power |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15L100-PTC3-POE |
| Series | PoE Touch Monitor |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15L100-PTC3-POE |
|---|---|
| Category | Industrial Display, PoE Touch, Winmate |
| Size | 15 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), Protection Glass (Optional), Anti-glare Coating (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,70,80 |
| Display Color | 16.2M Colors |
| Active Area | 304.128x228.096 mm |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| LAN | 1 x PoE for Power Input |
| Video | 1 x VGA (Default), 1 x HDMI (Optional) |
| Audio | 2 x Speaker , (Optional) |
| Dimension | 352.5 x 276.7 x 45 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| Accessory | 1 x USB Cable for Touch, 1 x VGA Cable, 1 x HDMI Cable |
| POE | Power Device (PD) follows, IEEE 802.3at (25 W), IEEE 802.3af (15 W) |
| Button | 7 Keys: Enter, Exit, Right, Left, Up, Down, Power |
| Brand | Winmate |
| Manufacturer part number | R15L100-PTC3-POE |
| Series | PoE Touch Monitor |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
