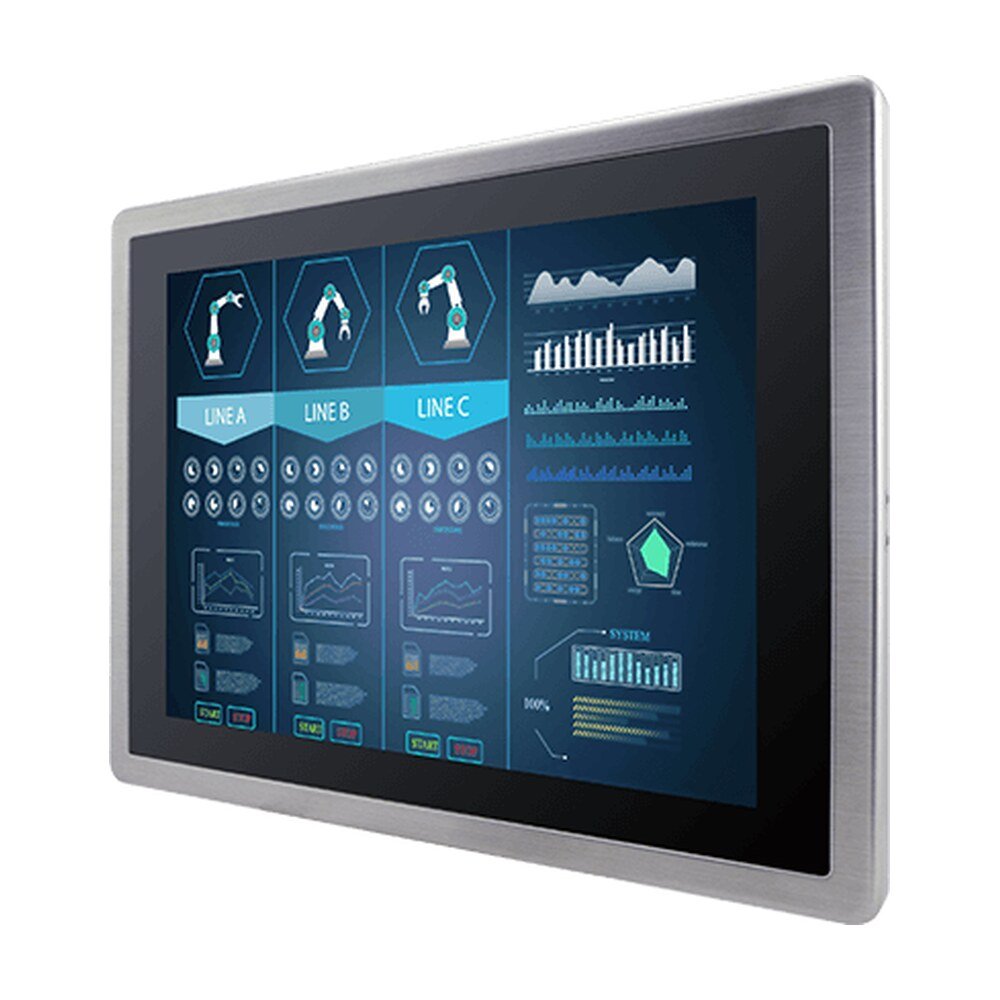

Explore Winmate R15L600-65A1FTP, a chassis display featuring 15-inch display, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15L600-65A1FTP, a chassis display featuring 15-inch display, IP65 for industrial visualization and control rooms.
The display complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in the Food, Beverage, and Pharmaceutical industries.
Featuring a range of ports on these displays, the connectors with protective caps are both waterproof and securely-fastened when they are not in use.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
IP65 protection means these displays can be installed in the harshest industrial environments.
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 2500:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 396 x 310 x 49 mm |
| Weight | 5.7 kg |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x M12 waterproof connector for touch screen control |
| Serial Port | 1 x M12 type connector for RS232 remote control (Optional) |
| Video | 1x M12 type connector for VGA input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | |
| Accessory | External VGA cable with waterproof connector, Waterproof caps, VESA screws, 100~240V AC to DC Adapter with waterproof connector, Power Cord |
| Optional Accessory | External COM cable with waterproof connector for remote control (Optional) |
| Power | |
| Power Rating | 12V DC (M12 type) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15L600-65A1FTP |
| Series | IP65 Stainless PCAP Chassis Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15L600-65A1FTP |
|---|---|
| Category | Industrial Display, Stainless Series, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 2500:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Active Area | 304.1x228.1 mm |
| Dimension | 396 x 310 x 49 mm |
| Weight | 5.7 kg |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1x M12 waterproof connector for touch screen control |
| Serial Port | 1 x M12 type connector for RS232 remote control (Optional) |
| Video | 1x M12 type connector for VGA input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | External VGA cable with waterproof connector, Waterproof caps, VESA screws, 100~240V AC to DC Adapter with waterproof connector, Power Cord |
| Optional Accessory | External COM cable with waterproof connector for remote control (Optional) |
| Power Rating | 12V DC (M12 type) |
| Brand | Winmate |
| Manufacturer part number | R15L600-65A1FTP |
| Series | IP65 Stainless PCAP Chassis Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
