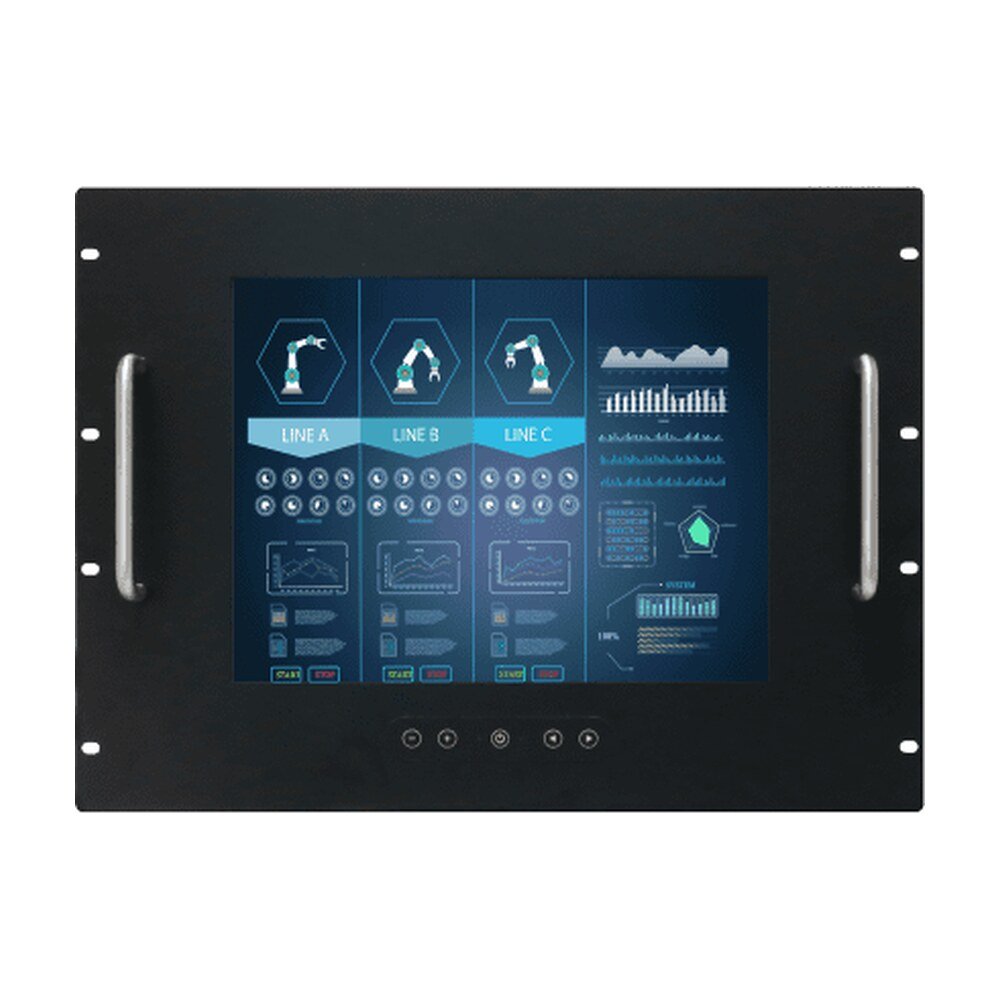

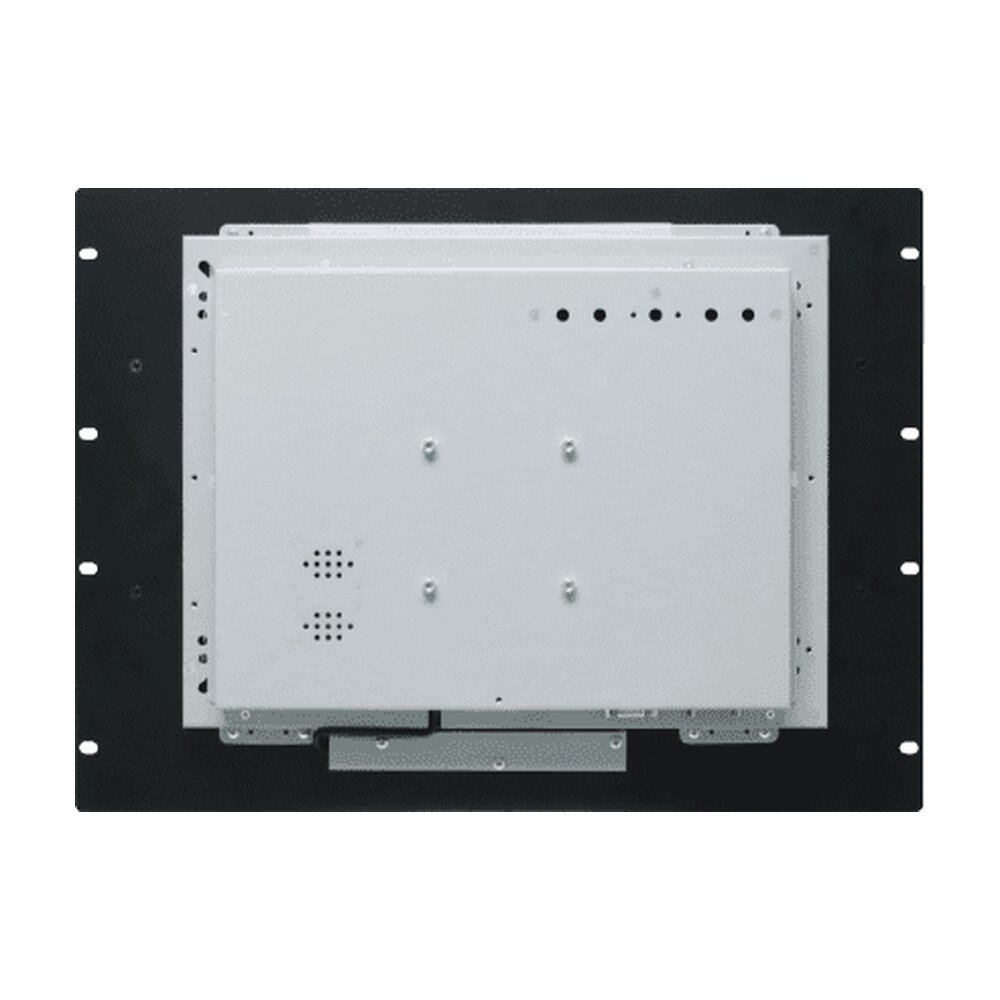

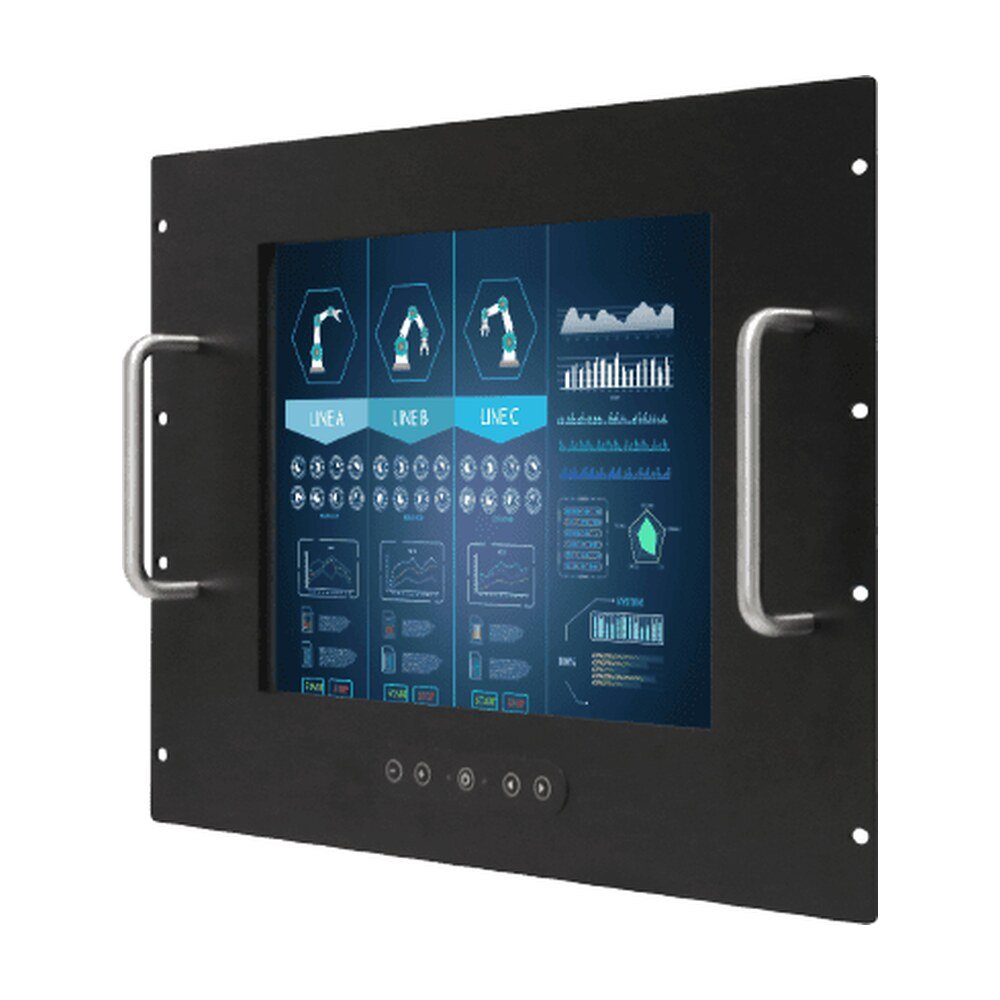

Explore Winmate R15L600-RKC3, an industrial display featuring 15-inch display with 1024x768 resolution for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15L600-RKC3, an industrial display featuring 15-inch display with 1024x768 resolution for industrial visualization and control rooms.
The design of the Rack Display Series allows you to quickly rack mount flat-screen monitors to server racks, cabinets, room controls, security monitoring, and other industrial solutions.
For easy integration to all embedded boards and systems, theRack Display Series comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most industrial and commercial applications.
Easy to connect to your equipment, this option is ideal for racks and consoles requiring touch screen capability. Convenient on-screen user control for the efficiency of the operator.
With a pull-out drawer design, metal housing provides perfect protection from shock and drop. Convenient for portable outdoor, or applied in rack mount because of space-saving and durable design. Being able to be mounted to walls, shelves, and other vertical surfaces, Winmate’s Rack Mount Display can visualize data from network servers in a data room.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 482 x 310 x 51.8 mm |
| Mounting | VESA Mount/Rack Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15L600-RKC3 |
| Series | Rack Mount Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15L600-RKC3 |
|---|---|
| Category | Industrial Display, Rack Mount, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 482 x 310 x 51.8 mm |
| Mounting | VESA Mount/Rack Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R15L600-RKC3 |
| Series | Rack Mount Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
