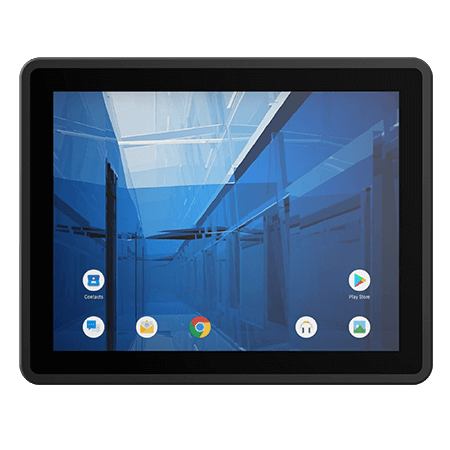

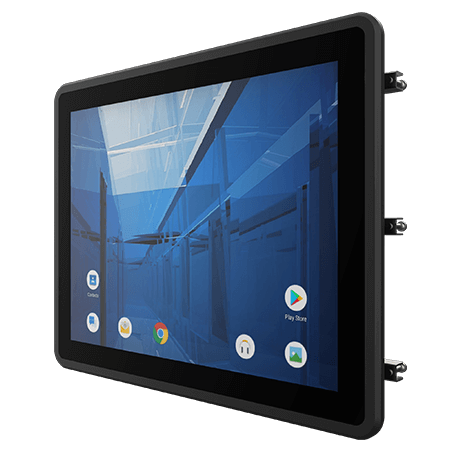

Explore Winmate R15MG3S-EHC3, an HMI panel PC featuring 15-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15MG3S-EHC3, an HMI panel PC featuring 15-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
P-Cap screens respond effortlessly to the touch, supporting features like single-touch, dual-touch, and multi-touch. Unlike resistive screens, they require no pressure, enhancing precision and comfort. Widely used in consumer electronics, medical devices, and industrial settings, enhancing customer experience in applications ranging from consumer electronics to medical devices and industrial control panels.
The Winmate E Series using Android 13 to enhance customization and Connectivity. Android 13 brings personalized app icons, clipboard previews, BT LE Audio, and MIDI 2.0 compatibility. Whether you’re on a panel pc or laptop, Android 13 ensures a seamless and delightful journey across your tech ecosystem.
The Winmate E Series features fanless cooling systems, utilizing heat sinks and vapor chambers instead of noisy fans, to efficiently regulate temperatures quietly and save energy. They are ideal for panel pc, and industrial setups, achieving a balance between performance and silent operation. Additionally, fanless cooling towers contribute to energy savings, especially in central air conditioning.
The Winmate E Series, with its IP65 rating, is a reliable solution for demanding environments. Its waterproof and dustproof features allow it to excel across diverse industries, while the IP65 certification ensures continued functionality even when exposed to water jets and fine dust particles. This rugged tablet’s robust build guarantees seamless operation.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Mechanical | |
| Dimension | 367 x 291 x 65.8 mm |
| Cut out | 342x261mm |
| Weight | 3.0 kg |

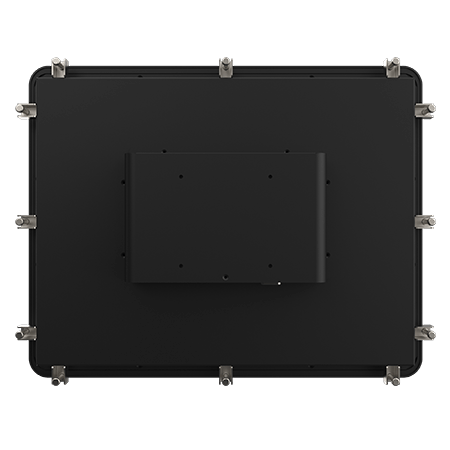

| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Front Bezel with Plastic Back Cover |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps (Default), PoE(PD, 802.3at) (Optional) |
| Video | 1 x Micro HDMI Output (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional) |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15MG3S-EHC3 |
| Series | E Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15MG3S-EHC3 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Dimension | 367 x 291 x 65.8 mm |
| Cut out | 342x261mm |
| Weight | 3.0 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Front Bezel with Plastic Back Cover |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps (Default), PoE(PD, 802.3at) (Optional) |
| Video | 1 x Micro HDMI Output (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional) |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | R15MG3S-EHC3 |
| Series | E Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
