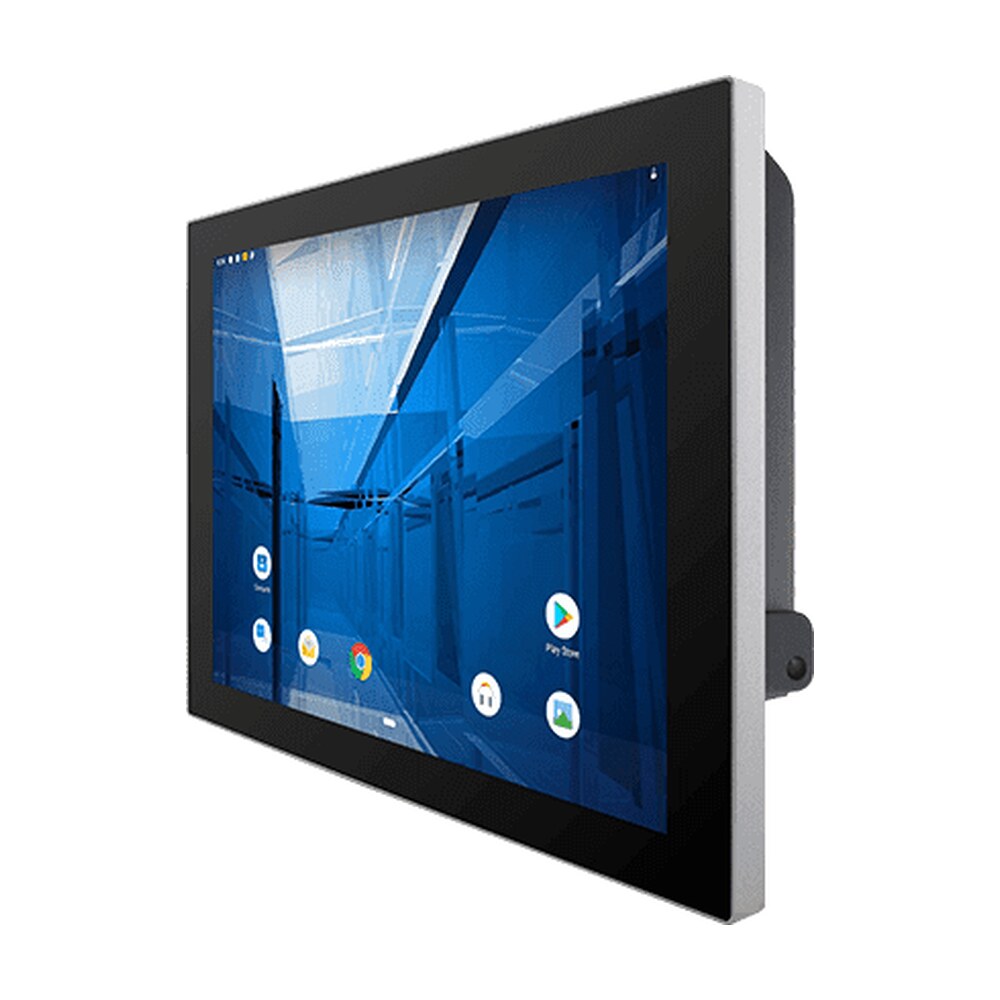

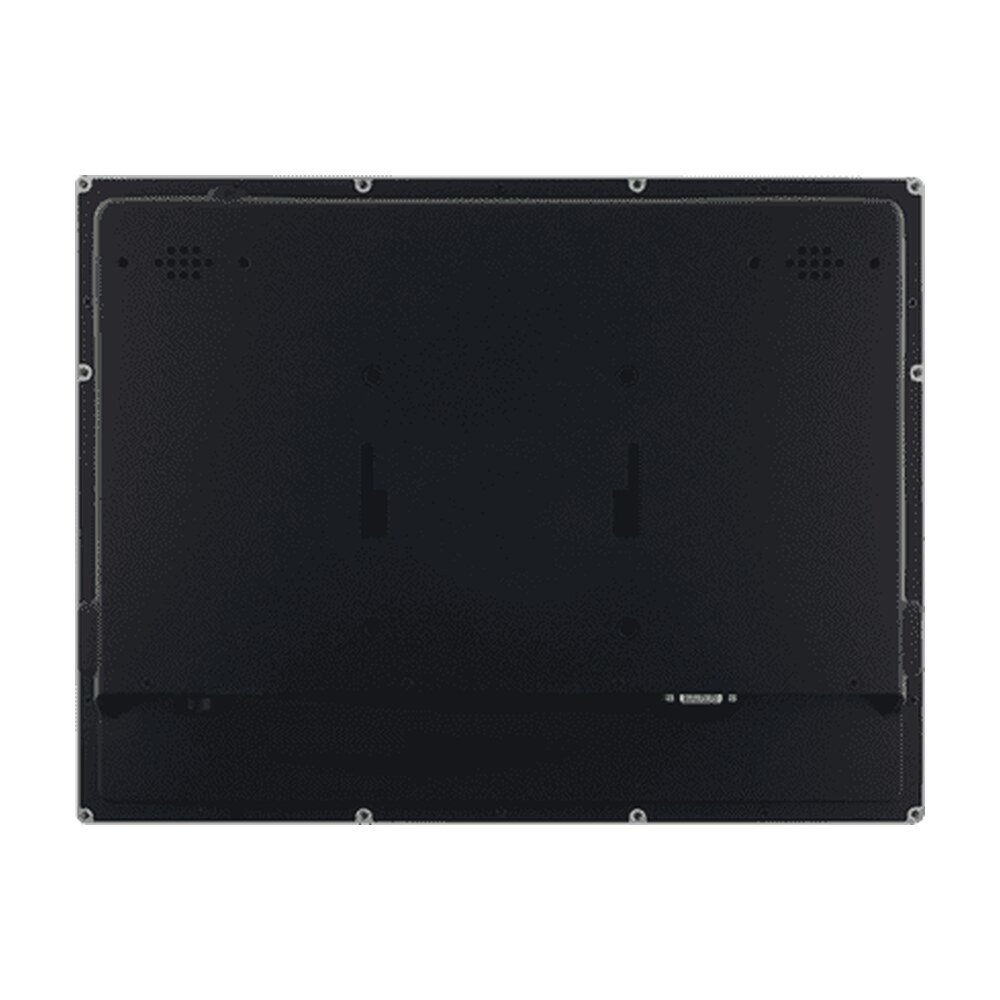

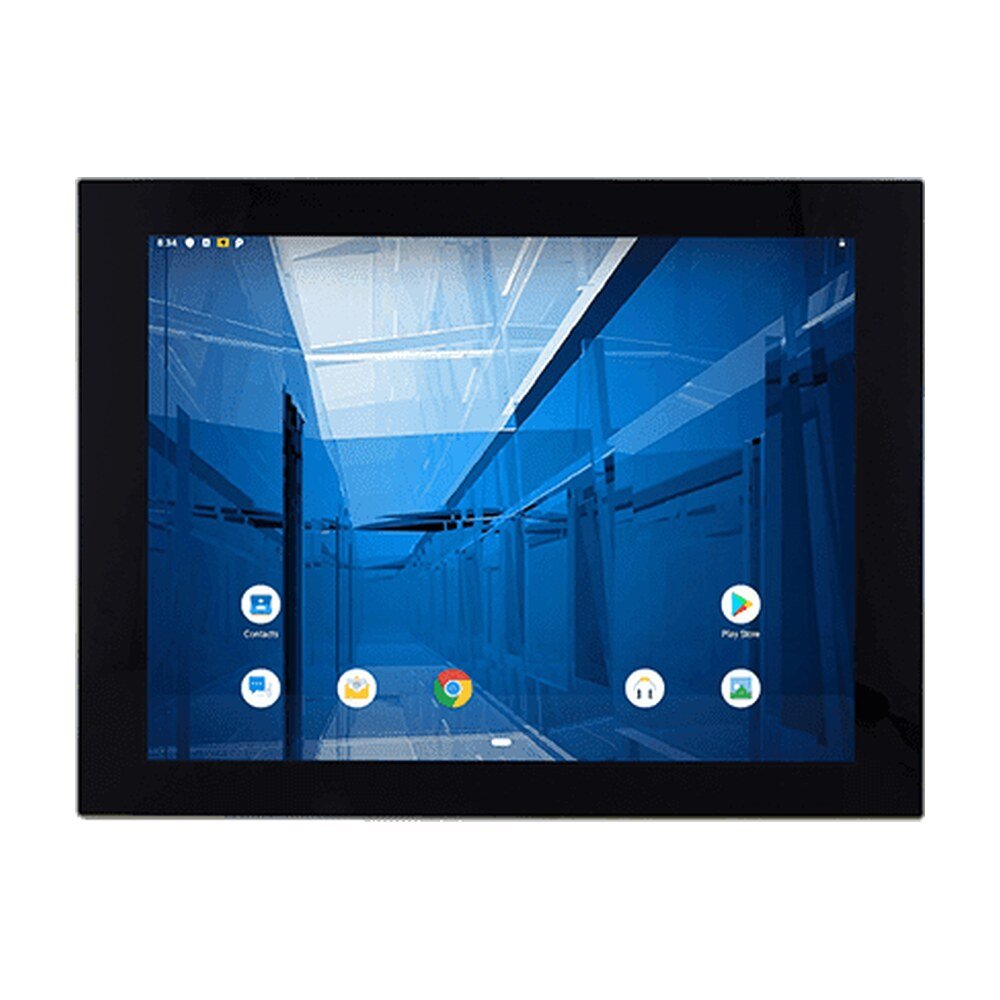

Explore Winmate R15MG3S-GCC3, an industrial panel PC featuring 15-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15MG3S-GCC3, an industrial panel PC featuring 15-inch display, IP65 for machine control and factory automation.
Enjoy a dust-free environment with the true flat surface. The GC series panel PC featuring a sleek aesthetic with a completely flat surface and edge-to-edge bezel, maintenance and cleaning have never been more effortless. Its easy-to-clean nature helps shield against water or liquid infiltration into device crevices.
Embracing fanless cooling systems utilizing heat sinks and vapor chambers, the Winmate GC Series guarantees both tranquility and energy efficiency, by passing the typical noise disturbances from fans. Specifically designed for panel PCs and industrial environments, they boast seamless operation, delivering peak performance without disrupting silence. Furthermore, these innovative cooling mechanisms play a pivotal role in conserving energy, amplifying their value proposition.
The G-WIN GC series HMI panel PC comes with a front IP65 rating, ensuring resilience in tough environments against water and dust. This protection safeguards it from water splashes, dust, and other contaminants, preserving operational integrity. With this rating, operators can confidently deploy the HMI in challenging industrial conditions, free from worries about moisture or dust-related damage. This feature boosts reliability and longevity, enabling optimal performance and durability to support critical industrial operations effectively.
Designed to meet varied industrial needs, the Winmate G-WIN GC Series Panel PC boasts a plethora of I/O interfaces, including 1 x USB Type-C, 2 x USB 2.0, 1 x RS232/422/485, 1 x RJ45,1 x Micro SD Slot, 1 x Micro HDMI (Optional). These interfaces facilitate seamless connectivity and interaction with an extensive range of external devices and peripherals, elevating the adaptability of the Panel PCs across different applications.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 363 x 278 x 45 mm |
| Cut out | 349x263mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Power | |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional), 9~36V (Optional) |
| Adapter | 12V 50W |
| Control | |
| Button | 1 x Power Button (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15MG3S-GCC3 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15MG3S-GCC3 |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 300 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 363 x 278 x 45 mm |
| Cut out | 349x263mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional), 9~36V (Optional) |
| Adapter | 12V 50W |
| Button | 1 x Power Button (Optional) |
| Brand | Winmate |
| Manufacturer part number | R15MG3S-GCC3 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
