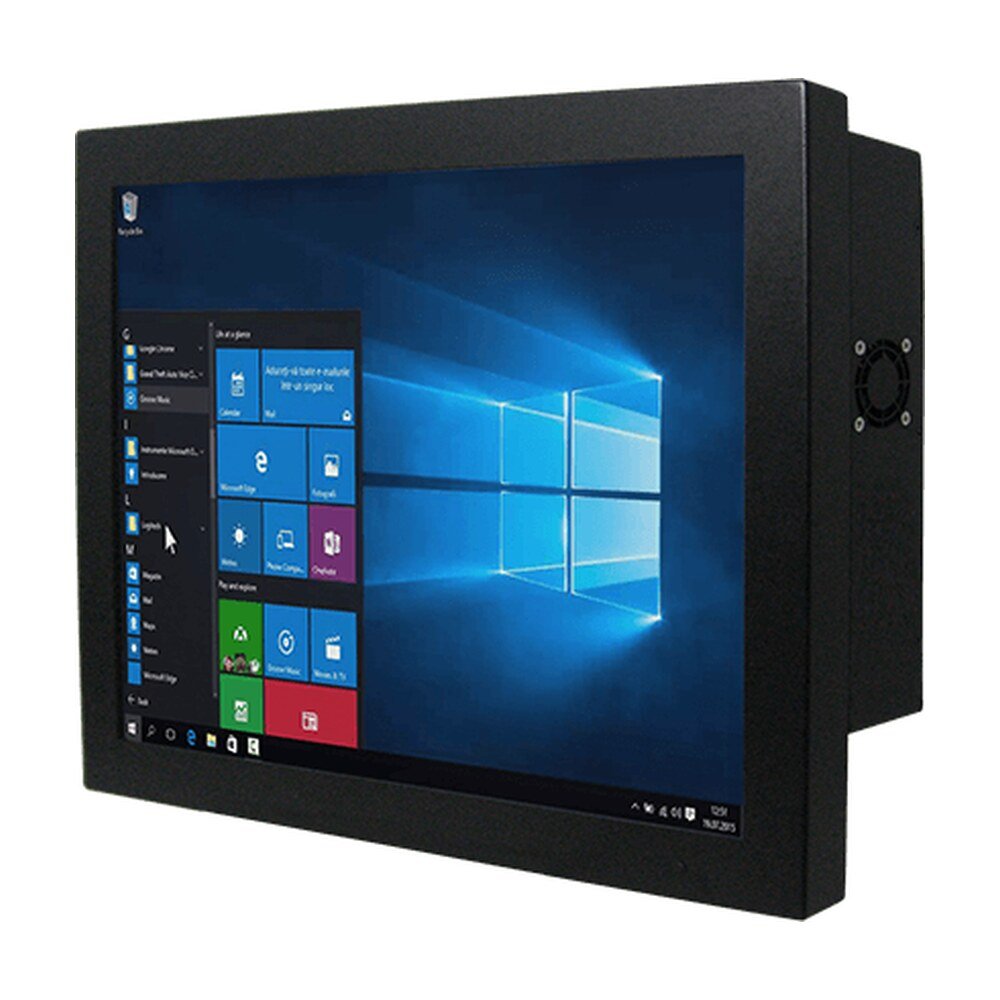

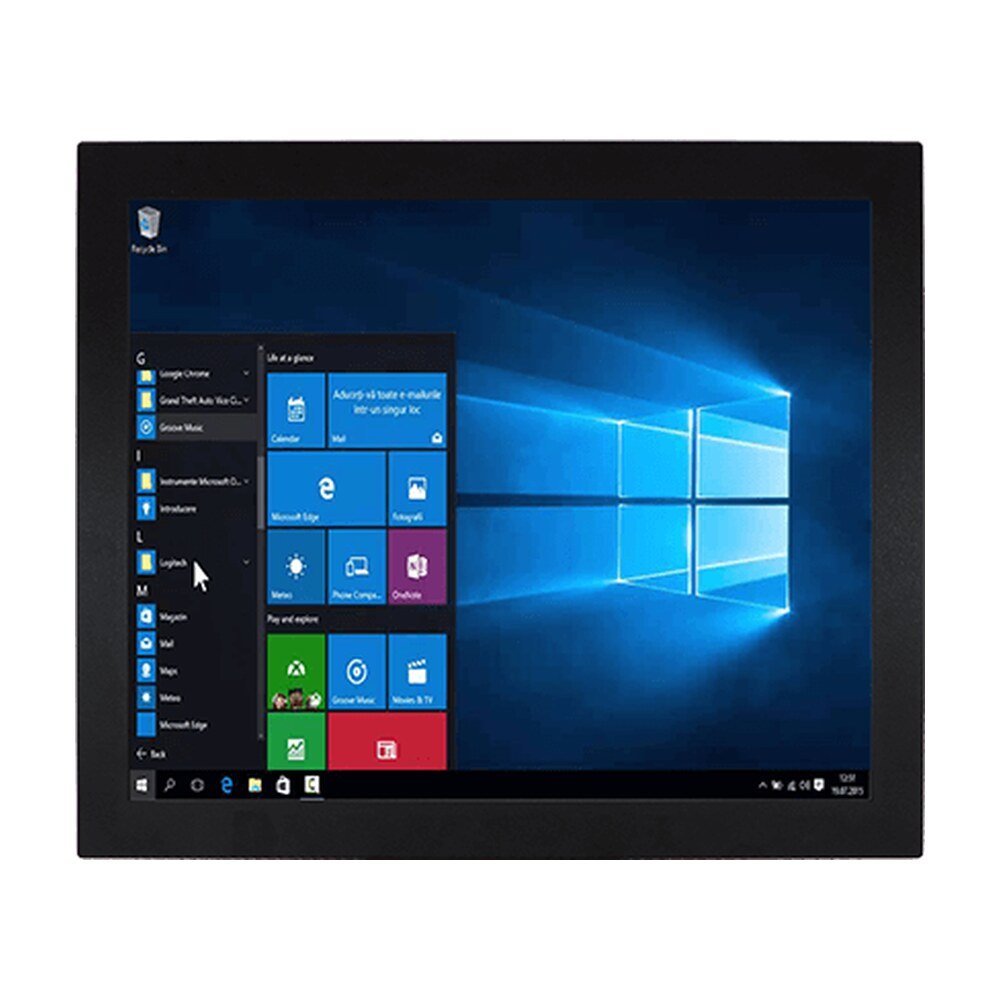

Winmate’s Chassis Panel PC features Intel Alder Lake Processor, delivers outstanding computing power. This ensures seamless multitasking and efficient operation across a variety of applications.
To enhance operator convenience in industrial settings, Winmate's Chassis Panel PC provides adaptable surface options. These include cover glass and a resistive touch screen to accommodate various specifications.
Crafted for minimal power consumption and efficient heat dissipation, Winmate Chassis Panel PC ensures durability for extended use in production facilities. It stands as the ultimate energy-efficient solution.
Winmate provides users the flexibility to choose from various mounting solutions, including rear and VESA mounting, enabling them to select the most suitable option for their specific application.
| Display | |
|---|---|
| Size | 17.0 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| System Specification | |
| Processor | Intel® Core™ i3-12100TE(up to 4.00GHz) (Default), Intel® Core™ i5-12500TE(up to 4.3GHz) (Optional), Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional), Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional), Intel® Core™ i3-14100T(up to 4.4GHz) (Optional), Intel® Core™ i5-14500T(up to 4.8GHz) (Optional), Intel® Core™ i7-14700T(up to 5.2GHz) (Optional), Intel® Core™ i9-14900T(up to 5.5GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 2 x SATA III for 2.5" SSD/HDD up to 2TB(RAID Support) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 394 x 332 x 83 mm |
| Weight | 6.3 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 220W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R17IAD7T-CHM1 |
| Series | Chassis Panel PC |
| Availability | Please call for pricing and availability |
