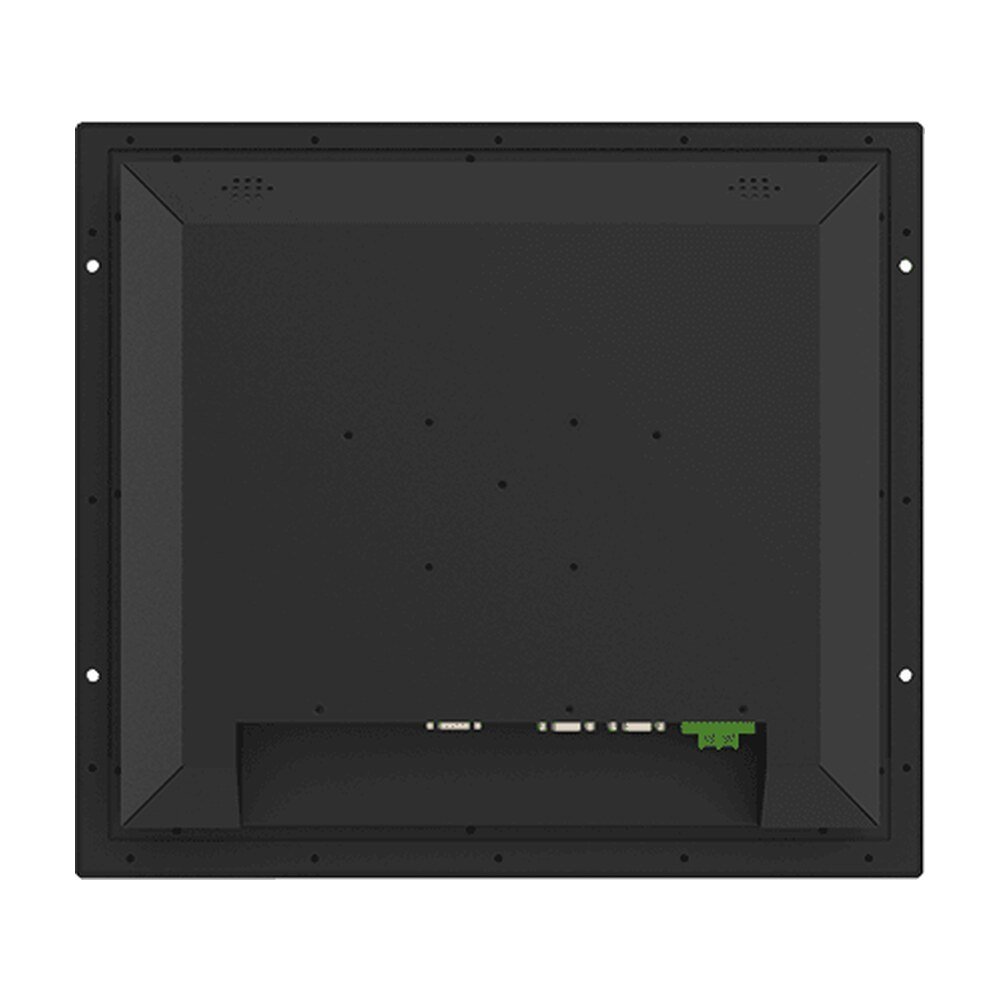

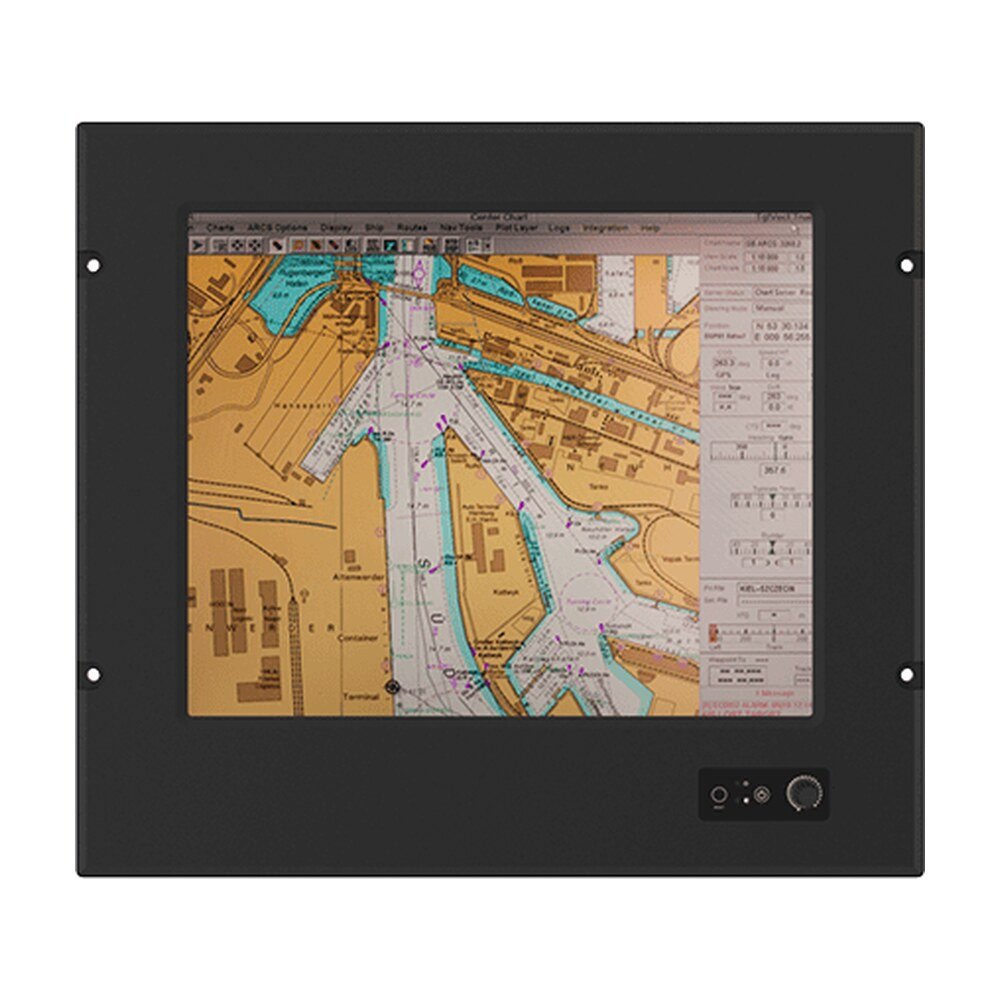

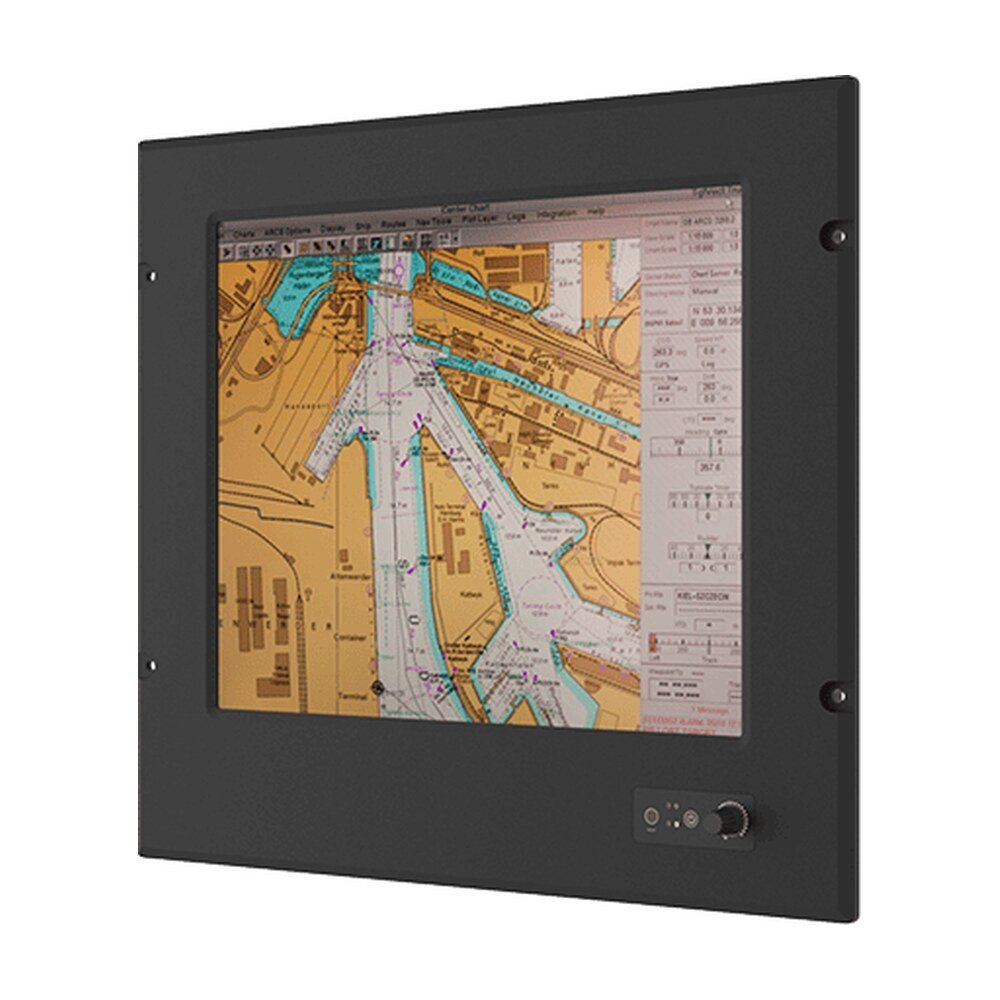

Discover the R17IAN3S-MRM1 Marine Panel PC powered by Intel® N150. Features 0–100% dimming knob control, 9~36V DC input, and an IP66 flush-mount aluminum housing for harsh marine environments.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Discover the R17IAN3S-MRM1 Marine Panel PC powered by Intel® N150. Features 0–100% dimming knob control, 9~36V DC input, and an IP66 flush-mount aluminum housing for harsh marine environments.
The R17IAN3S-MRM1 is driven by the Intel® N150 processor, delivering an optimized balance of low power consumption and reliable processing performance. Tailored for maritime automation, navigation, and monitoring systems, this processing core ensures smooth multi-tasking and continuous, long-term stability while keeping heat generation to a minimum on the vessel.
Winmate marine panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the international regulatory requirements of the marine industry. Standard, IEC60945, and IACS-E10. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.
All the controls are located on the front panel OSD for fast access anytime. Dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications.
The rugged mechanical design of the Winmate marine panel PCs provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee for mission-critical deployment. Deploy Winmate marine panel PCs for the stability and longevity required your safe operations at sea in all weather conditions.
| Display | |
|---|---|
| Size | 17.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), AR Glass (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| System Specification | |
| Processor | Intel® Processor N150 6M Cache, up to 3.6 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 (Type-A), 1 x USB 3.2 (Type C) |
| Serial Port | 1 x RS232, (Default), 4 x RS232 or 4 x Isolation RS422/485 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI (Optional) |
| Mechanical | |
| Dimension | 460 x 410 x 77.2 mm |
| Cut out | 405 x 356 mm |
| Weight | 8.4 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Driver CD & User Manual, 4 x M6 Black Screw Bolt with M6 Nut, 1 x AC Adapter12V/ 84W, 1 x Power Cord |
| Power | |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 65W (Typical) |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R17IAN3S-MRM1 |
| Series | Marine Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R17IAN3S-MRM1 |
|---|---|
| Category | Marine Grade, Marine Panel PCs, Winmate |
| Size | 17.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), AR Glass (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| Processor | Intel® Processor N150 6M Cache, up to 3.6 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 (Type-A), 1 x USB 3.2 (Type C) |
| Serial Port | 1 x RS232, (Default), 4 x RS232 or 4 x Isolation RS422/485 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI (Optional) |
| Dimension | 460 x 410 x 77.2 mm |
| Cut out | 405 x 356 mm |
| Weight | 8.4 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | Driver CD & User Manual, 4 x M6 Black Screw Bolt with M6 Nut, 1 x AC Adapter12V/ 84W, 1 x Power Cord |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 65W (Typical) |
| Button | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Brand | Winmate |
| Manufacturer part number | R17IAN3S-MRM1 |
| Series | Marine Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
