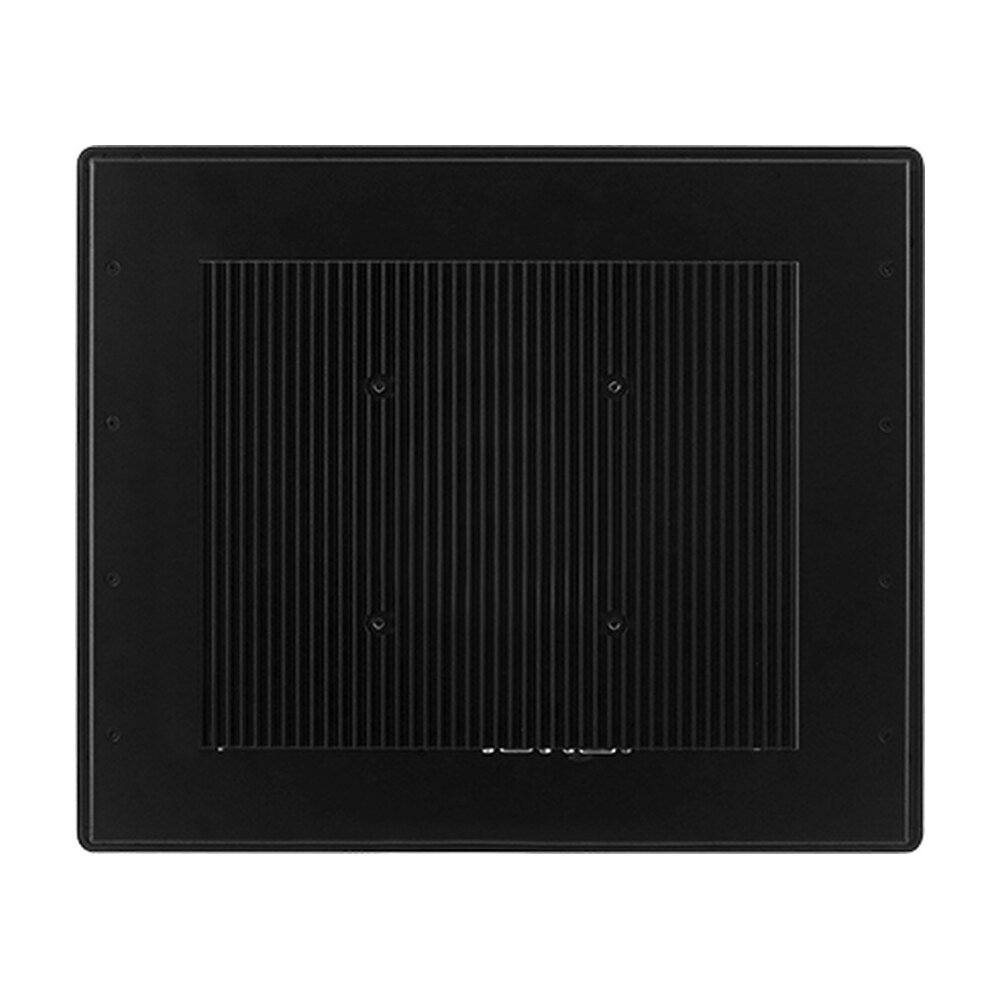

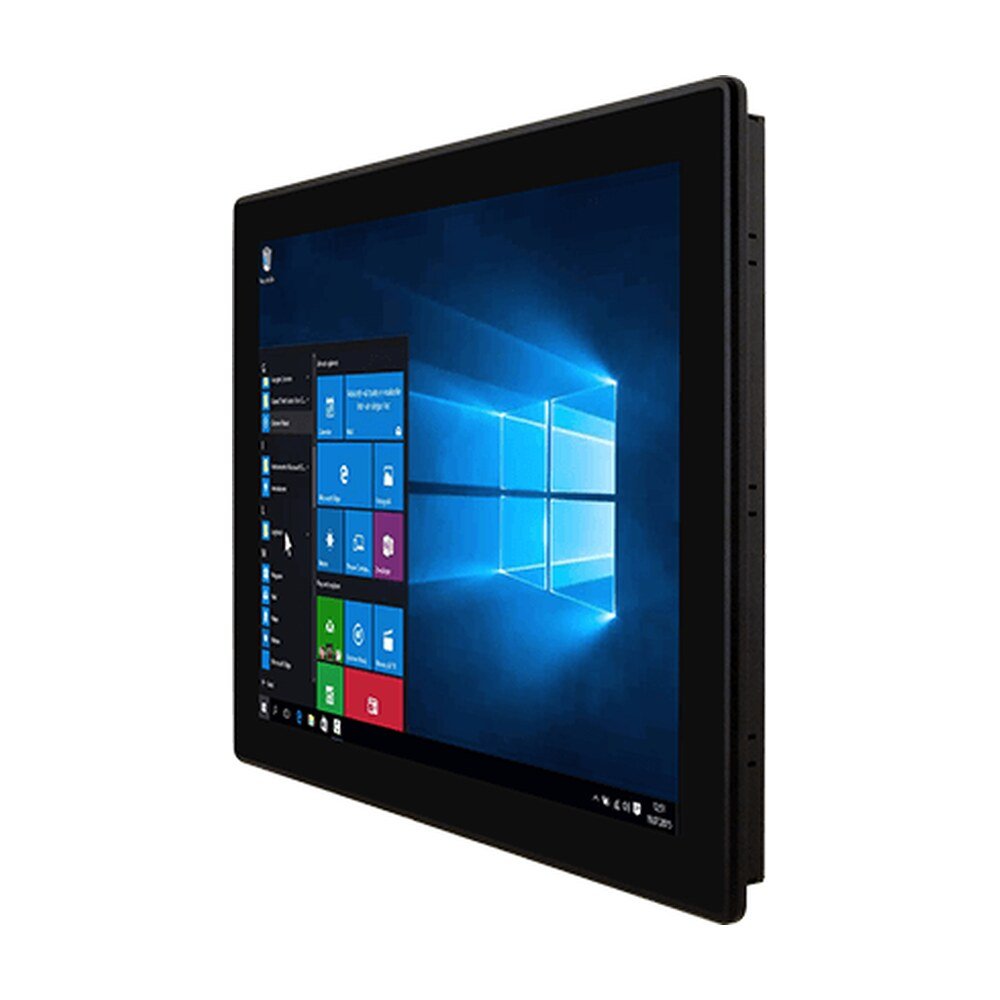

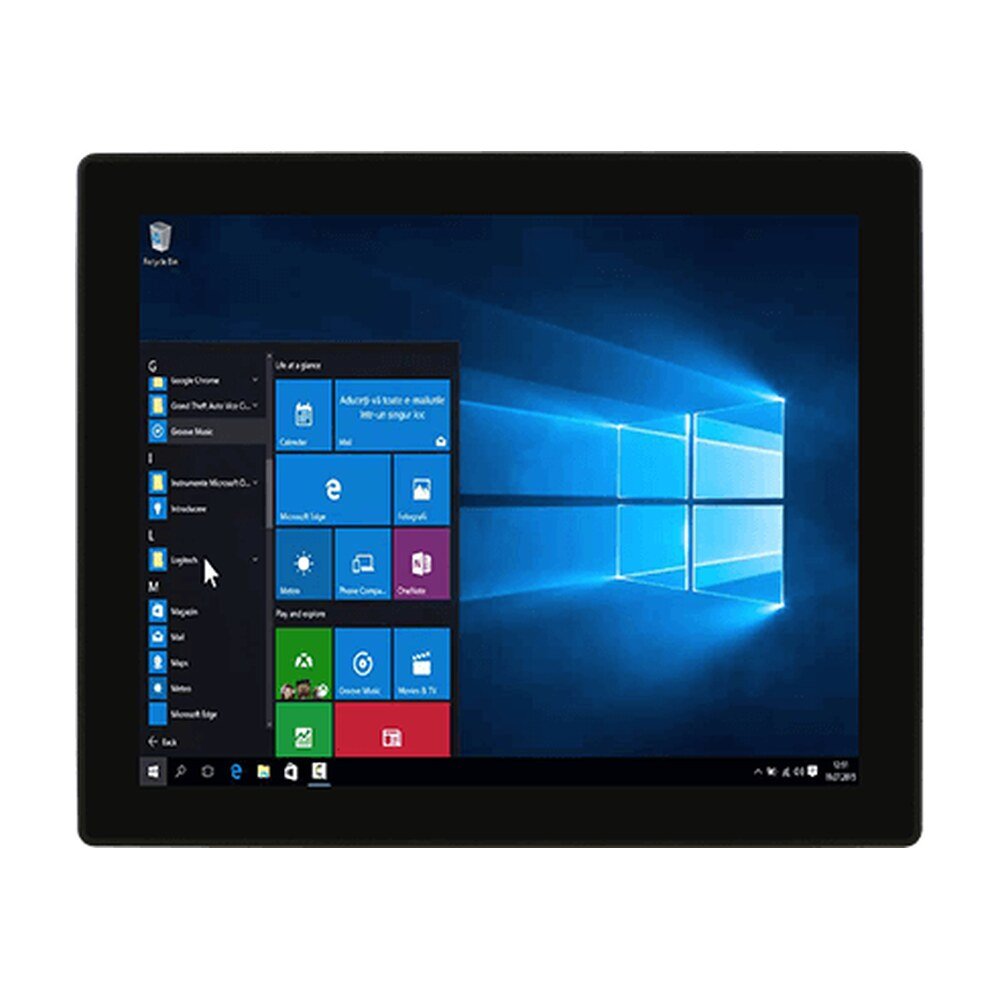

Explore Winmate R17ITWS-MHM1, an HMI panel PC featuring Intel® Core™ i5-1135G7, 17-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R17ITWS-MHM1, an HMI panel PC featuring Intel® Core™ i5-1135G7, 17-inch display, IP65 for machine control and factory automation.
The M-Series HMI is designed with flexible modularity in mind. The HMI is made of two interchangeable parts, the Box PC and the Display. By having a simple board to board a docking connector that connects these two modules, users can easily change the display size or box pc depending on their needs.
These technologies support simultaneous touch, which is very user-friendly. Withal touch screen installed behind glass cover or vandal resistant glass is resistant to scratches, damages, and cleaning fluids.
Upgrade the memory, change the hard disk, or access the PCIe Module. The M-Series HMI contains an easy access service window for a versatile and cost-effective solution for always changing industrial needs.
Winmate M-Series HMI support IP65 sealing on the front side. Devices are protected from possible damages caused by direct snow, rain, dust, dirt, and grime. This feature makes it suitable for outdoor kiosks applications.
Winmate M-Series HMI‘s true flat surface is more than just a stylish and elegant appearance. It is easy to maintain and clean. No more clogged dust on edges.
| Display | |
|---|---|
| Size | 17.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Mechanical | |
| Dimension | 393 x 325 x 94.4 mm |
| Cut out | 373 x 305 mm |
| Weight | 7.0 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Expansion Port | 1 x mPCIe slot, 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm), 1 x M.2 2230 Key E slot for WiFi , 1 x M.2 2280 Key M slot for NVMe SSD, Swappable 2.5” HDD/SSD Bay Slot |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, Mounting clips, VESA screws |
| Power | |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 120W |
| Consumption | 55W~65W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R17ITWS-MHM1 |
| Series | M Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R17ITWS-MHM1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 17.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Dimension | 393 x 325 x 94.4 mm |
| Cut out | 373 x 305 mm |
| Weight | 7.0 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, Mounting clips, VESA screws |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 120W |
| Consumption | 55W~65W |
| Brand | Winmate |
| Manufacturer part number | R17ITWS-MHM1 |
| Series | M Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
