Explore Winmate R19IHAT-66EX-T, a hazardous-area rugged computer featuring Intel® Core™ i5-1135G7, 19-inch form factor, ATEX…

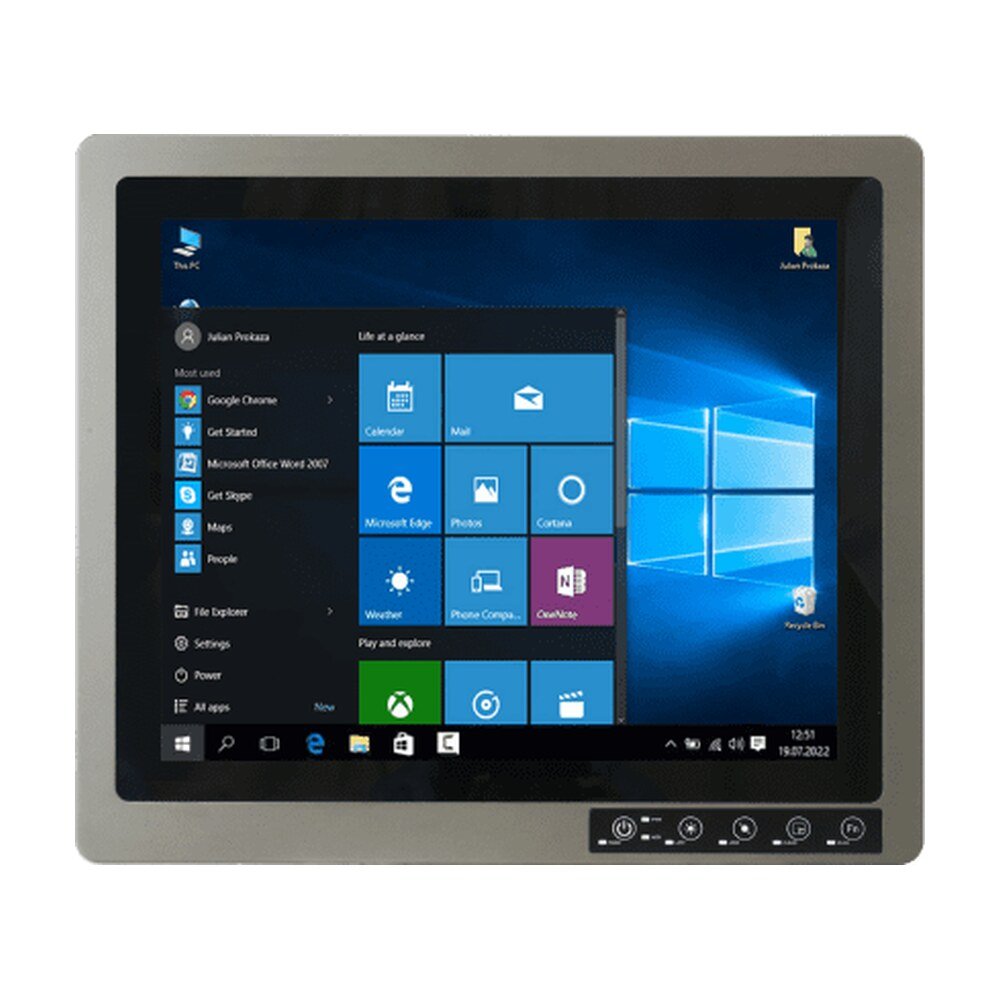

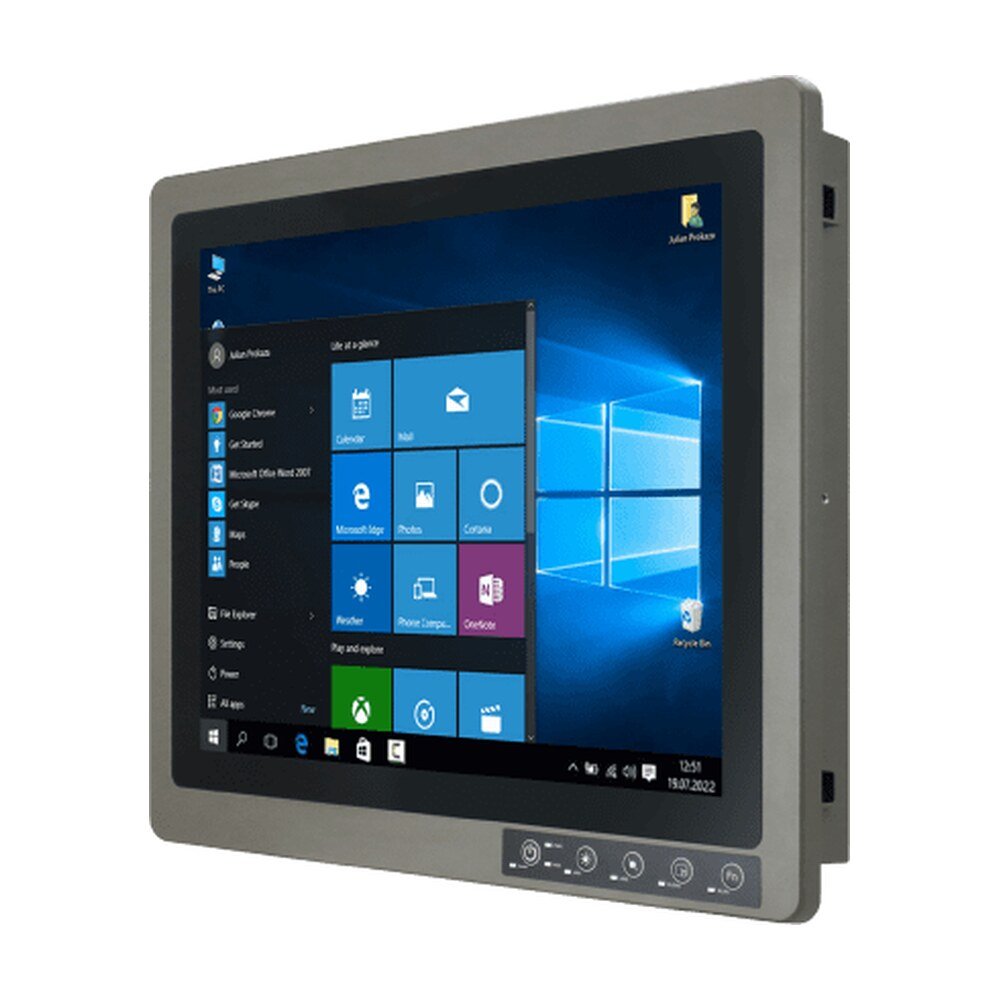

The R19IHAT-66EX-T ATEX panel PC offers all-around IP66 protection against dust and water, in compliance with the MIL-STD-810G standard. Suitable for applications in potentially explosive and harsh environments. With the EX-type brass cable glands M16/ M12 ports for maximum protection in wet and dusty operation conditions.
The R19IHAT-66EX-T complies with ATEX Zone 2 certification for remote data collection, process visualization, and control. Suitable for deployment in hazardous zones, such as explosion-prone areas, where explosion-proof safety requirements are the priority.
Intel® CPU powers Winmate Explosion-proof Panel PC, and a fanless thermal design with a smooth enclosure offers highly efficient heat dissipation and high-performance computing for most demanding tasks.
R19IHAT-66EX-T Explosion-proof panel PC comes with the built-in intelligent heater and optional high brightness, operable at -40°C to 70°C and suitable for outdoor use in rain, sunny, windy, or cold applications.
Enhance customer experience and convenience with a PCAP touch that supports a multi-touch screen. Experience the ultimate durability in some of the most demanding applications, such as a control panel of a drilling rig.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default), Intel Core i7-1165G7 2.8GHz (up to 4.70 GHz) (Optional), Intel Core i3-1115G4E 3.0GHz (up to 3.90 GHz) (Optional), Intel Core i5-1145G7E 2.6GHz (up to 4.10 GHz) (Optional), Intel Core i7-1185G7E 2.8GHz (up to 4.40 GHz) (Optional) |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 19.0 inches |
| Resolution | 1280x1024 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 376.32x301.06 mm |
| Mechanical | |
| Dimension | 474 x 410 x 111 mm |
| Cut out | 462 x 386 mm |
| Weight | 9.8 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -40°C to 70°C (with intelligent heater) |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP66 Meet Standard IEC60529, (for Non-Hazardous location), IP54 Meet Standard IEC60079, (for Hazardous location) |
| Certification | |
| Certification | CE, FCC, , ANSI/UL 62368-1-2019, CAN/CSA-C22.2 No.62368-1-19, EN 62368-1, , Class I, Div.2, Groups A,B,C,D T4, -40 <= Tamb <= 70, Meet Standards, ANSI/UL 121201-2021, CAN/CSA C22.2 No. 213-17, , ATEX II 3G Ex ic IIC T4 Gc, -40 <= Tamb <= 70, Meet Standards, EN 60079-0, EN 60079-7, EN 60079-11, , IECEx Ex ec ic IIC T4 Gc, -40 <= Tamb <= 70, Meet Standards, IEC 60079-0, IEC 60079-7, IEC 60079-11 |
| IO Ports | |
| USB Port | 1 x USB2.0, 4-Pin Terminal Block, 1 x USB 3.2 Gen1x1 (Type A, only used in safe area), 2 x USB2.0 (Type A, only used in safe area) |
| Serial Port | 1 x RS232/422/485, 10-Pin Terminal Block, 1 x DB9 RS232(only used in safe area) |
| LAN | 1 x LAN, , 8-Pin Terminal Block, 1 x RJ45(only used in safe area) |
| Video | 1 x DB15 VGA(only used in safe area) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), (SATAIII is only available when M.2 NVMe is not in use), 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 1 x LED Indicator for heater, 1 x LED Indicator for LAN, 1 x LED Indicator for lock touch |

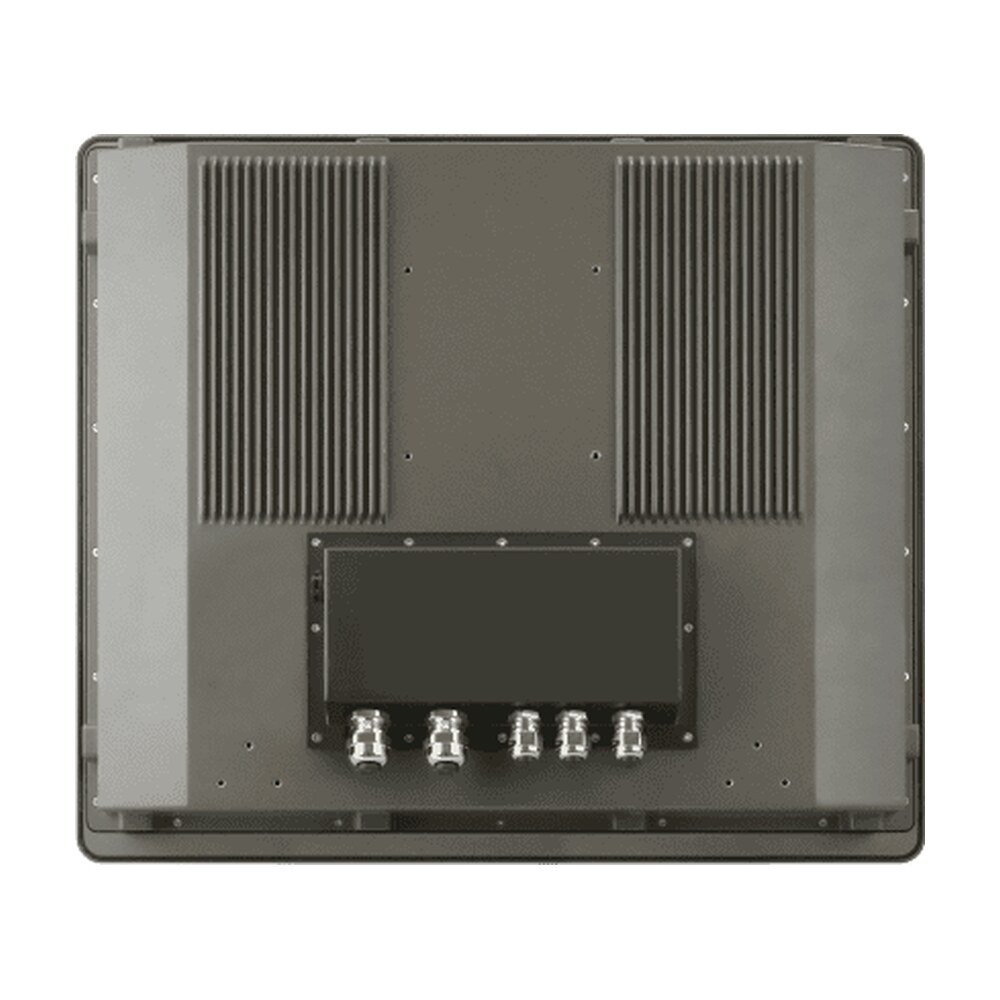

| Gland | 2 x EX-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm), 3 x EX-Type Brass Cable Gland M12 (Cable range 5.4~8mm) |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Brightness up Button, 1 x Brightness down Button, 1 x Button for locking touch function, 1 x Programmable function key |
| Accessory | |
| Accessory | 24V 150W AC to DC Adapter, Power cord, Open wired power cable for M12 cable Gland, Open wired USB cable for M12 cable Gland, Open wired LAN/COM cable for M16 cable Gland, VESA Mounting Screws, Mounting Clips & Screws, 3 Pins Terminal Block For Power, 8 Pins Terminal Block For LAN, 4 Pins Terminal Block For USB, 10 Pins Terminal Block For COM, Note:All the accessories should use in Non-Ex Environment |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R19IHAT-66EX-T |
| Series | ATEX Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R19IHAT-66EX-T |
|---|---|
| Category | ATEX Grade Panel PC, Industrial Panel PC and HMI, Winmate |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 19.0 inches |
| Resolution | 1280x1024 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 376.32x301.06 mm |
| Dimension | 474 x 410 x 111 mm |
| Cut out | 462 x 386 mm |
| Weight | 9.8 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -40°C to 70°C (with intelligent heater) |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP66 Meet Standard IEC60529, (for Non-Hazardous location), IP54 Meet Standard IEC60079, (for Hazardous location) |
| USB Port | 1 x USB2.0, 4-Pin Terminal Block, 1 x USB 3.2 Gen1x1 (Type A, only used in safe area), 2 x USB2.0 (Type A, only used in safe area) |
| Serial Port | 1 x RS232/422/485, 10-Pin Terminal Block, 1 x DB9 RS232(only used in safe area) |
| LAN | 1 x LAN, , 8-Pin Terminal Block, 1 x RJ45(only used in safe area) |
| Video | 1 x DB15 VGA(only used in safe area) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), (SATAIII is only available when M.2 NVMe is not in use), 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 1 x LED Indicator for heater, 1 x LED Indicator for LAN, 1 x LED Indicator for lock touch |
| Gland | 2 x EX-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm), 3 x EX-Type Brass Cable Gland M12 (Cable range 5.4~8mm) |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Brightness up Button, 1 x Brightness down Button, 1 x Button for locking touch function, 1 x Programmable function key |
| Brand | Winmate |
| Manufacturer part number | R19IHAT-66EX-T |
| Series | ATEX Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
