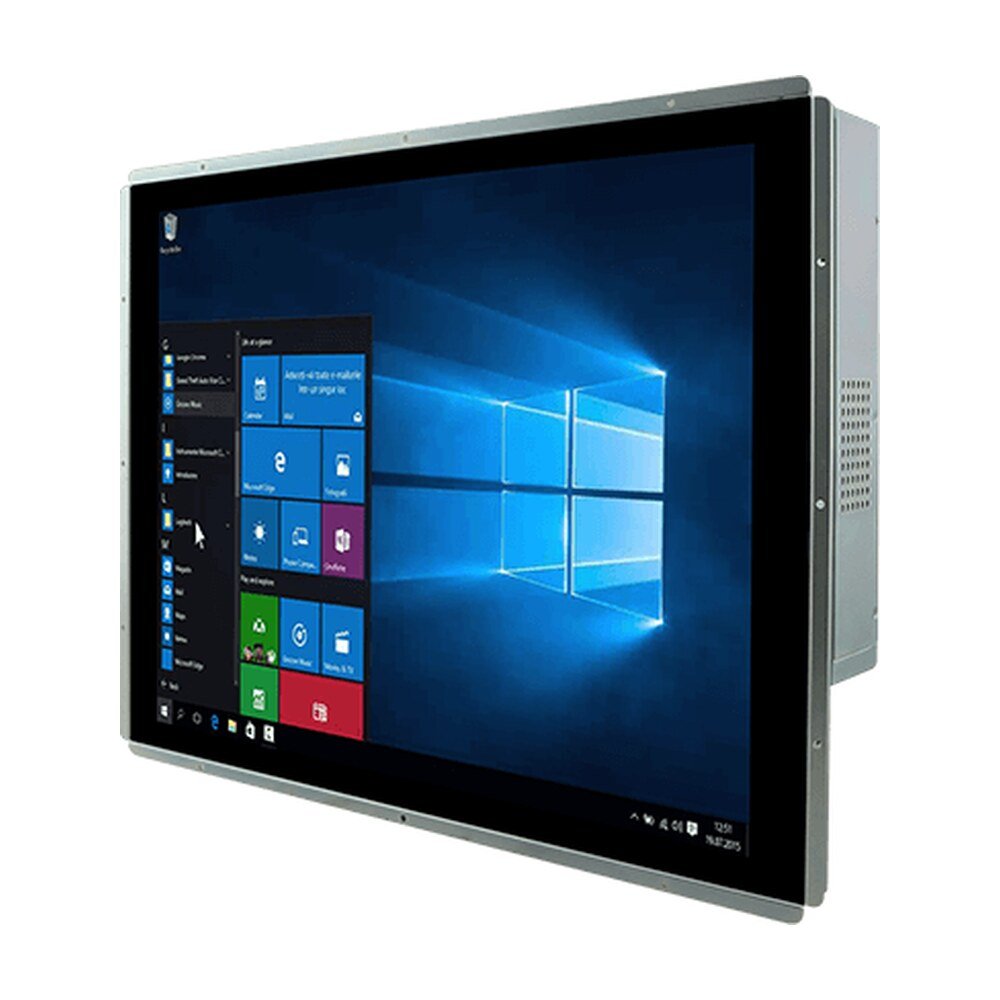

Explore Winmate R19IP7T-POM1, an HMI panel PC featuring Intel® Pentium® N4200, 19-inch display with 1280x1024 resolution, IP65 for machine control and factory…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R19IP7T-POM1, an HMI panel PC featuring Intel® Pentium® N4200, 19-inch display with 1280x1024 resolution, IP65 for machine control and factory…
The Open Frame HMI panel PCs provide an exceptional touch experience with their projected capacitive (PCAP) multi-touch screens. This technology enhances user interaction, improving device convenience and overall customer satisfaction. Enjoy seamless touch control and ease of use!
The PO Series HMI panel PCs feature a sleek flat bezel and an easy-to-mount open frame housing, making them perfect for a variety of industrial embedded and kiosk applications. Designed for banking, healthcare, retail, transportation, and other vertical markets, these panel PCs combine functionality with a modern look.
The PO Series HMI panel PCs offer high performance and a comprehensive I/O interface for innovative industrial IoT solutions, featuring serial ports, USB ports, LAN, video, and audio ports. Their robust connectivity, superior performance, and installation-friendly design make them ideal for various vertical applications.
| Display | |
|---|---|
| Size | 19.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 376.32x301.06 mm |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 457 x 382 x 61.5 mm |
| Weight | 4.8 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R19IP7T-POM1 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R19IP7T-POM1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 19.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 376.32x301.06 mm |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 457 x 382 x 61.5 mm |
| Weight | 4.8 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Brand | Winmate |
| Manufacturer part number | R19IP7T-POM1 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
