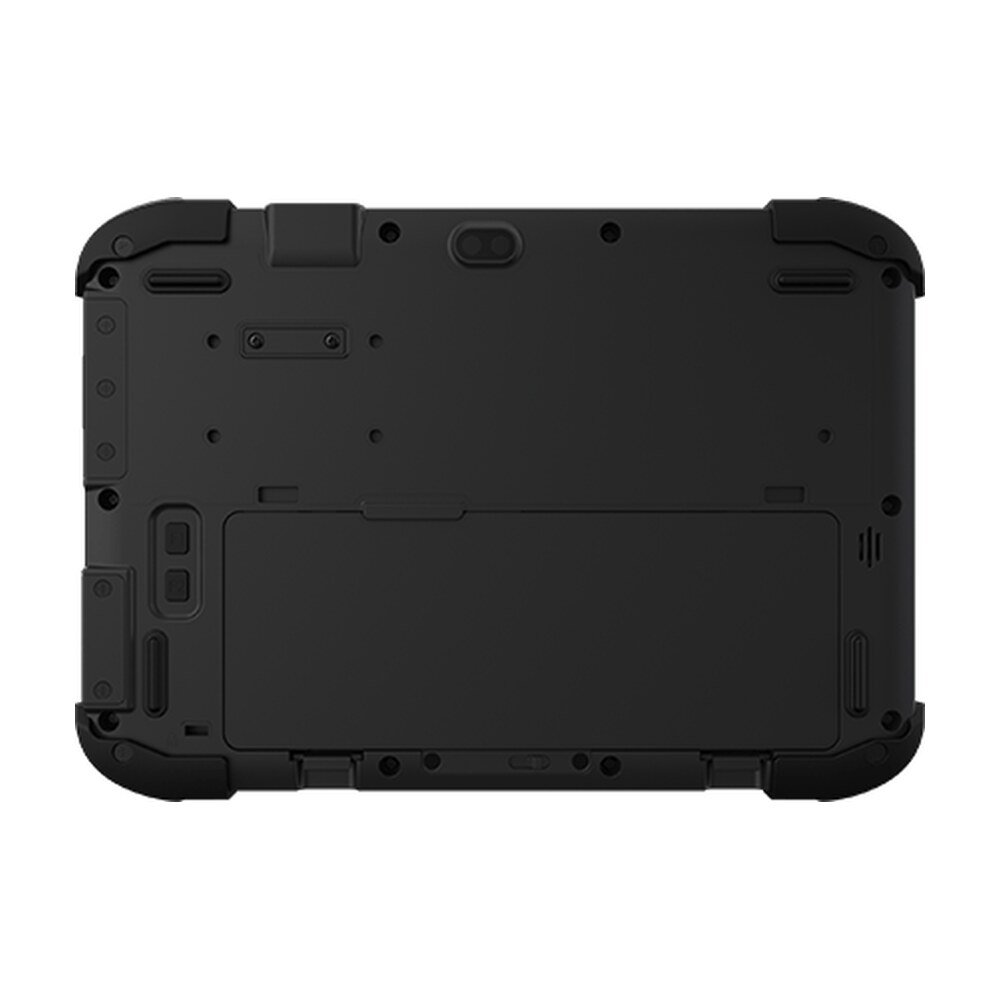

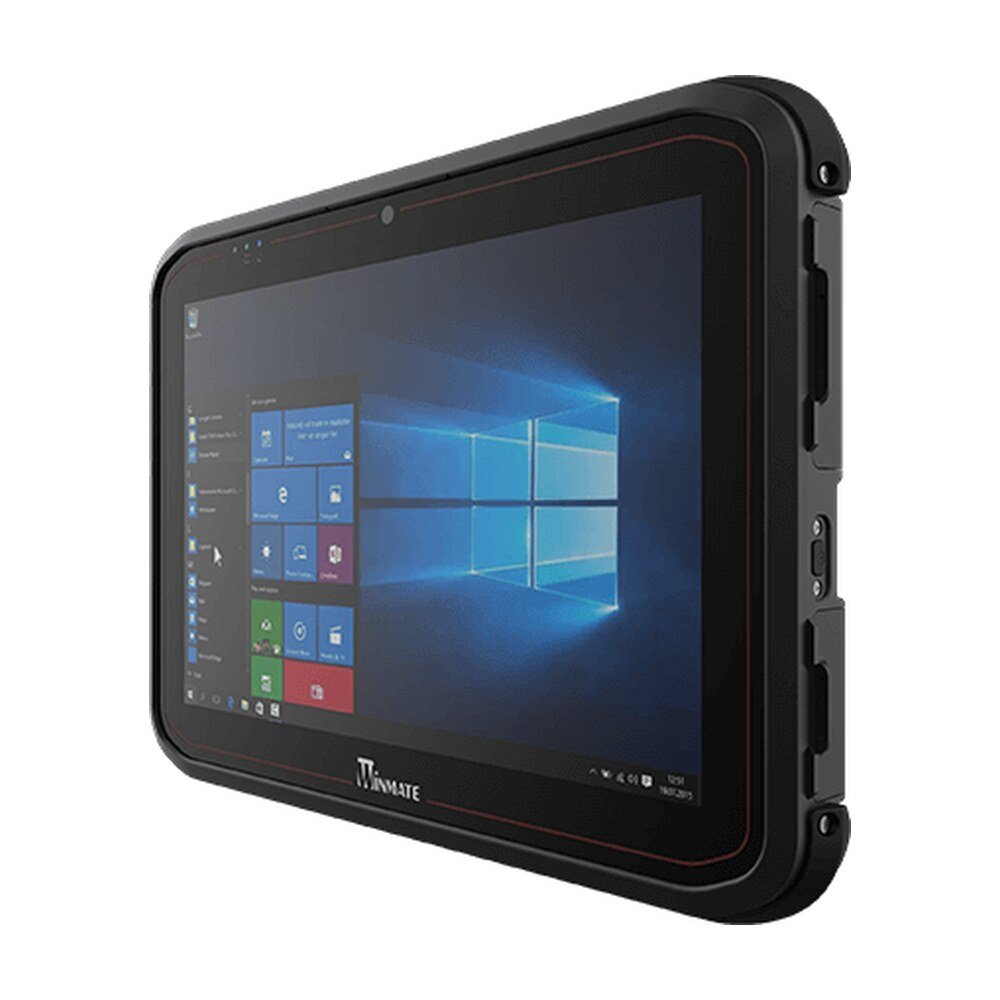

Explore Winmate S101EK, a rugged tablet PC featuring Intel® Celeron® N6211, 10.1-inch display with 1920x1200 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate S101EK, a rugged tablet PC featuring Intel® Celeron® N6211, 10.1-inch display with 1920x1200 resolution, IP65…
With a fanless cooling system powered by an Intel® processor, S101EK offers stable performance for multi-tasks in rigorous conditions. It supports Windows® IoT Enterprise operating system to fulfill increasing industrial applications requirements and provide an alternative solution for those between general consumer-grade and extremely rugged solutions.
The S101EK lightweight tablet offers the latest wired and wireless connection options for faster and improved reliability in dense deployments. Bring a level-up communication with no delay.
S101EK rugged tablet is designed sleek, lightweight, IP65 waterproof sealed, and passed the Defence-standard protection to survive all challenging environmental conditions. S101EK is designed genuinely for mobile workers and keepers who always worry about accidental damage.
S101EK has 10.1 inches screen supported with the stylus, glove, and wet-touch modes, also integrated with an IPS 800-nits screen for clear visibility and operation comfort whatever the weather and locations are.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| System Specification | |
| Processor | Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz), Intel Pentium N6415 @1.20 GHz (up to 3.00 GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 272 x 192 x 25 mm |
| Weight | 1.1 kg |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB2.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power, 2 x Programmable function Keys |
| Power | |
| Battery | 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional), Hot-Swap (Optional) |
| Battery Operating Time | Standard. Battery: 6 hours, High Capacity Battery: 7.5 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery |
| Optional Accessory | Vehicle Charger (Optional), Vehicle Dock (Optional), Desk Dock (Optional), Battery Charger (Optional), Hand Strap (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | S101EK |
| Series | S101 Series Windows Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
