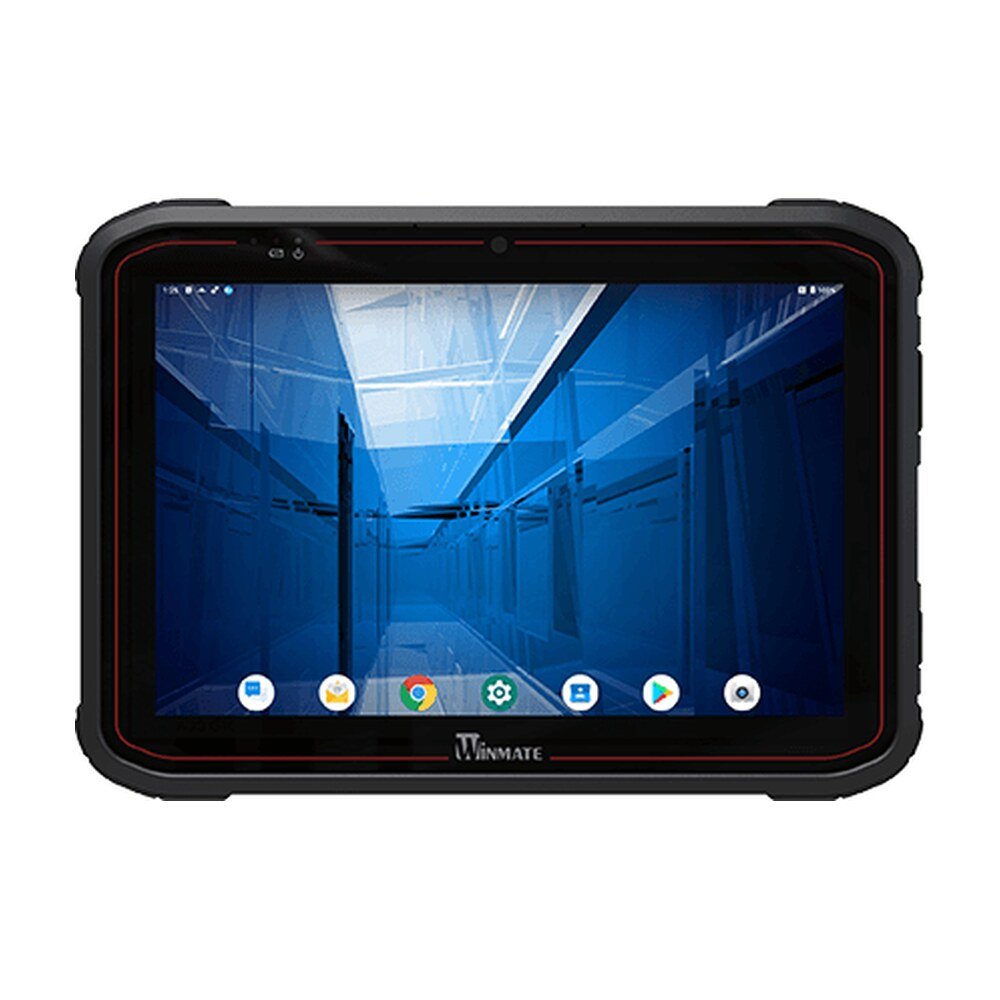

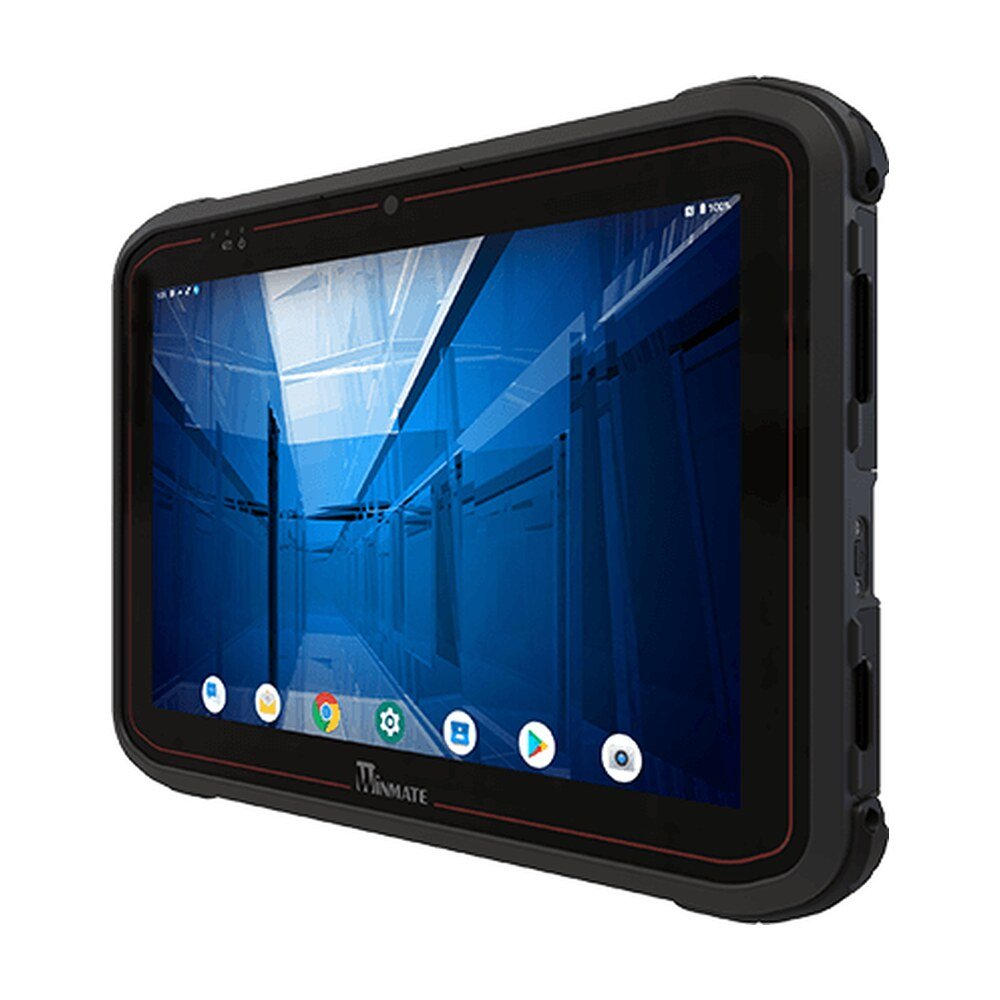

Explore Winmate S101M9L, a rugged tablet PC featuring 10.1-inch display with 1280x800 resolution, MIL-STD-810H for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate S101M9L, a rugged tablet PC featuring 10.1-inch display with 1280x800 resolution, MIL-STD-810H for field service and inspection.
If you're seeking a practical and powerful tablet, it's hard to deny the advantages of choosing one of the lightest options available.
Real-time data access to the right information is very important to mobile users. S101M9 android series offers GPS, WLAN, BT and optional 4G LTE which enable users to get connect in the way that best suits their needs. With the built-in camera on the rear side, users can capture photos, videos, documents instantly; or utilize the front camera for application such as user self video recording, or video communication.
The 10.1" S101 series features projected capacitive (PCAP) multi-touch technology for an improved user experience. It facilitates effortless window switching, snapshot capturing, zooming, and object rotation, maximizing the touch interface's capabilities. Additionally, it supports Rain, Glove, and Stylus modes for versatile operation.
| Display | |
|---|---|
| Size | 10.1 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 32GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 268 x 187 x 22.2 mm |
| Weight | 1.0 kg |
| IO Ports | |
| USB Port | 1 x USB Type C OTG, 1 x USB Type A |
| LAN | 1 x RJ45 |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Audio Combo connector (Mic in or Line Out), 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 2 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 2 x Function button |
| Power | |
| Battery | 11.4V, typ. 3500 mAh Li-Ion Battery(39.9W), (Default), Support Warm Swap function (Optional) |
| Battery Operating Time | 10Hr |
| Power Rating | 19V |
| Adapter | 19V 3.42A Adapter |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery |
| Optional Accessory | Hand Strap, Shoulder Strap, Body Strap, Battery Charger, High Capacity Battery, Capacitive Stylus, VESA Mount Kit, Vehicle Charger, Vehicle Cradle, Vehicle Docking, Carry Bag, Desk Dock, Micro SD Card |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | S101M9L |
| Series | S101 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | S101M9L |
|---|---|
| Category | Android Rugged Tablets, Enterprise Mobility, Winmate |
| Size | 10.1 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 32GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Dimension | 268 x 187 x 22.2 mm |
| Weight | 1.0 kg |
| USB Port | 1 x USB Type C OTG, 1 x USB Type A |
| LAN | 1 x RJ45 |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Audio Combo connector (Mic in or Line Out), 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 2 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button, 2 x Function button |
| Battery | 11.4V, typ. 3500 mAh Li-Ion Battery(39.9W), (Default), Support Warm Swap function (Optional) |
| Battery Operating Time | 10Hr |
| Power Rating | 19V |
| Adapter | 19V 3.42A Adapter |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Accessory | Adapter and Power Cord, Standard Battery |
| Brand | Winmate |
| Manufacturer part number | S101M9L |
| Series | S101 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
