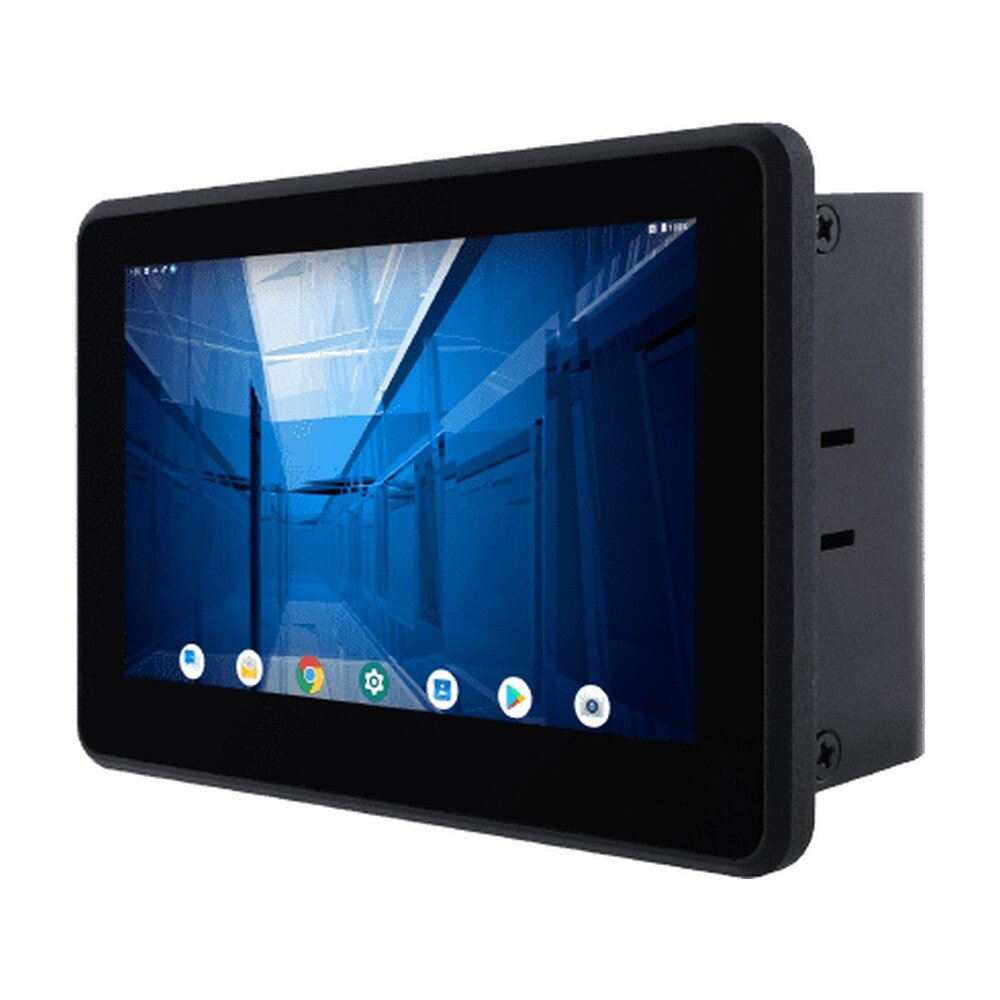

Explore Winmate W04IM3S-ELT1, an HMI panel PC featuring NXP i.MX6, 4.3-inch display with 480x272 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W04IM3S-ELT1, an HMI panel PC featuring NXP i.MX6, 4.3-inch display with 480x272 resolution, IP65 for machine control and factory automation.
Lightweight design for multi-purpose use in any industrial or home use.
The real Flat surface is not only for a stylish look. It is easy to maintain and clean. It has no more clogged dust on the edges.
Android OS works perfectly with all your favorite apps. Easy software integration opens full possibilities for customization.

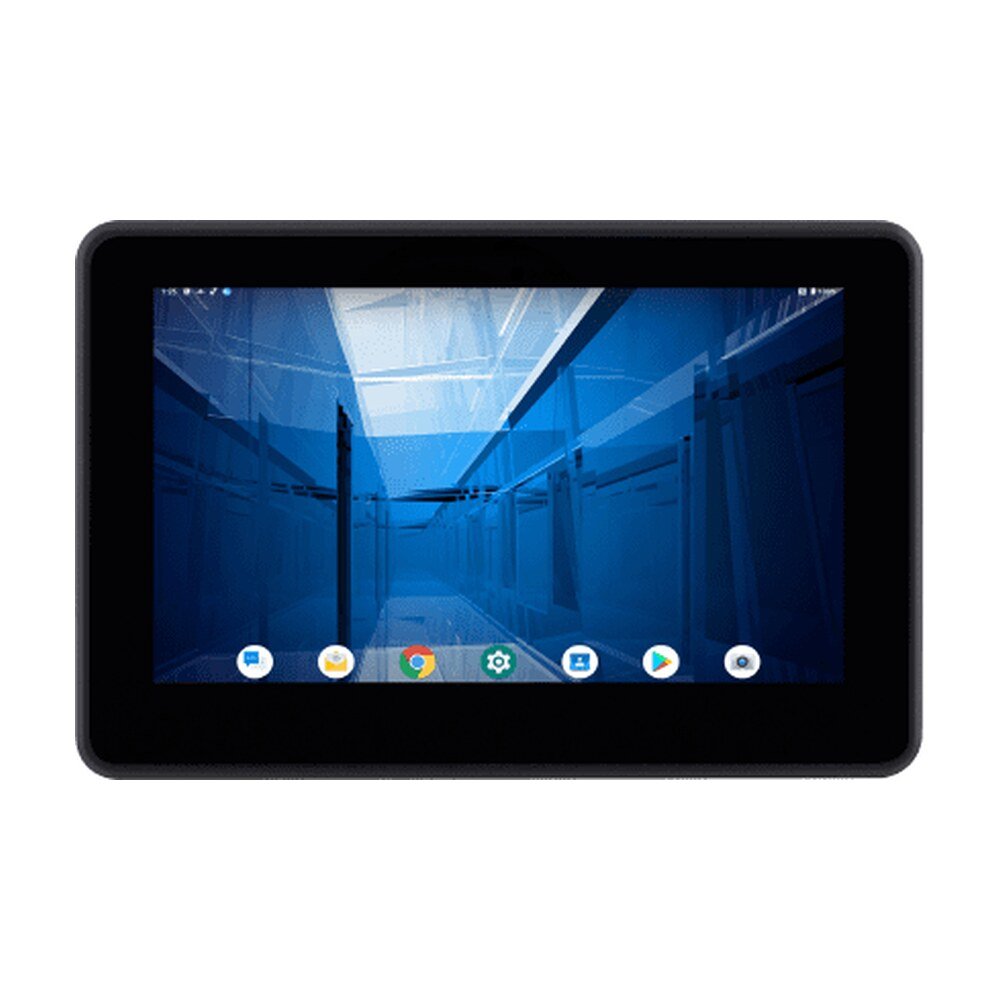

The glass cover lens provides excellent protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience.

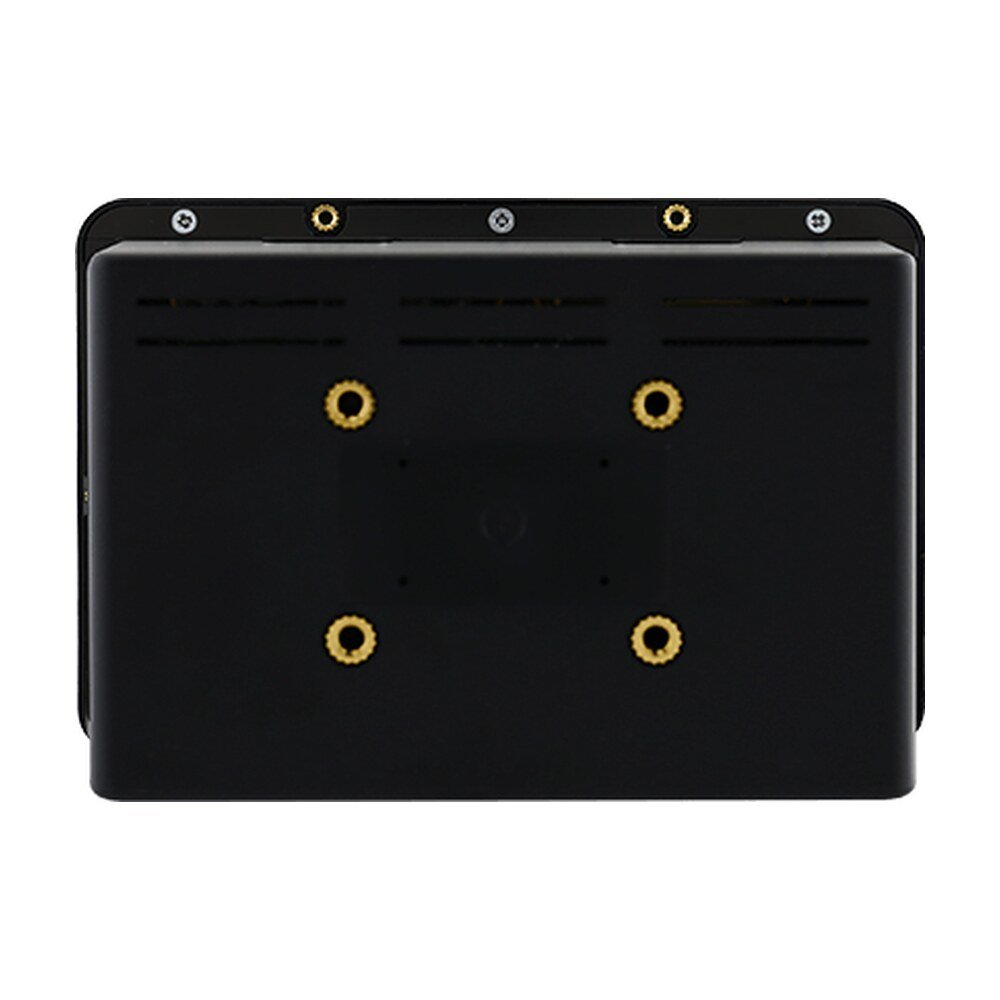

With mounting clips for panel mounting, there is no need to drill holes in a fixture. This saves you the time for mounting and guarantee the aesthetic look of the wall after the unit gets removed.
| Display | |
|---|---|
| Size | 4.3 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 480x272 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 900:1 |
| View Angles | 80,60,80,80 |
| Active Area | 95.040x53.856 mm |
| System Specification | |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Default), Linux Yocto 5.15.42 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| Mechanical | |
| Dimension | 121 x 82 x 49 mm |
| Cut out | 110.5x74.5mm |
| Weight | 0.2 kg |
| Mounting | Panel mount |
| Enclosure | Plastic Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB 2.0 Type A , 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS485, 3pin Terminal block |
| LAN | 1 x LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for storage |
| Accessory | |
| Accessory | Open Wire Cable with terminal block connector, Mounting clips, VESA screws |
| Optional Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable |
| Power | |
| Power Rating | 12V~24V with 3Pin Terminal Block |
| Adapter | 12V 36W (Optional) |
| Control | |
| Button | 1 x Reset Button |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W04IM3S-ELT1 |
| Series | EL Series HMI |
| Availability | Please call for pricing and availability |
