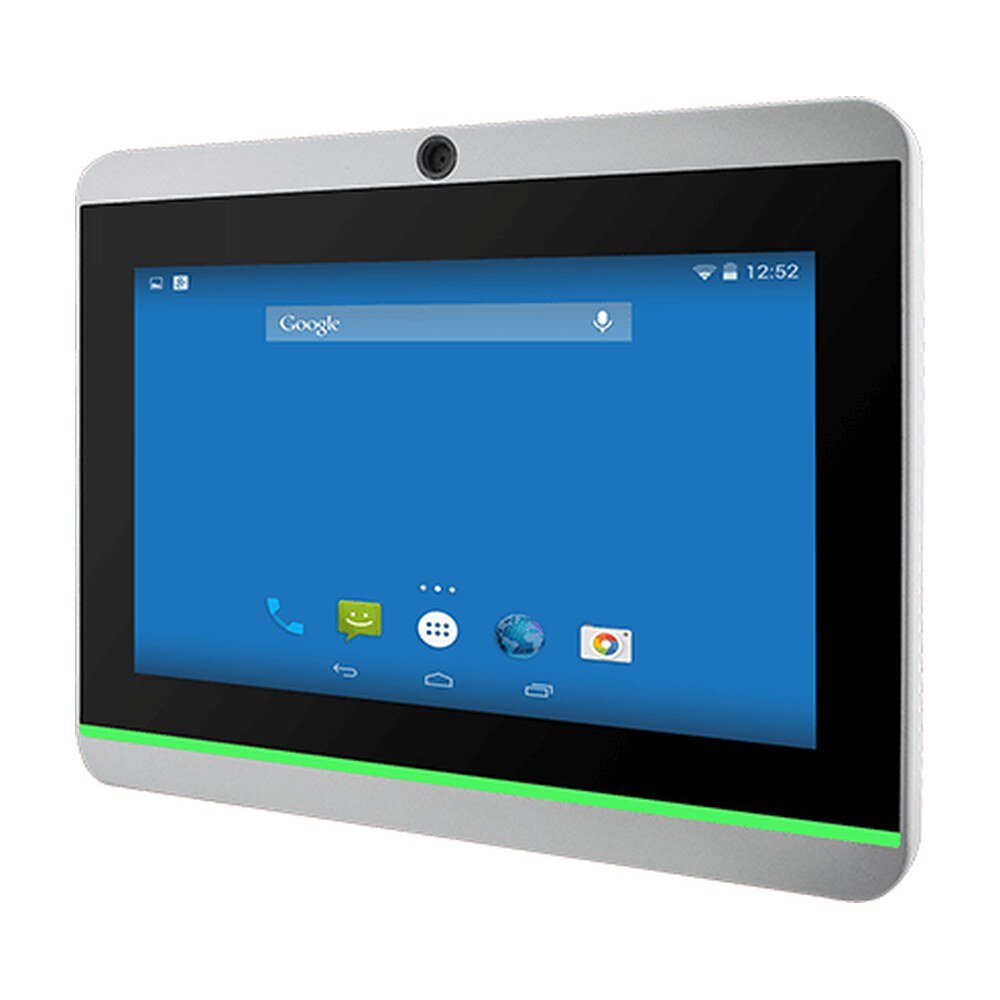

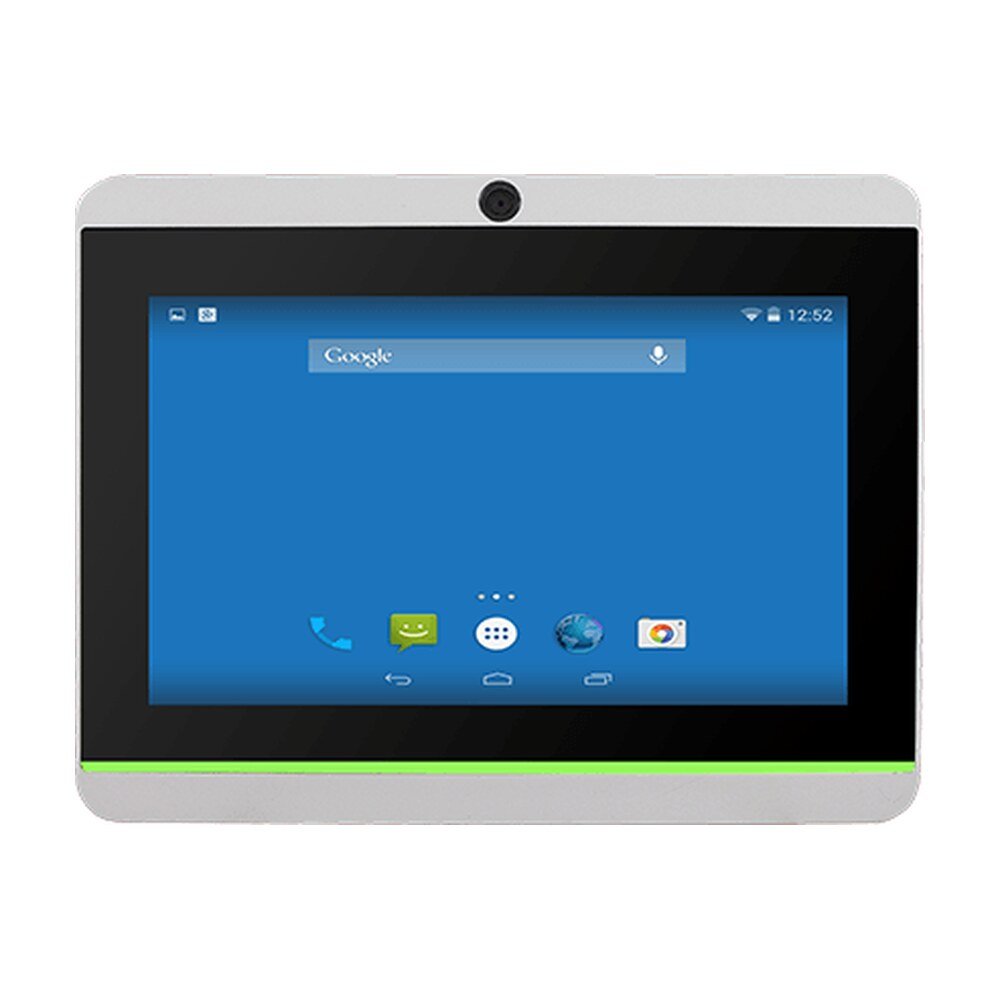

Explore Winmate W07FA3S-PCT1AC-POE, an HMI panel PC featuring NXP i.MX6, 7-inch display with 1024x600 resolution, IP65 for machine control and factory…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

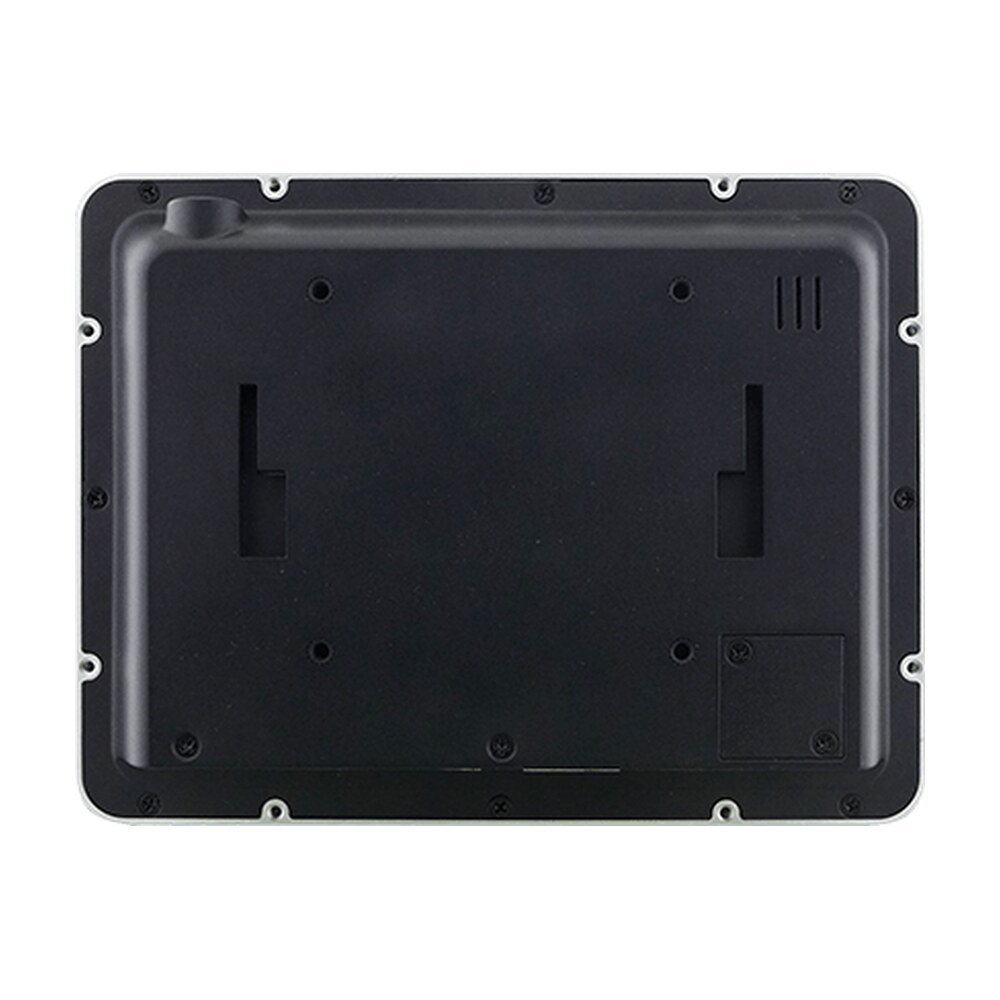

Explore Winmate W07FA3S-PCT1AC-POE, an HMI panel PC featuring NXP i.MX6, 7-inch display with 1024x600 resolution, IP65 for machine control and factory…
The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost-effective solution for access control, home, and industrial automation.
Winmate’s S-series HMIis 35% thinner than a traditional Panel PC. With the slim design, it has an aesthetically pleasing look that fits modern interiors and exteriors. Its true flat surface is not only for a stylish look but easy to maintain and clean. No more clogged dust on the edges.
The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.
LED Light Bar is designed to control the status of the running processes afar, yet saving energy by keeping a display turned off. The settings are easily programmable according to your preferences. Choose one of the four colors - red, green, blue, or orange to send valuable messages based on your settings. Also, HF RFID/NFC helps to limit the access to only the personnel in charge. Greater control for security purposes is now available with S-Series HMI.
Don't worry whether somebody split the coffee over S-Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.
| Display | |
|---|---|
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 320.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| System Specification | |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Mechanical | |
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Cut out | 175.5x131.5mm |
| Weight | 1.0 kg |
| Mounting | Wall mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | , 1 x Micro HDMI (Optional) |
| Audio | 1 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi module) |
| CANBUS | 1 x CANBUS, D-sub9 |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | VESA Desk Stand (99KK00A0000E or 9B0000000412) (Optional), Front Side Wall Mount Kit (99KN00A0001M) (Optional), VESA bracket mounting kit (82W70J551700) (Optional) |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W07FA3S-PCT1AC-POE |
| Series | S Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W07FA3S-PCT1AC-POE |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 320.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Cut out | 175.5x131.5mm |
| Weight | 1.0 kg |
| Mounting | Wall mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | , 1 x Micro HDMI (Optional) |
| Audio | 1 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi module) |
| CANBUS | 1 x CANBUS, D-sub9 |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Brand | Winmate |
| Manufacturer part number | W07FA3S-PCT1AC-POE |
| Series | S Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
