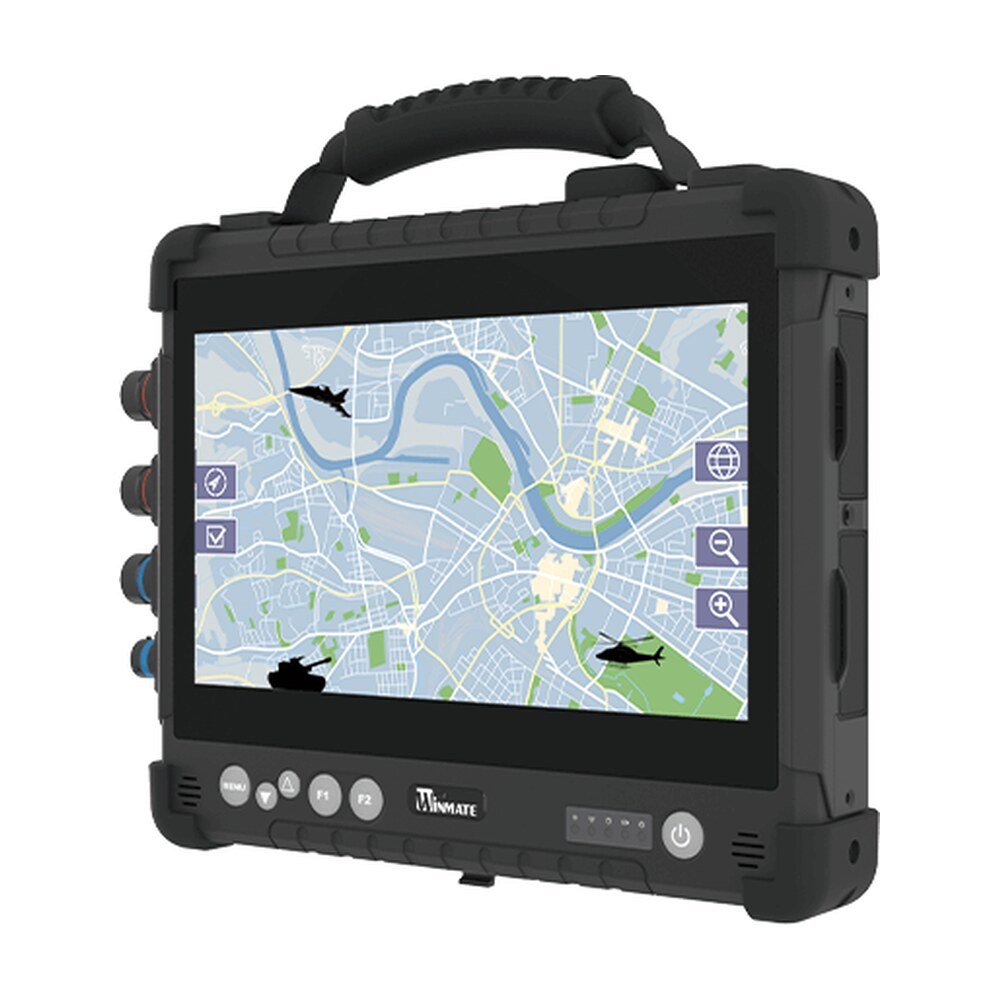

Explore Winmate W10IW8M-RTD1ML, a rugged tablet PC featuring Intel® Core™ i5-8265U, 10.1-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W10IW8M-RTD1ML, a rugged tablet PC featuring Intel® Core™ i5-8265U, 10.1-inch display with 1920x1080 resolution…
The Defence Ultra Rugged Tablets are built to survive in the most demanding conditions and harshest environments. Tailored for defence applications and packed in an ultra-rugged housing with up to IP65 rating passed the MIL-STD-810 test and withstand the rigors of outdoor environments - water, dust, weather changes, strong vibration and drop up to 4 ft. - that may be necessary for defence personal.
For smooth integration into the existing defence environment, Winmate's Defence Ultra Rugged Tablets have defence-qualified MIL-STD-38999 connectors with exceptional versatility for LAN/ USB 2.0, RS-232/ RS-422, and DC power input to enable effortless connection to defence equipment.
The sunlight-readable display screen gives a premium outdoor viewing experience for those in the field. Touchscreen and physical user-defined buttons add extra convenience for data input and operations even when wearing gloves.
Real-time data access to the right information is crucial for mission-critical and battlefield operations. With wireless connectivity onboard, the Defence Ultra Rugged Tablets offer fast and accurate GPS with an outstanding horizontal position accuracy of 2.5 meters, WLAN, BT, and optional WWAN connectivity to enable robust communications anytime and anywhere.
MIL-STD-461F is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The EMI solution enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification. Optional EMI/ ITO mesh solution is available for all Winmate's Defence Ultra Rugged Tablets enabling devices to meet MIL-STD-461F emissions requirements.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 10.1 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| System Specification | |
| Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
| Memory | 4GB SODIMM DDR4-2400 (Default), 8GB SODIMM DDR4-2400 (Optional), 16GB SODIMM DDR4-2400 (Optional) |
| Storage | 1 x 128GB M.2 SSD (Default), 256GB M.2 SSD (Optional), 512GB M.2 SSD (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS (Default), GLONASS, Galileo, BeiDou (Optional) |
| Mechanical | |
| Dimension | 266 x 222 x 50.5 mm |
| Weight | 2.4 kg |
| Enclosure | Magnesium Alloy Housing with All-Around Elastomeric Rubber |
| Cooling System | Fanless Design |
| Power | |
| Battery | 11.1V, 5200mAh Lithium-Ion Battery (6cells) |
| Battery Operating Time | 8 Hours |
| Power Rating | 9-36V DC in (MIL-DTL-38999/1 connector) |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | USA: MILSTD810H Method 516.8 Procedure I , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 402–Procedure I (Optional) |
| Vibration | USA: MILSTD810H Method 514.8 Procedure I , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (Optional) |
| Drop | USA: MILSTD810H Method 516.8, 4 ft , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II, 4 ft (Optional) |
| IP rating | IP54 |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/192 (Optional), NATO: SDIP27 (Optional) |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power, 1 x Menu, 2 x Function Key,, 2 x Brightness Control Key |
| Accessory | |
| Accessory | Adapter and PowerCord , Standard Battery , Stylus , Stand with Integrated Handle , Power/RS232 External Cable, LAN/USB2.0 External Cable |
| Optional Accessory | Kickstand (Optional), Vehicle Charger (Optional), Battery Charger (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/RS422 /485 + 1 x RS422 Port(MIL-STD-38999 connector) |
| LAN | 2 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) |
| Video | 1 x HDMI |
| Audio | 2 x 1 Watt Speaker |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W10IW8M-RTD1ML |
| Series | Defence Ultra Rugged Tablet Series |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W10IW8M-RTD1ML |
|---|---|
| Category | Defence Grade, Defence Ultra Rugged Tablets, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 10.1 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
| Memory | 4GB SODIMM DDR4-2400 (Default), 8GB SODIMM DDR4-2400 (Optional), 16GB SODIMM DDR4-2400 (Optional) |
| Storage | 1 x 128GB M.2 SSD (Default), 256GB M.2 SSD (Optional), 512GB M.2 SSD (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS (Default), GLONASS, Galileo, BeiDou (Optional) |
| Dimension | 266 x 222 x 50.5 mm |
| Weight | 2.4 kg |
| Enclosure | Magnesium Alloy Housing with All-Around Elastomeric Rubber |
| Cooling System | Fanless Design |
| Battery | 11.1V, 5200mAh Lithium-Ion Battery (6cells) |
| Battery Operating Time | 8 Hours |
| Power Rating | 9-36V DC in (MIL-DTL-38999/1 connector) |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | USA: MILSTD810H Method 516.8 Procedure I , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 402–Procedure I (Optional) |
| Vibration | USA: MILSTD810H Method 514.8 Procedure I , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (Optional) |
| Drop | USA: MILSTD810H Method 516.8, 4 ft , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II, 4 ft (Optional) |
| IP rating | IP54 |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/192 (Optional), NATO: SDIP27 (Optional) |
| Certification | CE, FCC |
| Button | 1 x Power, 1 x Menu, 2 x Function Key,, 2 x Brightness Control Key |
| Accessory | Adapter and PowerCord , Standard Battery , Stylus , Stand with Integrated Handle , Power/RS232 External Cable, LAN/USB2.0 External Cable |
| Optional Accessory | Kickstand (Optional), Vehicle Charger (Optional), Battery Charger (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/RS422 /485 + 1 x RS422 Port(MIL-STD-38999 connector) |
| LAN | 2 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) |
| Video | 1 x HDMI |
| Audio | 2 x 1 Watt Speaker |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Brand | Winmate |
| Manufacturer part number | W10IW8M-RTD1ML |
| Series | Defence Ultra Rugged Tablet Series |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
