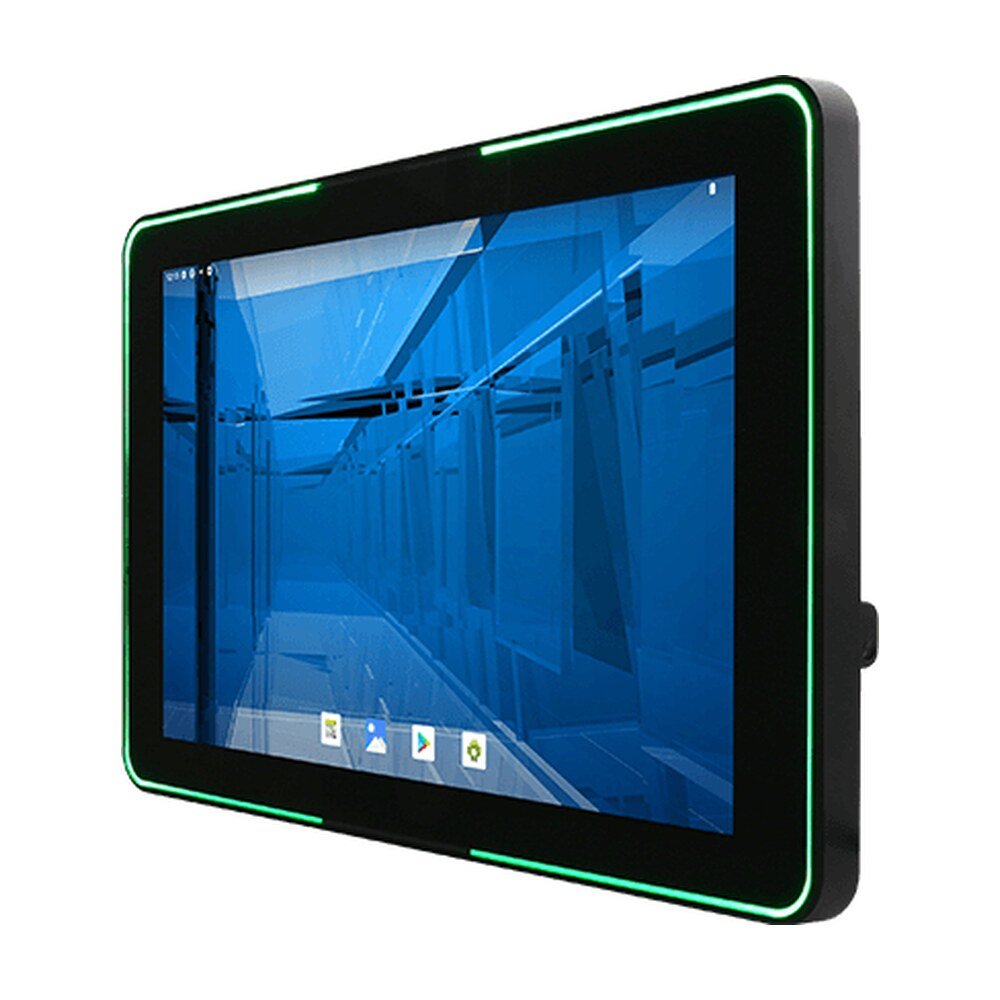

Explore Winmate W10MG3S-PCH2LB-PoE, an HMI panel PC featuring 10.1-inch display with 1280x800 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W10MG3S-PCH2LB-PoE, an HMI panel PC featuring 10.1-inch display with 1280x800 resolution, IP65 for machine control and factory automation.
Winmate S Series HMI supports Power over Ethernet (PoE), which combines data and power transmission into a single cable. By reducing cable clutter, PoE not only simplifies device connectivity but also supports centralized power management. This efficient infrastructure makes it an ideal solution for access control systems and both home and industrial automation, offering cost savings and enhanced convenience.
The Winmante S Series HMI blends style and functionality with a profile 35% thinner than typical Panel PCs. Its flat, edge-free surface not only elevates the look of your space but also makes cleaning effortless, perfect for industries like retail or public-facing environments where aesthetics matter.
The responsive P-CAP touch screen offers an interactive experience with smooth, scratch-resistant glass. Supporting 4-point multi-touch, the Winmate S Series HMI technology ensures intuitive and precise control using just your fingertips. Its robust design enhances usability while delivering a superior user experience.
Winmate S Series HMI features an innovative all-around LED status light bar, offering 360° visibility for real-time process monitoring while enhancing energy efficiency by minimizing display usage. Additionally, the optional HF RFID reader with NFC technology ensures secure access, allowing only authorized personnel to operate the system.
Winmate S Series HMI is sealed with IP65 on the front side, safeguarding it against potential damage from external dust and water splashes. This protective feature ensures the device's resilience in challenging environments, maintaining optimal functionality and longevity.
| Display | |
|---|---|
| Size | 10.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x800 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 216.96x135.6 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in All-Around RGB LED Light Bar |
| Mechanical | |
| Dimension | 265 x 173 x 38 mm |
| Cut out | 250x159mm |
| Weight | 1.2 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Plastic Front Bezel with Metal Back Cover |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 12V DC with Terminal Block (Default), 9~36V (Optional) |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W10MG3S-PCH2LB-PoE |
| Series | S Series HMI |
| Availability | Please call for pricing and availability |
