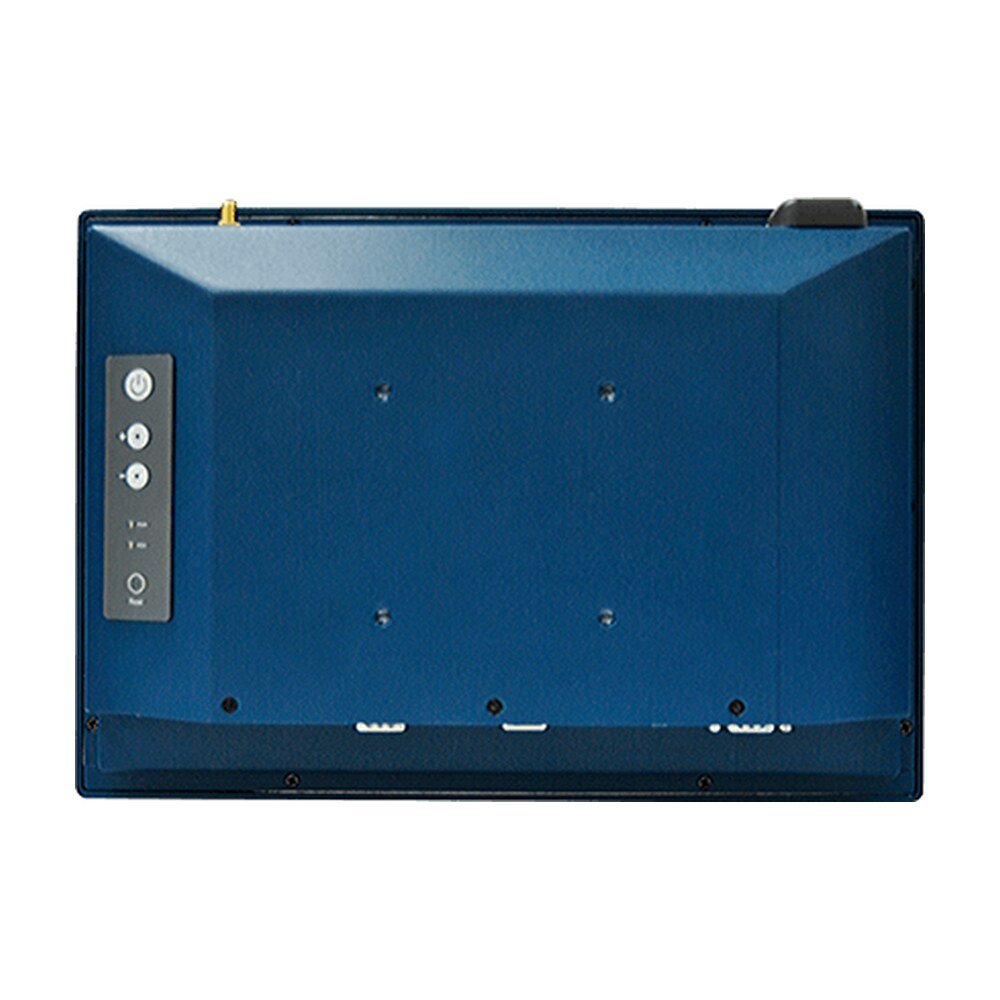

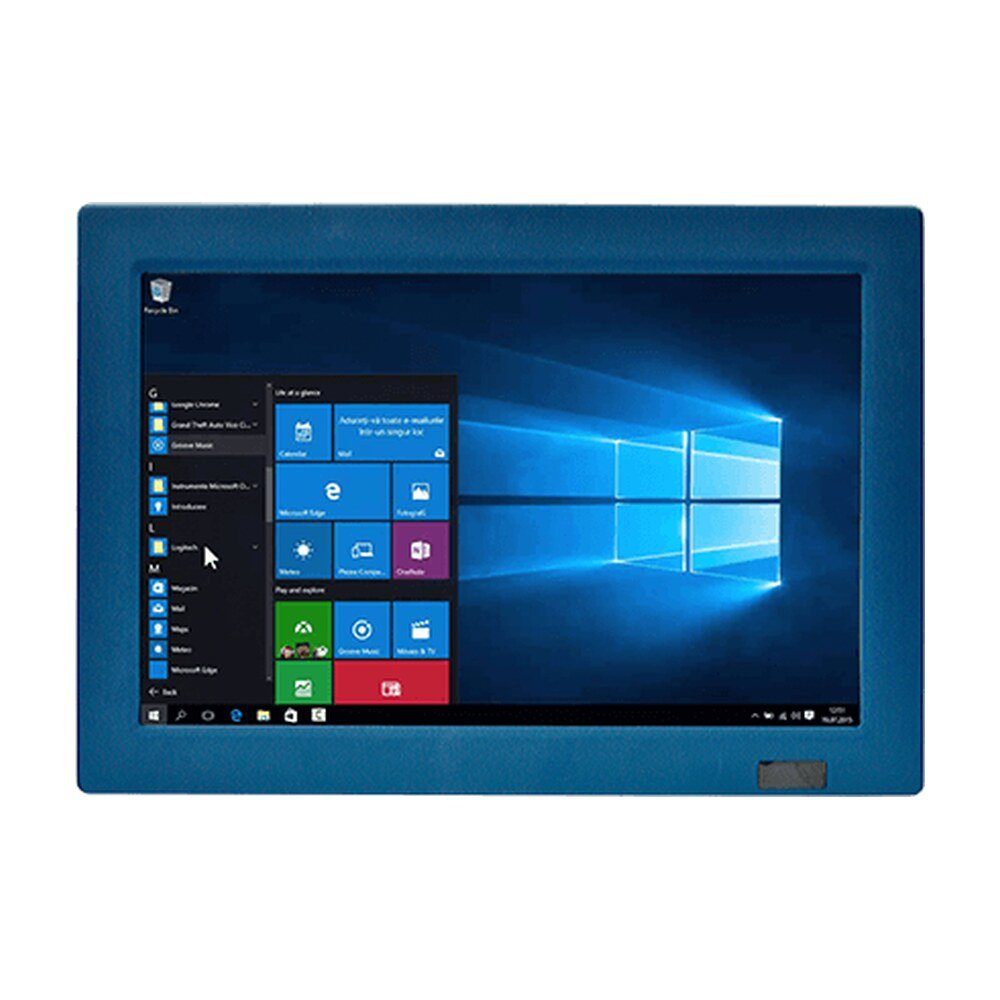

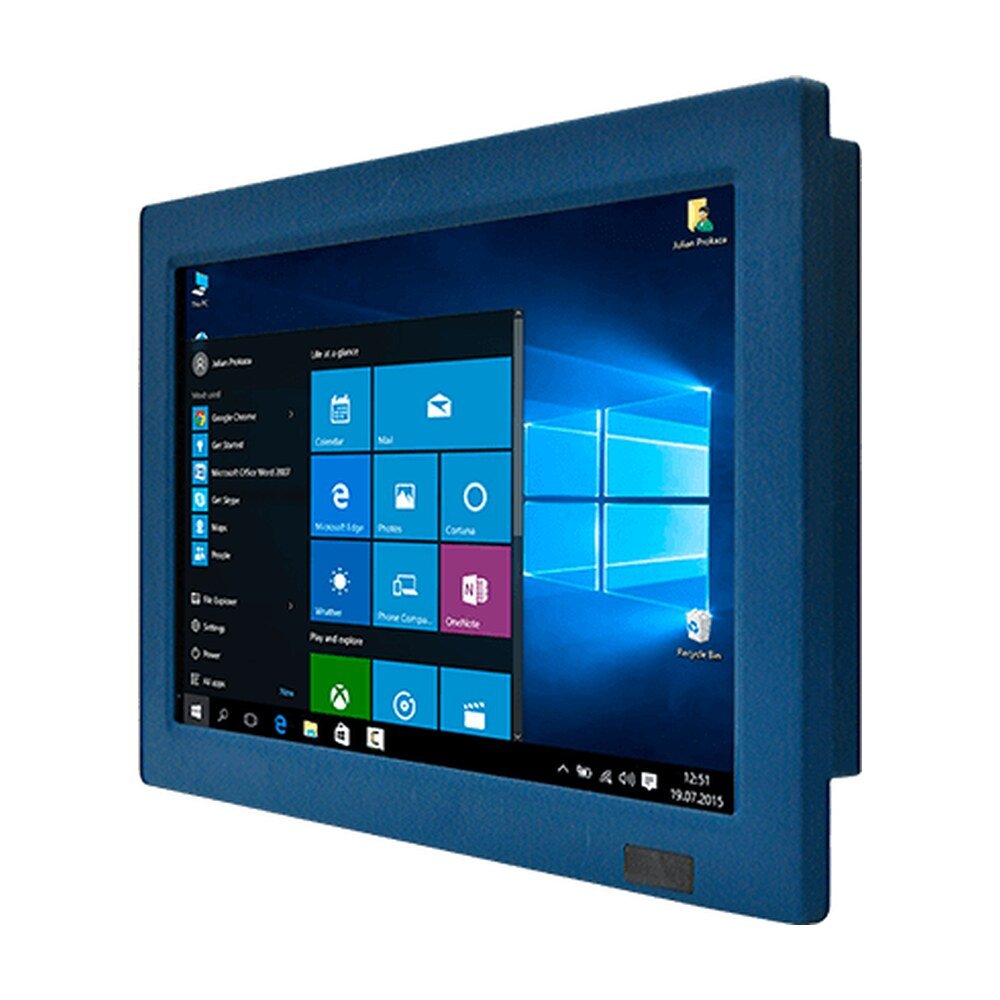

Explore Winmate W12IAD3S-VMM9(HB), a vehicle-mounted computer featuring Intel® Core™ i5-1235U, 12.1-inch display with 1280x800 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12IAD3S-VMM9(HB), a vehicle-mounted computer featuring Intel® Core™ i5-1235U, 12.1-inch display with 1280x800 resolution, IP65…
Winmate G-WIN VM Series Panel PC, featuring Front IP65, provides protection against external dust and water splash, making it an ideal choice for harsh environments.
Designed with a fanless architecture and a passive cooling system, the Winmate G-WIN VM Series Panel PC brings about practical benefits. This approach decreases noise levels, minimizes power consumption, improves reliability, and extends the overall life cycle of the product
Winmate G-WIN VM Series Panel PC offers a range of I/O interfaces to meet diverse industrial applications. These interfaces allow seamless connectivity and interaction with various external devices and peripherals, enhancing the versatility of the Panel PCs across different applications.
Built with a rugged construction, the Winmate G-WIN VM Series Panel PC features an aluminum die-cast housing and anti-corrosion measures, ensuring durability and resilience even in exposed settings.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB (Default), 512GB (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Display | |
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1280x800 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 261.12x163.2 mm |
| Mechanical | |
| Dimension | 310 x 215 x 52.7 mm |
| Weight | 2.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Brightness Up button, 1 x Brightness Down button |
| Accessory | |
| Accessory | Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12IAD3S-VMM9(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12IAD3S-VMM9(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB (Default), 512GB (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Size | 12.1 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Resolution | 1280x800 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 261.12x163.2 mm |
| Dimension | 310 x 215 x 52.7 mm |
| Weight | 2.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Brightness Up button, 1 x Brightness Down button |
| Accessory | Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Brand | Winmate |
| Manufacturer part number | W12IAD3S-VMM9(HB) |
| Series | G-WIN VM Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
