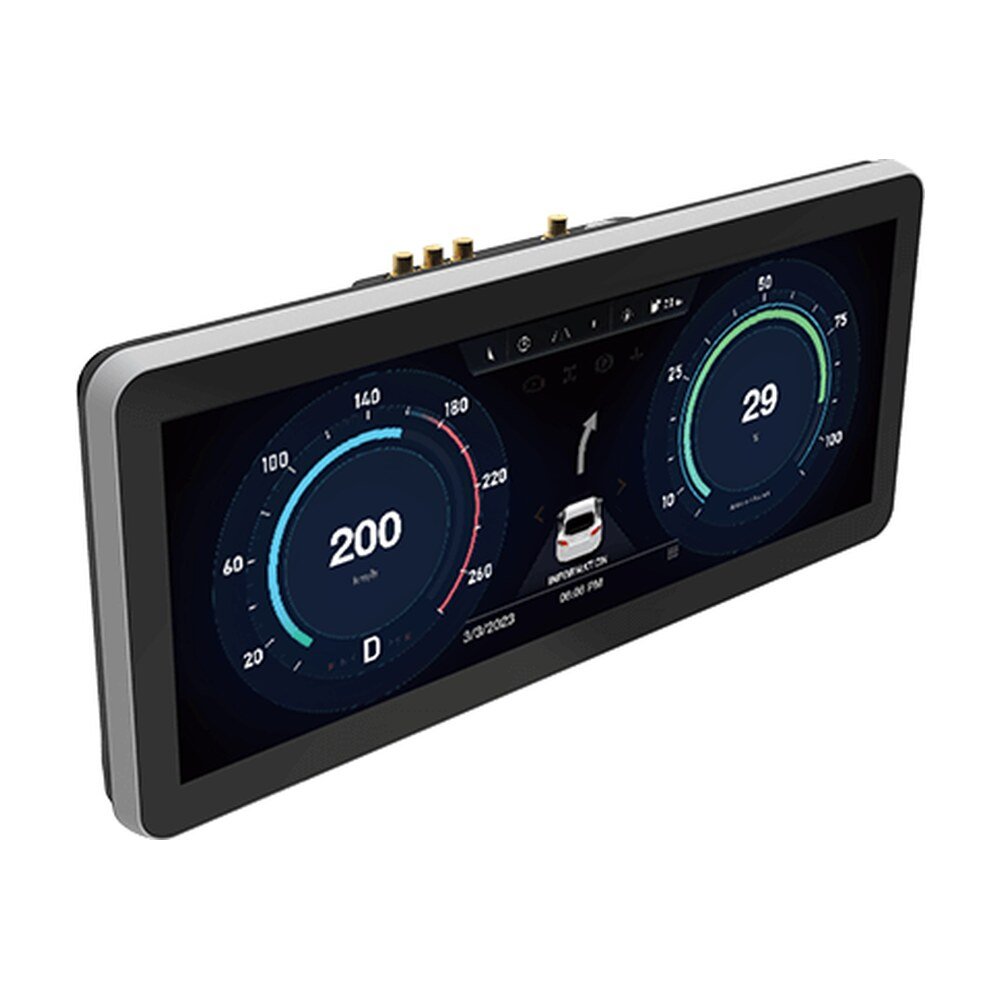

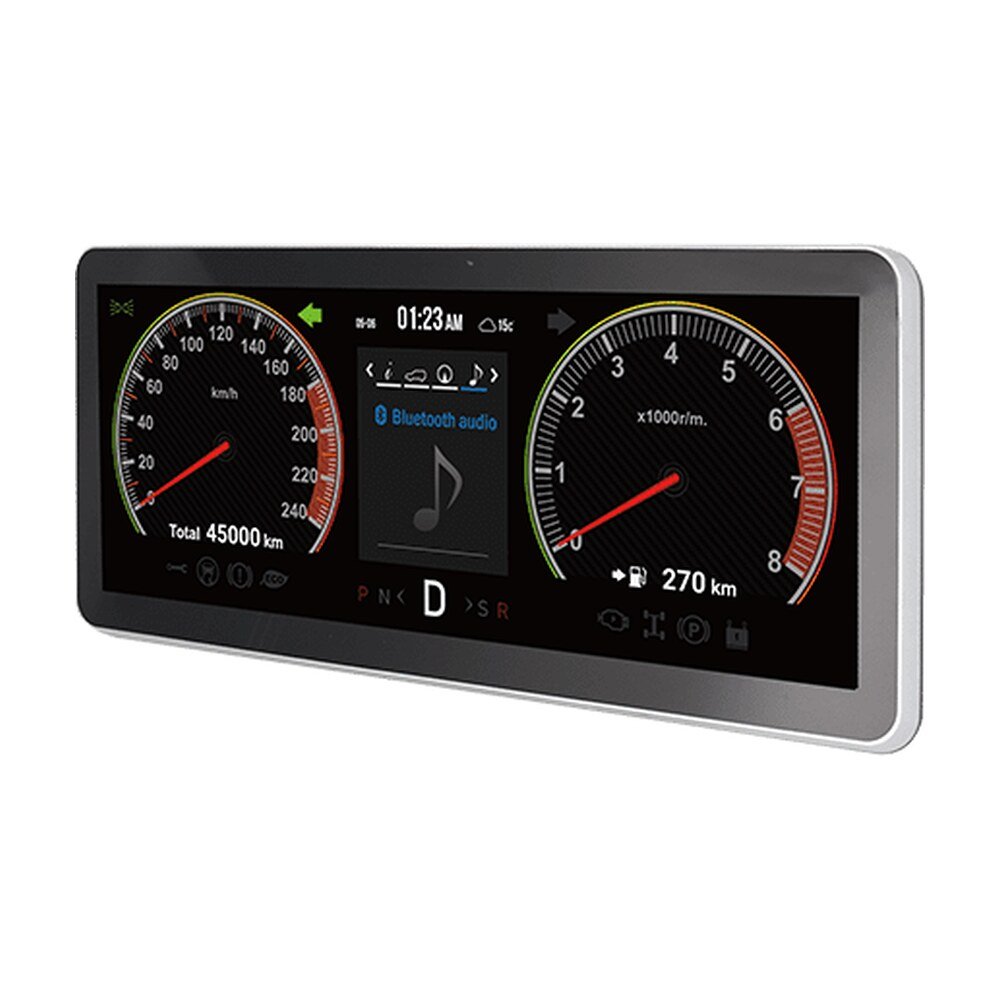

Explore Winmate W12IE3S-GSB1, an industrial panel PC featuring Intel® Celeron® N6211, 12.3-inch display with 1920x720 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12IE3S-GSB1, an industrial panel PC featuring Intel® Celeron® N6211, 12.3-inch display with 1920x720 resolution, IP65…
Winmate G-WIN GS series panel PCs are designed with protection against dust and water splash according to IP65 standards. Making the off-highway automotive HMIs able to meet the need for advanced computing power in road-moving vehicles.
Winmate automotive HMI solutions are built with high-performance computing technology in a compact body. It is suitable to be installed in a space-limited driving control room for off-highway vehicles used in agriculture, construction, material handling equipment, etc. The 12.3-inch HMIs can be VESA mount as well as integrated into the vehicle dashboard. Due to its compact measures, machine operators benefit from a less restricted view outside their cabins, easily integrated into ergonomic workplaces.
The automotive HMIs are designed for seamless integration with Electronic Control Units (ECU) for current and future-proof vehicle architectures CAN, Ethernet, RS232, DIDO, and USB interfaces are provided in the M12 connectors, which are waterproof for varying industrial environments.
Suitable for offering touch control and display functions for all-terrain vehicles, EV trucks, forklifts, AGVs in smart warehouses, or dispatching consoles in cranes, mining cars, high-speed railways trains, and so on. The GWIN GS product series is engineered for harsh environments to withstanding extreme temperatures and vibrations compliant with MIL-STD 810H.
The HMI panels are for high brilliance and outdoor uses. The integrated projective capacitive touchscreen is multi-touch capable and can be operated with fingers, wet fingers, and gloves.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 292.92×110.22 mm |
| System Specification | |
| Processor | Intel Celeron N6211 1.2GHz (up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS (Optional) |
| Mechanical | |
| Dimension | 325.02 x 146.5 x 45 mm |
| Mounting | VESA mount |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 2.0 (M12 type) , 1 x Micro USB (Host) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Optional) |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM card slot (Optional) |
| DIDO | 6 x Digital Input (M12 type) (Optional) |
| CANBUS | 2 x CANBus (M12 type) (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% RH |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button |
| Power | |
| Power Rating | 10V~60V with ignition control |
| Adapter | 12V 50W |
| Accessory | |
| Accessory | Quick Start Guide, M12 Power Cable, M12 USB/ LAN Cable |
| Optional Accessory | WLAN Antenna x 2 (Optional), WWAN Antenna x 2 (Optional), GPS Antenna, 3m (Optional), M12 COM Port/CANBus Cable (Optional), M12 Digital Input/CANBus Cable (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12IE3S-GSB1 |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12IE3S-GSB1 |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 292.92×110.22 mm |
| Processor | Intel Celeron N6211 1.2GHz (up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS (Optional) |
| Dimension | 325.02 x 146.5 x 45 mm |
| Mounting | VESA mount |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 2.0 (M12 type) , 1 x Micro USB (Host) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Optional) |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM card slot (Optional) |
| DIDO | 6 x Digital Input (M12 type) (Optional) |
| CANBUS | 2 x CANBus (M12 type) (Optional) |
| Operating Humidity | 5% to 95% RH |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button |
| Power Rating | 10V~60V with ignition control |
| Adapter | 12V 50W |
| Accessory | Quick Start Guide, M12 Power Cable, M12 USB/ LAN Cable |
| Brand | Winmate |
| Manufacturer part number | W12IE3S-GSB1 |
| Series | G-WIN GS Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
