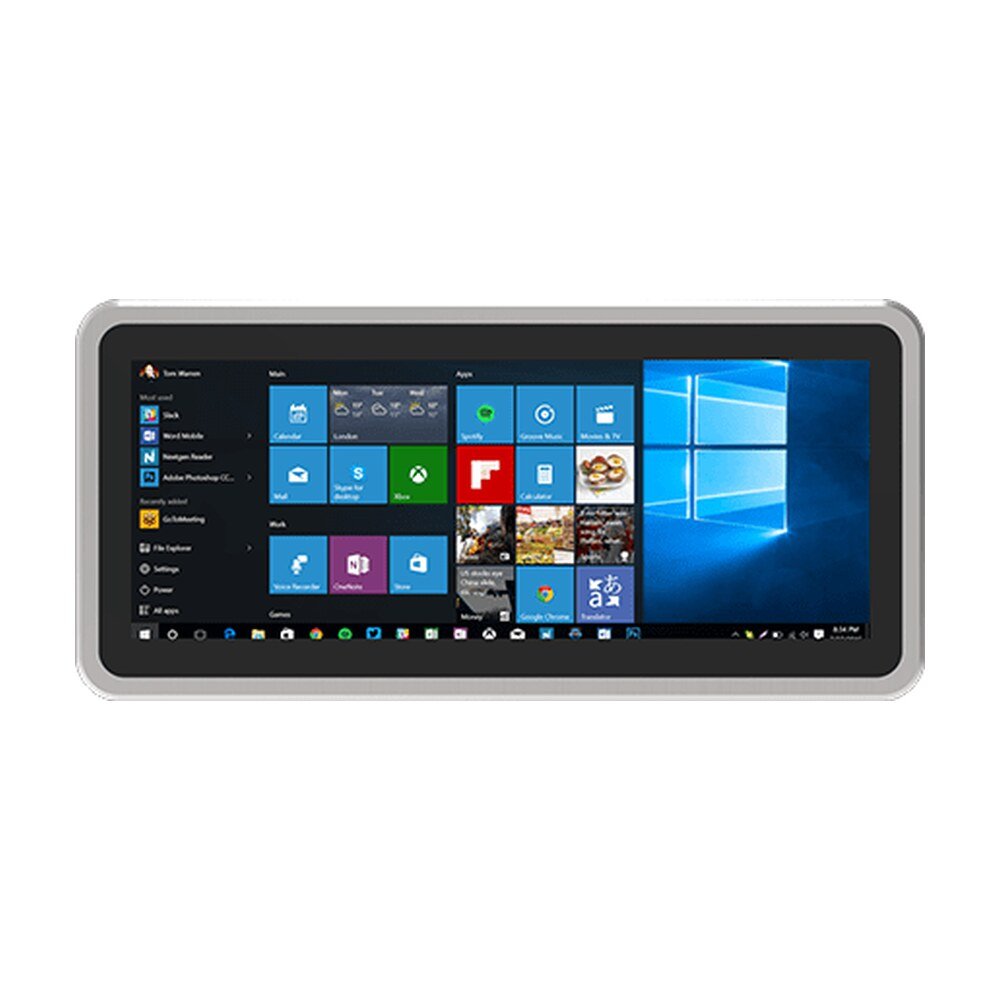

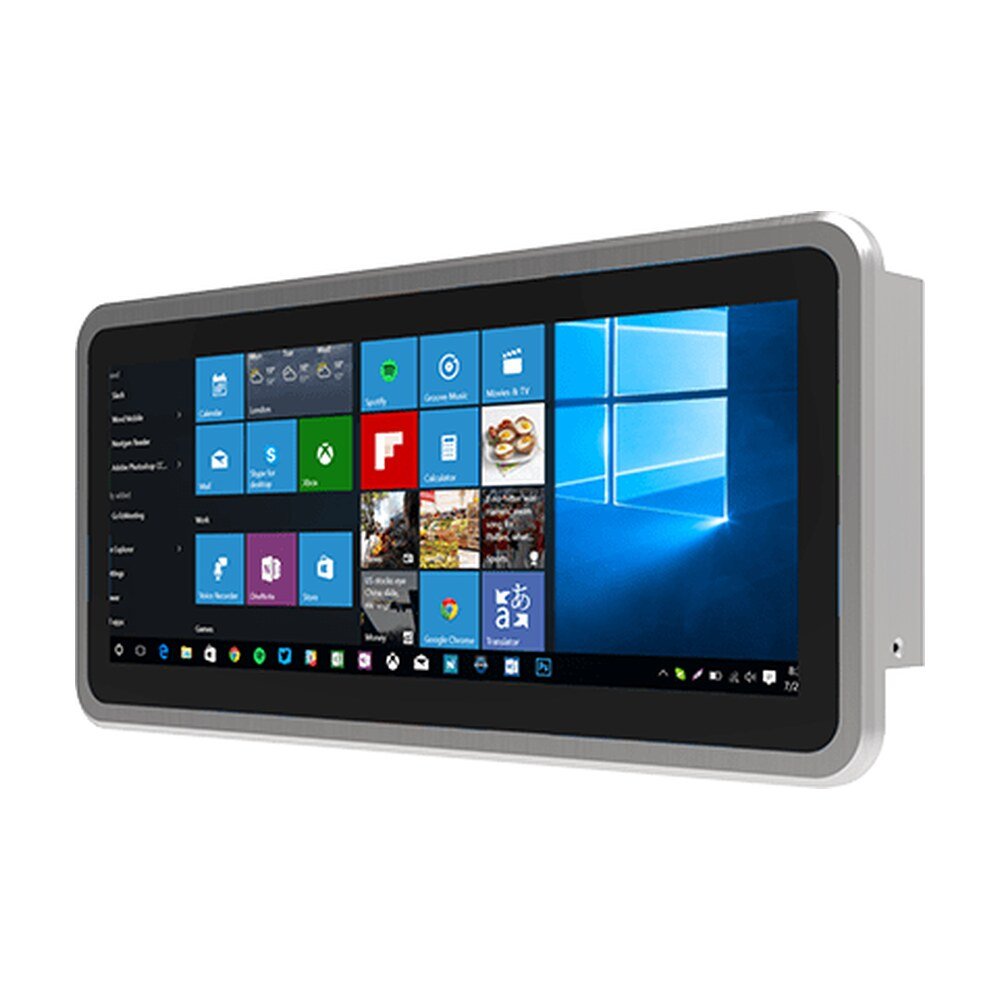

Explore Winmate W12IE3S-PPB1, an HMI panel PC featuring Intel® Celeron® N6211, 12.3-inch display with 1920x720 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12IE3S-PPB1, an HMI panel PC featuring Intel® Celeron® N6211, 12.3-inch display with 1920x720 resolution…
Winmate 12.3” Industrial HMI features a PCAP (Projected Capacitive) multi-touch screen, providing a responsive and intuitive user interface. The PCAP technology allows for accurate touch detection and supports multi-touch gestures, enabling users to interact with the HMI effortlessly. The multi-touch functionality allows for zooming, panning, and gesture-based controls, enhancing the user experience and improving productivity. With the PCAP multi-touch screen, operators can easily navigate through complex interfaces, input data, and access information with a simple touch, making the Industrial HMI an ideal choice for industrial applications that require intuitive and efficient human-machine interaction.
The Industrial HMI is equipped with a front IP65 water and dust-proof rating, making it highly resilient in harsh environments. This level of protection ensures that the HMI is safeguarded against water splashes, dust particles, and other contaminants that could potentially disrupt its operation. With the front IP65 rating, operators can confidently use the HMI in demanding industrial settings without concerns about damage caused by moisture or dust. This feature enhances the reliability and longevity of the HMI, allowing it to effectively support critical industrial processes with optimal performance and durability.

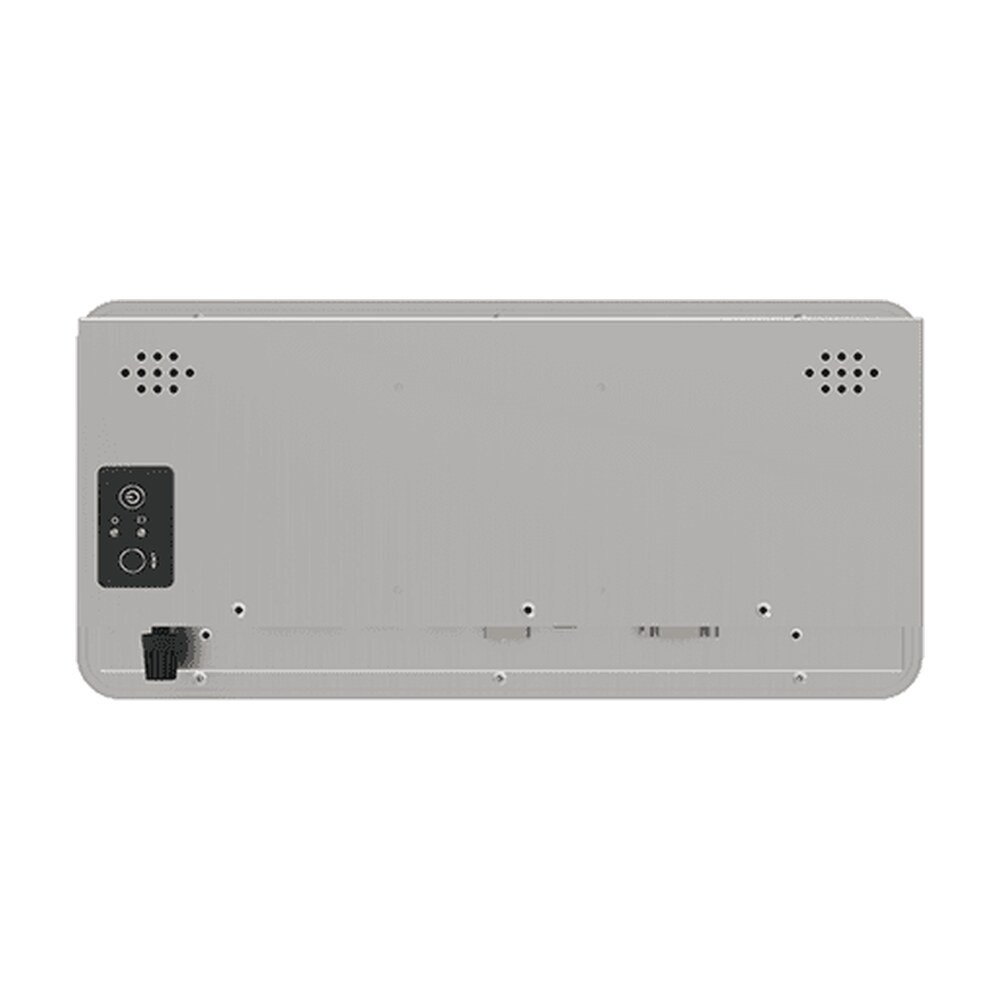

HMI stands for Human Machine Interface, which is used in industrial automation to operate and monitor machinery or equipment. This description refers to an industrial HMI that features an aluminum housing and a fanless design. The aluminum housing provides durability and protection for the internal components, while the fanless design ensures silent operation and eliminates potential issues related to dust and debris build-up.
The Industrial HMI is equipped with dual Gigabit Ethernet ports, offering high-speed and reliable connectivity in industrial environments. The dual Ethernet ports provide redundancy and ensure uninterrupted network communication, enhancing system reliability and uptime. This feature allows for seamless integration with industrial networks, enabling data transfer, remote monitoring, and control. With dual Gigabit Ethernet, the Industrial HMI can handle high-bandwidth applications and support demanding industrial processes that require fast and reliable network connectivity. It provides a robust and efficient solution for industrial applications where reliable network communication is crucial for operations.
| Display | |
|---|---|
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| System Specification | |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) (Default), Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB (Default), M.2 2242 B-key SSD up to 512GB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 338.3 x 159.8 x 56.5 mm |
| Cut out | 240 x 165mm |
| Mounting | Panel mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A), 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 1.4 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module) (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| mini PCIe | 1 x Mini PCIE(For WLAN) (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12IE3S-PPB1 |
| Series | PP Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12IE3S-PPB1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) (Default), Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB (Default), M.2 2242 B-key SSD up to 512GB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 338.3 x 159.8 x 56.5 mm |
| Cut out | 240 x 165mm |
| Mounting | Panel mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A), 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 1.4 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module) (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| mini PCIe | 1 x Mini PCIE(For WLAN) (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | W12IE3S-PPB1 |
| Series | PP Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
