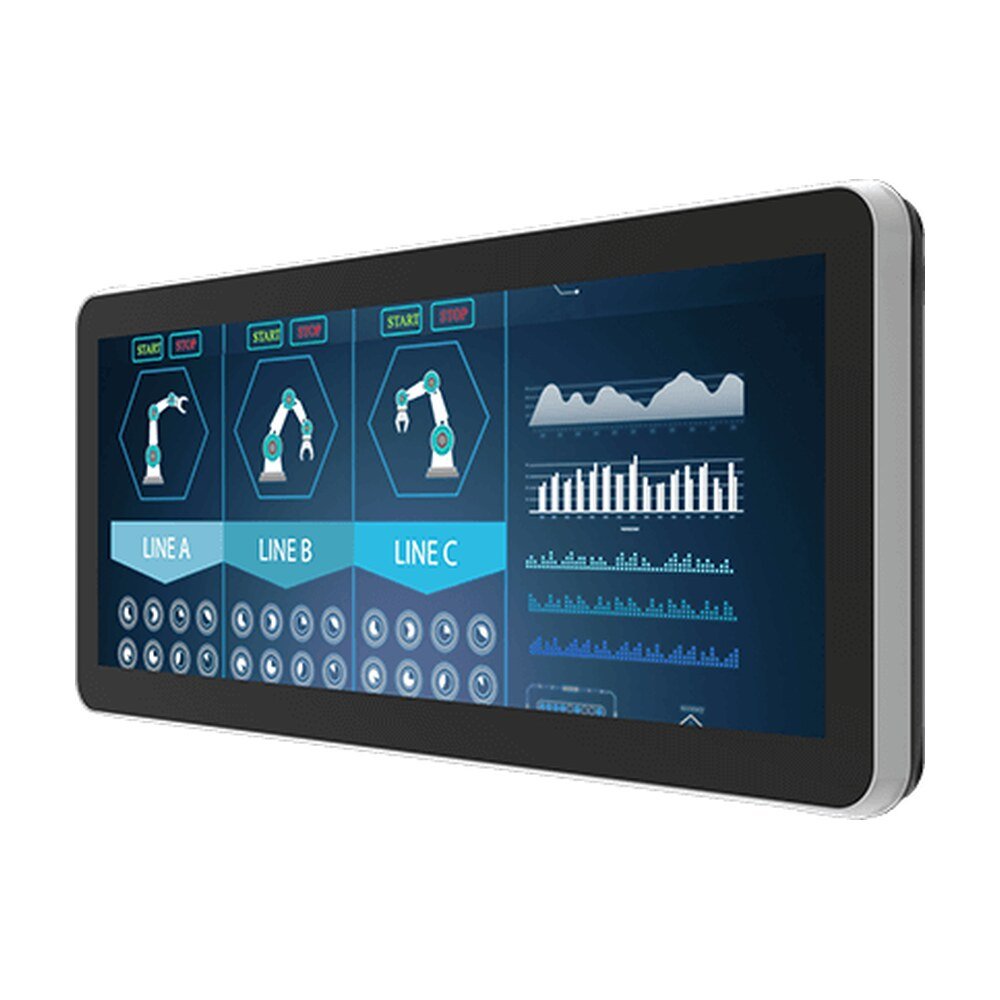

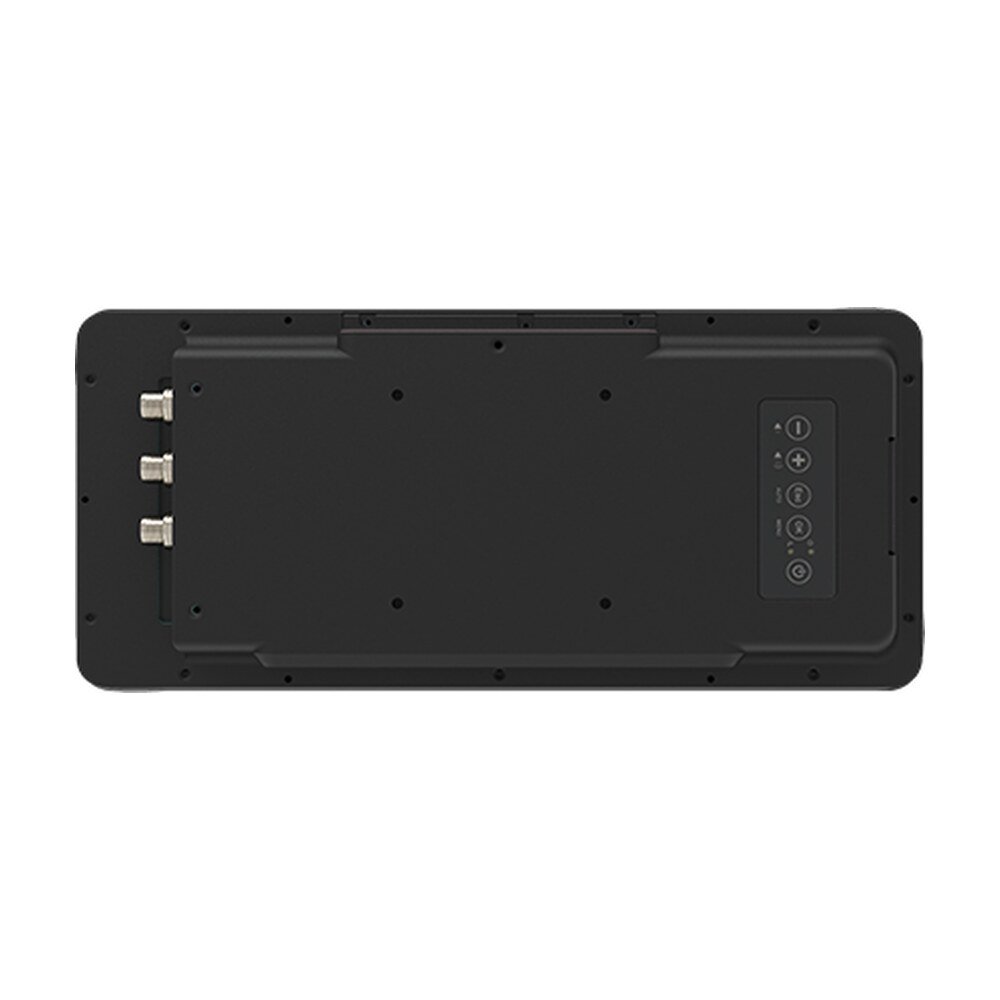

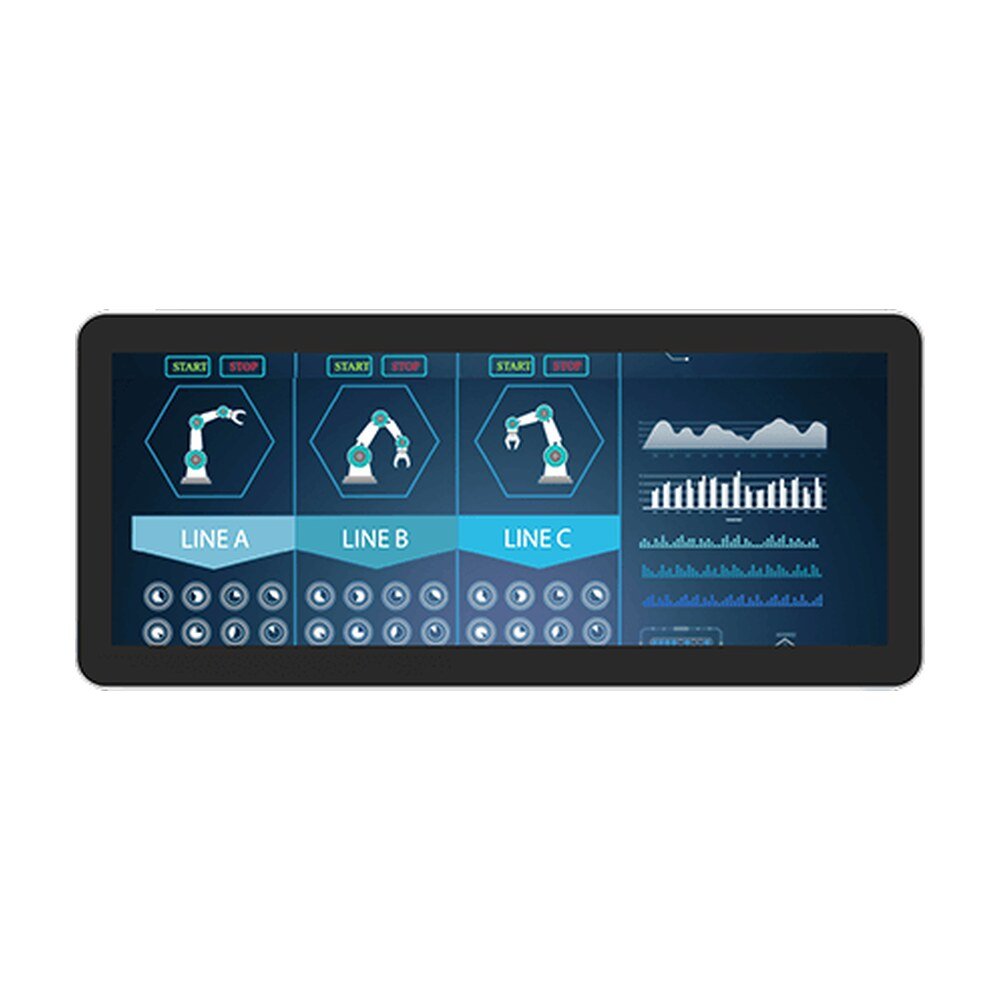

Explore Winmate W12L100-GSB1, an industrial display featuring 12.3-inch display with 1920x720 resolution, IP65, MIL-STD-810F for industrial visualization and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12L100-GSB1, an industrial display featuring 12.3-inch display with 1920x720 resolution, IP65, MIL-STD-810F for industrial visualization and…
Industrial displays with M12-type connectors provide a robust and reliable connectivity solution for industrial applications. The M12 connector is designed to withstand harsh conditions, offering resistance to dust, moisture, and vibrations. This type of connector ensures secure and stable connectivity, reducing the risk of signal loss or disruptions in industrial environments. Industrial displays with M12 connectors are widely used in automation, manufacturing, transportation, and other industries where reliable and durable connections are essential. They provide a dependable display solution that can withstand the demanding conditions of industrial operations.
Industrial displays compliant with MIL-STD-810F/G for shock and vibration offer reliable performance in rugged environments. These displays are designed to withstand extreme shocks and vibrations commonly encountered in industrial applications. The MIL-STD-810F/G standard ensures that the displays undergo rigorous testing and meet stringent requirements for shock and vibration resistance. With this compliance, industrial displays can endure harsh conditions without compromising their functionality, providing uninterrupted operation and preventing damage or failure. Whether used in military, aerospace, transportation, or heavy machinery industries, these displays offer a dependable solution that can withstand the harshest shock and vibration conditions.
The Industrial displays is equipped with a front IP65 water and dust-proof rating, making it highly resilient in harsh environments. This level of protection ensures that the display is safeguarded against water splashes, dust particles, and other contaminants that could potentially disrupt its operation. With the front IP65 rating, operators can confidently use the Industrial displays in demanding industrial settings without concerns about damage caused by moisture or dust. This feature enhances the reliability and longevity of the Industrial displays, allowing it to effectively support critical industrial processes with optimal performance and durability.
Winmate 12.3” Industrial displays with VGA input and USB port for touch functionality offer versatile connectivity and interactive capabilities for industrial applications. The VGA input allows for analog video signals, making it compatible with a wide range of industrial systems and devices. The USB port enables touch functionality, allowing users to interact with the display through touch gestures. This combination of VGA input and USB touch capability provides a flexible and user-friendly interface for data input, control, and navigation. Industrial displays with VGA input and USB touch support enhance productivity and improve user experience in industrial environments that require visual feedback and interactive operation.
| Display | |
|---|---|
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
| Mechanical | |
| Dimension | 325.02 x 146.5 x 44.9 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter(For 7'' Display only), M12 Power Cable(Not Supplied with 7'' Display), VGA Cable, USB for Touch Cable, I/O Protective Cap x 3 |
| Power | |
| Power Rating | 9-36V DC (M12 type) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12L100-GSB1 |
| Series | G-WIN GS Series Display (with M12 Waterproof Connectors) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12L100-GSB1 |
|---|---|
| Category | G-WIN Series / IP67, Industrial Display, Winmate |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | CE, FCC, Compliant with MIL-STD-810F/G for vibration / shock |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
| Dimension | 325.02 x 146.5 x 44.9 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 9-36V DC (M12 type) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | W12L100-GSB1 |
| Series | G-WIN GS Series Display (with M12 Waterproof Connectors) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
