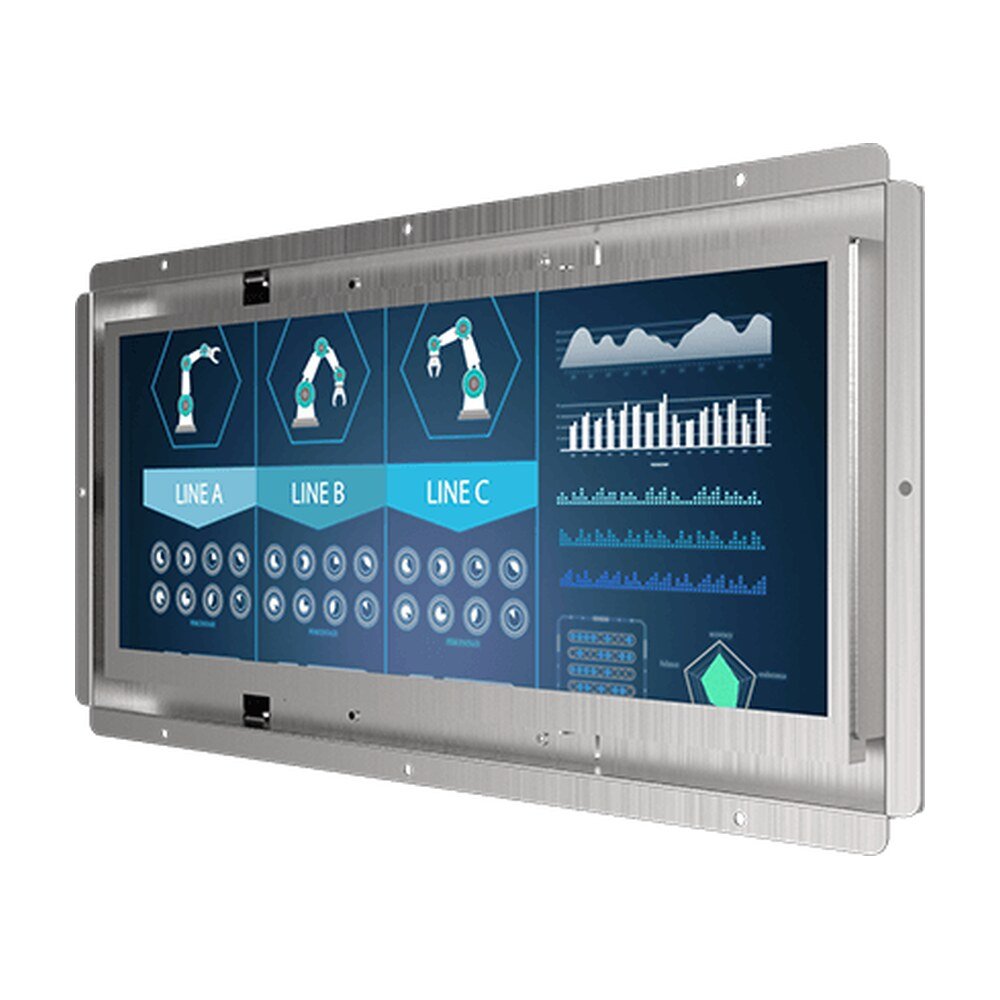

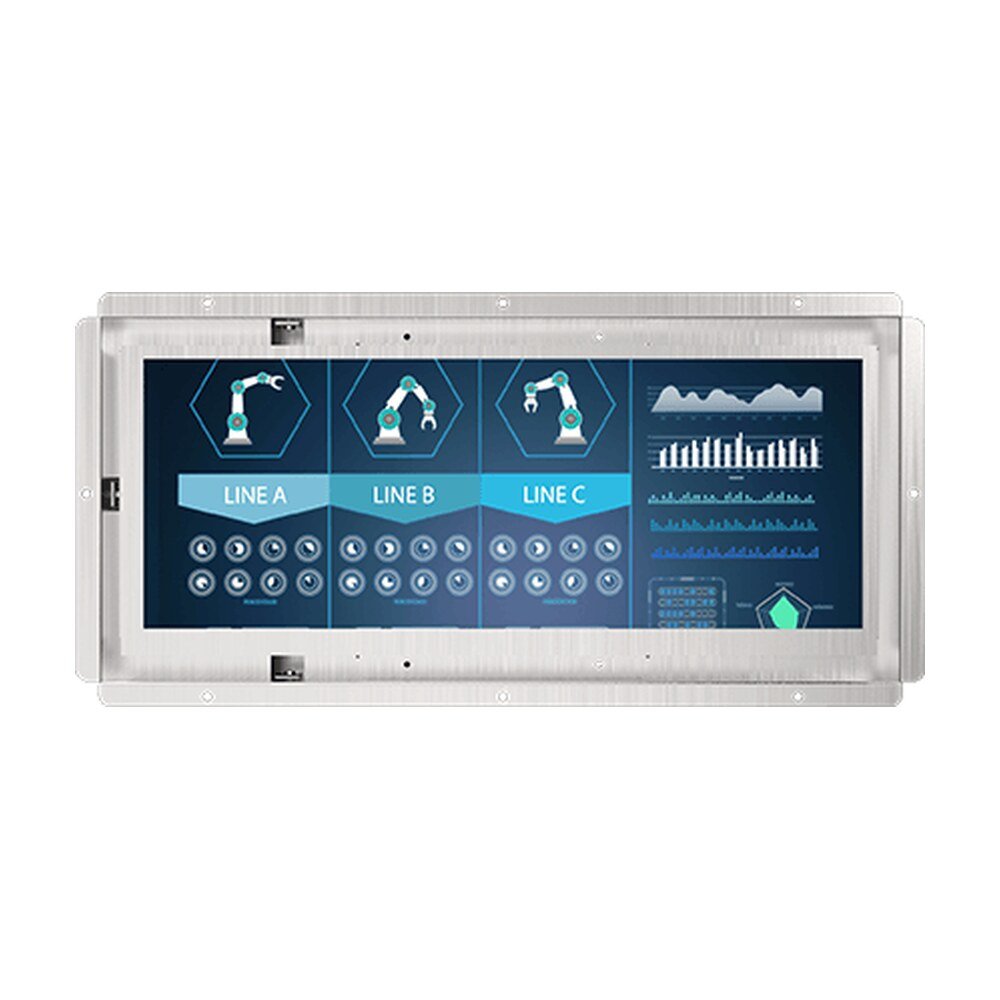

Explore Winmate W12L100-OFB1, an open frame monitor featuring 12.3-inch display with 1920x720 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12L100-OFB1, an open frame monitor featuring 12.3-inch display with 1920x720 resolution, IP65 for industrial visualization and control rooms.
Winmate 12.3” open frame displays are equipped with both VGA and HDMI inputs, providing versatile connectivity options for various applications. The VGA input allows for analog video signals, making it compatible with a wide range of legacy systems and devices. On the other hand, the HDMI input supports high-definition digital video and audio signals, ensuring seamless integration with modern devices and systems. With the combination of VGA and HDMI inputs, open frame displays offer flexibility in connecting to different sources, such as computers, industrial equipment, media players, and more. This makes them suitable for diverse industrial and commercial applications that require reliable and adaptable display solutions.
Open frame displays with open frame design offer a versatile display solution for integration into various industrial and commercial applications. The open frame design refers to a display without an enclosure or bezel, providing flexibility for customization and seamless integration into existing systems or enclosures. These displays can be easily mounted into control panels, kiosks, or other equipment, offering a compact and sleek appearance. The open frame design allows for easy maintenance and servicing, making it ideal for applications that require frequent access to the display. Open frame Displays with open frame design provide a reliable and customizable display solution for diverse industrial and commercial environments.
Open frame displays with 12.3-inch screen size and a 1920 x 720 resolution offer a crisp and clear display for various industrial and commercial applications. The high-resolution screen ensures detailed visuals and enhances the viewing experience, making it suitable for applications that require precise data visualization or image clarity. With its compact size, the Open frame Display can be easily integrated into space-constrained environments without compromising on visual quality. Whether used for monitoring systems, control panels, or information displays, the Open frame Display with its 12.3-inch screen and high resolution delivers a reliable and visually appealing display solution.
| Display | |
|---|---|
| Touch / Glass | Protection Glass |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Active Area | 292.92×110.22 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 344.3 x 167.8 x 40.5 mm |
| Mounting | Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |

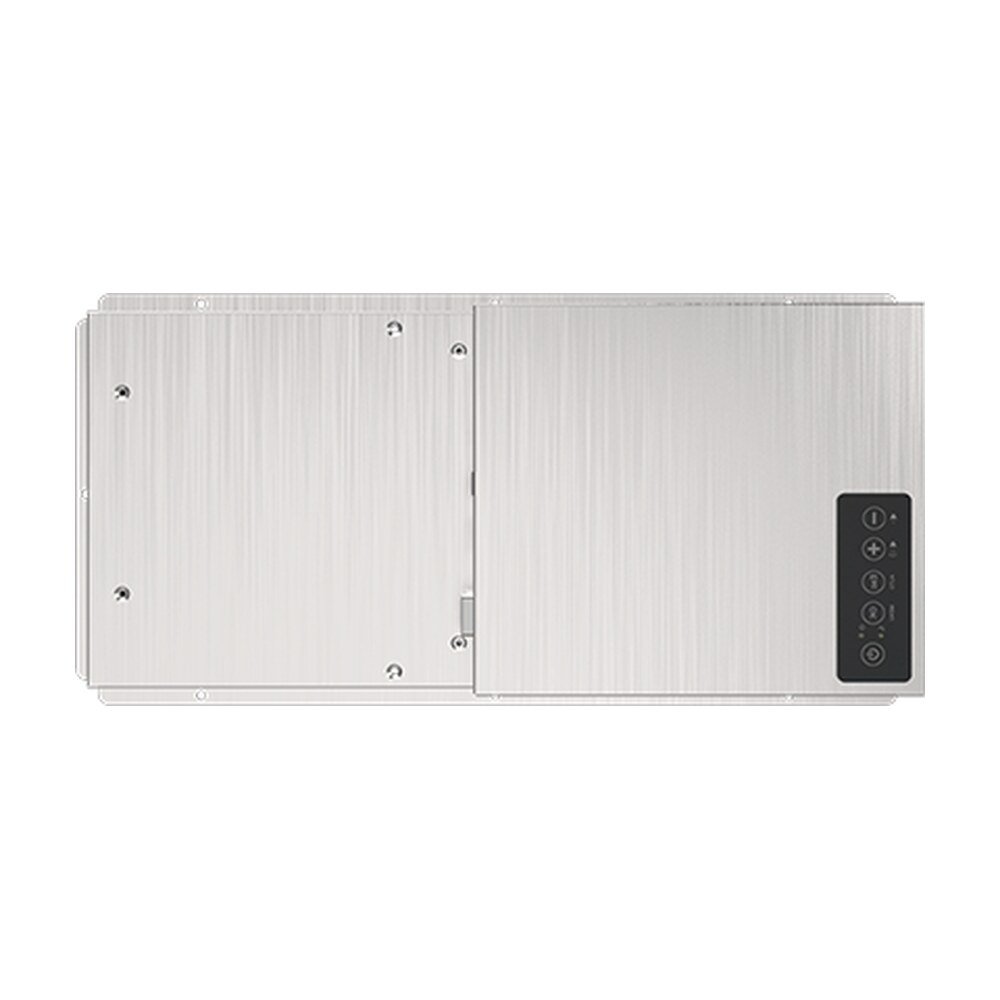

| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12L100-OFB1 |
| Series | Open Frame Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12L100-OFB1 |
|---|---|
| Category | Industrial Display, Open Frame, Winmate |
| Touch / Glass | Protection Glass |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Active Area | 292.92×110.22 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 344.3 x 167.8 x 40.5 mm |
| Mounting | Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | W12L100-OFB1 |
| Series | Open Frame Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
