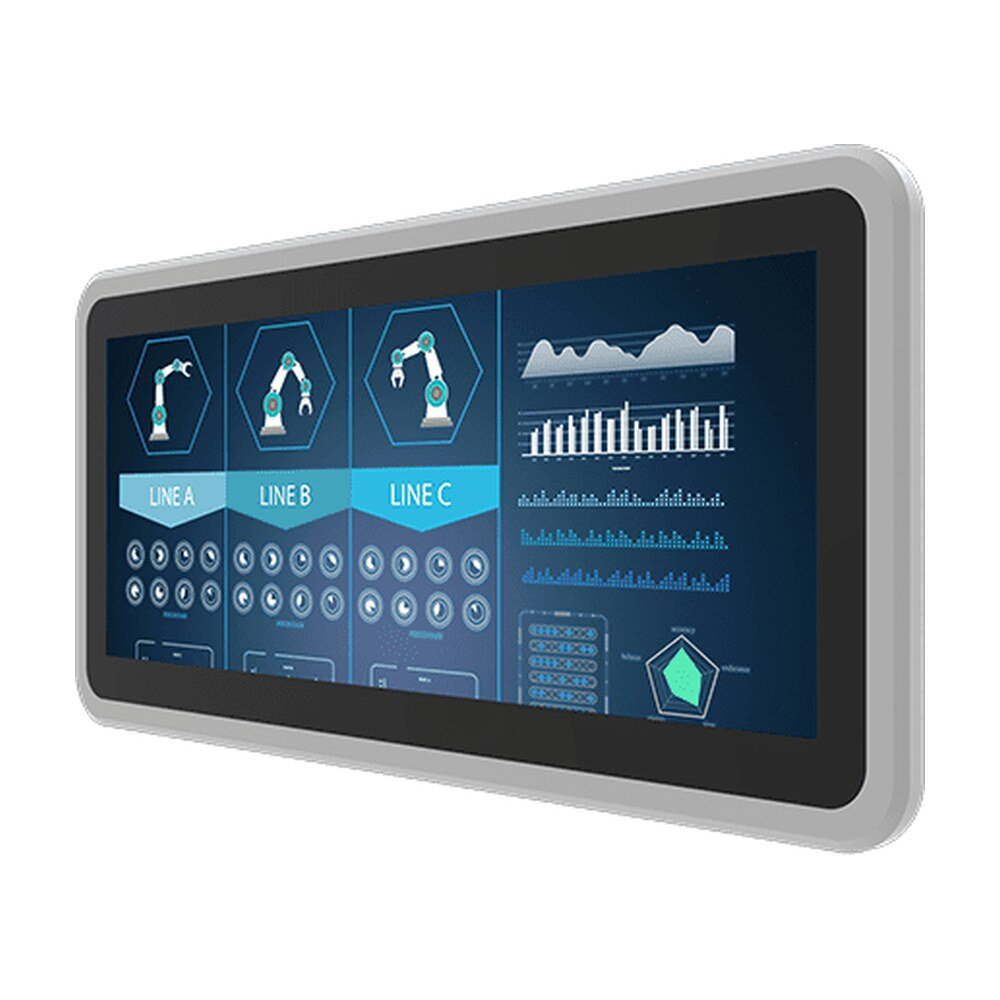

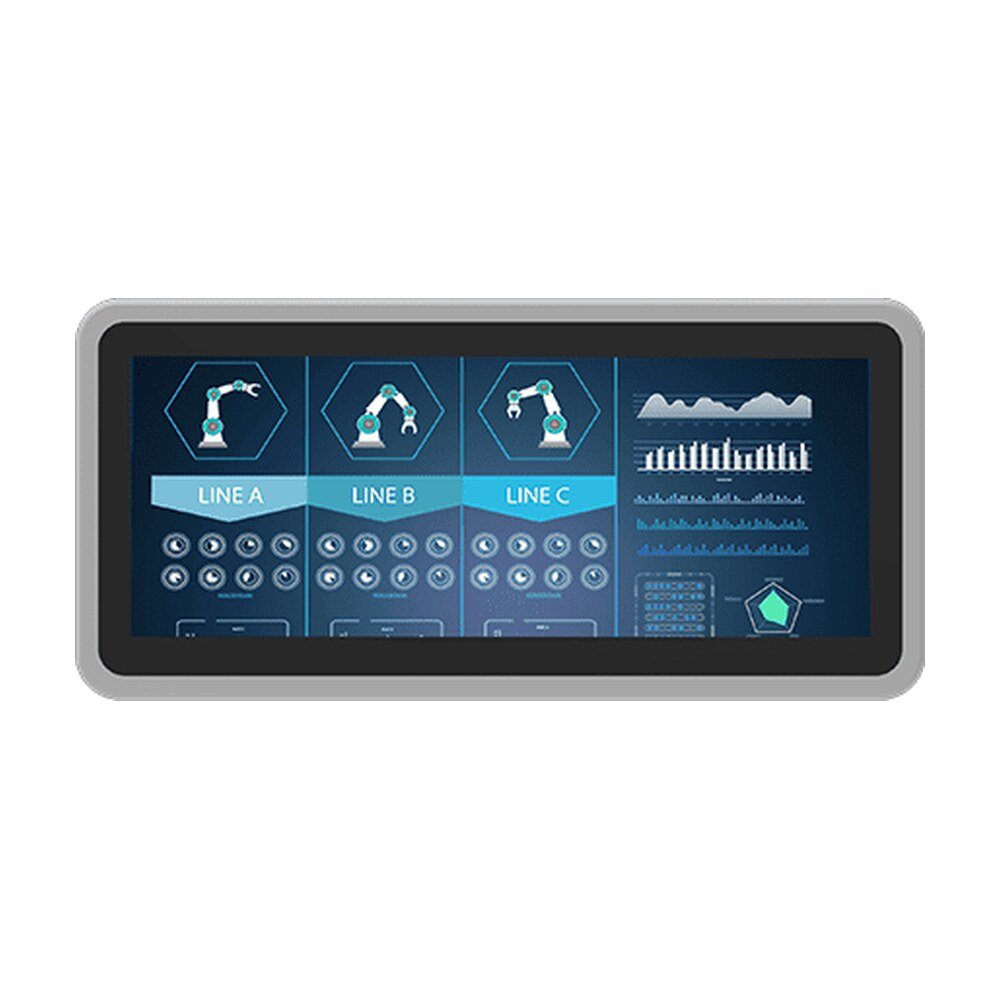

Explore Winmate W12L100-PPB1, an industrial display featuring 12.3-inch display with 1920x720 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12L100-PPB1, an industrial display featuring 12.3-inch display with 1920x720 resolution, IP65 for industrial visualization and control rooms.
The Industrial displays is equipped with a front IP65 water and dust-proof rating, making it highly resilient in harsh environments. This level of protection ensures that the display is safeguarded against water splashes, dust particles, and other contaminants that could potentially disrupt its operation. With the front IP65 rating, operators can confidently use the Industrial displays in demanding industrial settings without concerns about damage caused by moisture or dust. This feature enhances the reliability and longevity of the Industrial displays, allowing it to effectively support critical industrial processes with optimal performance and durability.
Winmate 12.3” Panel Mount Displays are equipped with both VGA and HDMI inputs, providing versatile connectivity options for various applications. The VGA input allows for analog video signals, making it compatible with a wide range of legacy systems and devices. On the other hand, the HDMI input supports high-definition digital video and audio signals, ensuring seamless integration with modern devices and systems. With the combination of VGA and HDMI inputs, Panel Mount Displays offer flexibility in connecting to different sources, such as computers, industrial equipment, media players, and more. This makes them suitable for diverse industrial and commercial applications that require reliable and adaptable display solutions.
Winmate 12.3” Industrial HMI features a PCAP (Projected Capacitive) multi-touch screen, providing a responsive and intuitive user interface. The PCAP technology allows for accurate touch detection and supports multi-touch gestures, enabling users to interact with the HMI effortlessly. The multi-touch functionality allows for zooming, panning, and gesture-based controls, enhancing the user experience and improving productivity. With the PCAP multi-touch screen, operators can easily navigate through complex interfaces, input data, and access information with a simple touch, making the Industrial HMI an ideal choice for industrial applications that require intuitive and efficient human-machine interaction.
| Display | |
|---|---|
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 338.3 x 159.8 x 48.5 mm |
| Cut out | 318 x 140 mm |
| Weight | 5.5 kg |
| Mounting | Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |

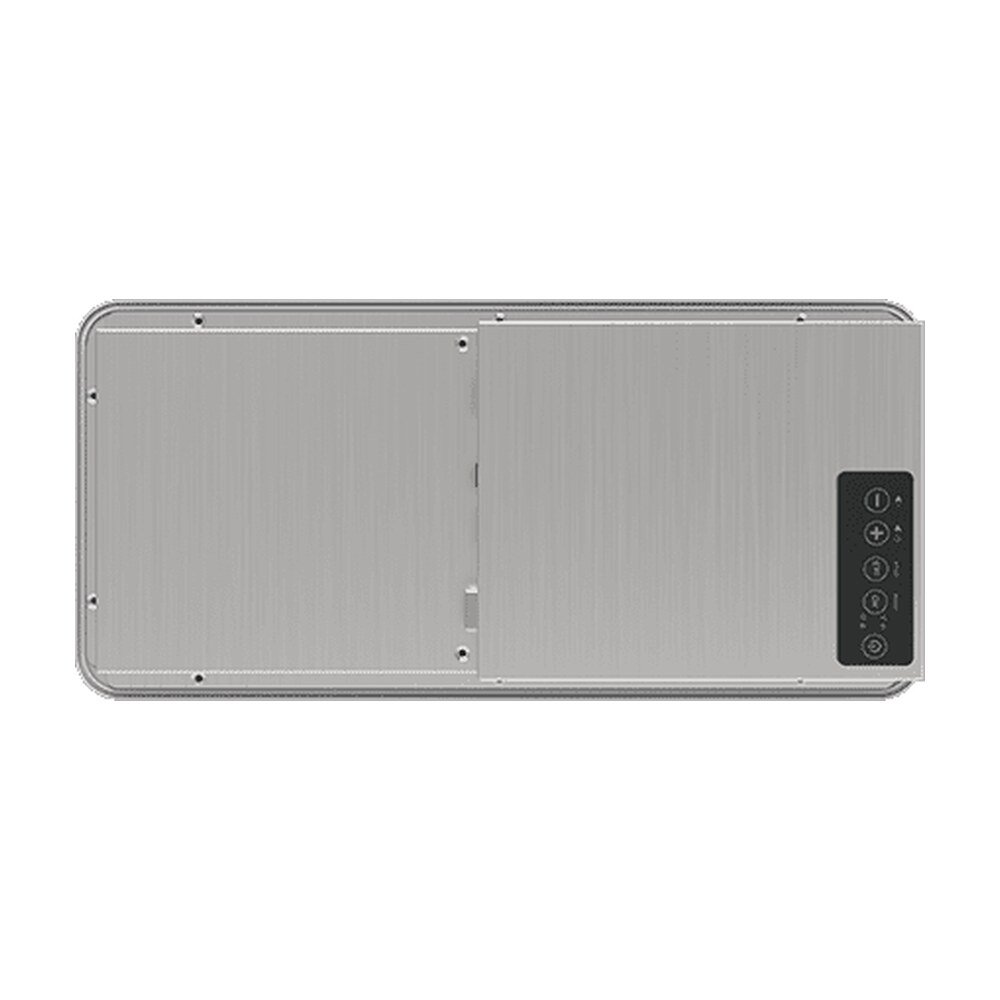

| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12L100-PPB1 |
| Series | Panel Mount Display (Aluminum) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12L100-PPB1 |
|---|---|
| Category | Industrial Display, Multi-touch (P-CAP), Winmate |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.7M Colors |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 338.3 x 159.8 x 48.5 mm |
| Cut out | 318 x 140 mm |
| Weight | 5.5 kg |
| Mounting | Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | W12L100-PPB1 |
| Series | Panel Mount Display (Aluminum) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
