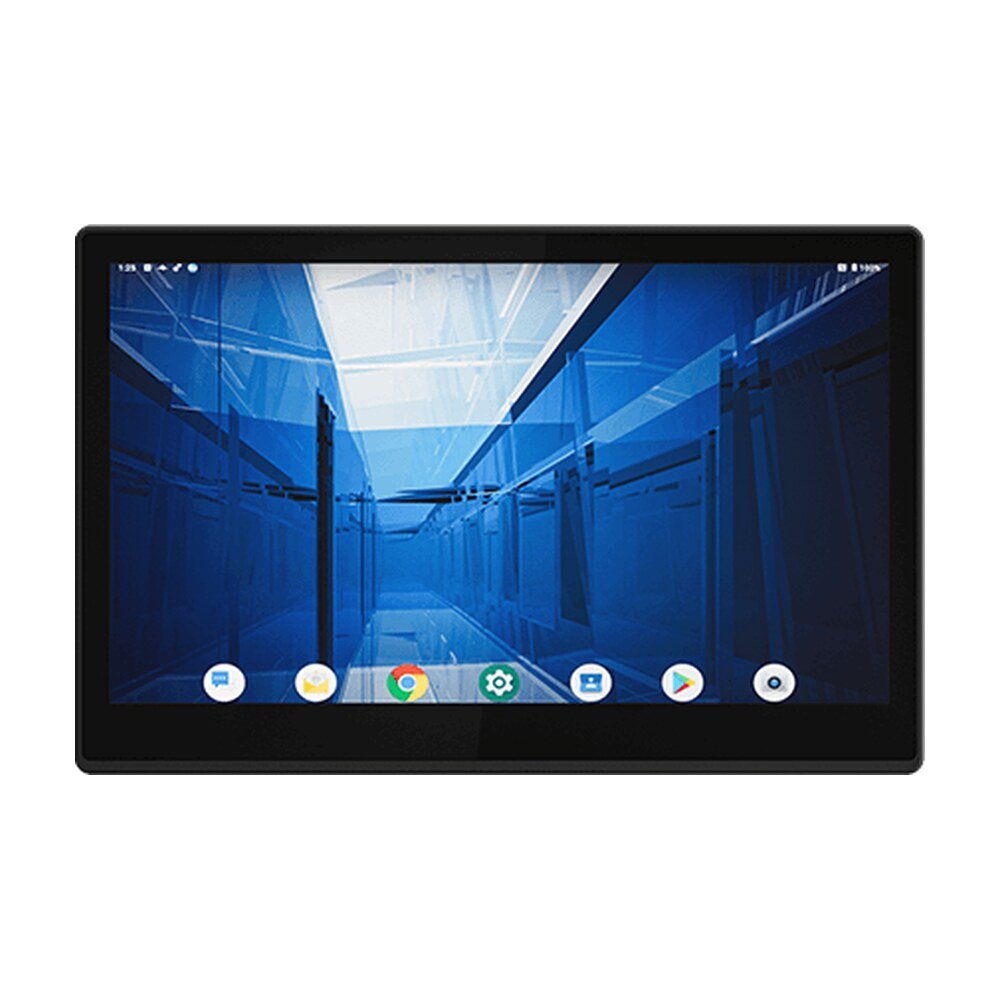

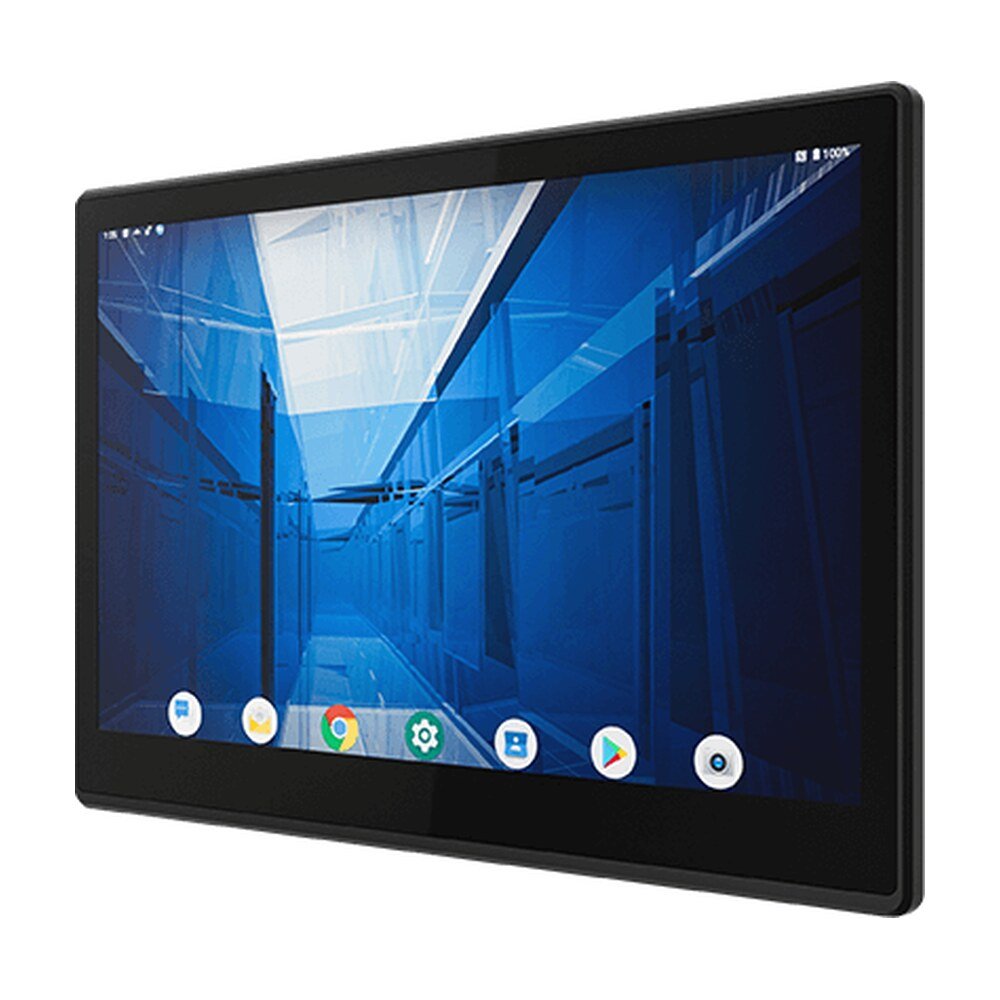

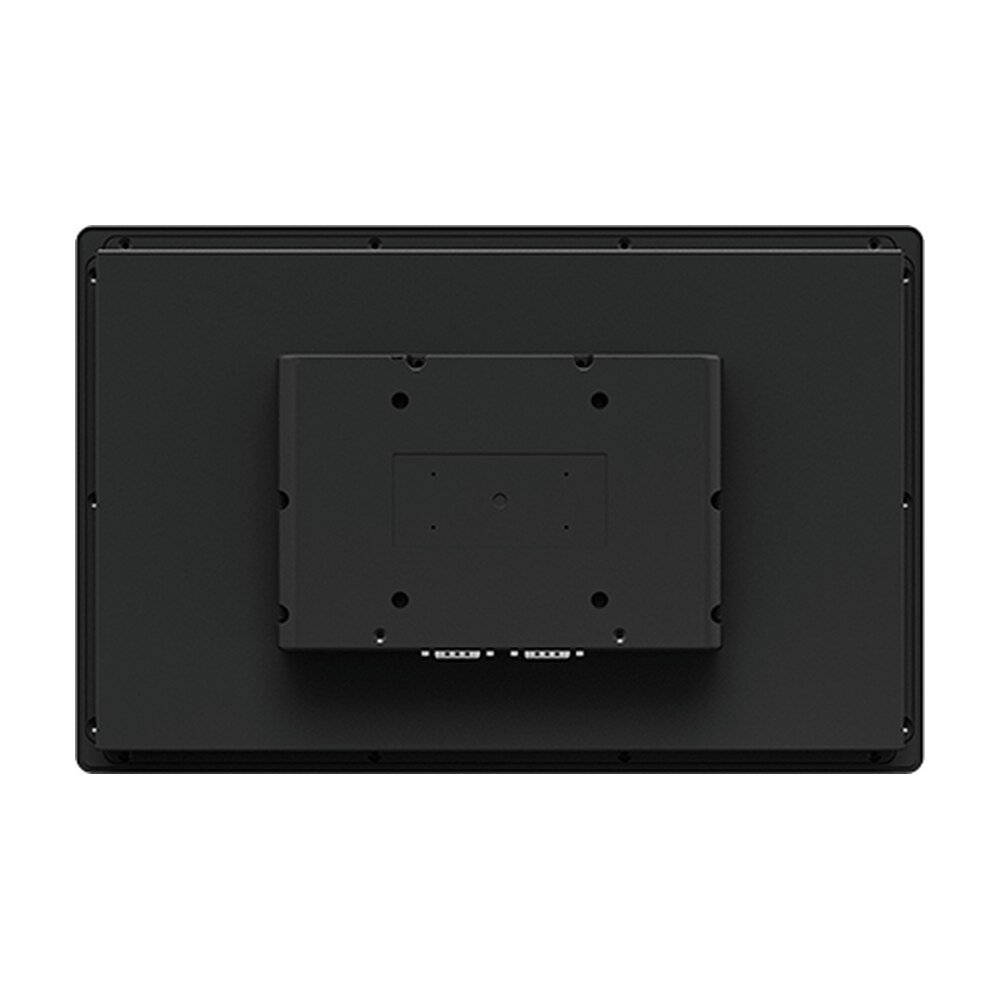

Explore Winmate W14FA3S-EHA1, an HMI panel PC featuring NXP i.MX6, 14-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W14FA3S-EHA1, an HMI panel PC featuring NXP i.MX6, 14-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
The Winmate E Series HMI features a true flat design, ensuring a seamless and easy-to-clean surface. This sleek and modern design minimizes dust and debris accumulation, making it ideal for environments where hygiene and cleanliness are critical.
Winmate E Series HMI supports Power over Ethernet (PoE) technology, allowing data and power to be delivered through a single cable. This feature reduces the need for additional wiring, simplifies installation, and ensures efficient operation in industrial and commercial applications.
Equipped with an advanced processor tailored for industrial automation, the Winmate E Series HMI delivers robust performance and reliability. This ensures seamless operation, precise control, and the capability to handle demanding automation tasks in industrial environments.
Winmate E Series HMI includes a durable glass cover lens that offers superior scratch resistance, ensuring long-term durability. Its projected capacitive (P-CAP) multi-touch technology supports four-point touch control, enabling intuitive and responsive interaction. This feature enhances user convenience and elevates the overall customer experience.
Designed with mounting clips for panel installation, the Winmate E Series HMI eliminates the need for drilling holes in fixtures. This not only reduces installation time but also ensures a clean and professional appearance when the unit is removed, preserving the integrity of the mounting surface.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| System Specification | |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| Mechanical | |
| Dimension | 340 x 220 x 62 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | , 1 x Micro HDMI (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi module) |
| CANBUS | 1 x CANBUS, D-sub9 |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W14FA3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W14FA3S-EHA1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| Dimension | 340 x 220 x 62 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | , 1 x Micro HDMI (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi module) |
| CANBUS | 1 x CANBUS, D-sub9 |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | W14FA3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
