Explore Winmate W14MG3S-EHA1, an HMI panel PC featuring 14-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W14MG3S-EHA1, an HMI panel PC featuring 14-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.

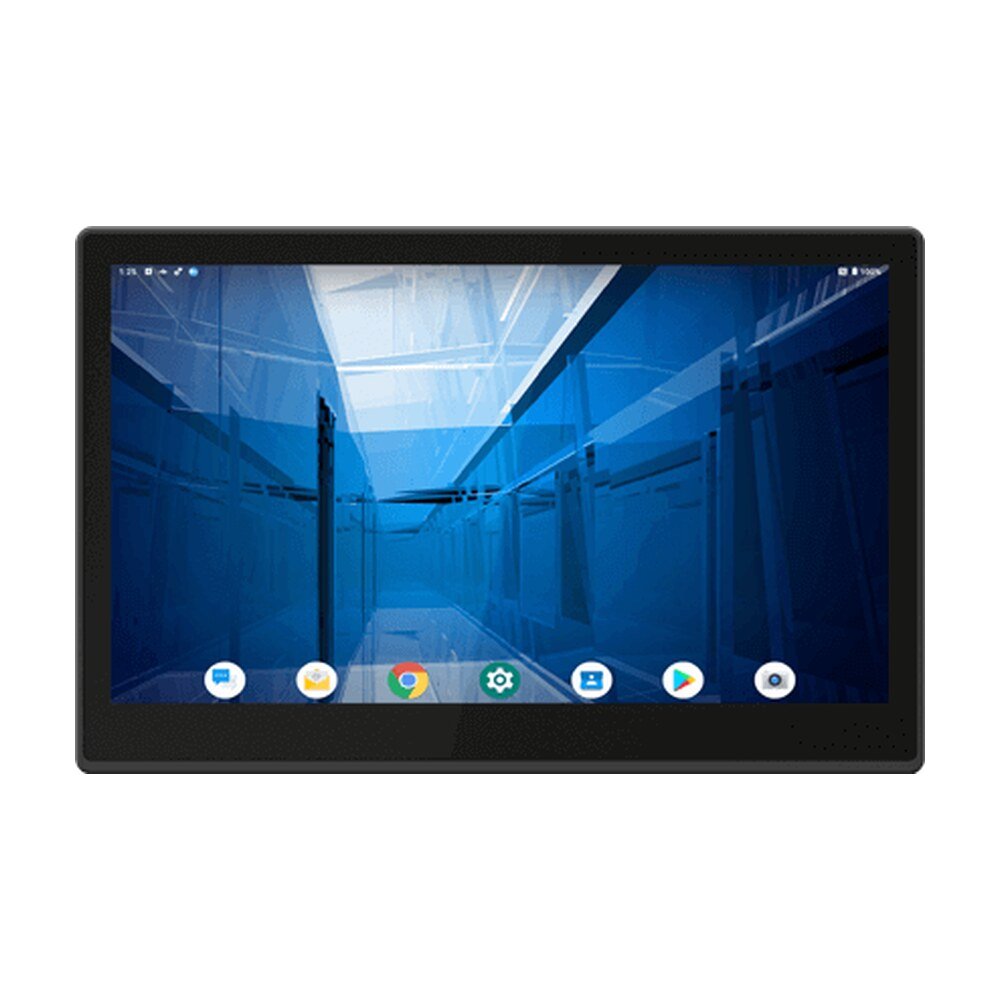

The W14MG3S-EHA1 features a 14-inch Full HD (1920 x 1080) display, delivering sharp and vibrant visuals. Its Projected Capacitive (PCAP) multi-touch technology ensures smooth, precise, and intuitive operation. Designed for industrial use, it supports multi-touch gestures, even with gloves, enhancing efficiency in demanding applications.
With a fanless cooling system, the W14MG3S-EHA1 Panel PC operates silently to reduce noise and minimize maintenance. Its ultralow power consumption makes it an energy-efficient choice for 24/7 industrial operations. This design enhances reliability by preventing dust buildup, ensuring stable performance in harsh environments.
The W14MG3S-EHA1 Panel PC supports both Android 13 and Linux operating systems, offering flexibility for different industrial needs. Its compatibility allows seamless integration into existing systems and simplifies software customization. This adaptability makes it a reliable solution for automation, kiosks, and enterprise applications.
The front IP65-rated enclosure protects the panel PC from water, dust, and debris, ensuring durability in industrial settings. It is designed to withstand frequent cleaning and exposure to moisture, making it ideal for factory automation and food processing applications. This rugged construction guarantees long-term reliability in demanding environments.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Mechanical | |
| Dimension | 340 x 220 x 62.7 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps (Default), PoE(PD, 802.3at) (Optional) |
| Video | 1 x Micro HDMI Output (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional) |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W14MG3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W14MG3S-EHA1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| Dimension | 340 x 220 x 62.7 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps (Default), PoE(PD, 802.3at) (Optional) |
| Video | 1 x Micro HDMI Output (Optional) |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC with Terminal Block (Default), 24V (Optional) |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | W14MG3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
