Explore Winmate W15IAD3S-MRC3FP, an ECDIS marine display featuring Intel® Core™ i5-1335U, 15.6-inch display with 1920x1080 resolution, DNV…

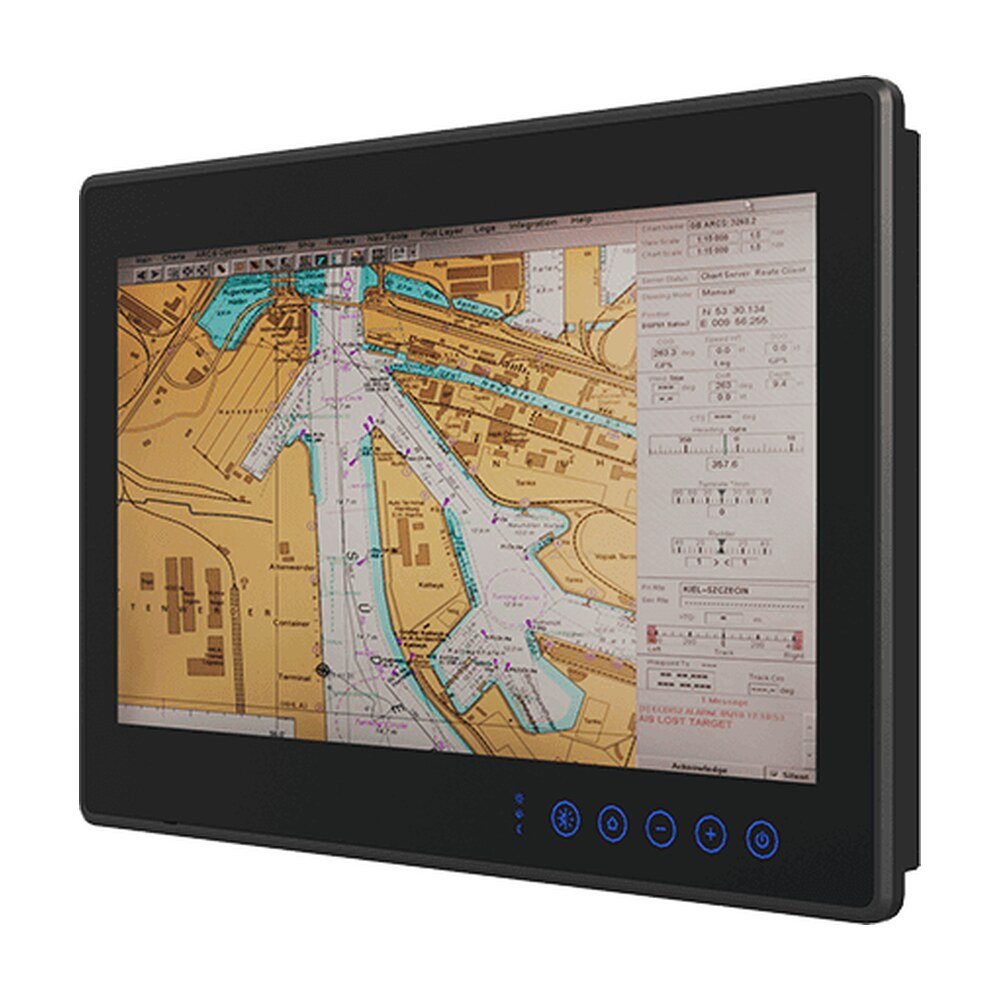

The Winmate W15IAD3S-MRC3FP features a 15.6-inch Full HD (1920 x 1080) PCAP touchscreen, delivering exceptional clarity and responsiveness. Its flat front design ensures seamless integration into modern marine control systems, making it an ideal solution for ECDIS applications.
Constructed to meet IEC60945 4th Edition, DNV-CG-0339, and IACS E10 standards, this marine panel PC is built for extreme maritime conditions. Its rugged durability and dependable operation make it the perfect choice for marine navigation and vessel management.
With capacitive touch keys, users can easily control display functions and switch between ECDIS DAY, DUSK, and NIGHT modes. Operators can seamlessly adjust display settings for improved visibility and usability in different maritime conditions.
The narrow bezel design maximizes screen space while maintaining a compact and elegant appearance. Its fanless cooling system enhances system longevity by eliminating moving parts, ensuring silent and reliable operation in maritime and industrial settings.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (AR Coating) (Default), AG film (Optional), AR Glass (Optional) |
| Size | 15.6 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 450.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 89,89,89,89 |
| Active Area | 344.16x193.59 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1335U 3.4GHz(up to 4.60 GHz) (Default), Intel® Core™ 5 120U 3.8GHz (up to 5GHz) (Optional) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45 |
| Video | 1 x HDMI (Optional) |
| Front Control | Power, Brightness +, Brightness -, Menu , Function Key(Default setting: ECDIS Mode) |
| Indicator | Day Mode , Dusk Mode, Night Mode |
| DIDO | 8 Channel Isolated Digital Input/Output (Optional) |
| NMEA | 4 x NMEA 0183 Port (Optional) |
| Mechanical | |
| Dimension | 400 x 276 x 67 mm |
| Cut out | 378 x 254mm |
| Weight | 6.8 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual, AC to DC Adapter (with 3 pin Terminal Block), Power Cord, M4 x 30 Black Screws Bolts, M4 x 15 Sliver Screws Bolts, Mounting clips |
| Optional Accessory | Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional) |
| Power | |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 60W (Typical) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W15IAD3S-MRC3FP |
| Series | ECDIS Marine Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
