Explore Winmate W15IM3S-PPB2, an HMI panel PC featuring 14.9-inch display with 1920x720 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W15IM3S-PPB2, an HMI panel PC featuring 14.9-inch display with 1920x720 resolution, IP65 for machine control and factory automation.

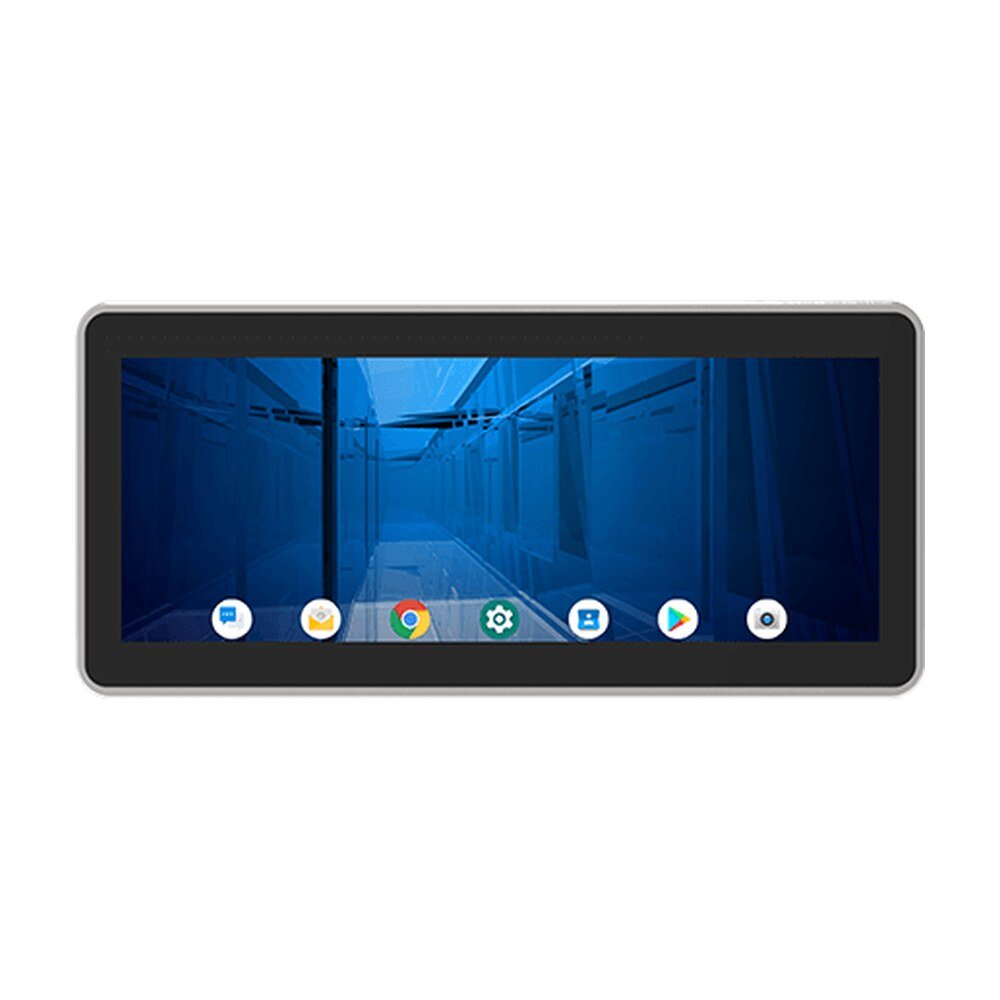

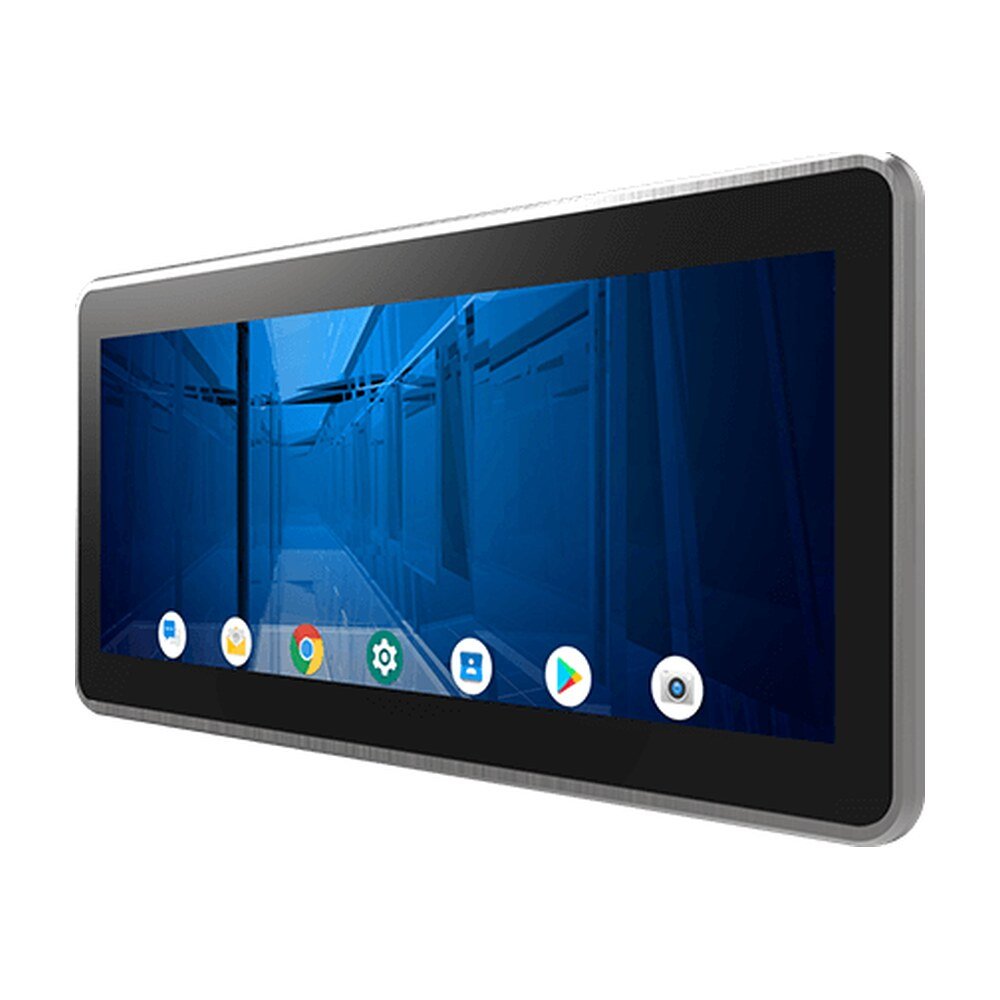

The 14.9-inch panel offers a high-resolution display of 1920 x 720 pixels, ensuring crisp and detailed visuals. With a projected capacitive multitouch screen, users can enjoy smooth and responsive touch interactions, making it ideal for applications requiring intuitive input. The panel is housed in a durable aluminum casing, providing excellent protection and sturdiness. This ensures long-term reliability even in demanding environments. Additionally, the fanless design eliminates noise and reduces the risk of dust or debris accumulation, making it suitable for various settings. Whether used in industrial automation, digital signage, or interactive kiosks, this 14.9-inch panel with its high resolution, multitouch functionality, robust aluminum housing, and fanless design offers a reliable and user-friendly solution for a wide range of applications.
The 14.9-inch multitouch screen features an impressive IP65 rating, making it resistant to water and dust ingress from the front. This level of protection ensures reliable operation even in challenging environments where exposure to moisture, dirt, or dust is common. With its IP65 rating, the screen can withstand water jets from any direction and is fully protected against the intrusion of dust particles. This makes it suitable for outdoor applications, industrial settings, and other environments where durability and resilience are crucial. The multitouch functionality adds an intuitive and interactive element to the screen, allowing users to navigate, zoom, and interact with content using their fingers. The combination of multitouch capability and IP65 protection makes this screen an excellent choice for applications that require both touch interactivity and resistance to water and dust. Whether used in outdoor kiosks, industrial control panels, or interactive displays, the 14.9-inch multitouch screen with its IP65 water and dustproof rating offers a reliable and user-friendly solution for various demanding environments.
The 14.9-inch multitouch screen is equipped with a powerful ARM A53 Quad Core 2.0GHz CPU, delivering impressive processing performance. This enables smooth and efficient operation, ensuring seamless multitasking and responsive touch interactions. Whether used in interactive displays, kiosks, or control panels, the combination of the 14.9-inch multitouch screen and the high-performance CPU provides a reliable and user-friendly solution for a wide range of applications.
| Display | |
|---|---|
| Size | 14.9 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x720 |
| Panel Brightness | 950.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,85,85 |
| Active Area | 355.68×133.38 mm |
| System Specification | |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 400.2 x 187.6 x 59 mm |
| Cut out | 378.1x164.6mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button (Optional) |
| Power | |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W15IM3S-PPB2 |
| Series | PP Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W15IM3S-PPB2 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 14.9 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x720 |
| Panel Brightness | 950.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,85,85 |
| Active Area | 355.68×133.38 mm |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 400.2 x 187.6 x 59 mm |
| Cut out | 378.1x164.6mm |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| USB Port | 2 x USB 2.0 Type A , 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button (Optional) |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Brand | Winmate |
| Manufacturer part number | W15IM3S-PPB2 |
| Series | PP Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
