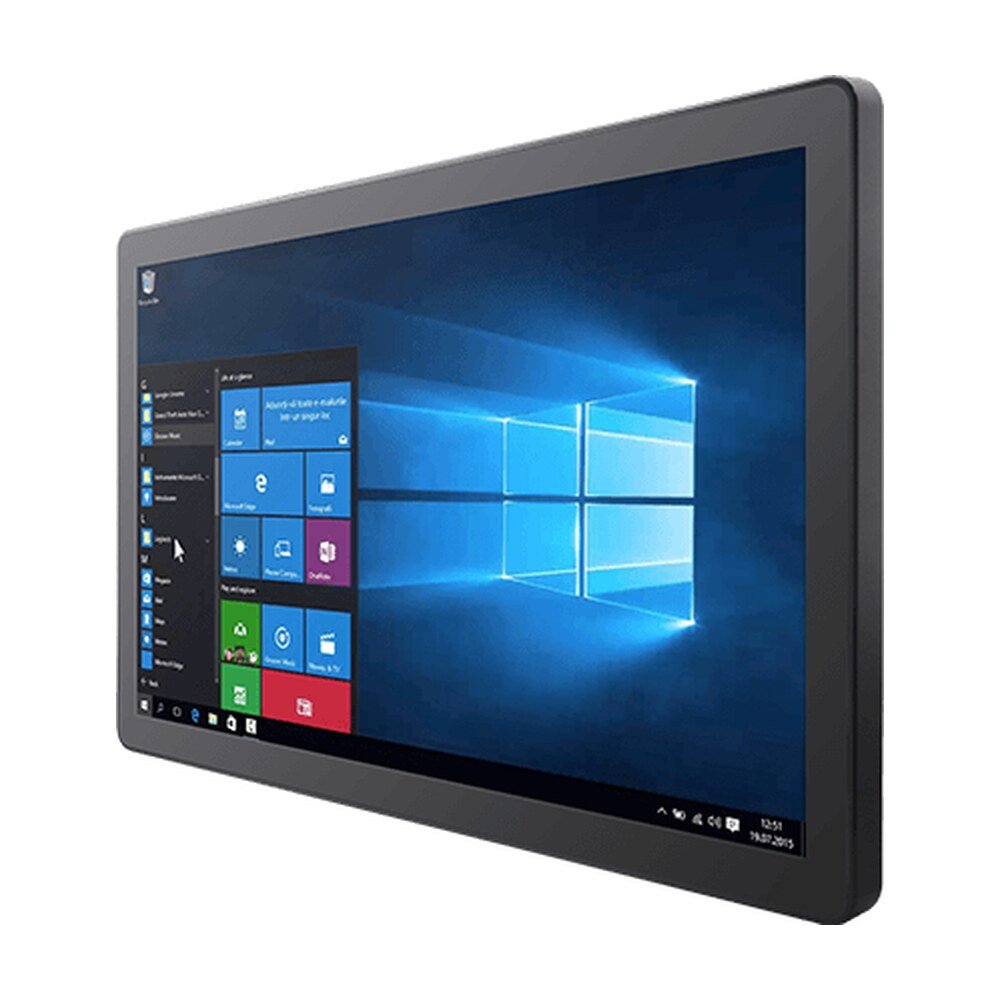

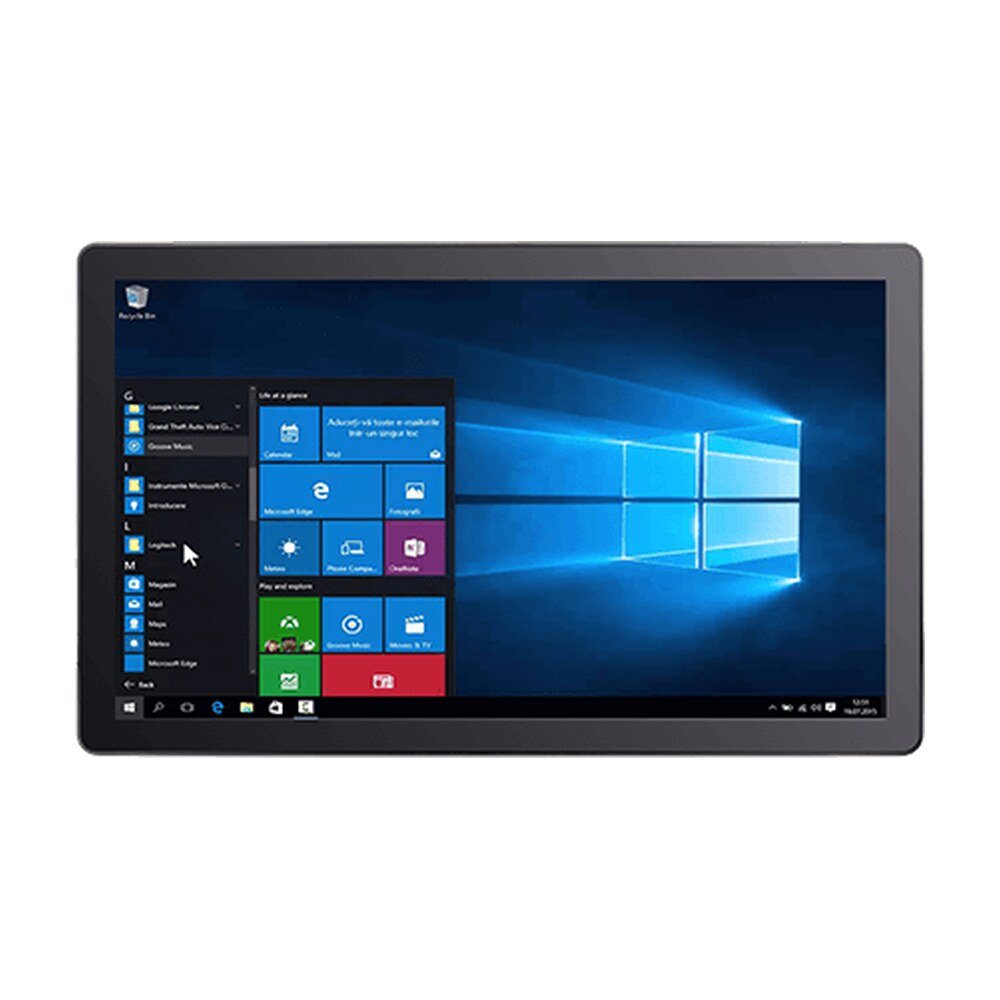

Explore Winmate W22IAD7T-GCA3, an industrial panel PC featuring Intel® Core™ i9, 21.5-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22IAD7T-GCA3, an industrial panel PC featuring Intel® Core™ i9, 21.5-inch display with 1920x1080 resolution…
The G-WIN GC Series panel PC features a 12V single voltage power input, ensuring compatibility with standard power sources for easy installation. This simplifies power management and maintenance across various applications.
In industrial environments, the G-Win GC Series Panel PC supports multiple displays with LVDS/eDP interfaces, facilitating seamless connectivity and operation. This feature caters to various industrial applications like manufacturing control, process monitoring, and digital signage, leveraging LVDS for robustness and eDP for portability.
Designed to cater to diverse industrial demands, the Winmate G-WIN GC Series Panel PC boasts a rich assortment of I/O interfaces, featuring 2 x Serial Ports and 4 x USB 3.2 Gen2x1. These interfaces ensure seamless integration and interaction with a wide range of external devices and peripherals, enhancing the versatility of the Panel PCs across various applications.
The G-WIN GC series panel PC boasts a front IP65 rating, guaranteeing resilience against water and dust in harsh environments. This protective feature shields it from water splashes, dust, and other contaminants, ensuring operational integrity. Operators can confidently deploy this HMI in demanding industrial conditions, relying on its durability and reliability to support critical operations effectively.
| Display | |
|---|---|
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| System Specification | |
| Processor | Intel® Core™ i3-12100TE(up to 4.00GHz) (Default), Intel® Core™ i5-12500TE(up to 4.3GHz) (Optional), Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional), Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional), Intel® Core™ i3-14100T(up to 4.4GHz) (Optional), Intel® Core™ i5-14500T(up to 4.8GHz) (Optional), Intel® Core™ i7-14700T(up to 5.2GHz) (Optional), Intel® Core™ i9-14900T(up to 5.5GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 2 x SATA III for 2.5" SSD/HDD up to 2TB(RAID Support) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) (R680E/Q670E version), 4 x USB 3.2 Gen1x1 (5Gbps, TypeA) (H610E version) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Mechanical | |
| Dimension | 530 x 322 x 62 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fan Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter , Power Cable |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Power | |
| Power Rating | 12V DC in |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22IAD7T-GCA3 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for pricing and availability |
