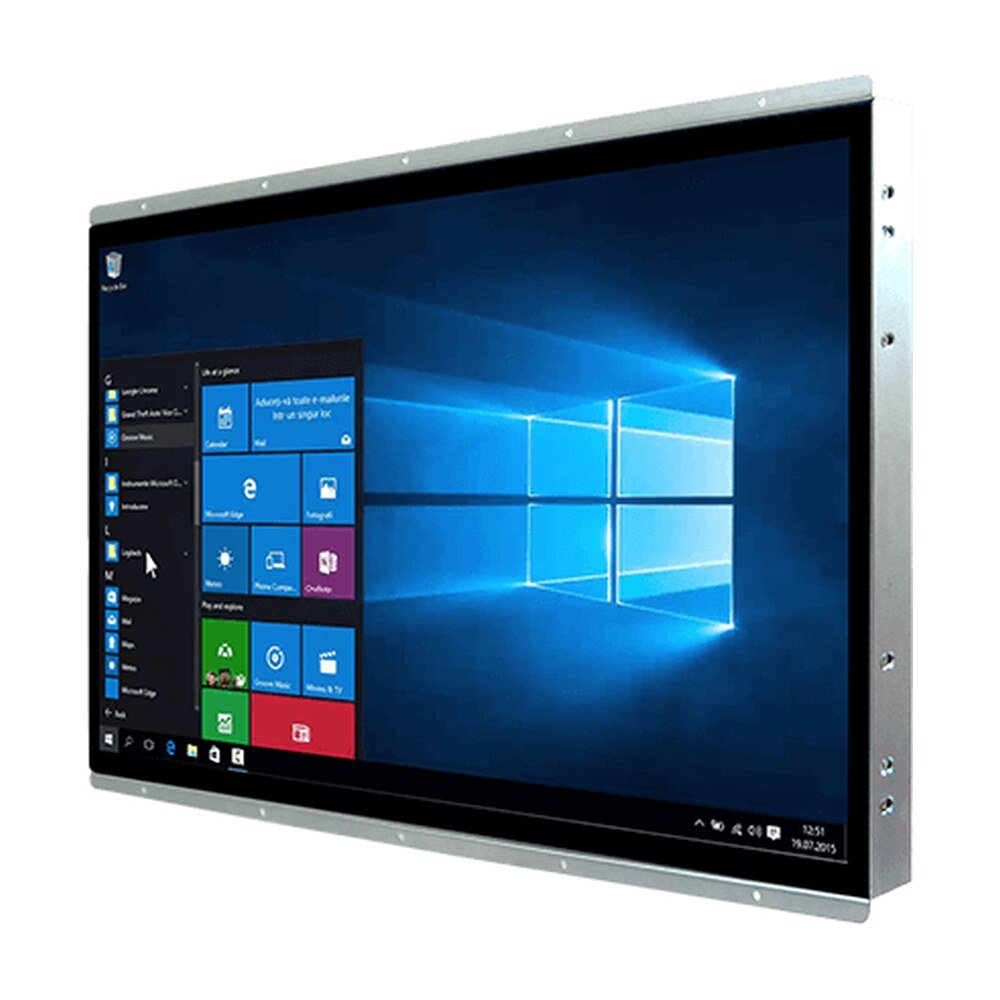

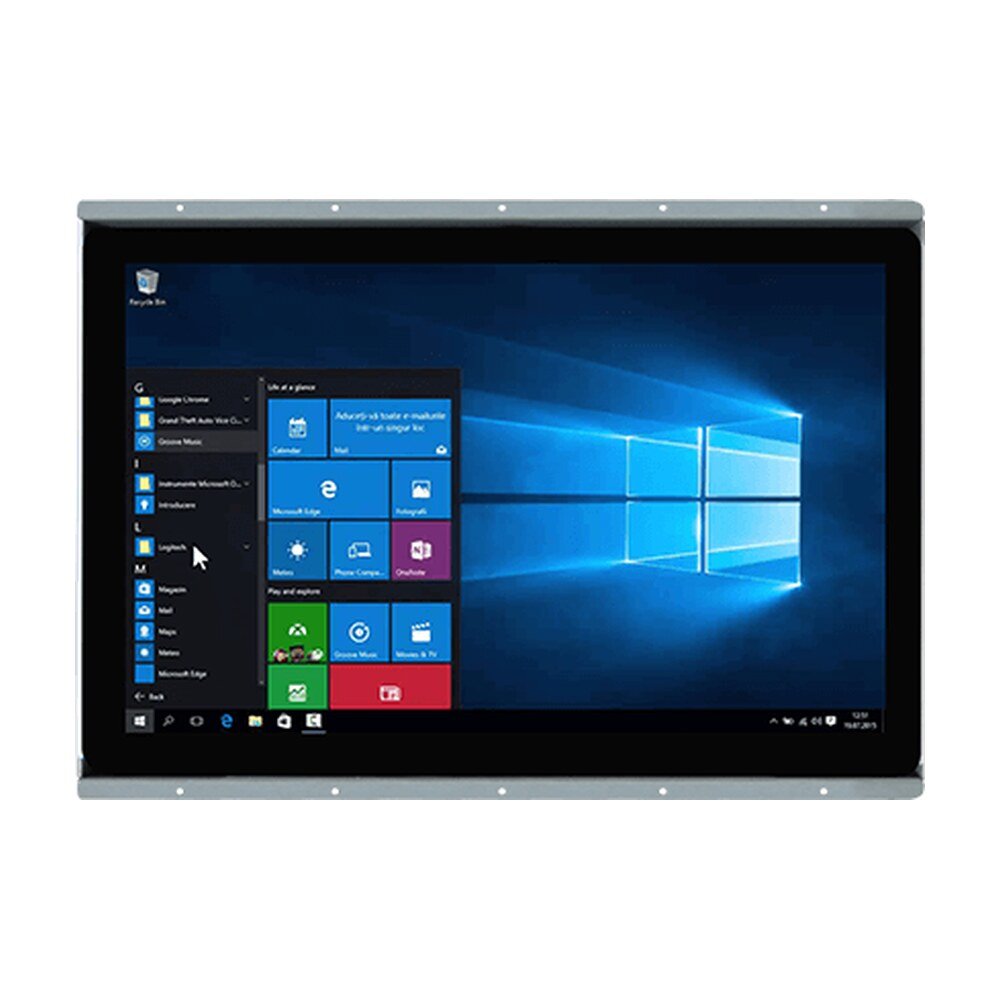

Explore Winmate W22IP7T-POA3, an HMI panel PC featuring Intel® Pentium® N4200, 21.5-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22IP7T-POA3, an HMI panel PC featuring Intel® Pentium® N4200, 21.5-inch display with 1920x1080 resolution…
The Open Frame HMI panel PCs provide an exceptional touch experience with a projected capacitive (PCAP) multi-touch screen. This technology enhances touch interactions, making the device more convenient to use and significantly improving the overall customer experience. Enjoy effortless control and responsiveness with every touch!
The PO Series HMI panel PCs feature a sleek flat bezel and an easy-to-mount open frame housing, making them ideal for various industrial embedded and kiosk applications. Targeted at banking, healthcare, retail, transportation, and other vertical markets, these panel PCs provide versatility and style for diverse settings.
The PO Series HMI panel PCs offer high performance and a rich I/O interface, perfect for innovative industrial IoT solutions. With serial ports, USB ports, LAN, video, and audio ports, these devices ensure seamless connectivity. Their user-friendly installation design enhances performance across various vertical applications.
| Display | |
|---|---|
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 526 x 338 x 69 mm |
| Weight | 5.5 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22IP7T-POA3 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W22IP7T-POA3 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 526 x 338 x 69 mm |
| Weight | 5.5 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Brand | Winmate |
| Manufacturer part number | W22IP7T-POA3 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
