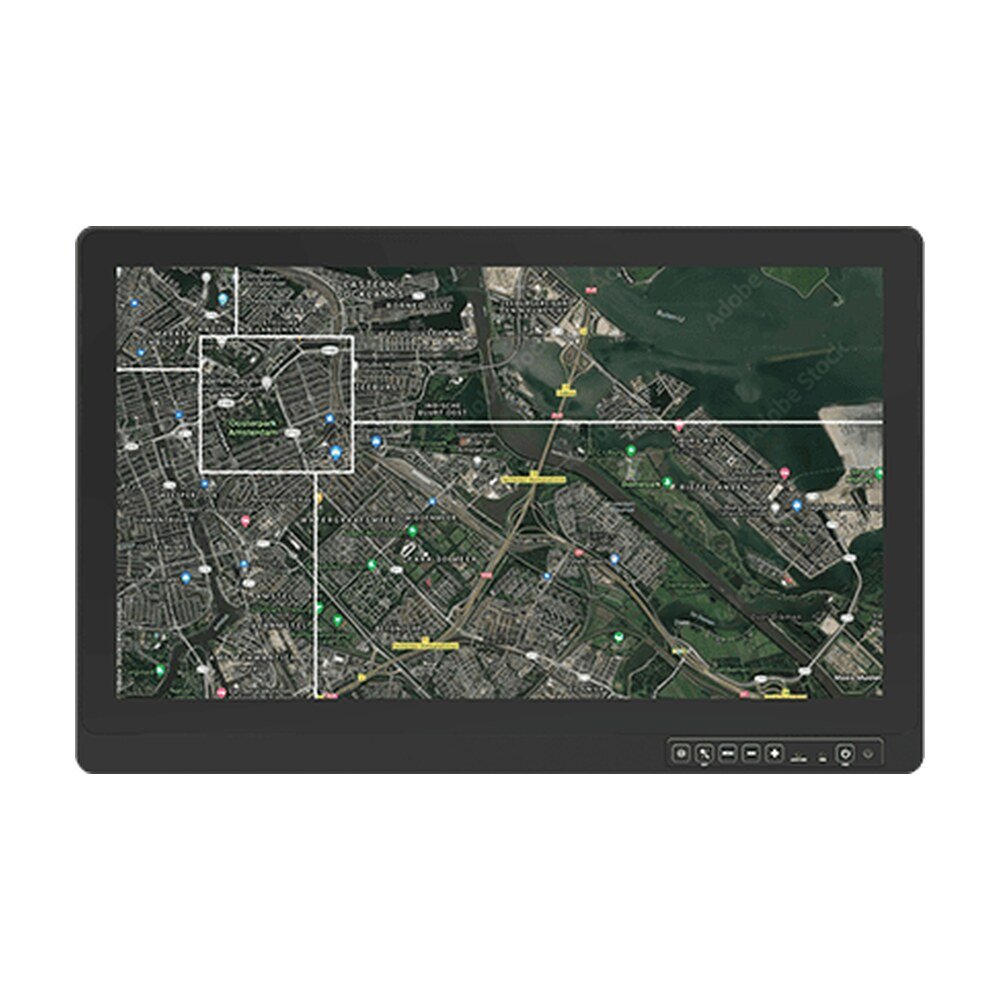

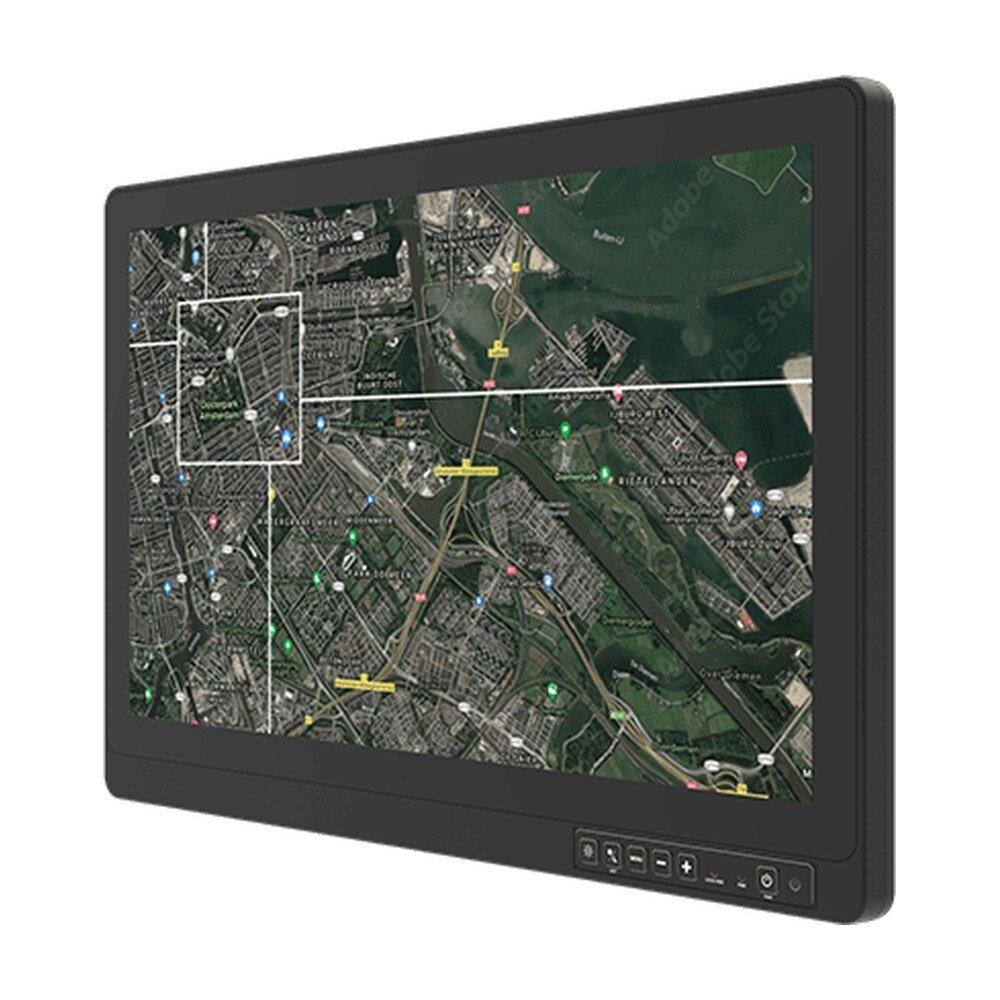

Explore Winmate W22L100-67N1-NI, an industrial display featuring 21.5-inch display with 1920x1080 resolution, IP67, IP65 for defense operations and field…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22L100-67N1-NI, an industrial display featuring 21.5-inch display with 1920x1080 resolution, IP67, IP65 for defense operations and field…
Winmate’s PCAP Touch NVIS Display is designed to operate dependably in outdoor and field environments. With a tested operating range of -20°C to 60°C, it supports consistent functionality in both cold and hot climates. This makes it suitable for use in mobile military units, field installations, and outdoor tactical systems.
Winmate’s PCAP Touch NVIS Display features a 9–36V DC isolated wide-range power input to support diverse installation needs. Built for mobile and in-vehicle applications, it offers stable voltage protection and enhanced reliability. The optional ignition on/off control function ensures smooth startup and shutdown in vehicle systems, making it a smart fit for automotive and military platforms.
This NVIS display supports both Day Mode and NVIS Mode, making it highly adaptable to changing light conditions. Whether used under direct sunlight or in low-light tactical environments, it ensures clear, readable visuals at all times. Its PCAP touch functionality adds precision control, even with gloves or in challenging conditions.
Fully compliant with MIL-STD-3009, the PCAP Touch NVIS Display meets strict military standards for night vision compatibility. Designed by Winmate for military field environments. It provides safe, non-disruptive backlighting that supports NVG-equipped missions. Designed for rugged mobility and tactical precision, Winmate’s solution is trusted in defense-grade applications.
Winmate's rugged rack-mount display provides intuitive on-screen display (OSD) settings, enabling users to quickly adjust brightness, contrast, and other settings to achieve optimal visual performance. This design enhances user experience and reduces the learning curve.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel (Default), Ture Flat Protection Glass Bonding With Panel (Optional) |
| Size | 21.5 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 1000/NVIS nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 476.64x268.11 mm |
| Mechanical | |
| Dimension | 529.6 x 342.8 x 58 mm |
| Weight | 8.67 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x M12 type connector for Touchscreen via USB signal |
| Serial Port | 1 x M12 type connector for Touchscreen via RS232 signal (Optional), 1 x M12 type connector for RS232 Remote Control (Optional) |
| Video | 1x M12 type connector for VGA input, 1x Waterproof connector for HDMI input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for lock/unlock status |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Control | |
| Button | 1 x "Power" key to power on the device., 1 x "+" key to increase screen brightness., 1 x "-" key to decrease screen brightness., 1 x "Menu" key can Automatically or manually adjusts brightness of the display screen, 1 x Day / Night Mode button, 1 x LED indicator brightness adjustment button, 1 x Ambient Light sensor |
| Accessory | |
| Accessory | External open wire Power cable with waterproof connector, External USB cable with waterproof connector for Touch, External VGA cable with waterproof connector, External HDMI cable with waterproof connector, Waterproof caps, VESA screws |
| Optional Accessory | 100~240V AC to DC 50W Adapter with power cord (Optional), External COM cable with waterproof connector (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22L100-67N1-NI |
| Series | NVIS Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W22L100-67N1-NI |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel (Default), Ture Flat Protection Glass Bonding With Panel (Optional) |
| Size | 21.5 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 1000/NVIS nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 476.64x268.11 mm |
| Dimension | 529.6 x 342.8 x 58 mm |
| Weight | 8.67 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing, Pre finish: Surtec 650, Type II, Class 3 Coating:, Polyester powder coating |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | CE, FCC |
| USB Port | 1x M12 type connector for Touchscreen via USB signal |
| Serial Port | 1 x M12 type connector for Touchscreen via RS232 signal (Optional), 1 x M12 type connector for RS232 Remote Control (Optional) |
| Video | 1x M12 type connector for VGA input, 1x Waterproof connector for HDMI input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for lock/unlock status |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Optional Accessory | 100~240V AC to DC 50W Adapter with power cord (Optional), External COM cable with waterproof connector (Optional) |
| Brand | Winmate |
| Manufacturer part number | W22L100-67N1-NI |
| Series | NVIS Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
