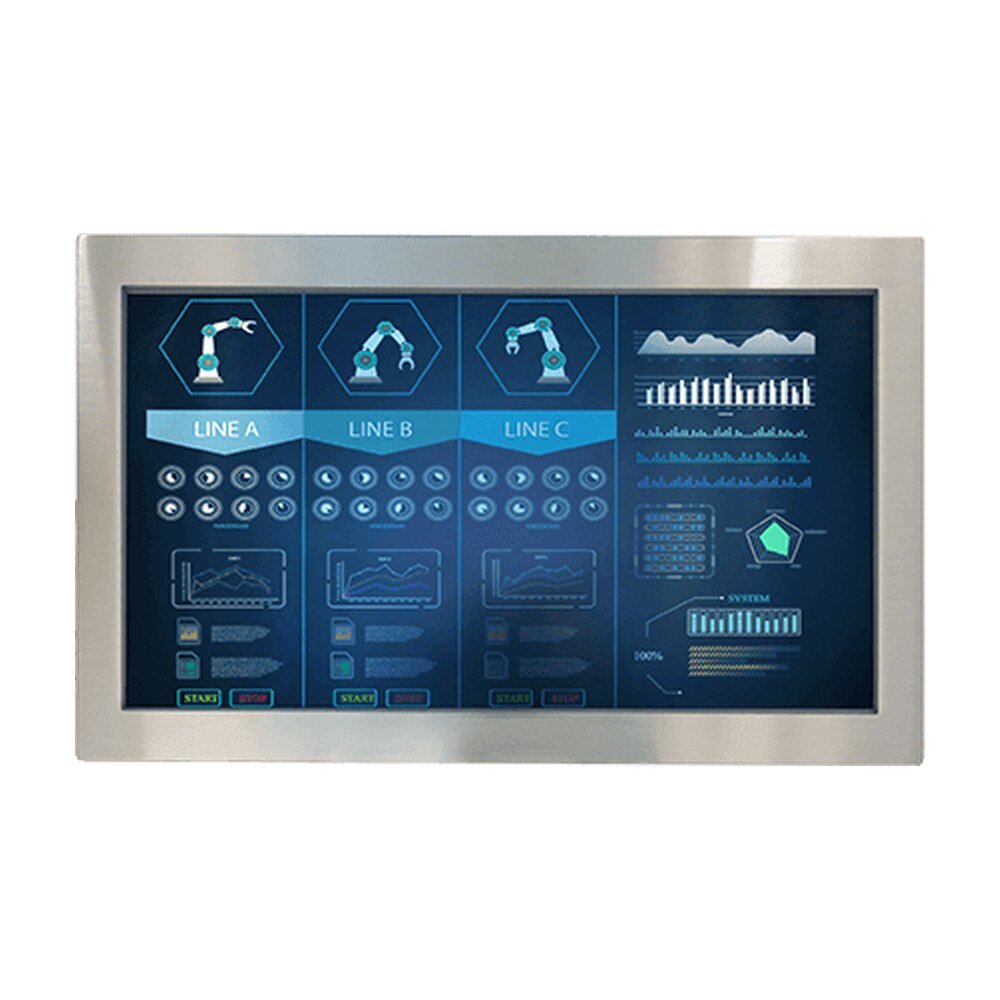

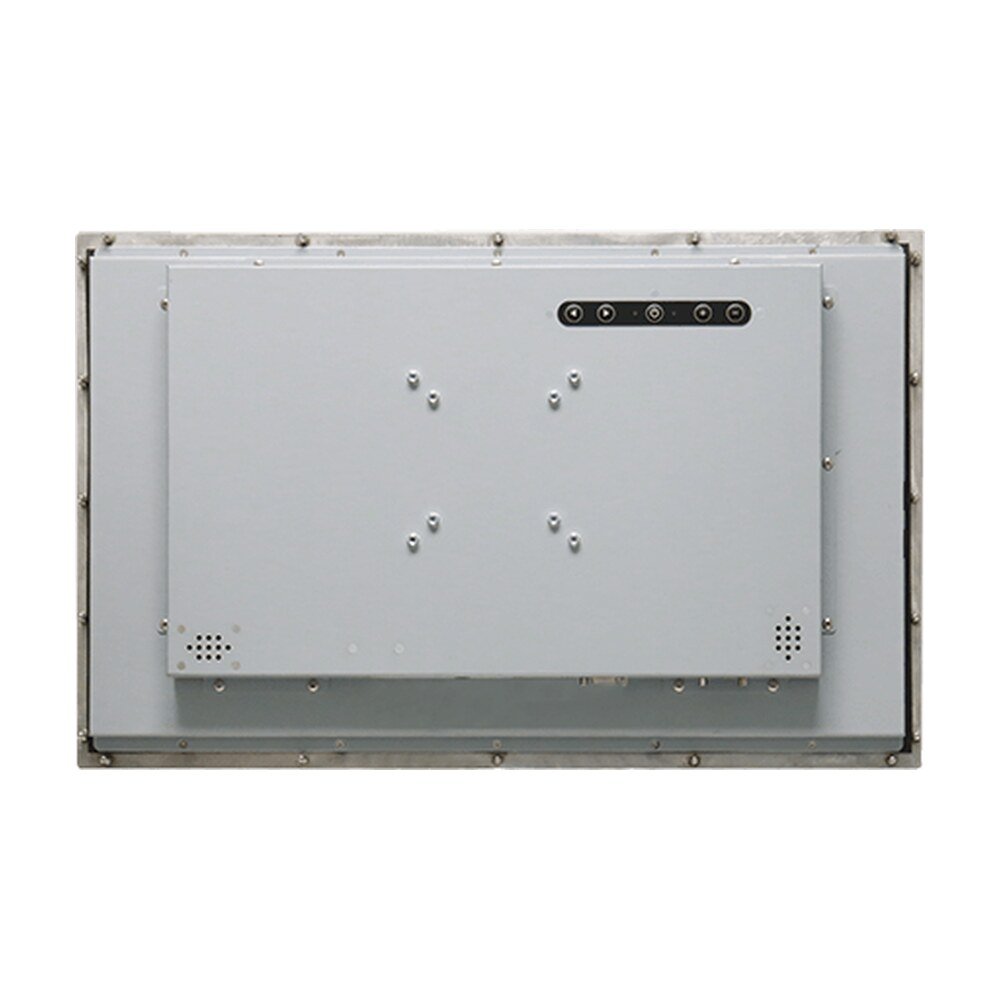

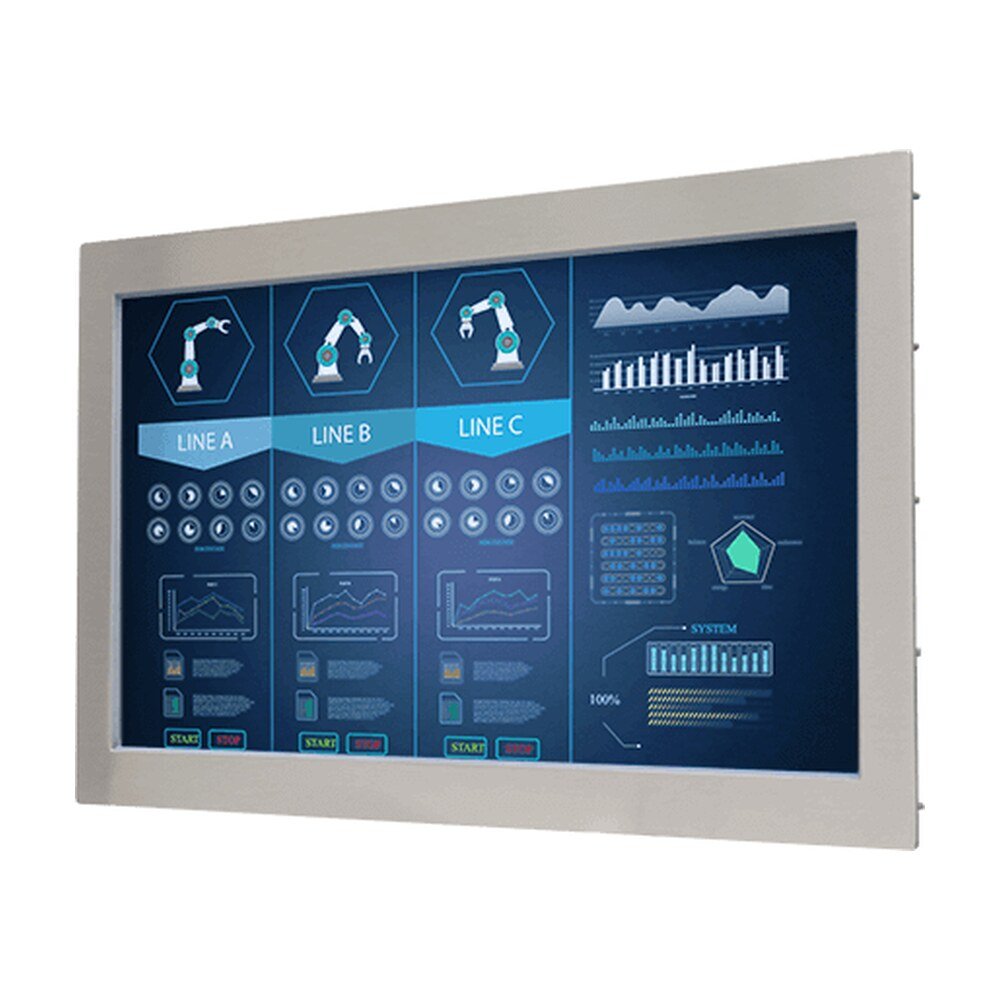

Explore Winmate W22L100-STA3, an industrial display featuring 21.5-inch display with 1920x1080 resolution for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22L100-STA3, an industrial display featuring 21.5-inch display with 1920x1080 resolution for industrial visualization and control rooms.
The display is highly resistant to cold temperatures, wet fingers, and dusty conditions. Plus, the protective glass serves to protect the display against sharp foreign objects, meaning the screen is still operable even with scratches on the surface.
The display complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in the Food, Beverage, and Pharmaceutical industries.
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
| Display | |
|---|---|
| Size | 21.5 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1920x1080 |
| Panel Brightness | 250 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 476.64x268.11 mm |
| Mechanical | |
| Dimension | 544 x 340 x 68 mm |
| Mounting | Panel mount, VESA Mount |
| Enclosure | Stainless front bezel |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional), 1x DVI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, External USB Cable For Touchscreen Control, External VGA Cable, External HDMI Cable, VESA Screws |
| Optional Accessory | External DVI Cable (Optional) |
| Power | |
| Power Rating | 12V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22L100-STA3 |
| Series | Stainless Panel Mount Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W22L100-STA3 |
|---|---|
| Category | Industrial Display, Stainless Series, Winmate |
| Size | 21.5 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 1920x1080 |
| Panel Brightness | 250 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 476.64x268.11 mm |
| Dimension | 544 x 340 x 68 mm |
| Mounting | Panel mount, VESA Mount |
| Enclosure | Stainless front bezel |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional), 1x DVI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, External USB Cable For Touchscreen Control, External VGA Cable, External HDMI Cable, VESA Screws |
| Optional Accessory | External DVI Cable (Optional) |
| Power Rating | 12V DC |
| Brand | Winmate |
| Manufacturer part number | W22L100-STA3 |
| Series | Stainless Panel Mount Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
