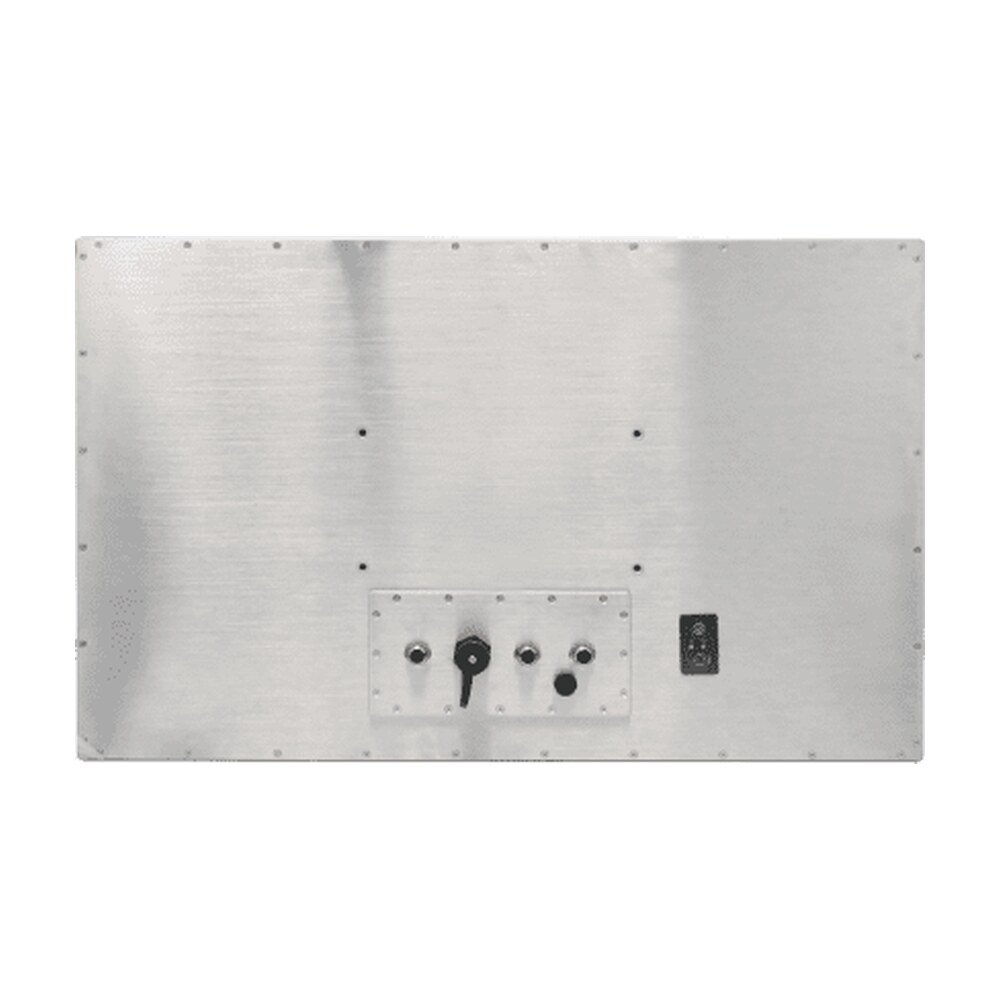

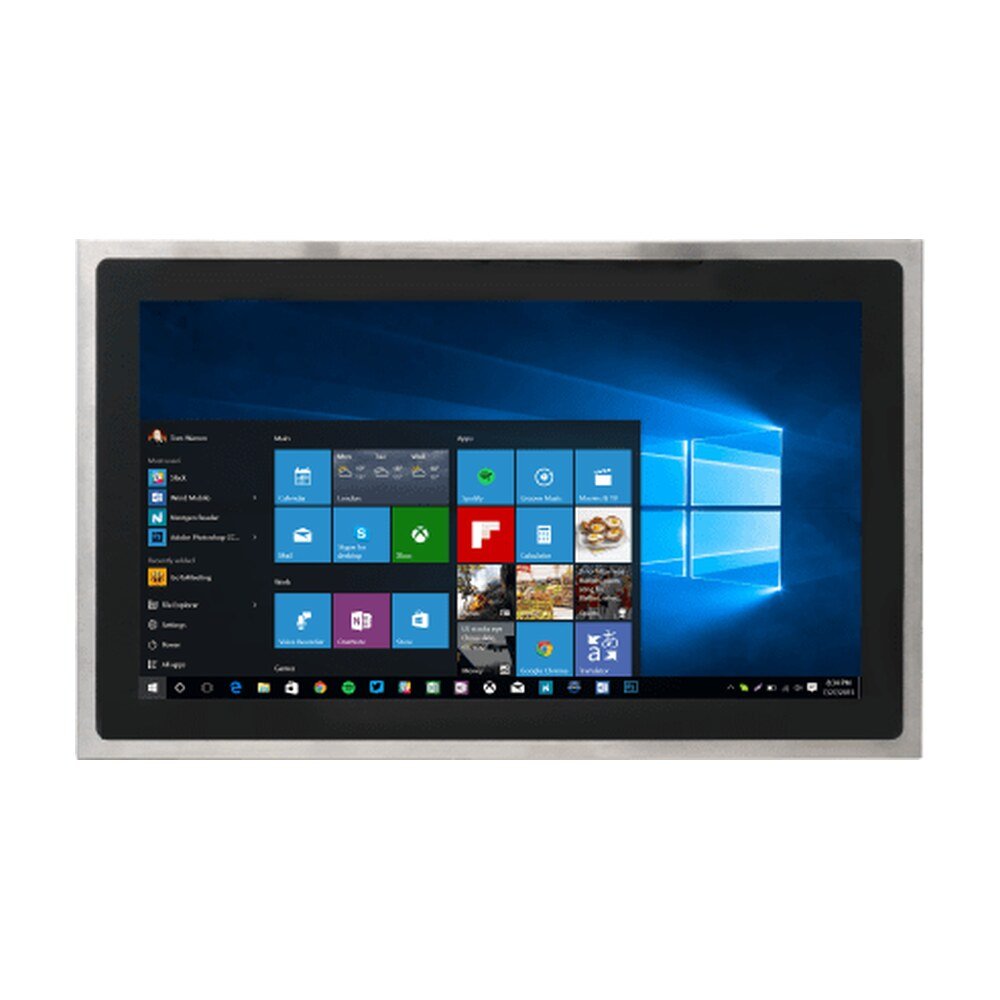

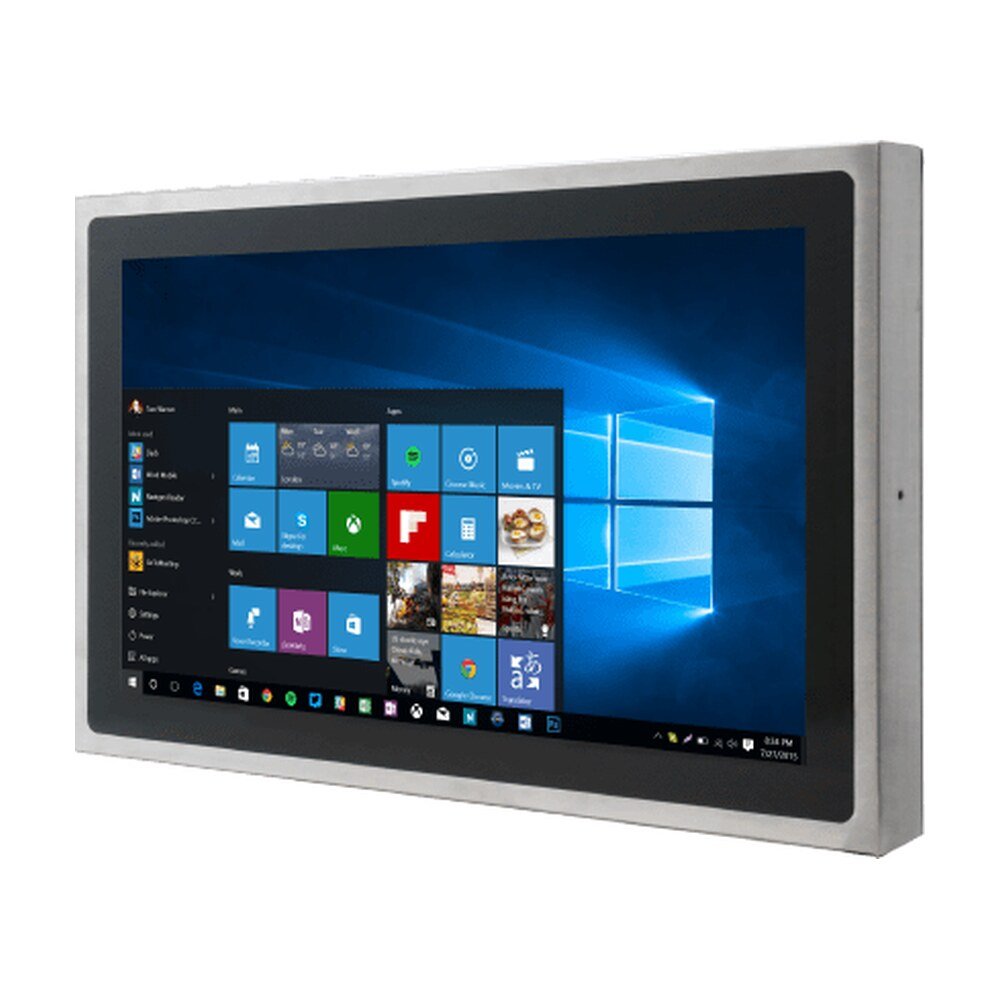

Explore Winmate W24IB3S-SPA269, an industrial panel PC featuring Intel® Celeron® N2930, 24-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IB3S-SPA269, an industrial panel PC featuring Intel® Celeron® N2930, 24-inch display with 1920x1080 resolution…
The Panel PC fully complies with IP69K water and dust resistance to survive splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
The wide range of stainless human-machine interfaces (HMI) and Panel PCs are widely used for automation processes in Food & Beverage applications and chemical factories.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 620 x 390 x 56 mm |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP69K |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x Waterproof Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter with waterproof connector, Power Cord, External USB cable with waterproof connector, External COM cable with waterproof connector, External LAN cable with waterproof connector, Waterproof caps, Manual, VESA screws |
| Power | |
| Power Rating | 12V DC (M12 type) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IB3S-SPA269 |
| Series | IP69K Stainless PCAP Chassis Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IB3S-SPA269 |
|---|---|
| Category | Industrial Panel PC and HMI, Stainless Panel PC, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 620 x 390 x 56 mm |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP69K |
| Certification | CE, FCC |
| USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x Waterproof Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Button | 1 x Power Button, 1 x Reset Button |
| Power Rating | 12V DC (M12 type) |
| Brand | Winmate |
| Manufacturer part number | W24IB3S-SPA269 |
| Series | IP69K Stainless PCAP Chassis Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
