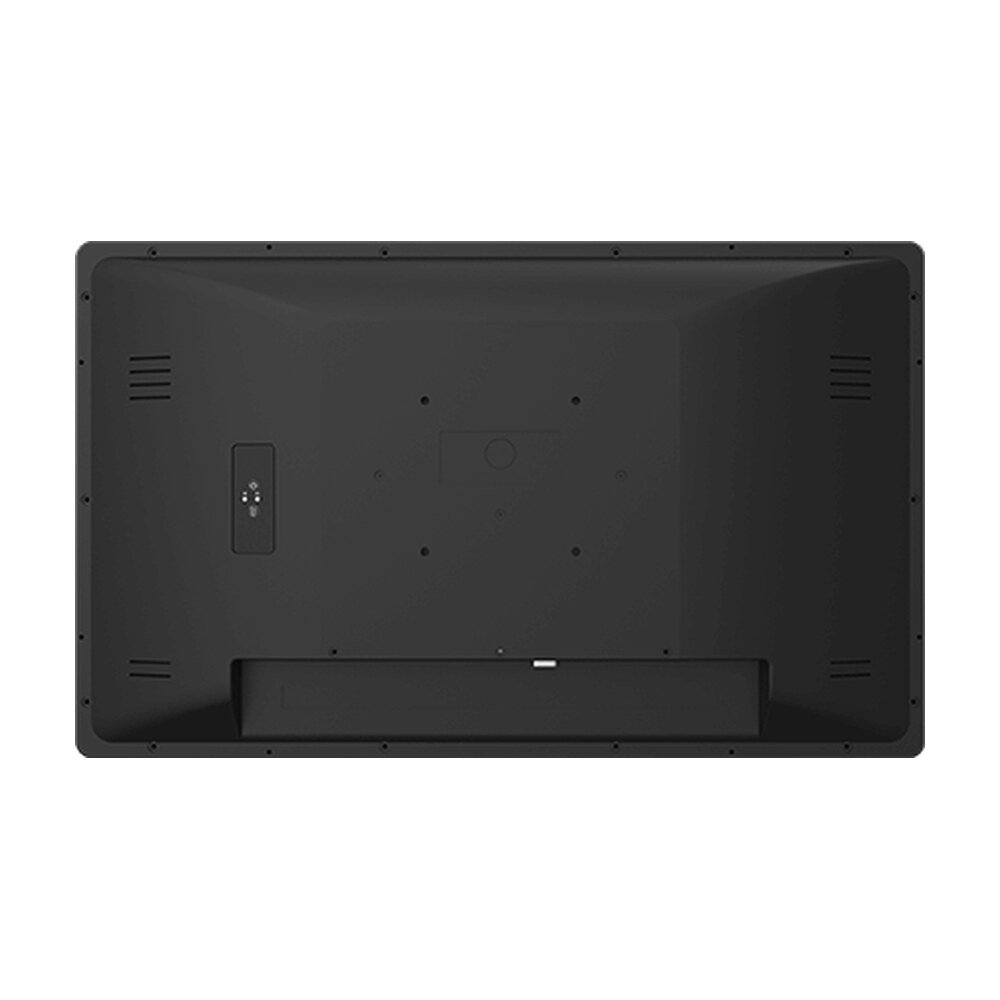

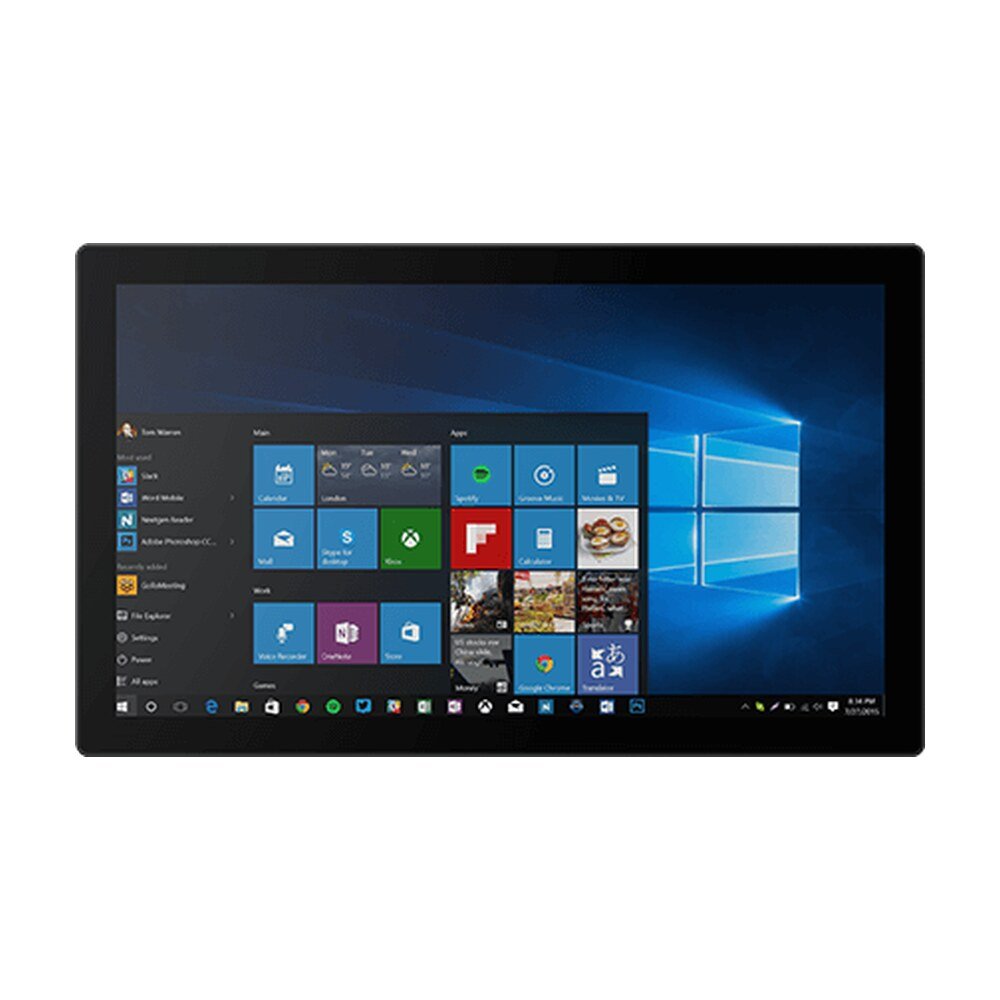

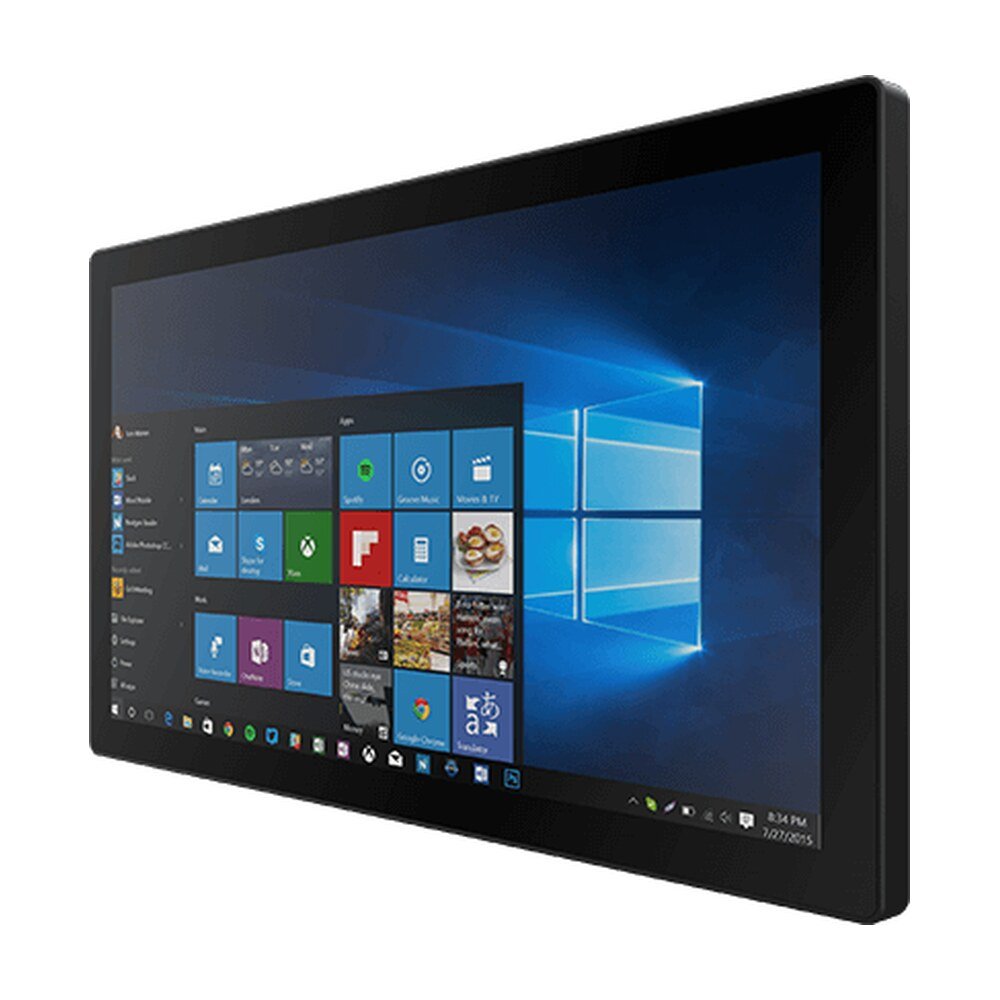

Explore Winmate W24IE3S-PTA2, an HMI panel PC featuring Intel® Celeron® N6211, 24-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IE3S-PTA2, an HMI panel PC featuring Intel® Celeron® N6211, 24-inch display, IP65 for machine control and factory automation.
Winmate Panel PCs adopt Intel® Processors to provide high computing performance with energy-efficient solutions. Top up with Windows IoT operating system, it offers easy software integration and opens vast possibilities for customization.
Winmate signature true flat surface design offers a stylish, elegant, aesthetically pleasing look that fits modern interiors and exteriors. It is easy to maintain, clean, and reduce clogged dust on the edges.
PT-Series HMIs support universal mounting options, such as a VESA mount for a wall, desk, and in-vehicle installation. Suitable for most industrial scenarios.
The glass cover provides excellent protection from scratches. P-Cap Touch supports multi-touch and can easily be controlled by fingers, improving the device’s convenience.
Winmate PT series HMI is sealed with IP65 on the front side to protect the device against possible damage from outer dust and water splash.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB (Default), 256GB (Optional), 512GB, 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 588 x 358 x 60 mm |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker (Optional) |
| Indicator | Power LED Indicator |
| Power | |
| Power Rating | 12V DC |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IE3S-PTA2 |
| Series | PT Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IE3S-PTA2 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB (Default), 256GB (Optional), 512GB, 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| Dimension | 588 x 358 x 60 mm |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker (Optional) |
| Indicator | Power LED Indicator |
| Power Rating | 12V DC |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord |
| Brand | Winmate |
| Manufacturer part number | W24IE3S-PTA2 |
| Series | PT Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
